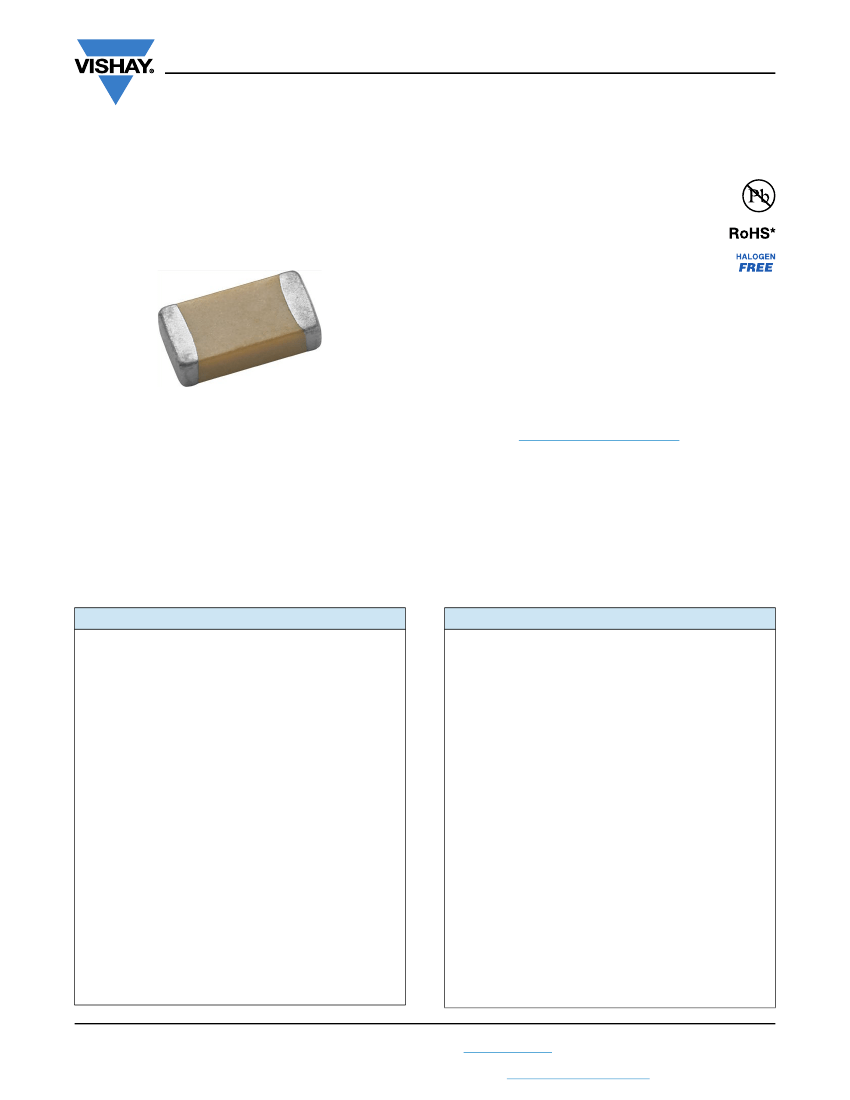

VJ Hi-Rel Series
www.vishay.com
Vishay Vitramon
Surface Mount Multilayer Ceramic Chip Capacitors
for High Reliability Applications
FEATURES
• Manufactured with a combination of design,
materials and tight process control to achieve
Available
very high field reliability
• C0G (NP0) and X7R / X5R dielectrics offered
Available
• MIL-PRF-55681 qualified production line
(1)
• Reliability maintenance testing to verify
consistent quality
(X5R max. test temperature: +85 °C)
• Available with group A and C screening
• Group C data can be reported
• Available with only group A screening
• Available with only voltage conditioning
• Customized certification available on request to meet your
quality requirements
• Available with tin-lead barrier terminations order code “L”
• Wet build process
• Reliable Noble Metal Electrode (NME) system
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Notes
* This datasheet provides information about parts that
are RoHS-compliant and / or parts that are non-RoHS-compliant.
For example, parts with lead (Pb) terminations are not
RoHS-compliant. Please see the information / tables in this
datasheet for details
(1)
External visual inspection per EIA-595 standard
APPLICATIONS
• System critical medical applications
• Mission critical military and aerospace applications
ELECTRICAL SPECIFICATIONS
C0G (NP0)
X7R / X5R
GENERAL SPECIFICATION
Note
Electrical characteristics at +25 °C unless otherwise specified
GENERAL SPECIFICATION
Note
Electrical characteristics at +25 °C unless otherwise specified
Operating Temperature:
-55 °C to +125 °C
Capacitance Range:
1.0 pF to 39 nF
Voltage Range:
10 V
DC
to 600 V
DC
Temperature Coefficient of Capacitance (TCC):
0 ppm/°C ± 30 ppm/°C from -55 °C to +125 °C
Dissipation Factor (DF):
0.1 % maximum at 1.0 V
RMS
and
1 MHz for values
1000 pF
0.1 % maximum at 1.0 V
RMS
and
1 kHz for values > 1000 pF
Insulating Resistance:
at +25 °C 100 000 M min. or 1000
F
whichever is less
at +125 °C 10 000 M min. or 100
F
whichever is less
Aging Rate:
0 % maximum per decade
Dielectric Strength Test:
performed per method 103 of EIA 198-2-E.
Applied test voltages
200 V
DC
-rated:
250 % of rated voltage
500 V
DC
-rated:
200 % of rated voltage
630 V
DC
-rated:
150 % of rated voltage
Operating Temperature:
-55 °C to +125 °C
Capacitance Range:
100 pF to 6.8 μF
Voltage Range:
6.3 V
DC
to 500 V
DC
Temperature Coefficient of Capacitance (TCC):
X5R: ± 15 % from -55 °C to +85 °C, with 0 V
DC
applied
X7R: ± 15 % from -55 °C to +125 °C, with 0 V
DC
applied
Dissipation Factor (DF):
6.3 V, 10 V ratings: 5 % maximum at 1.0 V
RMS
and 1 kHz
16 V, 25 V ratings: 3.5 % maximum at 1.0 V
RMS
and 1 kHz
50 V ratings: 2.5 % maximum at 1.0 V
RMS
and 1 kHz
Insulating Resistance:
at +25 °C 100 000 M min. or 1000
F
whichever is less
at +125 °C 10 000 M min. or 100
F
whichever is less
Aging Rate:
1 % maximum per decade
Dielectric Strength Test:
performed per method 103 of EIA 198-2-E.
Applied test voltages
250 V
DC
-rated:
250 % of rated voltage
500 V
DC
-rated:
min. 150 % of rated voltage
630 V
DC,
1000 V
DC
-rated:
150 % of rated voltage
1500 V
DC
, 3000 V
DC
-rated:
120 % of rated voltage
Revision: 07-Nov-17
Document Number: 45200
1
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
VJ Hi-Rel Series
www.vishay.com
Vishay Vitramon
MAXIMUM VOLTAGE
(V)
100
200
500
600
500
500
500
500
500
500
16
6.3
100
100
200
500
500
500
500
500
500
500
500
CAPACITANCE
MINIMUM
1.0 pF
1.0 pF
1.0 pF
1.0 pF
1.0 pF
22 pF
39 pF
100 pF
100 pF
120 pF
27 nF
120 nF
100 pF
270 pF
150 pF
680 pF
1.0 nF
1.0 nF
3.3 nF
10 nF
10 nF
10 nF
15 nF
MAXIMUM
180 pF
1.5 nF
3.3 nF
10 nF
10 nF
10 nF
22 nF
33 nF
33 nF
39 nF
47 nF
150 nF
22 nF
100 nF
390 nF
1.0 μF
1.0 μF
270 nF
1.0 μF
2.7 μF
2.2 μF
4.7 μF
6.8 μF
QUICK REFERENCE DATA
DIELECTRIC
CASE
0402
0603
0805
1206
1210
1808
1812
1825
2220
2225
0402
0603
0402
0603
0805
1206
1210
1808
1812
1825
2220
2225
3640
C0G (NP0)
X5R
X7R
ORDERING INFORMATION
VJ1206
CASE
CODE
0402
0603
0805
1206
1210
1808
1812
1825
2220
2225
3640
Y
DIELECTRIC
104
J
L
TERMINATION
A
DC
VOLTAGE
RATING
(1)
A
MARKING
T
PACKAGING
###
(2)
PROCESS
CODE
CAPACITANCE CAPACITANCE
NOMINAL
TOLERANCE
C = ± 0.25 pF
D = ± 0.50 pF
F=±1%
G=±2%
H=±3%
J=±5%
K = ± 10 %
M = ± 20 %
Note:
C0G (NP0):
C, D < 10 pF
F, G, H, J, K
10 pF
X7R, X5R:
J, K, M
A = C0G (NP0) Expressed in
G = X5R
picofarads (pF).
Y = X7R
The first two
digits are
significant, the
third is a
multiplier.
Examples:
1R0 = 1.0 pF
103 =
10 000 pF
104 =
100 000 pF
X = Ni barrier
100 % tin plated
L = Ni barrier
with tin lead
plated finish
min. 4 % lead
F, E = AgPd
(3)
N = non-magnetic
Y = 6.3 V A = unmarked
Q = 10 V
J = 16 V
X = 25 V
A = 50 V
B = 100 V
C = 200 V
P = 250 V
E = 500 V
N = 600 V
C = 7" reel /
68, 5G, 2L,
paper tape
2M, 2MP
T = 7" reel /
plastic tape
J = 7" reel
(low quantity)
P = 11 1/4" / 13"
reel / paper tape
R = 11 1/4" / 13"
reel / plastic tape
O = 7" reel /
flamed paper tape
I = 11 1/4" /
13" reel /
flamed paper tape
Note:
“I” and “O” are
used for “F”, “N”
terminations, sizes
0402 / 0603 / 0805
Notes
(1)
DC voltage rating should not be exceeded in application. Other application factors may affect the MLCC performance.
Consult for questions:
mlcc@vishay.com
(2)
68:
MIL-PRF-55681 Group A C of I, subgroups 1, 2, 4 attribute data provided with shipment.
No Group C testing performed
5G:
Voltage conditioning only. Generic CoC (no data)
2L:
MIL-PRF-55681 Group A C of I, provided with shipment.
Group C testing is performed based on MIL-PRF-55681 periodic maintenance schedule.
No Group C data provided
2M:
MIL-PRF-55681 Group A, subgroups 1, 2, 4. Group A subgroups 1, 2, 4 attribute data provided with shipment.
MIL-PRF-55681 Group C, testing subgroups 1, 2, 3, 5 is performed on each lot. Shipment held until tests are complete.
No Group C data provided
2MP:
MIL-PRF-55681 Group A, subgroups 1, 2, 4. Group A subgroups 1, 2, 4 attribute data provided with shipment.
MIL-PRF-55681 Group C, testing subgroups 1, 2, 3, 5 performed on each lot. Shipment held until tests are complete.
Group C test summary data is included with shipment (fee applies)
(3)
Termination code “F” is for conductive epoxy / reflow assembly.
Termination code “E” is for conductive epoxy assembly only
Revision: 07-Nov-17
Document Number: 45200
2
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
