CDPH4D19FNP-8R0MC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDPH4D19FNP-8R0MC

CDPH4D19FNP-8R0MC: DescriptionFixed Inductors 8uH 0.9A 20% SMD LO PROFILE IND; CategoryPassive components inductor; File Size168KB，3 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDPH4D19FNP-8R0MC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CDPH4D19FNP-8R0MC	-	-	View	Buy Now

CDPH4D19FNP-8R0MC Overview

Fixed Inductors 8uH 0.9A 20% SMD LO PROFILE IND

CDPH4D19FNP-8R0MC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	1919
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	1919
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.056 Ω
Nominal inductance(L)	8 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDPH4D19F
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	2 mm
Package length	4.9 mm
Package form	SMT
Package width	4.9 mm
method of packing	TR, 7 Inch
Maximum rated current	2.68 A
series	CDPH4D19F
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	20%

Preview

Download Datasheet

View All

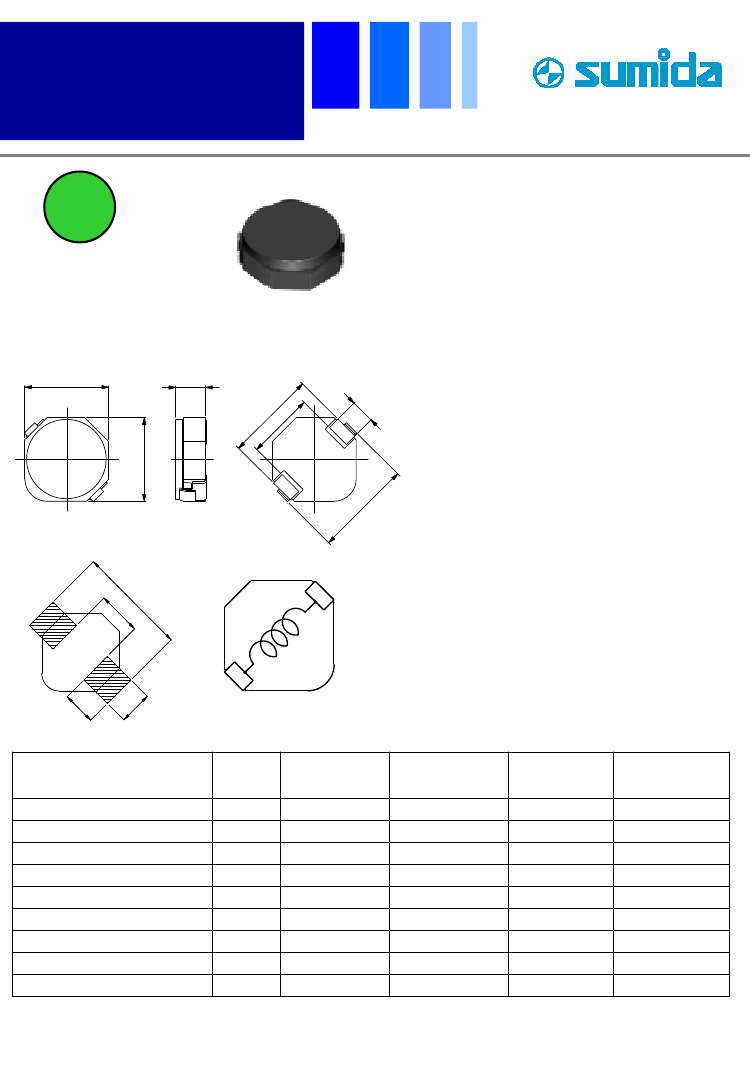

SMD Power Inductor

CDPH4D19F

Description

• Ferrite drum core construction.

• Magnetically shielded.

• L×W×H: 5.2×5.2×2.0mm Max.

• Product weight: 160mg(Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

RoHS

Dimension - [mm]

4.9±0.3

2.0 Max.

4.9 ±0.3

Environmental Data

• Operating temperature range: -40℃~+105℃

(including coil’s self temperature rise)

• Storage temperature range: -40℃½+105℃

• Solder reflow temperature: 260

℃

peak.

Packaging

• Carrier tape and reel packaging.

• 7.0”diameter reel

• 1000pcs per reel

Applications

• Ideally used in Notebook PC,MP3, Mobile

Phone, DSC/DVC, etc as DC-DC Converter

inductors.

Land pattern and Schematics - [mm]

②

①

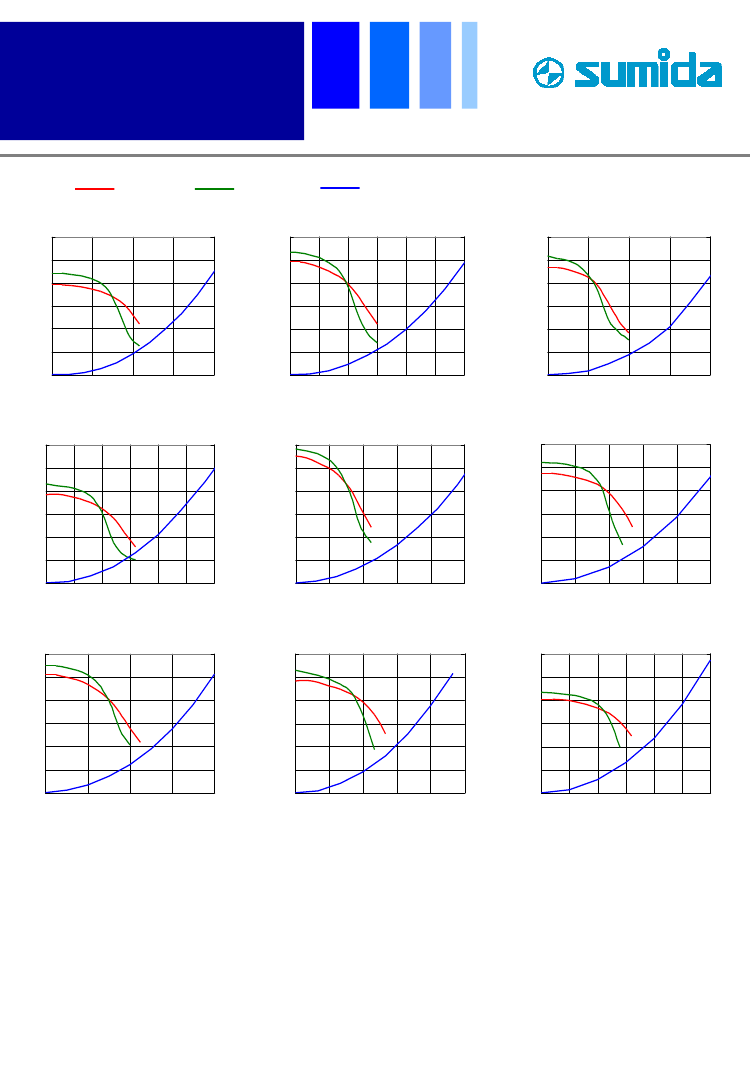

Electrical Characteristics

Part Name

CDPH4D19FNP-3R3MC

CDPH4D19FNP-4R7MC

CDPH4D19FNP-6R8MC

CDPH4D19FNP-8R0MC

CDPH4D19FNP-100MC

CDPH4D19FNP-150MC

CDPH4D19FNP-220MC

CDPH4D19FNP-330MC

CDPH4D19FNP-470MC

Stamp

3R3

4R7

6R8

8R0

100

150

220

330

470

Inductance

(μH)

[within]

※1

3.3±20％

4.7±20％

6.8±20％

8.0±20％

10±20％

15±20％

22±20％

33±20％

47±20％

D.C.R .(mΩ)

Max. (Typ.)

(at 20℃)

33(26)

38(30)

50(40)

56(45)

65(52)

95(75)

135(108)

200(160)

293(234)

Saturation

Current

（A）※2

1.50

1.15

1.00

0.90

0.80

0.66

0.54

0.43

0.36

Temperature

Rise Current

(A)

※3

3.80

3.30

3.02

2.68

2.32

1.88

1.44

1.25

1.03

※1.

Inductance measuring condition: at 100kHz.

※2.

Saturation current: The value of D.C. current when the inductance decreases to 65% of it’s nominal value.

※3.

Temperature rise current: The value of D.C. current when the temperature rise is

△t＝40℃(Ta＝20℃).

Page 1 of 3

- 0 0.

.3 5

Revised: 6-Jan-17
