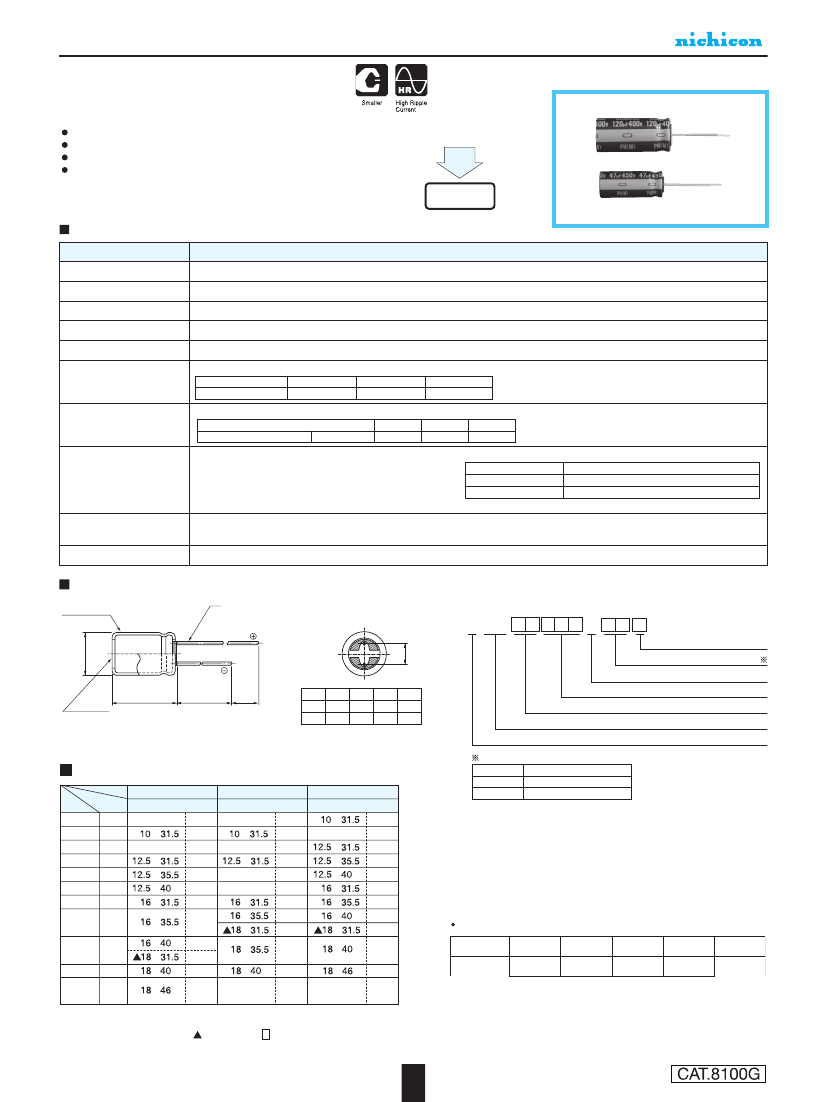

ALUMINUM ELECTROLYTIC CAPACITORS

UPH

Specifications

Item

Category Temperature Range

Rated Voltage Range

High Voltage, Miniature-sized

High ripple current.

Load life of 2000 hours at 105°C.

Suited for ballast applications.

Compliant to the RoHS directive (2011/65/EU).

UPZ

Smaller

UPH

Performance Characteristics

–25 to +105°C

400 to 450V

27 to 220µF

± 20% at 120Hz, 20°C

After 1 minute's application of rated voltage at 20°C, leakage current is not more than 0.04CV+100 (µA).

Measurement frequency : 120Hz at 20°C

Rated voltage (V)

tan

(MAX.)

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

Tangent of loss angle (tan

δ)

400

0.15

420

0.20

400

450

0.20

420

450

Capacitance change

tan

Leakage current

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Impedance ratio ZT / Z20 (MAX.) Z–25°C / Z+20°C

Endurance

The specifications listed at right shall be met when the

capacitors are restored to 20°C after D.C. bias plus rated

ripple current is applied for 2000 hours at 105°C, the peak

voltage shall not exceed the rated voltage.

Within ± 20% of the initial capacitance value

200% or less than the initial specified value

Less than or equal to the initial specified value

Shelf Life

Marking

After storing the capacitors under no load at 105˚C for 1000 hours and then performing voltage treatment based on JIS C

5101-4 clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.

Printed with white color letter on dark brown sleeve.

Radial Lead Type

Sleeve (P.E.T.)

Type numbering system (Example : 400V 220µF)

10 11

U PH 2 G 2 2 1 M HD

φD

±0.5 MAX.

±0.5

Size code

Configuration

(mm)

Capacitance tolerance (±20%)

Rated capacitance (220µF)

Rated voltage (400V)

Series name

Type

Configuration

Pb-free leadwire Pb-free PET sleeve

Pressure

relief vent

L+

2.0 MAX.

MIN

φD

φd

5.0

0.6

12.5

5.0

0.8

7.5

0.8

7.5

0.8

•

Please refer to page 20 about the end seal configuration.

Dimensions

Cap

Code

400

420

330

470

540

620

710

800

920

890

1060

1200

450

12.5 to 18

100

120

150

180

220

270

330

470

560

680

820

101

121

151

181

221

320

460

300

430

490

560

640

730

820

800

970

1090

Rated

ripple

690

780

800

920

1040

Case size

φD

L (mm)

Frequency coefficient of rated ripple current

Frequency

Coefficient

60Hz

0.80

120Hz

1.00

500Hz

1.25

1kHz

1.40

10kHz or more

1.50

Rated ripple current (mArms) at 105°C 120Hz

: In this case, 6 will be put at 12th digit of type

numbering system.

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

244
