AT89C1051-24SIT/R datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> AT89C1051-24SIT/R

AT89C1051-24SIT/R: DescriptionMicrocontroller, 8-Bit, FLASH, 24MHz, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOIC-20; CategoryThe embedded processor and controller Microcontrollers and processors; File Size322KB，14 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

AT89C1051-24SIT/R Overview

Microcontroller, 8-Bit, FLASH, 24MHz, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOIC-20

AT89C1051-24SIT/R Parametric

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOP,
Contacts	20
Reach Compliance Code	unknown
Has ADC	NO
Address bus width	8
bit size	8
maximum clock frequency	24 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDSO-G20
length	12.8 mm
Number of I/O lines	15
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
ROM programmability	FLASH
Maximum seat height	2.65 mm
speed	24 MHz
Maximum supply voltage	6 V
Minimum supply voltage	4 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

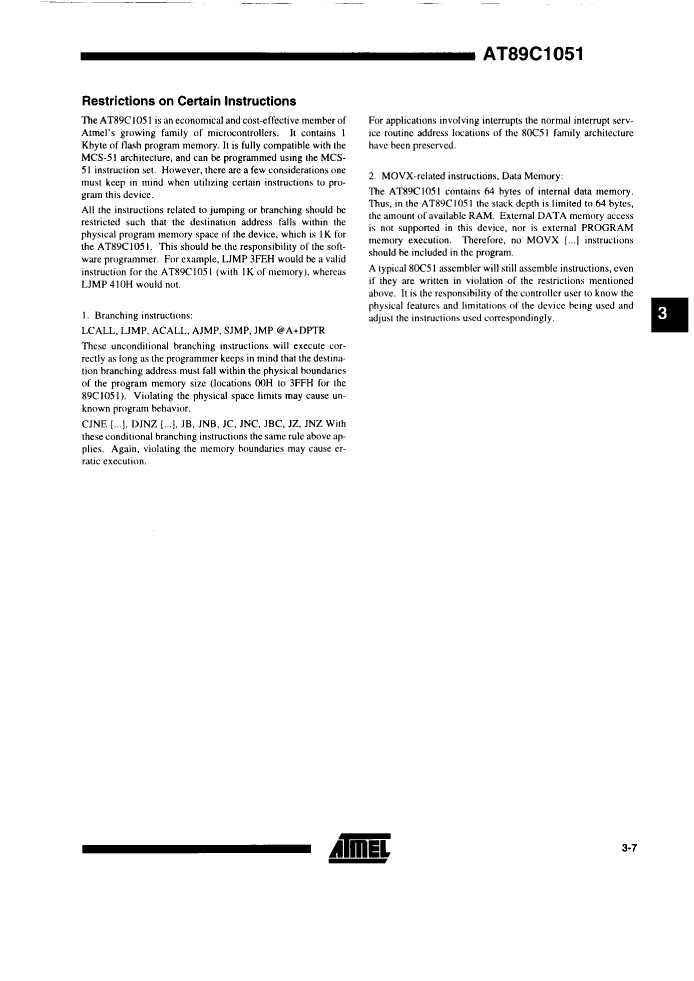

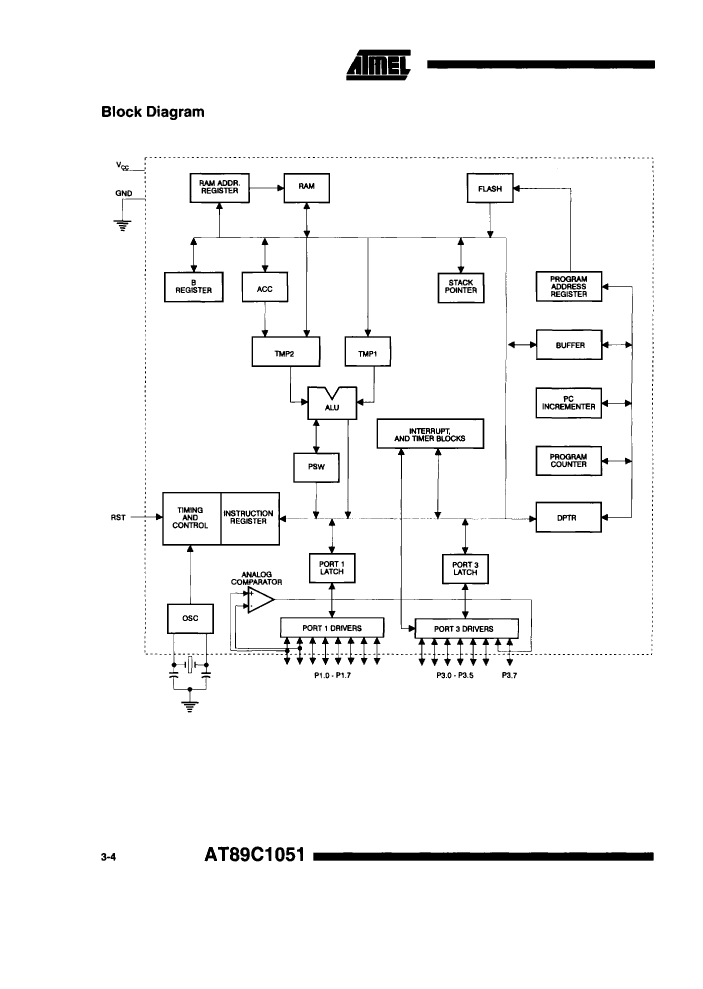

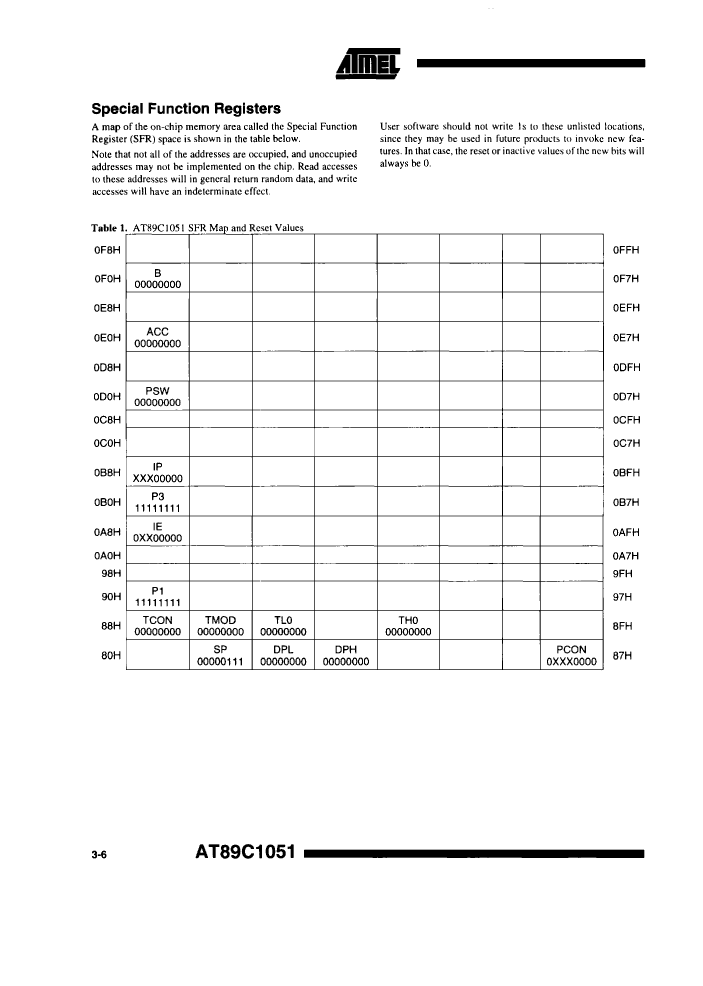

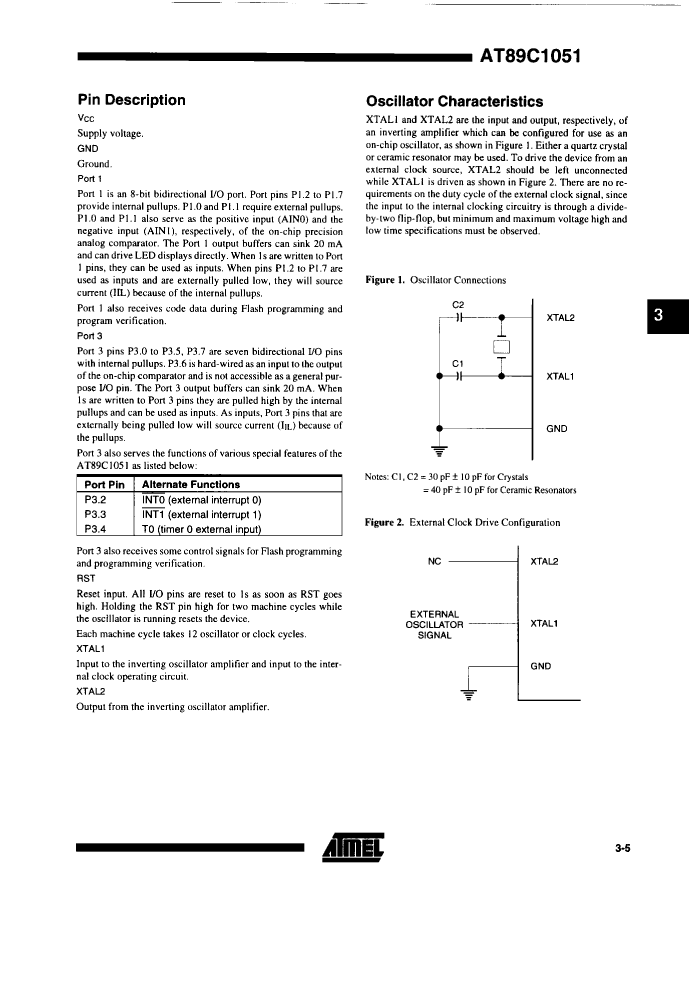

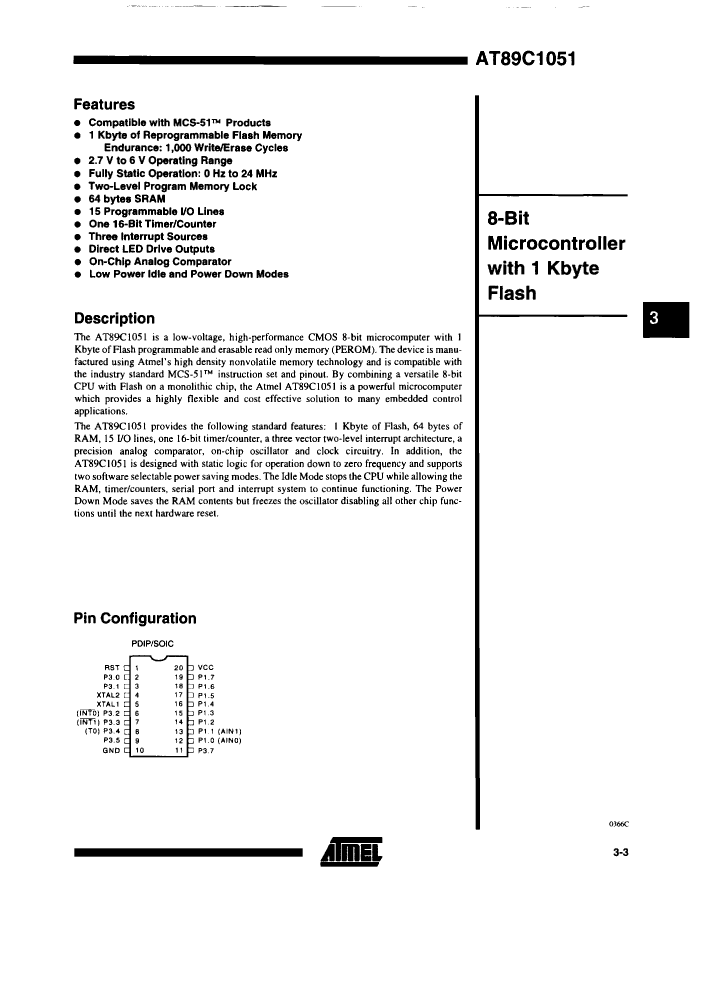

Preview

Download Datasheet

View All

AT89C1051-24SIT/R Related Products

	AT89C1051-24SIT/R	AT89C1051-24SCT/R	AT89C1051-12SIT/R	AT89C1051-12SCT/R
Description	Microcontroller, 8-Bit, FLASH, 24MHz, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOIC-20	Microcontroller, 8-Bit, FLASH, 24MHz, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOIC-20	Microcontroller, 8-Bit, FLASH, 12MHz, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOIC-20	Microcontroller, 8-Bit, FLASH, 12MHz, CMOS, PDSO20, 0.300 INCH, PLASTIC, SOIC-20
Parts packaging code	SOIC	SOIC	SOIC	SOIC
package instruction	SOP,	SOP,	SOP,	SOP,
Contacts	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO
Address bus width	8	8	8	8
bit size	8	8	8	8
maximum clock frequency	24 MHz	24 MHz	12 MHz	12 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
length	12.8 mm	12.8 mm	12.8 mm	12.8 mm
Number of I/O lines	15	15	15	15
Number of terminals	20	20	20	20
Maximum operating temperature	85 °C	70 °C	85 °C	70 °C
PWM channel	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	FLASH	FLASH	FLASH	FLASH
Maximum seat height	2.65 mm	2.65 mm	2.65 mm	2.65 mm
speed	24 MHz	24 MHz	12 MHz	12 MHz
Maximum supply voltage	6 V	6 V	6 V	6 V
Minimum supply voltage	4 V	4 V	2.7 V	2.7 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	7.5 mm	7.5 mm	7.5 mm	7.5 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1	1	1
