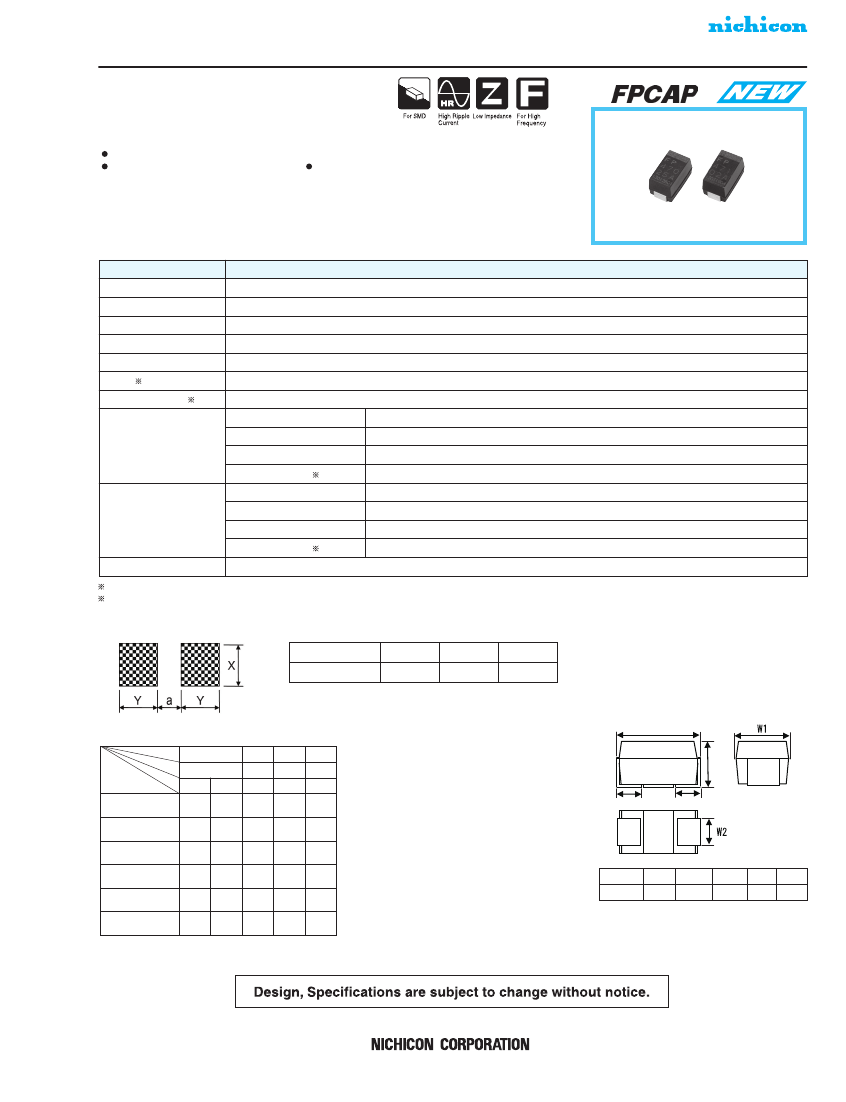

CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS
WA / WB
<
Applications
>
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Tangent of loss angle (tan
δ)
ESR ( 1)
Leakage Current ( 2)
series
Resin-molded Chip
(7.3
×
4.3
×
4.3)
By using Functional Polymer cathode, Frequency & Temp. characteristics are greatly improved.
Low ESR at a high frequency range.
High ripple current capability.
Switching Power Supply and DC/DC Converter.
Back up Power Supplies of CPU(VRM etc.)
Miniature high Power Supply.
<
Environmental Correspondence
>
Compliant to the RoHS directive
(2011/65/EU).
The Lead-free of terminal plating.
■ Specifications
Performance Characteristics
–55 to +105°C
2.0 to 25V
47 to 470µF
±20% at 120Hz, 20°C
Less than or equal to the specified value at 120Hz, 20°C
Less than or equal to the specified value at 100kHz, 20°C
Less than or equal to the specified value.
Test condition
Endurance
Capacitance change
tan
δ
Leakage current ( 2)
Test condition
Damp Heat
(Steady State)
Capacitance change
tan
δ
Leakage current ( 2)
Failure Rate
0.5% / 1000Hrs. Max. (60%CL)
After 2 minutes' application of rated voltage at 20°C
105°C, rated voltage 1000Hrs.
Within ±20% of initial value before test
150% or less than the initial specified value
Less than or equal to the initial specified value
60°C, 90 to 95%RH, No Bias, 500Hrs.
Within +50% to -20% of initial value before test
200% or less than the initial specified value
300% or less than the initial specified value
1 ESR should be measured at both of the terminal ends closest to the capacitor body.
2 Conditioning : If any doubt arises, measure the leakage current after the voltage treatment of applying DC rated voltage continuously to the capacitor for 120
minutes at 105°C.
■ Recommended land Size
L
×
W
×
H
7.3
×
4.3
×
4.3
X
2.9
Y
2.05
a
4.1
(mm)
■ Size Code(ESR)
R.V.(V)
S.V.(
V)
se
rie
[Upper value : Size Code, Lower value : ESR(m
Ω
)]
2.0
2.3
WA
WB
6.3
7.2
WA
16
18.4
WA
25
28.7
WA
E
(60)
E
(60)
L
H
Z
Z
Cap [µF]
47
68
100
220
330
470
s
E
(55)
E
(55)
E
(15)
E
(15)
E
(9)
E
(6)
(mm)
Size Code L±0.2
E
7.3
W1±0.2 W2
±0.1
H
±0.2
Z±0.2
4.3
2.4
4.3
1.3
