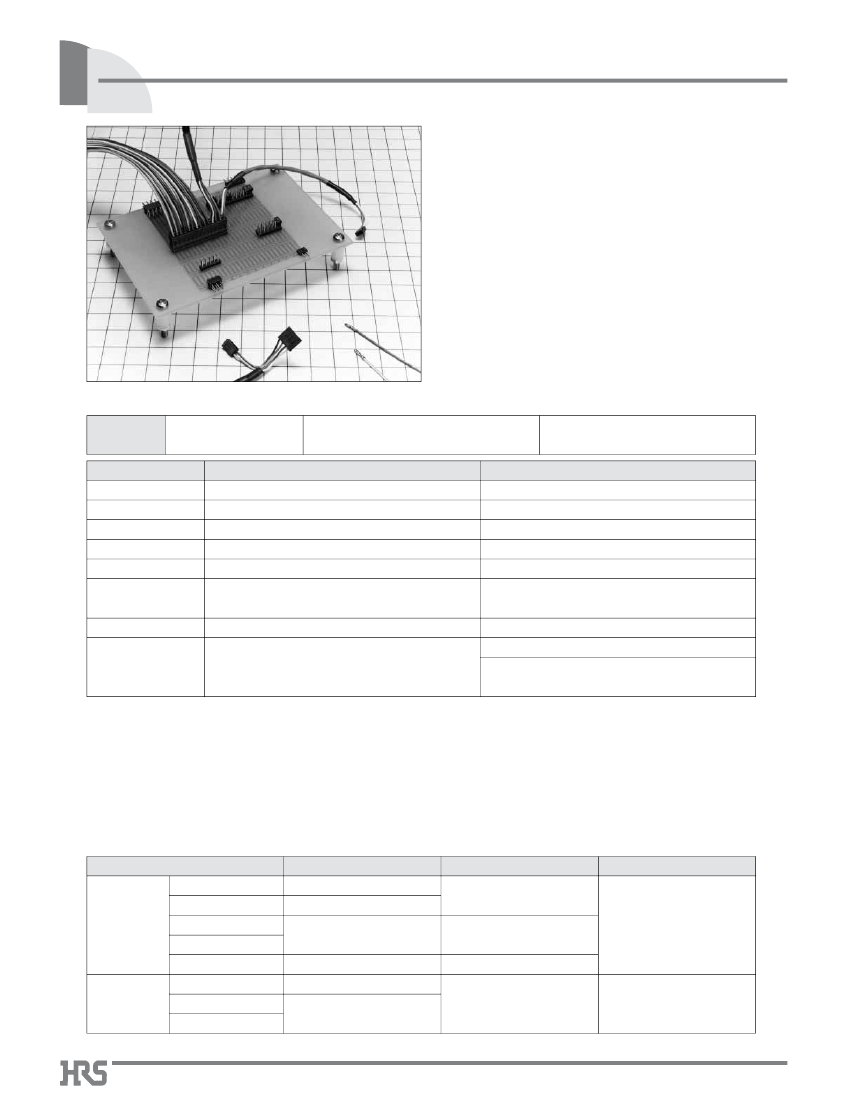

2mm Pitch Miniature Connector
A3 • A4 Series
■Features
1. Miniature Type and High Density Mounting
These connectors are designed in a miniature and light
weight product, and mounted in the high density. The
crimping case is structured in the 2mm pitch grid, so that
connectors can be arranged for use.
2. Variation in Number of Contacts
Jan.1.2018 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Nov.1.2016 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
In addition to the dip type, SMT and crimping types are
available with broad variations.
3. Stacking Variation
When the connector is used for board to board, set 6mm
between boards in conjunction with the pin header A3B,
or 5.1mm between boards in conjunction with the pin
header A3C.
■Product
Specifications
Rating
Item
1. Insulation Resistance
1000M ohms min.
2. Withstanding voltage
No flashover or insulation breakdown.
3. Contact Resistance
4. Vibration
15m ohms max
No electrical discontinuity of 10μs or more
Current rating 1A
Voltage rating 200V AC
Operating Temperature Range
–55
to
+85ç
(Note 1) Storage Temperature Range
–10
to
+60ç
(Note 2)
Operating Moisture Range
Specification
500V DC
650V AC/1 minute
0.1A
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(–65ç: 30 minutes
➝
15 to 35ç: 5 minutes max.
(125ç:
30 minutes
➝
15 to 35ç: 5 minutes max.) 5 cycles
100 cycles
Solder bath: 260ç for 10 seconds
No deformation of components affecting performance.
Manual soldering: DIP: 350ç for 3 seconds
SMT: 360ç for 5 seconds
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature Range
and Humidity range covers non conducting condition of installed connectors in storage, shipment or during transportation.
Note 3. Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and
specifications for a specific part number shown.
40 to 80%
Storage Humidity Range
Condition
40 to 70% (Note 2)
5.
Humidity (Steady state)
Insulation resistance: 1000M ohms min.
6.
Humidity resistance
(Steady state)
7. Operating Life
8. Resistance to
Soldering heat
No damage, cracks, or parts looseness.
Contact resistance: 20m ohms max.
■Applications
VTR, vehicle telephones, and other various kinds of electronic equipment
■Material
Part
Pin header (Through hole)
Receptacle (Through hole)
Insulator
Pin header (SMT)
Receptacle (SMT)
Crimping socket
Pin header
Contact
Receptacle
Crimping contact
PPS (Note)
PBT
Brass
Phosphor bronze
Selective gold plated
---------------
Material
Polyamid
PBT
Finish
Black
Light brown
Black
UL94V-0
Remarks
Note : Slight variations in color of the plastic compounds do not affect form ,fit or function of the connector.
C10
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com,
Pitch Miniature Connector
A3 • A4 Series●2mm
or contact your Hirose sales representative.
■Ordering
Information
●
Pin Header (DIP type)
A3B - 12 P - 2 DS
1
2
3
4
5
1
Series Name: A3B : double row
A4B : single row
A3C : double row (low profile product)
Jan.1.2018 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Nov.1.2016 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2
Number of contacts: Double row...4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30,
32, 44, 40, 50 (44 and 50 contacts correspond to the right angle
type only. Straight angle type corresponds to the A3C type.)
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products
Series●2mm Pitch
will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
A3 • A4
have been discontinued, or
Miniature Connector
●Crimping
Contact
A 3B - 2630 SCFC
1
2
3
4
1
2
3
Series Name: A
Series No.: 3B
Applicable cable size
2630: AWG#26 to AWG#30
3236: AWG#32 to AWG#36
4
Packaging type
SCFC: Reel
SCC: Bag
Jan.1.2018 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Nov.1.2016 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
●
Pin Header (SMT type)
A 3 A - 44 P A - 2 SV
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Series Name: A
Series No.: 3
Positioning Boss:A : With boss
No symbol : Without boss
Number of contacts: 4, 6, 8, 10, 12, 14, 16, 18, 20, 24, 28, 30, 32, 44, 40, 50
P: Pin header
A: Selective gold plating
Contact pitch : 2mm
Contact type
SV: Board virtical type
●
Receptacle (SMT type)
A 3 A - 32 D A - 2 SV
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Series Name: A
Series No.: 3
Positioning Boss: A : With boss
No symbol : Without boss
Number of contacts: 4, 6, 8, 10, 12, 14, 16, 18, 20, 24, 28, 30, 32
D: Receptacle
A: Selective gold plating
Contact pitch : 2mm
Contact type
SV: Virtical type
C12
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com,
Pitch Miniature Connector
A3 • A4 Series●2mm
or contact your Hirose sales representative.
■Pin
Header

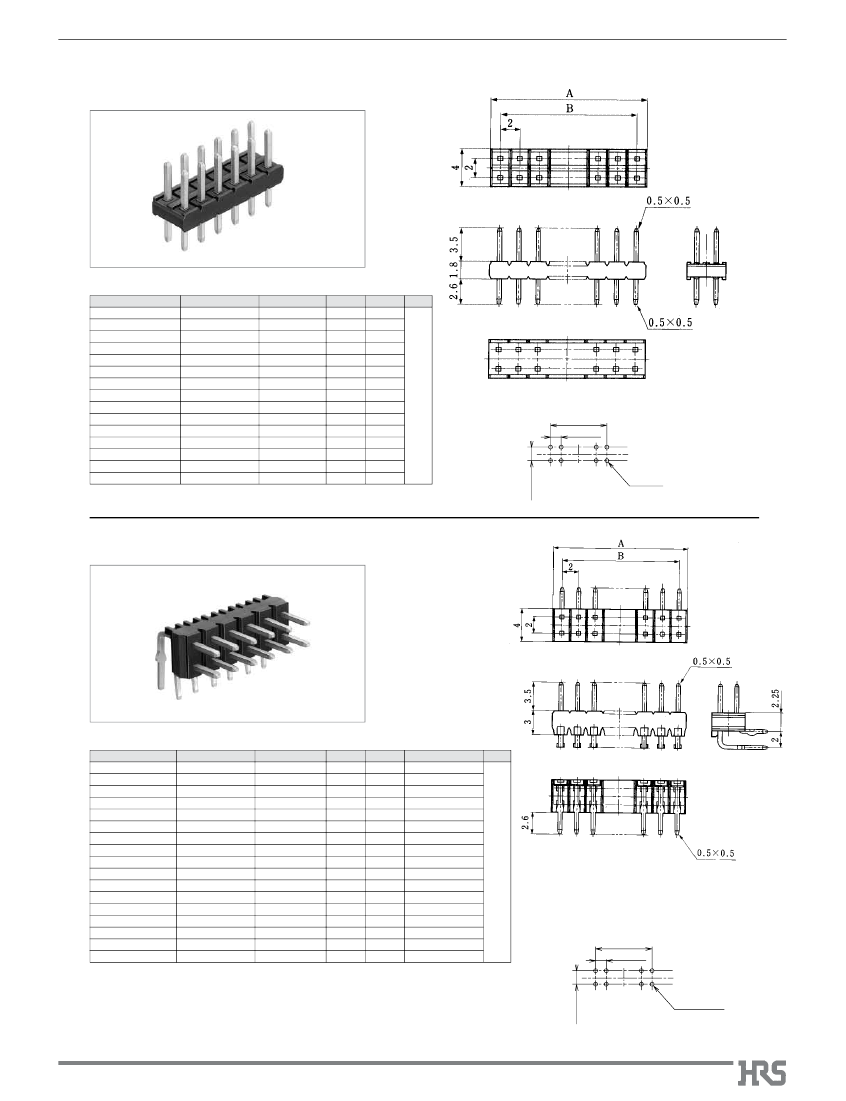

●A3B
Straight Type
Jan.1.2018 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Nov.1.2016 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2±0.05
Part Number
A3B-04PA-2DSA(71)
A3B-06PA-2DSA(71)
A3B-08PA-2DSA(71)
A3B-10PA-2DSA(71)
A3B-12PA-2DSA(71)
A3B-14PA-2DSA(71)
A3B-16PA-2DSA(71)
A3B-18PA-2DSA(71)
A3B-20PA-2DSA(71)
A3B-22PA-2DSA(71)
A3B-24PA-2DSA(71)
A3B-26PA-2DSA(71)
A3B-28PA-2DSA(71)
A3B-30PA-2DSA(71)
A3B-32PA-2DSA(71)
CL No.
621-0401-1-71
621-0402-4-71
621-0403-7-71
621-0404-0-71
621-0405-2-71
621-0406-5-71
621-0407-8-71
621-0408-0-71
621-0409-3-71
621-0410-2-71
621-0411-5-71
621-0412-8-71
621-0413-0-71
621-0414-3-71
621-0415-6-71
Number of Contacts
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
A
04.0
06.0
08.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
B
02.0
04.0
06.0
08.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
RoHS
YES
BPCB
mounting pattern
B±0.1
2±0.05
Ø0.8
+0.1
_0
Note: Please, order the product per 100 pcs.
●A3B
Right Angle Type
Part Number
A3B-04PA-2DS(71)
A3B-06PA-2DS(71)
A3B-08PA-2DS(71)
A3B-10PA-2DS(71)
A3B-12PA-2DS(71)
A3B-14PA-2DS(71)
A3B-16PA-2DS(71)
A3B-18PA-2DS(71)
A3B-20PA-2DS(71)
A3B-22PA-2DS(71)
A3B-24PA-2DS(71)
A3B-26PA-2DS(71)
A3B-28PA-2DS(71)
A3B-30PA-2DS(71)
A3B-32PA-2DS(71)
A3B-44PA-2DS(71)
A3B-50PA-2DS(71)
CL No.
621-0351-5-71
621-0352-8-71
621-0353-0-71
621-0354-3-71
621-0355-6-71
621-0356-9-71
621-0357-1-71
621-0358-4-71
621-0359-7-71
621-0360-6-71
621-0361-9-71
621-0362-1-71
621-0363-4-71
621-0364-7-71
621-0365-0-71
621-0377-9-71
621-0383-1-71
Number of Contacts
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
44
50
A
04.0
06.0
08.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
44.0
50.0
B
02.0
04.0
06.0
08.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
42.0
48.0
Kink Positions RoHS
2
1 or 2 alternately
2 alternately
2 or 3 alternately
3 alternately
3 or 4 alternately
4 alternately
4 or 5 alternately
5 alternately
YES
5 or 6 alternately
6 alternately
6 or 7 alternately
7 alternately
7 or 8 alternately
8 alternately
11 alternately
12 or 13 alternately
BPCB
mounting pattern
B±0.1
2±0.05
2±0.05
Note 1: Please order the product per 100 pcs.
Note 2: Diameter of 28 or more contacts is
Ø0.95±0.04.
Note 2
Ø0.9±0.04
C13
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products
Series●2mm Pitch
will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
A3 • A4
have been discontinued, or
Miniature Connector
●

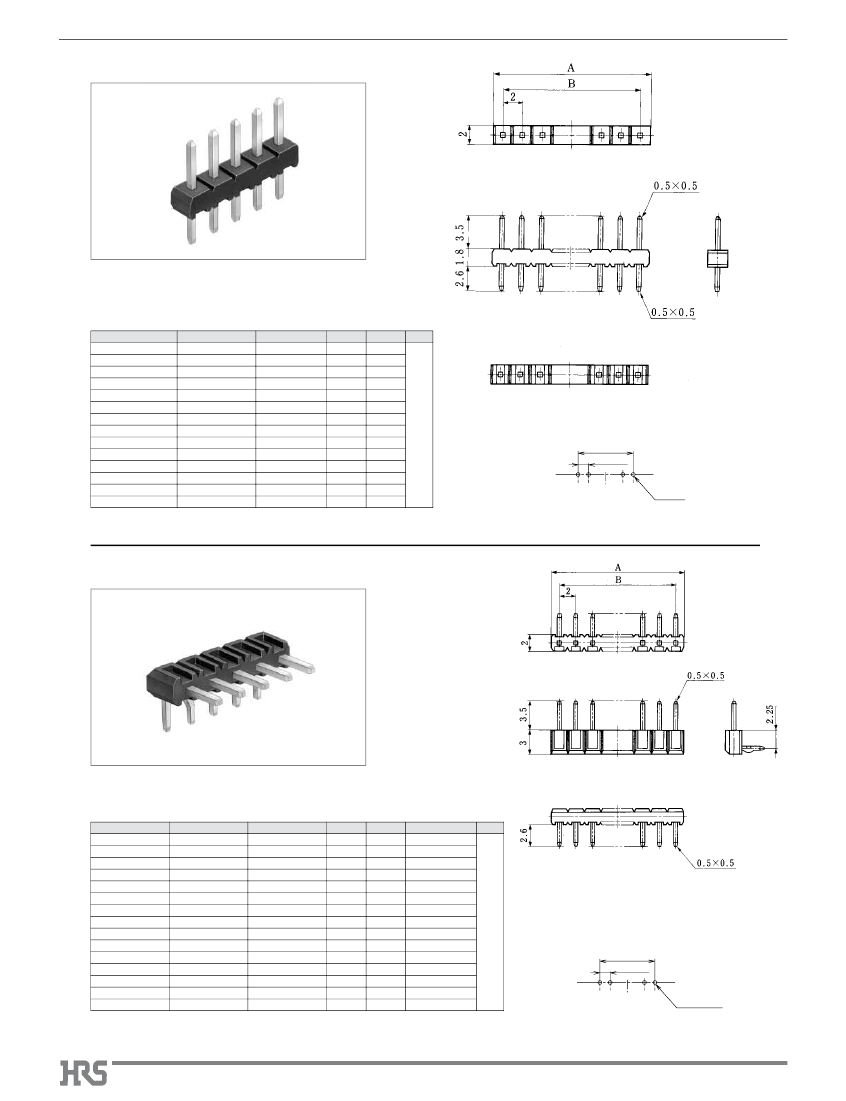

A4B Straight Type
Jan.1.2018 Copyright 2016 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Nov.1.2016 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
