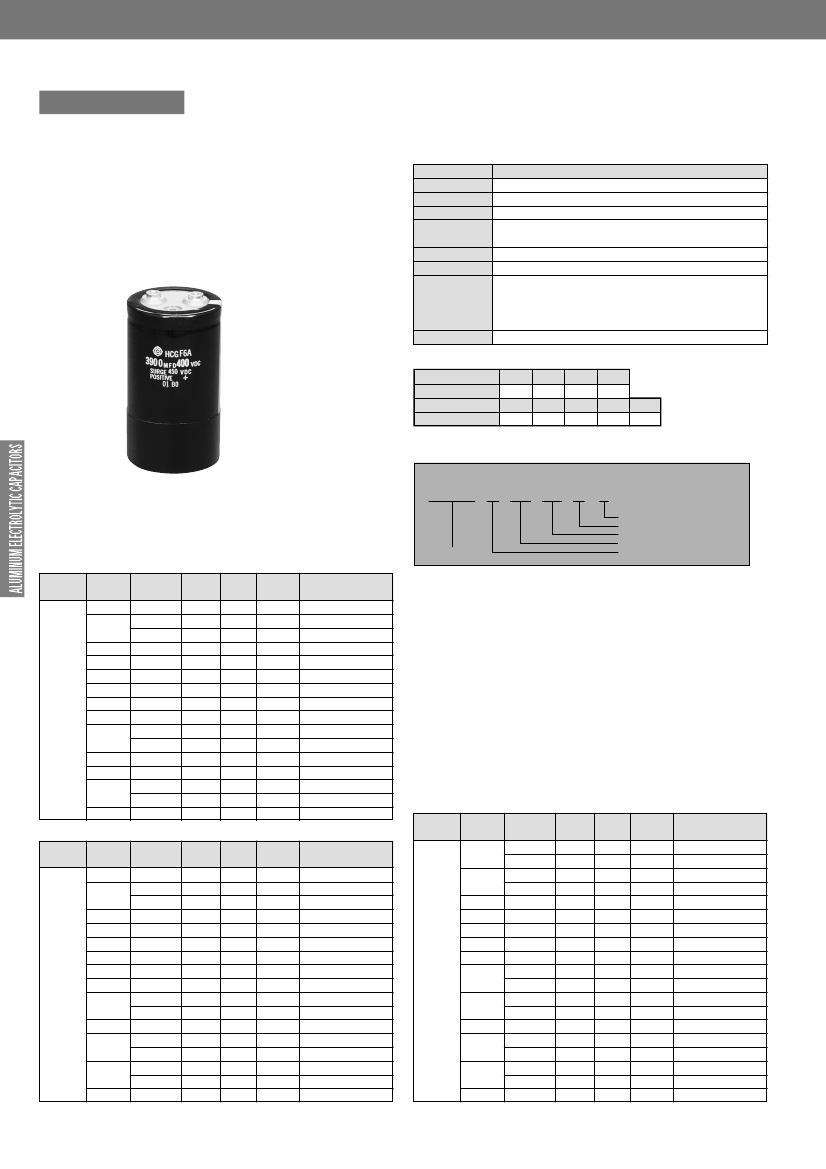

SCREW TERMINAL TYPE ALUMINUM ELECTROLYTIC CAPACITORS
HCGF6A Series
(Warranty of 2,000 hours at 85°C)
Product Specifications
Features
• The size is reduced by about 14% of the HCGF5 type
and the rating 500 V DC is added in the series. A super
large case product of ø100 is also added.
Items
Specifications
~ +85°C
Temperature range –25°C
Capacitance tolerance ±20% (20°C,120Hz)
Rated voltage 400 ~ 500V.DC
0.01CV (µA) or 5mA, whichever is smaller or less
Leakage current
[C = nominal capacitance (µF), V = rated voltage (V)]
Dissipation factor Less than the value specified in the standard products table. (20˚C,120Hz)
Permissible ripple current As specified in the standard products table. (40˚C,120Hz)
After the rated voltage (specified ripple current convolution) is applied at 85°C for 2000 hours:
Capacitance tolerance: ±15% or less of the initial value
High-temperature load
Dissipation factor: 175% or less of the specified initial value
Leakage current: Specified initial value or less
Others
JIS C 5101-4.
Ripple current correction coefficient
Temperature (°C)
40
60
70
85
Correction coefficient 1.0
0.75 0.62 0.37
Frequency (Hz) 50/60 120
300
1K
≥10K
Correction coefficient 0.7
1.0
1.1
1.3
1.4
Ripple current should be under 60Arms at M5 (100Arms at M6 for G case)
in accordance with from the permissible current.
Product symbol : (Example) HCGF6 Series A case 400V 10,000µF±20%
HCGF6 A 2G 103 Y
( )
Case code (∗)
Type of bracket code
Capacitance code
Rated voltage code
Terminal code A (screw)
Type of series
Standard value and case size
Rated Voltage Capacitance Case size
V. DC
(µF) øDXL(mm)
400V(2G)
2200
051
×
115
051
×
130
2700
064
×
960
3300
064
×
960
3900
064
×
115
4700
064
×
130
5600
077
×
115
6800
077
×
130
8200
077
×
155
077
×
195
10000
090
×
131
12000
090
×
157
15000
090
×
196
090
×
236
18000
101
×
175
22000 101
×
237
Case code
C12R
C13R
D10R
D10R
D12R
D13R
E12R
E13R
E16R
E20R
F13R
F16R
F20R
F24R
G18R
G24R
tanδ
Ripple carrent
(Arms)
20°C,120Hz
40°C,120Hz
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
16.5
19.2
18.7
20.7
24.1
27.8
30.6
35.4
41.6
50.5
45.8
53.8
65.7
77.7
69.8
86.8
Product name
HCGF6A2G222Y
HCGF6A2G272YC
HCGF6A2G272YD
HCGF6A2G332Y
HCGF6A2G392Y
HCGF6A2G472Y
HCGF6A2G562Y
HCGF6A2G682Y
HCGF6A2G822Y
HCGF6A2G103YE
HCGF6A2G103YF
HCGF6A2G123Y
HCGF6A2G153Y
HCGF6A2G183YF
HCGF6A2G183YG
HCGF6A2G223Y
∗(
) case code : If two types of shape exist for the same rating, enter the first
English letter of case code.
Attachment of legs
• See page 38 for shapes and dimensions.
• Product names in the Standard Units Rating Table correspond
to the attachment legs for Type Y (Type
Ι
for ø36 only), but
Type
Ι
attachment legs may be used (Shape Code =
Ι
).
• If attachment legs are not necessary, enter "N" for the
attachment leg shape code.
• Attachment legs will be delivered separately.
Rated Voltage Capacitance Case size
tanδ
Ripple carrent
Case code
Product name
(Arms)
V. DC
(µF) øDXL(mm)
20°C,120Hz
40°C,120Hz
450V(2W)
HCGF6A2W182Y
14.9
0.20
1800
051
×
115 C12R
×
130 C13R
HCGF6A2W222YC
17.3
0.20
051
2200
HCGF6A2W222YD
16.9
0.20
064
×
960 D10R
HCGF6A2W272Y
18.7
0.20
2700
064
×
960 D10R
HCGF6A2W332Y
22.2
0.20
3300
064
×
115 D12R
HCGF6A2W392Y
25.3
0.20
3900
064
×
130 D13R
HCGF6A2W472Y
28.1
0.20
4700
077
×
115 E12R
HCGF6A2W562Y
32.1
0.20
5600
077
×
130 E13R
×
155 E16R
HCGF6A2W682Y
37.9
0.20
6800
077
HCGF6A2W822YE
45.8
0.20
077
×
195 E20R
8200
×
131 F13R
HCGF6A2W822YF
41.5
0.20
090
HCGF6A2W103Y
50.6
0.20
10000
090
×
171 F17R
HCGF6A2W123YF
58.7
0.20
090
×
196 F20R
12000
HCGF6A2W123YG
57.0
0.20
101
×
175 G18R
HCGF6A2W153YF
70.9
0.20
090
×
236 F24R
15000
HCGF6A2W153YG
66.5
0.20
101
×
195 G20R
HCGF6A2W183Y
78.5
0.20
18000 101
×
237 G24R
Rated Voltage Capacitance Case size
tanδ
Ripple carrent
Case code
Product name
(Arms)
V. DC
(µF) øDXL(mm)
20°C,120Hz
40°C,120Hz
12.2 HCGF6A2H122YC
C12R 0.20
051
×
115
500V(2H)
1200
12.5 HCGF6A2H122YD
D10R 0.20
064
×
960
14.3 HCGF6A2H152YC
C13R 0.20
051
×
130
1500
13.9 HCGF6A2H152YD
D10R 0.20
064
×
960
16.4 HCGF6A2H182Y
D12R 0.20
1800
064
×
115
19.0 HCGF6A2H222Y
D13R 0.20
2200
064
×
130
×
115
21.3 HCGF6A2H272Y
E12R 0.20
2700
077
24.6 HCGF6A2H332Y
E13R 0.20
3300
077
×
130
×
155
28.7 HCGF6A2H392Y
E16R 0.20
3900
077
32.9 HCGF6A2H472YE
E17R 0.20
077
×
171
4700
31.4 HCGF6A2H472YF
F13R 0.20
090
×
131
37.8 HCGF6A2H562YE
E20R 0.20
077
×
195
5600
36.7 HCGF6A2H562YF
F16R 0.20
090
×
157
41.8 HCGF6A2H682Y
F17R 0.20
6800
090
×
171
48.5 HCGF6A2H822YF
F20R 0.20
090
×
196
8200
×
175
47.1 HCGF6A2H822YG
G18R 0.20
101
57.9 HCGF6A2H103YF
F24R 0.20
090
×
236
10000
×
195
54.3 HCGF6A2H103YG
G20R 0.20
101
64.1 HCGF6A2H123Y
G24R 0.20
12000 101
×
237
