3D40UL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> 3D40UL

3D40UL: DescriptionCircuit Breakers 40A, D CHAR, 3POLE 240VAC,UL489; CategoryCircuit protection; File Size2MB，1 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric Compare View All

3D40UL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3D40UL	-	-	View	Buy Now

3D40UL Overview

Circuit Breakers 40A, D CHAR, 3POLE 240VAC,UL489

3D40UL Parametric

Parameter Name	Attribute value
Product Category	Circuit Breakers
Manufacturer	Altech
RoHS	Details
Product	Circuit Protection Devices
Type	D-Trip
Current Rating	40 A
Voltage Rating AC	240 VAC
Number of Poles	3 Pole
Actuator Type	Handle
Operating Temperature Range	- 25 C to + 55 C
Illuminated	Not Illuminated
Mounting Style	DIN Rail
Factory Pack Quantity	4
Termination Style	Box Clamp, Ring Tongue

Preview

Download Datasheet

View All

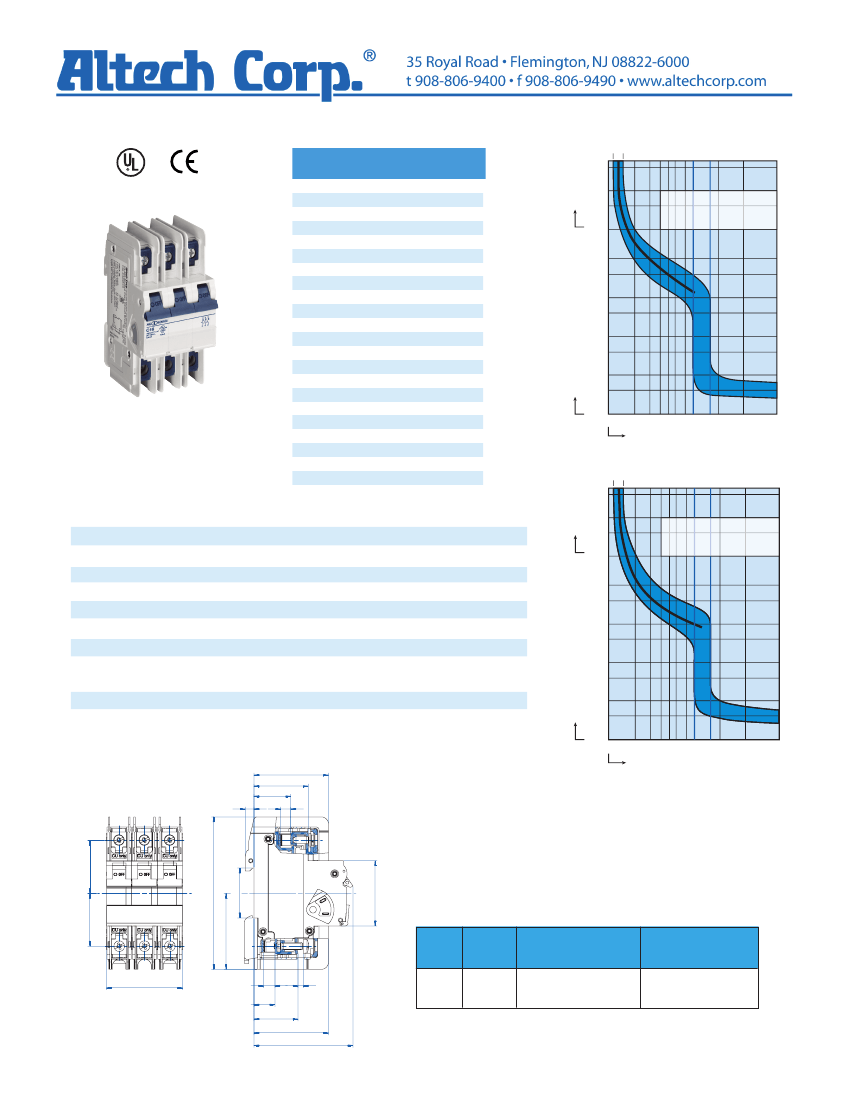

UL-Series - UL489 Miniature Molded Case Circuit Breaker -

3 pole D-Trip - AC

LISTED

C.B.

E329510

Three Pole

Standard Pack:

Weight:

0.3-32A:

1.74kg (3.83lb.)

40-63A:

1.98kg (4.37lb.)

Rated

Current

0.3A

0.5A

1.0A

1.6A

2.0A

3.0A

4.0A

5.0A

6.0A

8.0A

10A

12A

13A

15A

16A

20A

25A

30A

32A

40A

50A

60A

63A

Type/

Cat. No.

3D03UL

3D05UL

3D1UL

3D1.6UL

3D2UL

3D3UL

3D4UL

3D5UL

3D6UL

3D8UL

3D10UL

3D12UL

3D13UL

3D15UL

3D16UL

3D20UL

3D25UL

3D30UL

3D32UL

3D40UL

3D50UL

3D60UL

3D63UL

Rated

Voltage

480Y/277V AC

240V AC

1.05-1.35xI

Minutes

Thermal Overload

“Must Trip” < 1 hr = 135% RC

“Must Not Trip” > 1 hr = 105% RC

Tripping time t

0.4

-1

4x10

-2

Seconds

-2

4x10

-3

3 4 5 6 8

10 16

100

Multiple of Rated Current

0.3A Through 10A Rated Current

1.05-1.35xI

Minutes

Thermal Overload

“Must Trip” < 1 hr = 135% RC

“Must Not Trip” > 1 hr = 105% RC

Current/ Voltage Rating

Calibration Temperature

Ambient Temperature

Storage Temperature

Terminal Torque (min/max)

Electrical Life

Mechanical Life

Vibration Resistance

0.3 - 63A/ 240V AC, 0.3-32A/ 480Y/277V AC*

40ºC (104ºF)

-25ºC to +55ºC (-13ºF to 131ºF )

-40ºC to +70ºC (-40ºF to 158ºF )

2 Nm (17.7 lb.in.) / 2.5Nm (22.2 lb.in)

6000 switching cycles ON/ OFF

10000 switching cycles ON/ OFF

> 15g according to DIN EN 60069-2-59 during a load

with I1 = 1.05 x IN

Tripping time t

0.4

-1

4x10

-2

Resistance to mechanical shocks

25g @ 11ms

*One

device dual voltage ratings.

51.5 mm

25.5 mm

37.5 mm

Seconds

-2

4x10

-3

3 4 5 6 8

10 16

100

Multiple of Rated Current

12A Through 63A Rated Current

“D” Magnetic Trip Parameters

Rated current 0.3A to 63A.

1. Hold for a minimum of 100ms at surge of 10 times rated current.

2. Trip in under 100ms at 16 times rated current.

36.8 mm

105.3 mm

34.5 mm

45 mm

Short Circuit Interrupting Capacity

No.

Poles

Type

03-32A

10kA @ 120, 240,

480Y/277V

33-63A

10kA @ 120

240V

36.5 mm

52.5 mm

14.5 mm

30.5 mm

2-3

3 Pole

51.5 mm

68.4 mm

3D40UL Related Products

	3D40UL	3D60UL	3D8UL	3D3UL	3D03UL
Description	Circuit Breakers 40A, D CHAR, 3POLE 240VAC,UL489	Circuit Breakers 60A, D CHAR, 3POLE 240VAC,UL489	Circuit Breakers 8A, D CHAR, 3POLE 480Y/277VAC,UL489	Circuit Breakers 3A, D CHAR, 3POLE 480Y/277VAC,UL489	Circuit Breakers 0.3A, D CHAR, 3POLE 480Y/277VAC,UL489
Product Category	Circuit Breakers	Circuit Breakers	Circuit Breakers	Circuit Breakers	Circuit Breakers
Manufacturer	Altech	Altech	Altech	Altech	Altech
RoHS	Details	Details	Details	Details	Details
Product	Circuit Protection Devices	Circuit Protection Devices	Circuit Protection Devices	Circuit Protection Devices	Circuit Protection Devices
Type	D-Trip	D-Trip	D-Trip	D-Trip	D-Trip
Current Rating	40 A	60 A	8 A	3 A	300 mA
Voltage Rating AC	240 VAC	240 VAC	277 VAC	277 VAC	277 VAC
Number of Poles	3 Pole	3 Pole	3 Pole	3 Pole	3 Pole
Actuator Type	Handle	Handle	Handle	Handle	Handle
Operating Temperature Range	- 25 C to + 55 C	- 25 C to + 55 C	- 25 C to + 55 C	- 25 C to + 55 C	- 25 C to + 55 C
Illuminated	Not Illuminated	Not Illuminated	Not Illuminated	Not Illuminated	Not Illuminated
Mounting Style	DIN Rail	DIN Rail	DIN Rail	DIN Rail	DIN Rail
Factory Pack Quantity	4	4	4	4	4
Termination Style	Box Clamp, Ring Tongue	Box Clamp, Ring Tongue	Box Clamp, Ring Tongue	Box Clamp, Ring Tongue	Box Clamp, Ring Tongue
