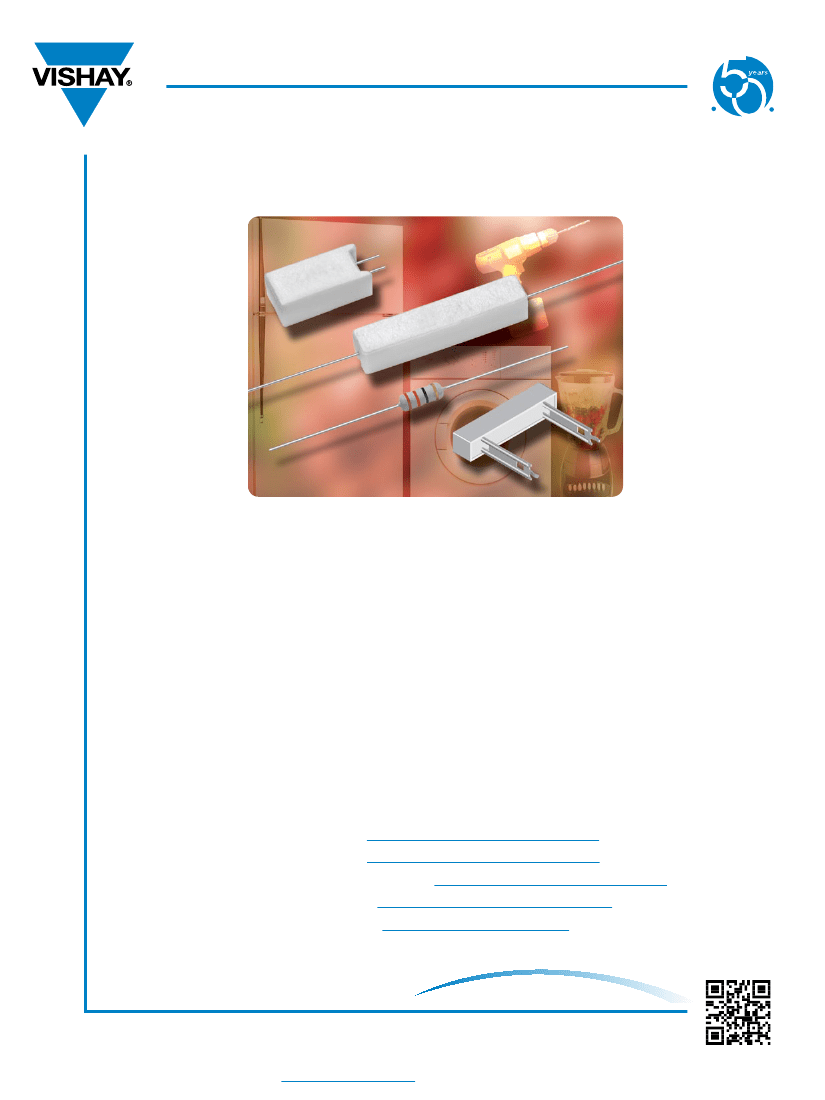

High Volume, Low-Cost, Axial Leaded,
Wirewound/Metal Oxide, Commercial Power Resistors
Resistors - High Power, Low Cost
Key Benefits
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Low-cost wirewound/metal oxide resistors
Fireproof construction required for UL-approved circuitry
Wide range of wattage ratings (1 W to 20 W)
Wide resistance value range (0.1 Ω to 50 KΩ)
CPCC and CPCF models have vertical-mount construction for board space savings
Capacitance discharge
P
ulsing applications
High power dissipation
Voltage dividers
DC/DC converters
Datasheet: CA High Volume - http://www.vishay.com/doc?30114
Datasheet: CP High Volume - http://www.vishay.com/doc?30113
Datasheet: CPCC/CPCF High Volume - http://www.vishay.com/doc?30116
Datasheet: CPR High Volume - http://www.vishay.com/doc?30261
