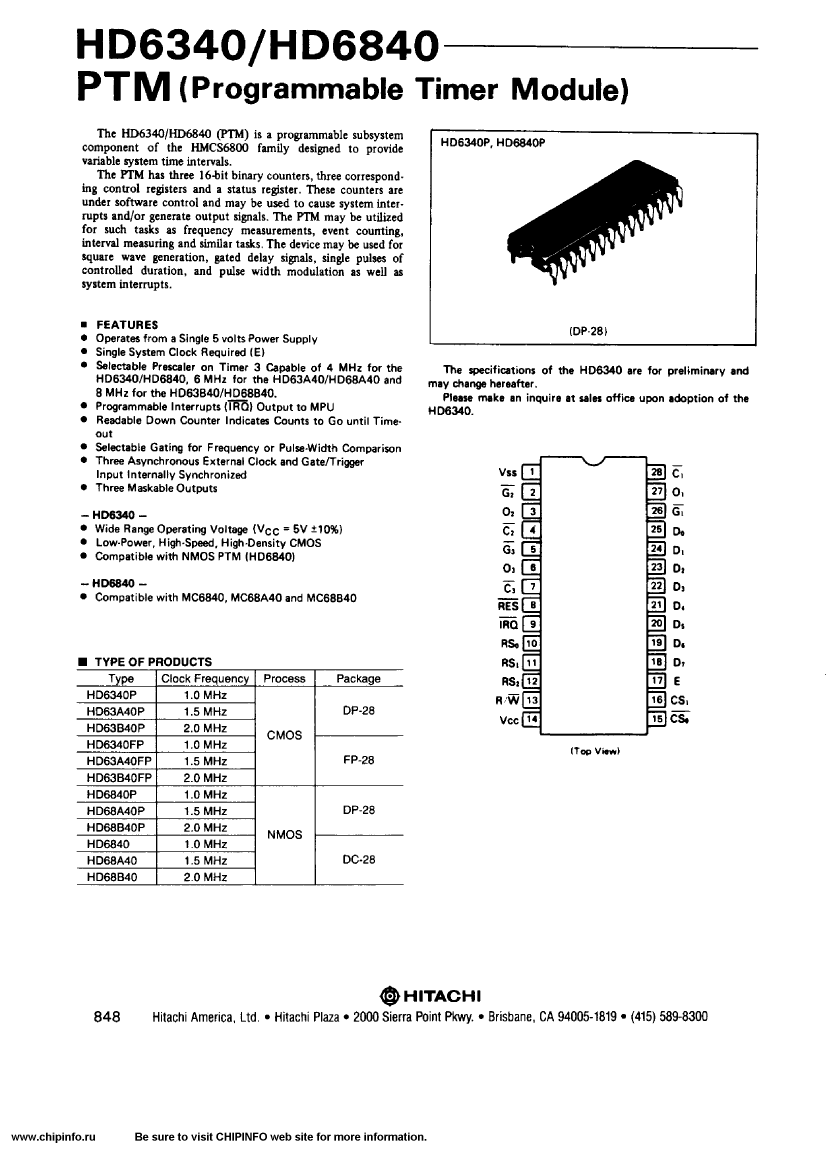

PTM(Programmble Timer Module)

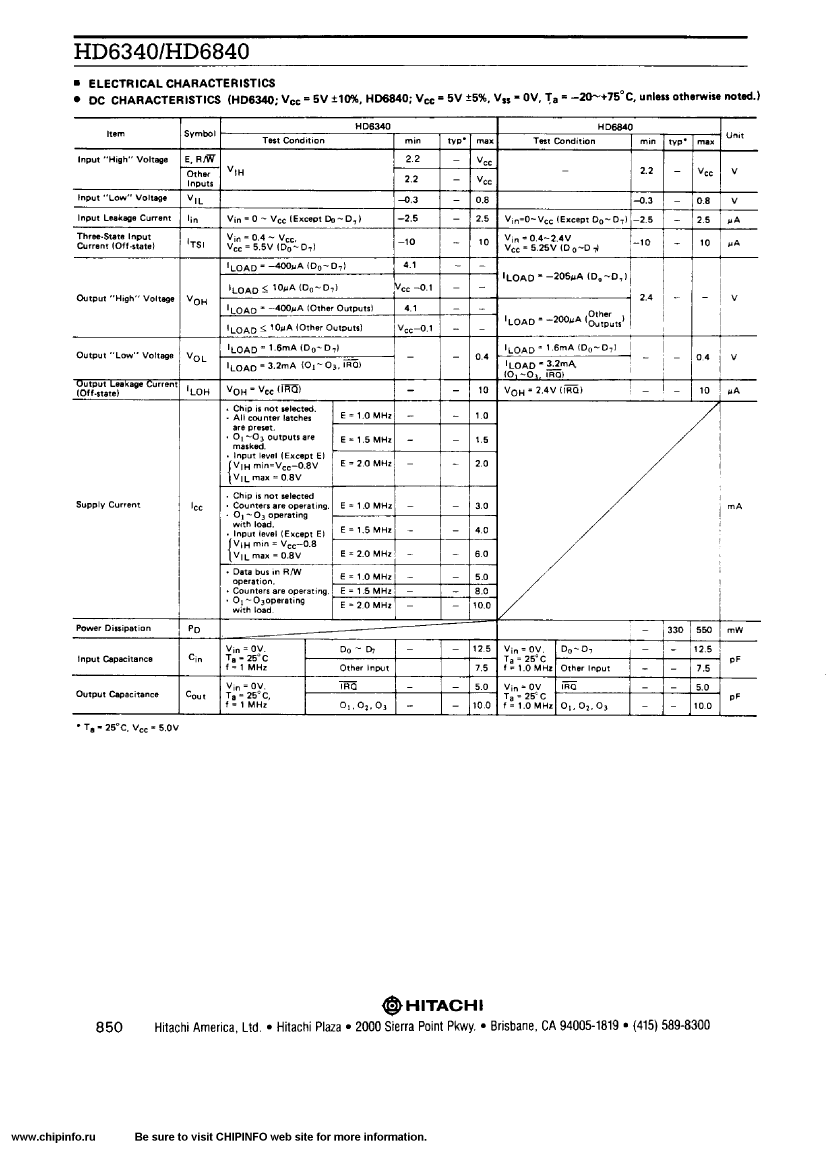

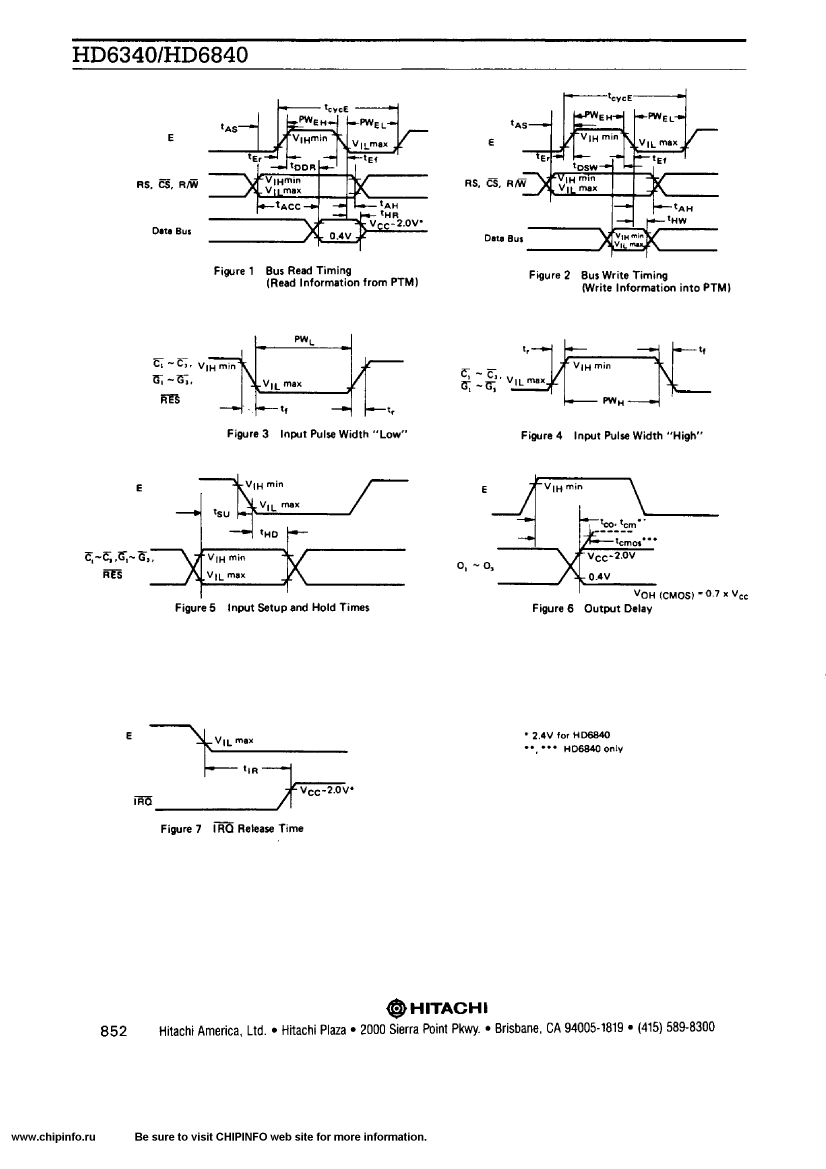

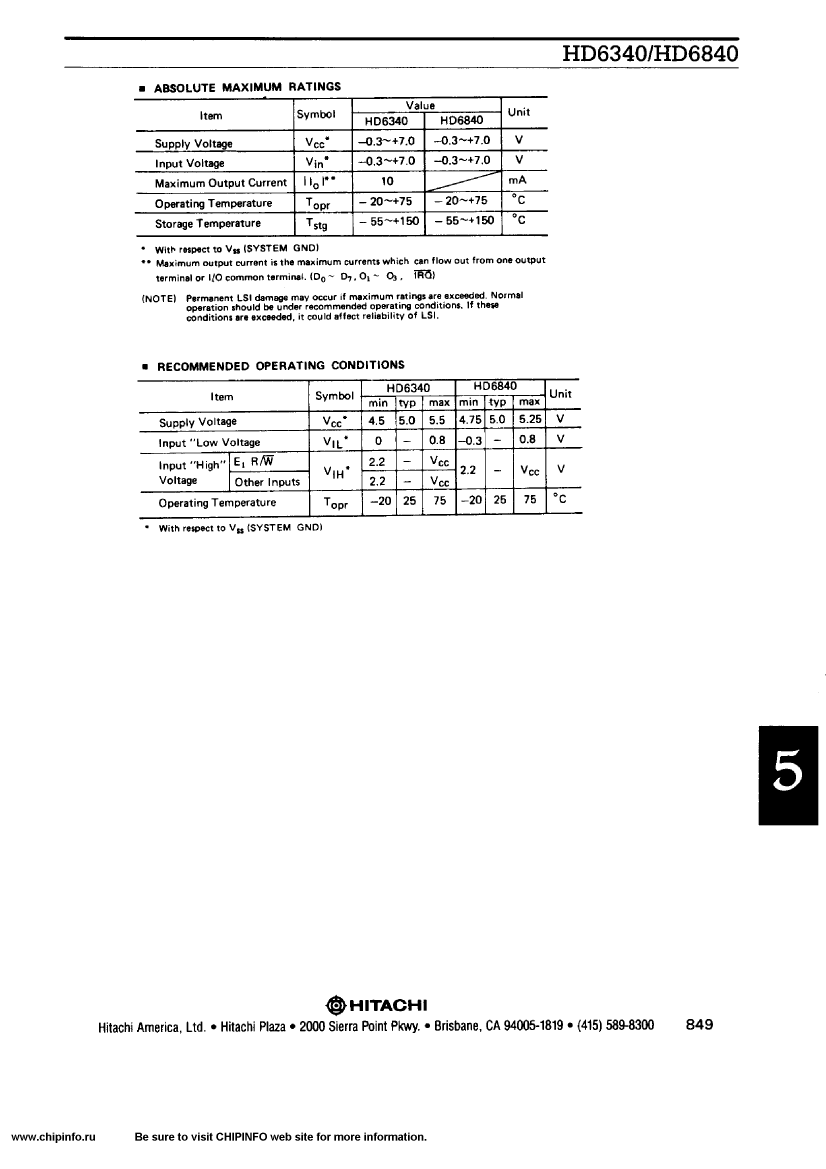

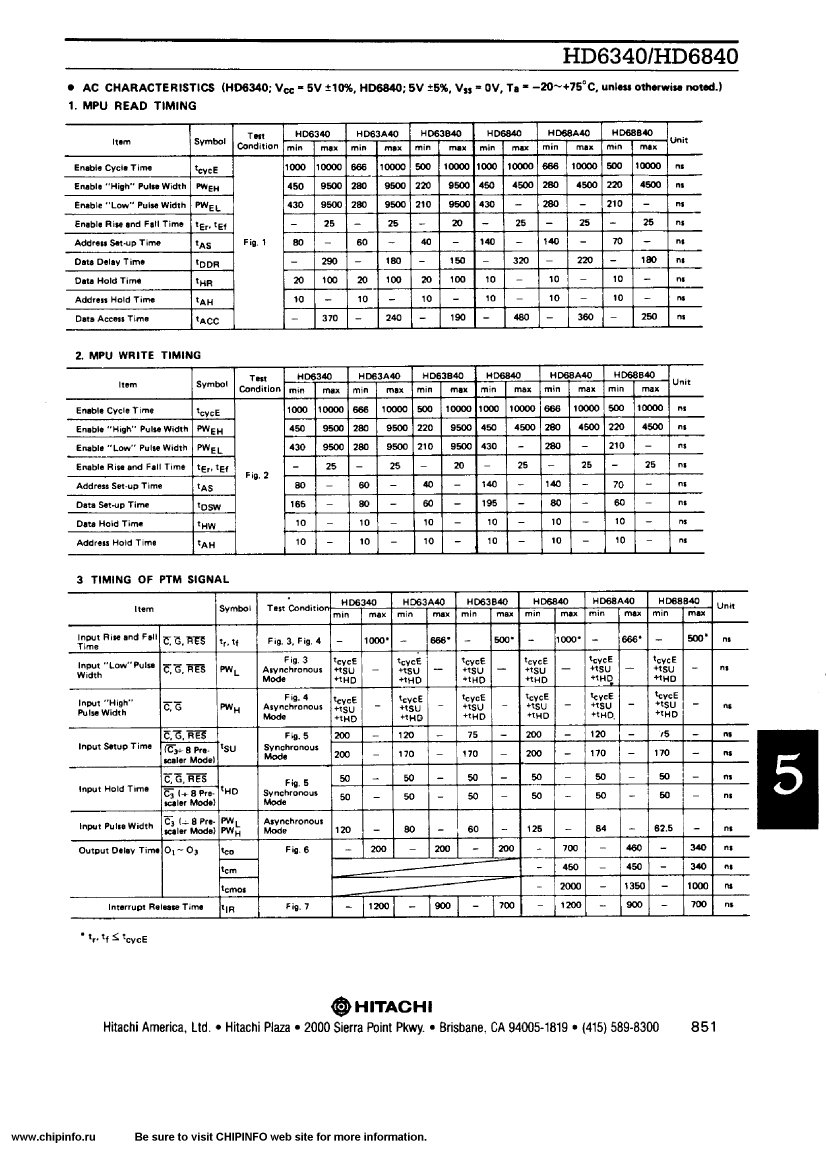

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Hitachi （Renesas ） |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 28 |
| Reach Compliance Code | unknow |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Other features | PRESCALED /8 TIMER 3 I/P |
| Bus compatibility | HMCS6800 |
| maximum clock frequency | 1.5 MHz |
| External data bus width | 8 |
| Information access methods | PARALLEL, DIRECT ADDRESS |
| JESD-30 code | R-PDIP-T28 |
| JESD-609 code | e0 |
| length | 35.6 mm |
| Number of digits | 16 |
| Number of terminals | 28 |
| Number of timers | 3 |
| Maximum operating temperature | 75 °C |
| Minimum operating temperature | -20 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum seat height | 5.7 mm |
| Maximum slew rate | 8 mA |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | COMMERCIAL EXTENDED |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 15.24 mm |
| uPs/uCs/peripheral integrated circuit type | TIMER, PROGRAMMABLE |
| Base Number Matches | 1 |
