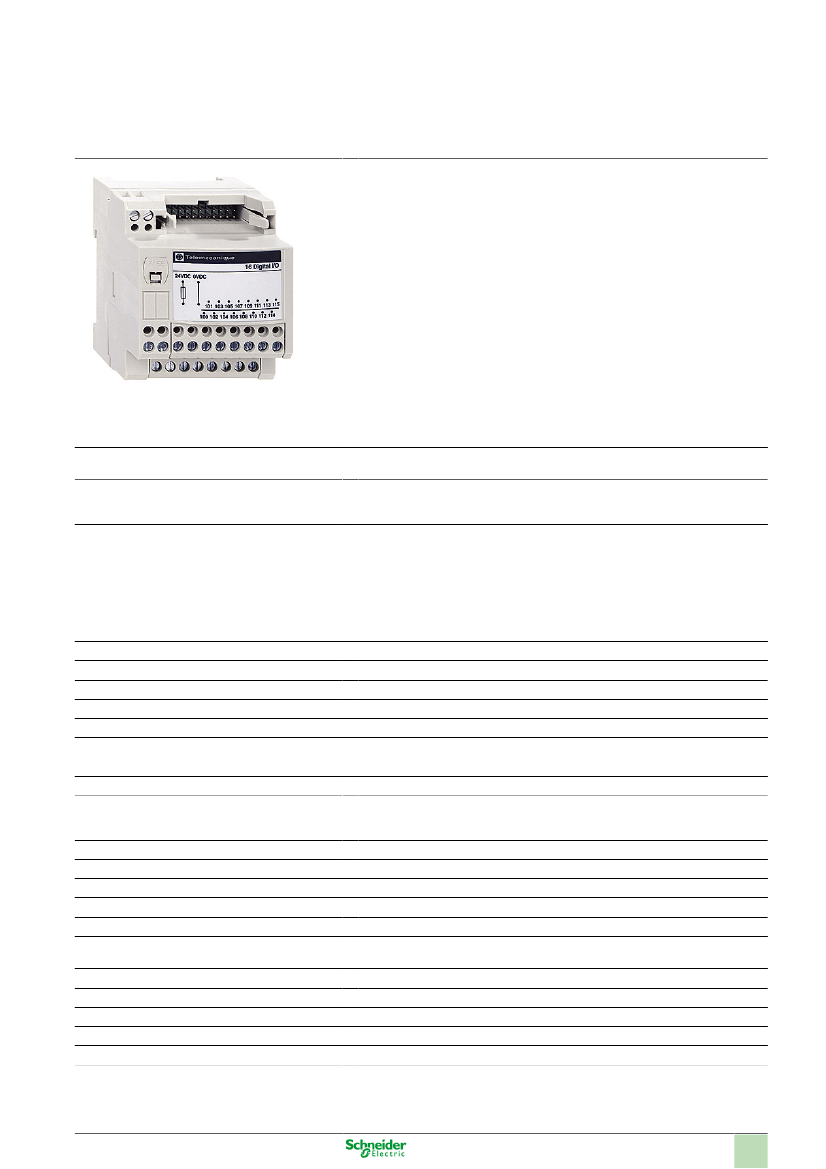

Product data sheet
Characteristics
ABE7H20E100
WIR BAS 16ES CORD TE 1
Certifications and standards
Product certifications
BV
CSA
Det Norske Veritas
GL
Lloyd s Register of Shipping
UL
Compatibility
Product compatibility
Modicon Premium PLC
Modicon TSX Micro PLC
Connections
Connections - terminals
Screw type terminals 1 0.14 - 2.5 mm² 26...14 flexible without cable end
Screw type terminals 1 0.09 - 1.5 mm² 28...16 flexible with cable end
Screw type terminals 1 0.14 - 2.5 mm² 26...12 solid
Screw type terminals 2 0.09 - 0.75 mm² 28...20 flexible with cable end
Screw type terminals 2 0.2 - 2.5 mm² 24...14 solid
Electrical
[Ui] rated insulation voltage
[Us] rated supply voltage
Current per channel
Current per output common
Short circuit protection
Supply circuit type
Supply current
Voltage drop on power supply fuse
2000 V terminals/mounting rails
19...30 V IEC 61131-2
<=0.5 A
<=1.8 A
2 A internal fuse 5 x 20 mm fast blow PLC end
DC
<=1.8 A
0.3 V
Environment
IP degree of protection
Ambient air temperature for operation
Ambient air temperature for storage
Pollution degree
Protective treatment
Resistance to electrostatic discharge
Resistance to fast transients
Resistance to incandescent wire
Resistance to radiated fields
Shock resistance
Vibration resistance
IP2x IEC 60529
-5 - 60 °C IEC 61131-2
-40 - 80 °C IEC 61131-2
2 IEC 60664-1
TC
8 kV air level 3 IEC 61000-4-2
4 kV contact level 3 IEC 61000-4-2
2 kV level 3 IEC 61000-4-4
750 °C <= 30 s IEC 60695-2-11
10 V/m level 3 26000000 - 1000000000 Hz IEC 61000-4-3
15 gn 11 ms IEC 60068-2-27
2 gn IEC 60068-2-6 10 - 150 Hz
Jan 6, 2018
1
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Functional
Number of terminal per channel
Status LED
1
1 LED per channel green channel status
1 LED green power ON
Installation
Fixing mode
Installation category
By clips 35 mm symmetrical DIN rail
By screws solid plate with fixing kit
II IEC 60664-1
Physical characteristics
Number of horizontal rows
Product weight
Tightening torque
2
0.33 kg
0.6 N.m flat Ø 3.5 mm
Product identification
Number of channels
Product or component type
Range of product
Sub-base type
16
Passive discrete I/O sub-base
Advantys Telefast ABE7
Low cost sub-base
Complementary description
Long description
WIR BAS 16ES CORD TE 1
Main characteristics
Brand
Commercial Reference field
Common description
Current cross distribution chain status
EAN Number
Short description
Telemecanique
ABE7H20E100
WIR BAS 16ES CORD TE 1
08 - Commercialised
3389110251043
WIR BAS 16ES CORD TE 1
Logistic
Basic packaging quantity
Minimum sales order quantity
1
1
Management information
Effect. date next global CDC
Product part number
00/03/07
ABE7H20E100
Reporting
Department code
Domain
Internal Domain Code
Product Line
Strategic Product Family
Low End Control
AUTOMATION
AC
ILEC0
TBD
Weight and dimensions
First packaging gross height
First packaging gross weight
First packaging gross width
First packaginggross length
0.08 m
0.287 kg
0.209 m
0.292 m
