Datasheet> All Categories > storage> storage> MCM32512S10

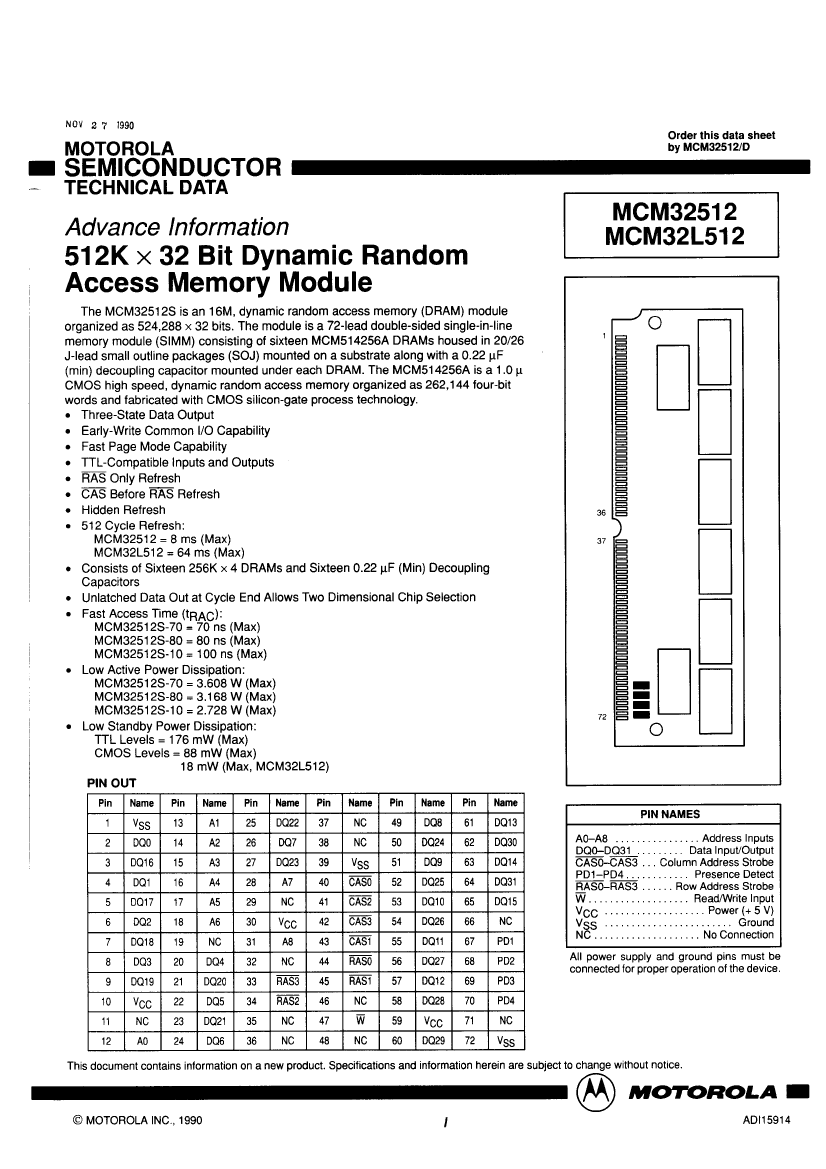

Preview

MCM32512S10: Description512K x 32 Bit Dynamic Random Access Memory Module; Categorystorage storage; File Size554KB，13 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MCM32512S10 Overview

512K x 32 Bit Dynamic Random Access Memory Module

MCM32512S10 Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	SIMM
package instruction	SIMM, SSIM72
Contacts	72
Reach Compliance Code	unknow
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	100 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
Spare memory width	16
I/O type	COMMON
JESD-30 code	R-XSMA-N72
memory density	16777216 bi
Memory IC Type	FAST PAGE DRAM MODULE
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	72
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX32
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	SIMM
Encapsulate equivalent code	SSIM72
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
refresh cycle	512
self refresh	NO
Maximum standby current	0.016 A
Maximum slew rate	0.496 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	SINGLE

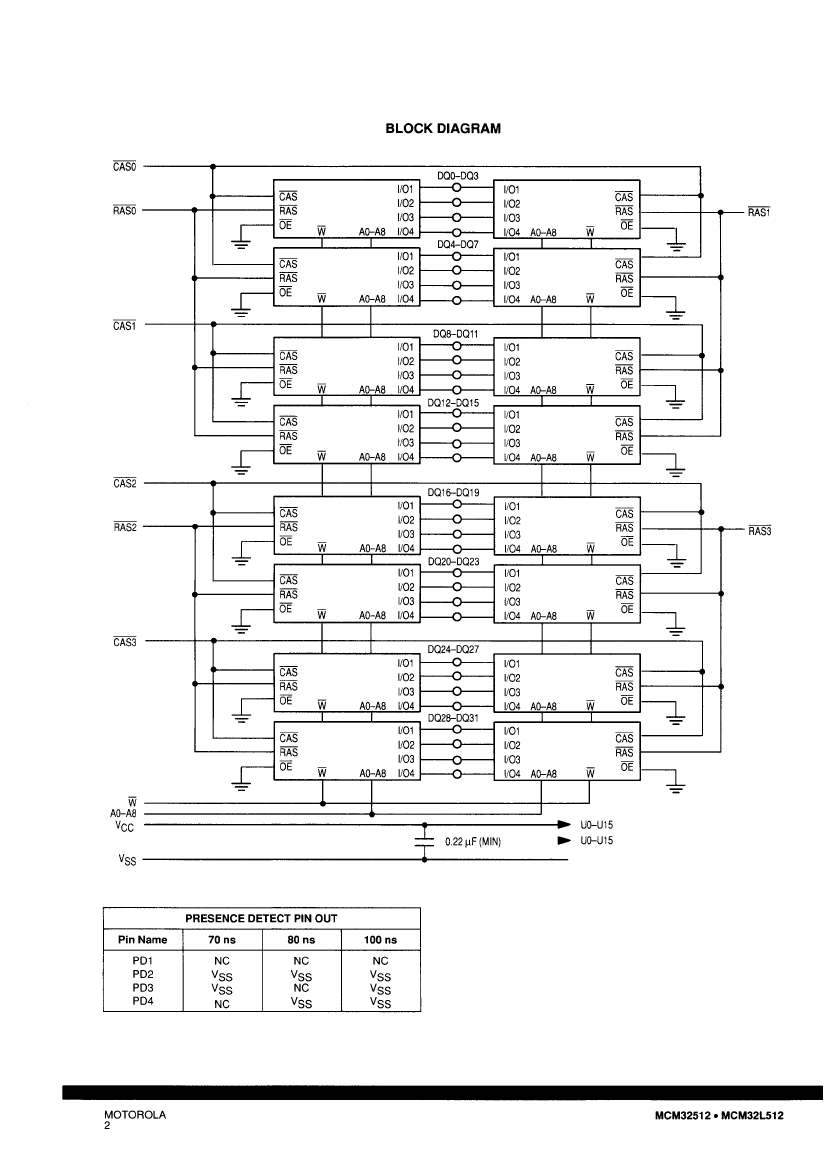

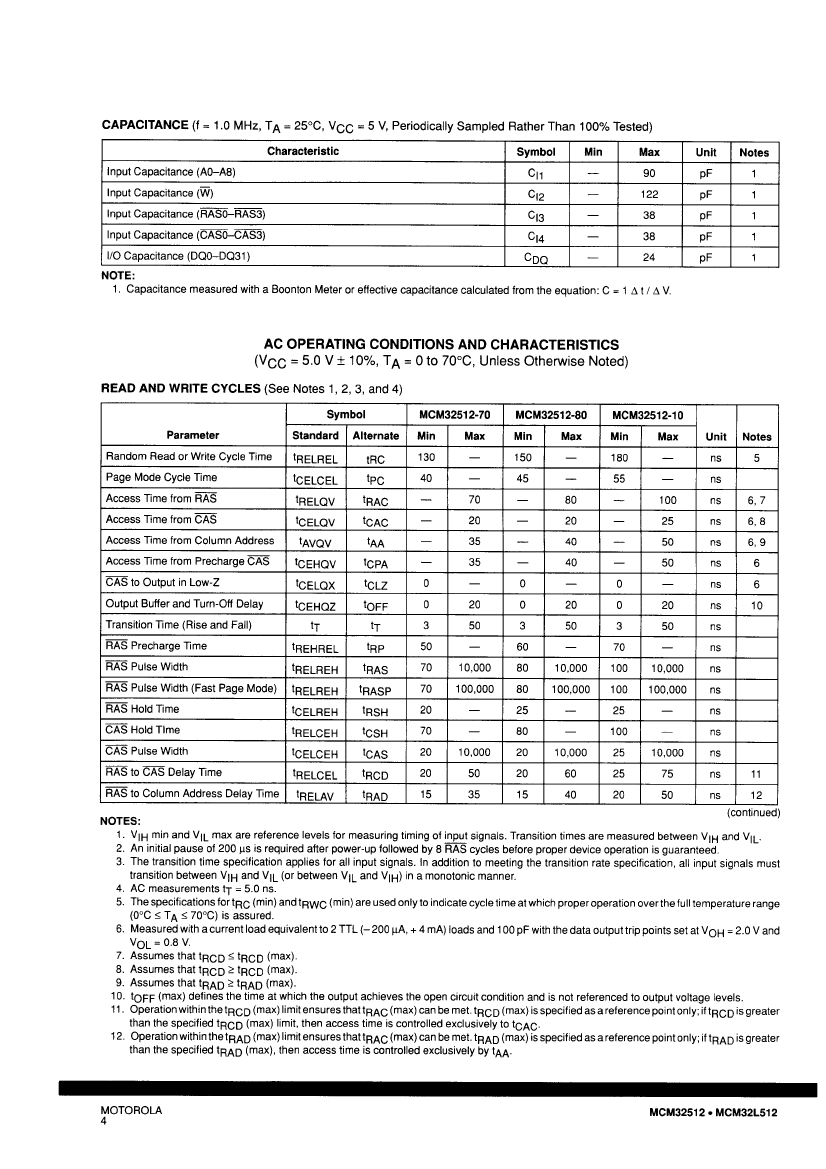

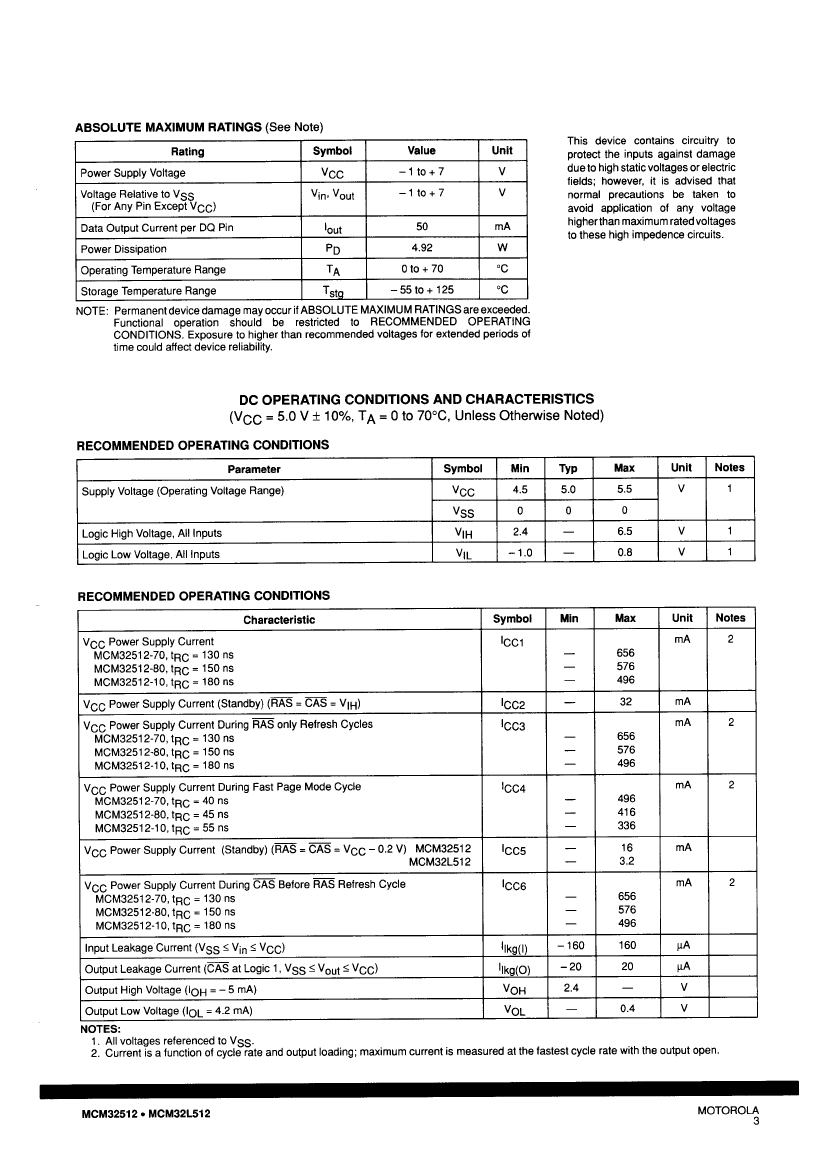

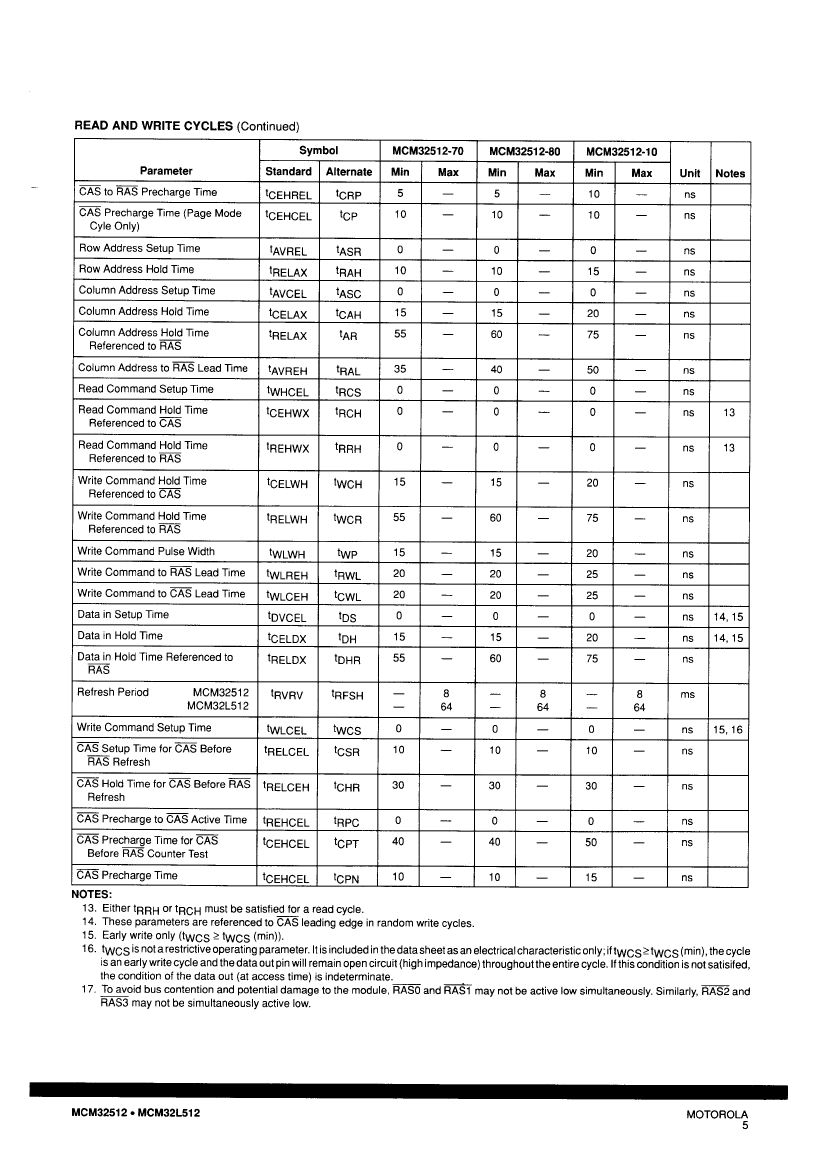

Preview

Download Datasheet

View All

MCM32512S10 Related Products

	MCM32512S10	MCM32L512	MCM32512SG80	MCM32512SG70	MCM32512SG10	MCM32512S80	MCM32512S70	MCM32512
Description	512K x 32 Bit Dynamic Random Access Memory Module	512K x 32 Bit Dynamic Random Access Memory Module	512K x 32 Bit Dynamic Random Access Memory Module	512K x 32 Bit Dynamic Random Access Memory Module	512K x 32 Bit Dynamic Random Access Memory Module	512K x 32 Bit Dynamic Random Access Memory Module	512K x 32 Bit Dynamic Random Access Memory Module	512K x 32 Bit Dynamic Random Access Memory Module
Maker	Motorola ( NXP )	-	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )	-
package instruction	SIMM, SSIM72	-	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72	SIMM, SSIM72	-
Reach Compliance Code	unknow	-	unknow	unknow	unknow	unknow	unknow	-
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	-
access mode	FAST PAGE	-	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	-
Maximum access time	100 ns	-	80 ns	70 ns	100 ns	80 ns	70 ns	-
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	-	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	-
Spare memory width	16	-	16	16	16	16	16	-
I/O type	COMMON	-	COMMON	COMMON	COMMON	COMMON	COMMON	-
JESD-30 code	R-XSMA-N72	-	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	-
memory density	16777216 bi	-	16777216 bi	16777216 bi	16777216 bi	16777216 bi	16777216 bi	-
Memory IC Type	FAST PAGE DRAM MODULE	-	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	-
memory width	32	-	32	32	32	32	32	-
Number of functions	1	-	1	1	1	1	1	-
Number of ports	1	-	1	1	1	1	1	-
Number of terminals	72	-	72	72	72	72	72	-
word count	524288 words	-	524288 words	524288 words	524288 words	524288 words	524288 words	-
character code	512000	-	512000	512000	512000	512000	512000	-
Operating mode	ASYNCHRONOUS	-	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	-
Maximum operating temperature	70 °C	-	70 °C	70 °C	70 °C	70 °C	70 °C	-
organize	512KX32	-	512KX32	512KX32	512KX32	512KX32	512KX32	-
Output characteristics	3-STATE	-	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	-
Package body material	UNSPECIFIED	-	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-
encapsulated code	SIMM	-	SIMM	SIMM	SIMM	SIMM	SIMM	-
Encapsulate equivalent code	SSIM72	-	SSIM72	SSIM72	SSIM72	SSIM72	SSIM72	-
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	MICROELECTRONIC ASSEMBLY	-	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	-
power supply	5 V	-	5 V	5 V	5 V	5 V	5 V	-
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
refresh cycle	512	-	512	512	512	512	512	-
self refresh	NO	-	NO	NO	NO	NO	NO	-
Maximum standby current	0.016 A	-	0.016 A	0.016 A	0.016 A	0.016 A	0.016 A	-
Maximum slew rate	0.496 mA	-	0.576 mA	0.656 mA	0.496 mA	0.576 mA	0.656 mA	-
Maximum supply voltage (Vsup)	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	-
Minimum supply voltage (Vsup)	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	-
Nominal supply voltage (Vsup)	5 V	-	5 V	5 V	5 V	5 V	5 V	-
surface mount	NO	-	NO	NO	NO	NO	NO	-
technology	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS	-
Temperature level	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Terminal form	NO LEAD	-	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	-
Terminal pitch	1.27 mm	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	-
Terminal location	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-
