AEC-Q200: Contact Bourns to confirm availiability.
For Standard Values Used in Capacitors, Inductors, and Resistors,
click here.

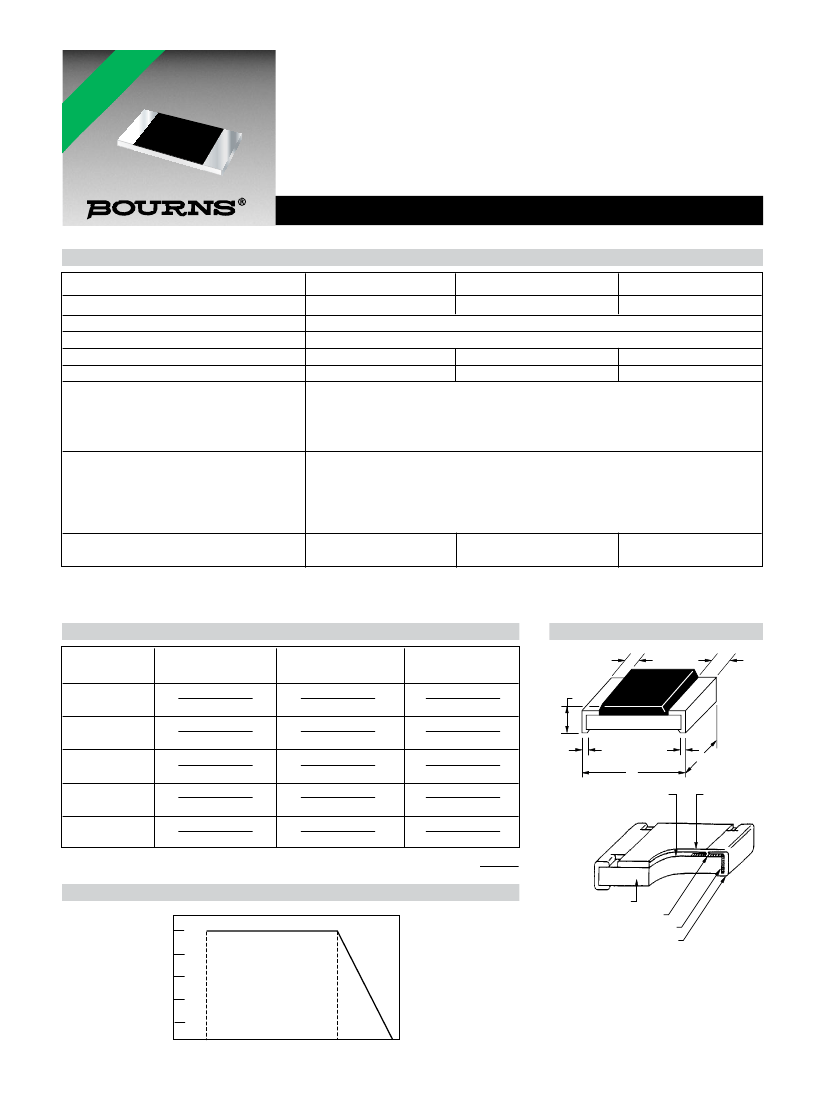

Chip Dimensions
Dimension
L
W
H
I1
I2
Model
CR0603
1.60±0.10
(0.063±0.004)
0.80±0.10
(0.031±0.004)
0.45±0.10
(0.018±0.004)
0.30±0.20
(0.012±0.008)
0.30±0.20
(0.012±0.008)
Model
CR0805
2.00±0.15
(0.079±0.006)
1.25±0.15
(0.049±0.006)
0.50±0.10
(0.020±0.004)
0.40±0.20
(0.016±0.008)
0.40±0.20
(0.016±0.008)
Model
CR1206
3.20±0.25
(0.126±0.010)
1.60±0.15
(0.063±0.006)
0.60±0.15
(0.024±0.006)
0.50±0.25
(0.020±0.010)
0.50±0.20
(0.020±0.010)
DIMENSIONS:
MM
(INCHES)
Dimensional Drawings
Characteristic Data
I1
I1
H
I2
L
I2
W
Resistor (Ru0
2
)
(Jumper chip is
a conductor)
Overcoat
Derating Curve
100
Rated Power (%)
80
60
40
20
0
-55
0
70
155
Alumina Substrate
Internal Electrode (Ag)
Secondary Electrode (Nickel Plated)
External Electrode
(tin-plated)
Ambient Temperature (°C)
*RoHS Directive 2002/95/EC Jan. 27, 2003 including
annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data
sheet can and do vary in different applications and
actual device performance may vary over time.
Users should verify actual device performance in their
specific applications.
CR0603/CR0805/CR1206 - Chip Resistors
Performance Characteristics
Test
DC Resistance
Low Temperature
Operation
Short time
Overload
High Temperature
Exposure
Resistance to
Solder Heat
Moisture Resis-
tance
Load Life
Solderability
Terminal Strength
Current Noise
Humidity, Steady
State
Salt Spray
Vibration
Voltage Coefficient
Insulation Resis-
tance
Dielectric With-
standing Voltage
Drop Test
Bending Test
Thermal Shock
Resistance to Dry
Heat
Procedure
--
-55 °C, 1 hour “OFF”;
45 minutes "ON"
Rated Voltage x 2.5,
5 seconds:
CR0603: 100 V max.
CR0805: 300 V max.
CR1206: 400 V max.
+125 °C, 1000 hours
260 °C, 10 seconds
90-98 % RH, 10 cycles
+70 °C; 1.5 hours “ON”,
0.5 hours “OFF”; 1000 hours
+235 °C; 3 seconds
Pull Test
Quan-Tech Model 315B
+40 °C; 90-95 % RH,
1344 hours
96 hours
10-2000 Hz, 6 hours
--
Test potential: 500V
CR0603: 100 V
--
1m
5 mm/90 mm, 10 seconds
-55 °C for 30 minutes,
+155 °C for 30 minutes,
5 cycles
125 ±5 °C for 96 ±4 hours
Method
MIL-STD-202 303
EIA RS-396 4.4
MIL-R-55342D 4.7.4
EIA RS-396 4.6
MIL-R-55342D 4.7.5
EIA RS-396 4.7
MIL-R-55342D 4.7.6
EIA RS-396 4.8
MIL-R-55342D 4.7.7
MIL-STD-202 106D
EIA RS-396 4.9
MIL-STD-202 108
Condition D
EIA RS-396 4.12
MIL-STD-202 208
EIA RS-396 4.11
MIL-R-55342D 4.7.12
MIL-STD-202 308
MIL-STD-202 103B
Condition D
MIL-STD-202 101D
Condition A
MIL-STD-202 201A
MIL-STD-202 309
MIL-STD-202 302
Condition B
MIL-STD-202 301
MIL-STD-202 203B
--
IEC 60115-1-4.19
IEC 60115-1-4.23.2
Specification
MIL-R-55342D 4.7.2
MIL-R-55342D 4.7.4
MIL-R-55342D 4.7.5
MIL-R-55342D 4.7.6
MIL-R-55342D 4.7.7
MIL-R-55342D 4.7.8
MIL-R-55342D 4.7.10
MIL-R-55342D 4.7.11
MIL-R-55342D 4.7.12
MIL-R-55342D 6.6
--
--
--
--
--
--
--
--
--
--
1%
≤±1 %
≤±(0.5 % + 0.05 Ω)
≤±(1 % + 0.05 Ω)
≤±(1.0 % + 0.05 Ω)
≤±(0.5 % + 0.05 Ω)
≤±(0.5 % + 0.05 Ω)
≤±(1.0 % + 0.05 Ω)
Test Limits
DR
5%
≤±5.0 %
≤±(1.0 % + 0.05 Ω)
≤±(2 % + 0.05 Ω)
≤+(2.0 % + 0.1 Ω)
≤±(1.0 % + 0.05 Ω)
≤±(2.0 % + 0.05 Ω)
≤±(3.0 % + 0.1Ω)
≥95 % of area covered
≥500 g
R≤1 kW; 1 mV/V max.
R≤10 kW; 3 mV/V max.
R≤100 kW; 6 mV/V max.
R≤1 MW; 10 mV/V max.
≤±(2.5 % + 0.05 Ω)
≤±(1.0 % + 0.2 Ω)
≤±(2.5 % + 0.05 Ω
≤±(1.0 % + 0.1 Ω
≤±(0.5 % + 0.1 Ω)
≤±(1.0 % + 0.1 Ω
≤100 ppm/V
≥1 GΩ
CR0805, CR1206: ≥500 V
CR0603: ≥300 V
≤±(0.5 % + 0.1 Ω)
≤±(1 % + 0.1 Ω
≤±(1 % + 0.05 Ω)
≤±(1 % + 0.05 Ω)
≤±(0.5% + 0.05 Ω)
≤±(1 % + 0.05 Ω)
≤±(1 % + 0.05 Ω)
≤±(2 % + 0.1 Ω)
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
CR0603/CR0805/CR1206 - Chip Resistors

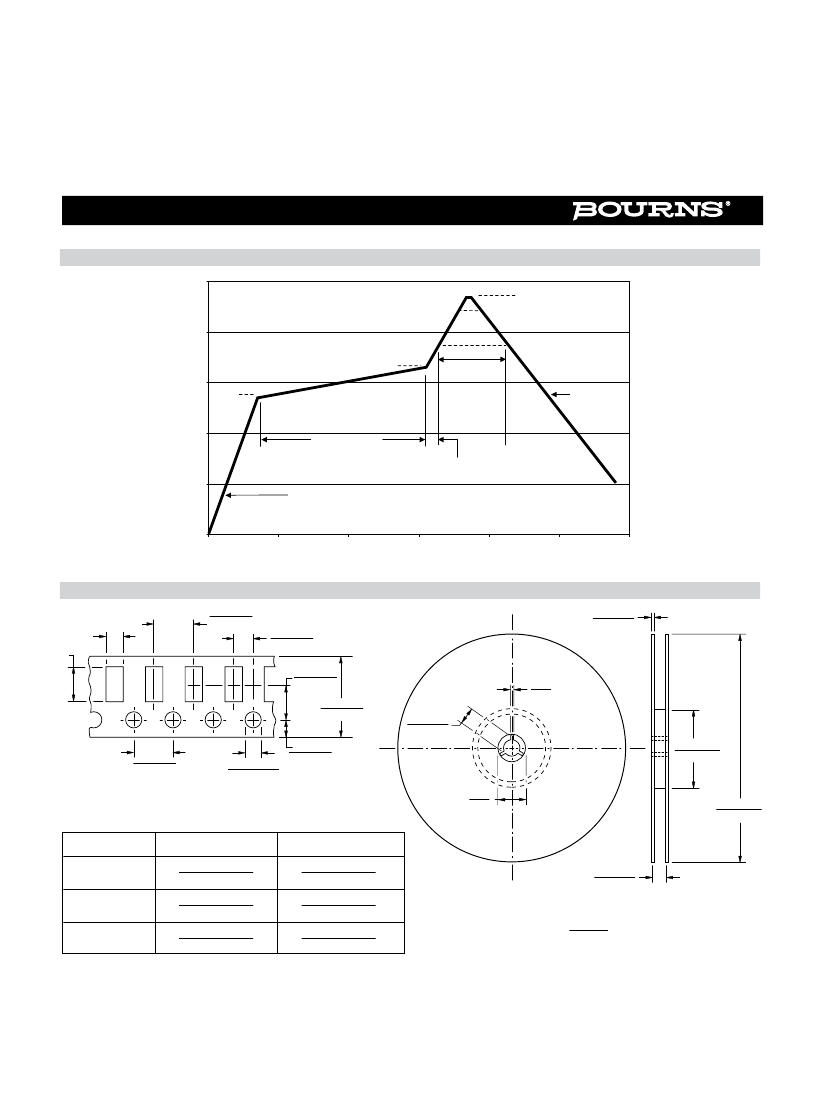

Soldering Profile for RoHS Compliant Chip Resistors and Arrays
275
+255 °C and +260 °C
225
220 °C
Temperature (°C)
190 °C
175
150 °C
60 - 90
seconds
Ramp Down
6 °C/second
60 - 120 seconds
10 seconds minimum
75
Ramp Up
3 °C/second maximum
25
<1>
Maximum of 20 seconds between
<1>
255 °C
260 °C peak
125
0
50
100
150
Time (seconds)
200
250
300
Packaging Dimensions (Conforms to EIA RS-481A)
4.0 ± 0.1
(.157 ± .004)
B
A
3.5 ± 0.05
(.138 ± .002)
8.0 ± 0.2
(.315 ± .008)
2.0
(.080)
13.0 ± 0.5
(.512 ± .020)
80.0 ± 1.0
(3.150 ± .040)
2.0 ± 0.05
(.079 ± .002)
1.0 ± 0.2
(.040 ± .020)
4.0 ± 0.1
(.157 ± .004)
Maximum 1 mm (.040) thick
*Cumulative tolerance over 10 holes: ±0.2 mm
1.5 +0.1/-0
(.056 + .004/-0)
1.75 ± 0.1
(.059 ± .004)
20.5
(.807)
178.0 ± 2.0
(7.008 ± .080)
Series
CR0603
CR0805
CR1206
A
1.9 ± 0.2
(.075 ± .008)
2.4 ± 0.2
(.094 ± .008)
3.57 ± 0.2
(.161 ± .008)
B
1.1 ± 0.2
(.043 ± .008)
1.65 ± 0.2
(.065 ± .008)
2.00 ± 0.2
(.079 ± .008)
DIMENSIONS:
10.0 ± 1.5
(.394 ± .059)
MM
(INCHES)
Marking on reel: Part number, quantity, resistance value and tolerance, date code.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
CR0603/CR0805/CR1206 - Chip Resistors
Resistor Markings
CR0603
CR0805
CR1206
CR0805
CR1206
CR0603
EIA-96 Marking
Marking Explanation
• E-24: 3 digits, first two digits are
significant, third digit is number of
zeros.
Letter R is decimal point.
• E-96: 4 digits, first three digits are
significant, fourth digit is number of
zeros.
Letter R is decimal point.
0603 E-96: EIA-96 marking (see table
below).
E-24 marking
Value = 10K ohms
E-96 marking
Value = 44.2K ohms
1 % marking
Value = 12.4K ohms
EIA-96 Marking for CR0603, 1 %
Code R Value
01
02
03
04
05
06
07
08
09
10
11
12
100
102
105
107
110
113
115
118
121
124
127
130
Code
13
14
15
16
17
18
19
20
21
22
23
24
R Value
133
137
140
143
147
150
154
158
162
165
169
174
Code
25
26
27
28
29
30
31
32
33
34
35
36
R Value
178
182
187
191
196
200
205
210
215
221
226
232
Code
37
38
39
40
41
42
43
44
45
46
47
48
R Value Code
237
243
249
255
261
267
274
280
287
294
301
309
49
50
51
52
53
54
55
56
57
58
59
60
R Value
316
324
332
340
348
357
365
374
383
392
402
412
Code R Value
61
62
63
64
65
66
67
68
69
70
71
72
422
432
442
453
464
475
487
499
511
523
536
549
Code
73
74
75
76
77
78
79
80
81
82
83
84
R Value
562
576
590
604
619
634
649
665
681
698
715
732
Code R Value
85
86
87
88
89
90
91
92
93
94
95
96
750
768
787
806
825
845
866
887
909
931
953
976
This table shows the first two digits for the three-digit EIA-96 part marking scheme. The third character is a letter multiplier:
Y=10
-2
X=10
-1
A=10
0
B=10
1
C=10
2
D=10
3
E=10
4
F=10
5
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
CR0603/CR0805/CR1206 - Chip Resistors
CR 1206 - F X - 8252 E LF
How To Order
Model
(CR = Chip Resistor)
Size
• 0603
• 0805
• 1206
Resistance Tolerance
F = ±1 % ................Use with “X” TCR code only for values from 10 ohms through 1 megohm;
Use with “W” TCR code only for values from 1 megohm through 10 megohms.
J = ±5 % .................Use with “W” TCR code for values from 10 ohms through 10 megohms;
Use with “Z” TCR code for values above 10 megohms through 20 megohms;
Use with “/” TCR code for zero ohm (jumper) and values from 1 ohm through 9.1 ohms.
TCR (ppm/°C)
X = ±100
W = ±200
Z = ±400
/ = Used with “J” Resistance Tolerance code for zero ohm (jumper) and values from 1 ohm through 9.1 ohms.
Resistance Value
For 1 % Tolerance:
<100
ohms...............“R” represents decimal point
(example: 24R3 = 24.3 ohms).
≥100
ohms...............First three digits are significant, fourth digit represents number of zeros to follow (example:
8252 = 82.5k ohms).
For 5 % Tolerance:
<10
ohms............. “R” represents decimal point
(example: 4R7 = 4.7 ohms).
≥10
ohms............. First two digits are significant, third digit represents number of zeros to follow (example:
474 = 470k ohms; 000 = Jumper).
Packaging
E = Paper Tape (5,000 pcs.) on 7 ” Plastic Reel
Termination
LF = Tin-plated (RoHS Compliant)
REV. 11/16
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
PB375 U disk read and write assembly program Cost-effective U disk read and write module-PB375, compatible with CH375 read and write operations 1. Function ● Used for embedded systems/microcontrollers...
[align=left][size=3][font=微软雅黑]The clock sources for microcontrollers can be divided into two categories: those based on mechanical resonant devices, such as crystals and ceramic resonant tanks; and R...
How to connect the output of the microcontroller to 0809 or 0832 to achieve digital-to-analog conversion or analog-to-digital conversion of its signal....
As the title says: Remove the logo on the left side of the start menu in the title bar of Windows Mobile 5.0, as well as the Internet connectivity indicator, volume indicator, and time information. Sc...
There are countless models of microcontrollers of all brands. Microchip has countless models to meet different needs. You can discuss what kind of occasions each model is suitable for. For example, wh...
I just started to learn DSP, and I use C6713+FPGA development board (no technical support anymore), but I can't find the target board. After checking the simulator, there is no problem, maybe there is...
Today's computer peripherals are pursuing high speed and high versatility. In order to meet user needs, seven companies led by Intel launched the USB (Universal Serial Bus) bus protocol in 1994, wh...[Details]
Today, with the increasing integration of functions, mobile phones can also be used as portable media players (PMP), digital cameras, handheld computers (PDAs), and even global positioning systems ...[Details]
introduction
Throughout the history of automotive lighting, power has always played an important role. Initially, cars only needed headlights to see the road in the dark. Later, other light so...[Details]
System design is a complex process. It is not enough to just use ICs. There are many details to consider. This article uses a high-fidelity music playback system as an example to introduce how to s...[Details]
When choosing a laptop battery, you should consider several factors, such as power, appearance, and quality.
Regarding power, we often see that a manufacturer uses values such as the number ...[Details]
Introduction
Power subsystems are becoming more and more integrated into the overall system. Power systems have moved from being separate "essential dangerous devices" to being monitorable...[Details]
Battery life is critical for portable applications. For applications such as smoke detectors, security devices, and thermostats, factory-installed batteries need to last for more than 10 years. The...[Details]
The solidification and modularization of intelligent video analysis algorithms are the current trends in the application of intelligent video analysis technology. It perfectly combines intelligent ...[Details]
In the previous series, we have listed some basic knowledge of C language in Tables 1 to 3. We hope that beginners can strengthen their memory of the above tables and gradually learn to use them wh...[Details]
1. Background:
The instrument system parameter detection and control of the chemical production workshop of Tangshan Coal Gas Coking Plant are all analog instruments, some of which are eve...[Details]
I've been studying dot matrix recently. It looks simple, but it takes a while to master it completely! The 8*8 dot matrix hardware circuit I'm making now is like this. The row is driven by 74HC138 + t...[Details]
Continuity test
A variety of devices need to be checked for continuity, including cable assemblies, printed circuit boards, and connectors to ensure that these components have the expected contin...[Details]
1. Disadvantages of choosing too high a voltage level
Choosing too high a voltage level will result in too high an investment and a long payback period. As the voltage level increases, the...[Details]
0 Introduction
Ultrasonic waves
are mechanical waves with a frequency of more than 20KHz, and the propagation speed in the air is about 340 m/s (at 20°C). Ultrasonic waves can be gene...[Details]
In the "digital pressure measurement" experimental device of applied physics, the subject technical knowledge of analog circuits, digital circuits, sensors and single-chip microcomputers is used. In o...[Details]
Embedded System
京公网安备 11010802033920号
EEWORLD
