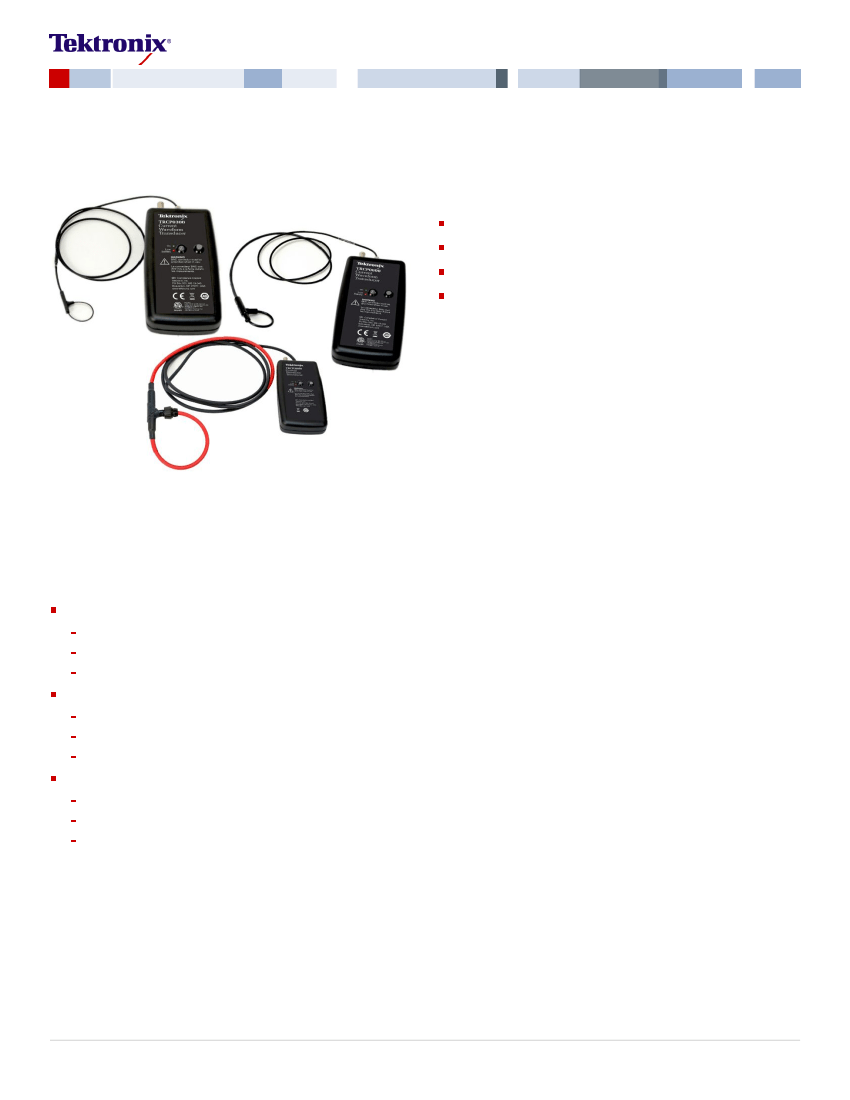

The TRCP0300 and TRCP0600 are designed for use on small form factor
components. These AC-only Rogowski probes have a thin, flexible coil that
can easily be wrapped around test points such as the leg of a transistor.
TRCP3000 Current Probe
The TRCP3000 has a larger coil that is capable of handling large overload
currents without damage. This probe is easy to use and can be inserted
into places that are hard to reach and can be wrapped around larger test
points such as bus bars.
The TRCP Series Rogowski current probes are equipped with a BNC
connector and work with any instrument supporting the BNC interface.
Rogowski probes allow you to easily connect to large connection points
such as bus bars or connect to small IC legs on a MOSFET or IGBT.
Key features
TRCP0300
AC only
9 Hz to 20 MHz
250 mA to 300 A peak
TRCP0600
AC only
12 Hz to 30 MHz
500 mA to 600 A peak
TRCP3000
AC only
1 Hz to 16 MHz
500 mA to 3,000 A peak
www.tektronix.com 1
Datasheet
Specifications
TRCP0300
Frequency range
Peak current
Minimum current
Coil diameter
Termination
9 Hz to 20 MHz
300A
250 mA
1.7 mm
BNC
TRCP0600
12 Hz to 30 MHz
600A
500 mA
4.5 mm
BNC
TRCP3000
1 Hz to 16 MHz
3000 A
500 mA
8.5 mm
BNC
Ordering information
TRCP Series Rogowski Current Probes
TRCP0300
TRCP0600
TRCP3000
300 A, AC-Only Rogowski Current Probe
600 A, AC-Only Rogowski Current Probe
3,000 A, AC-Only Rogowski Current Probe
Options
Service options
Opt. C3
Opt. C5
Opt. D1
Opt. D3
Opt. D5
Opt. R3
Opt. R3DW
Opt. R5
Opt. R5DW
Calibration Service 3 Years
Calibration Service 5 Years
Calibration Data Report
Calibration Data Report 3 Years (with Opt. C3)
Calibration Data Report 5 Years (with Opt. C5)
Repair Service 3 Years (including warranty)
Repair Service Coverage 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase
Repair Service 5 Years (including warranty)
Repair Service Coverage 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
Tektronix is registered to ISO 9001 and ISO 14001 by SRI Quality System Registrar.
2 www.tektronix.com
