Axial Lead & Cartridge Fuses
2AG > Fast-Acting > 2206 Series

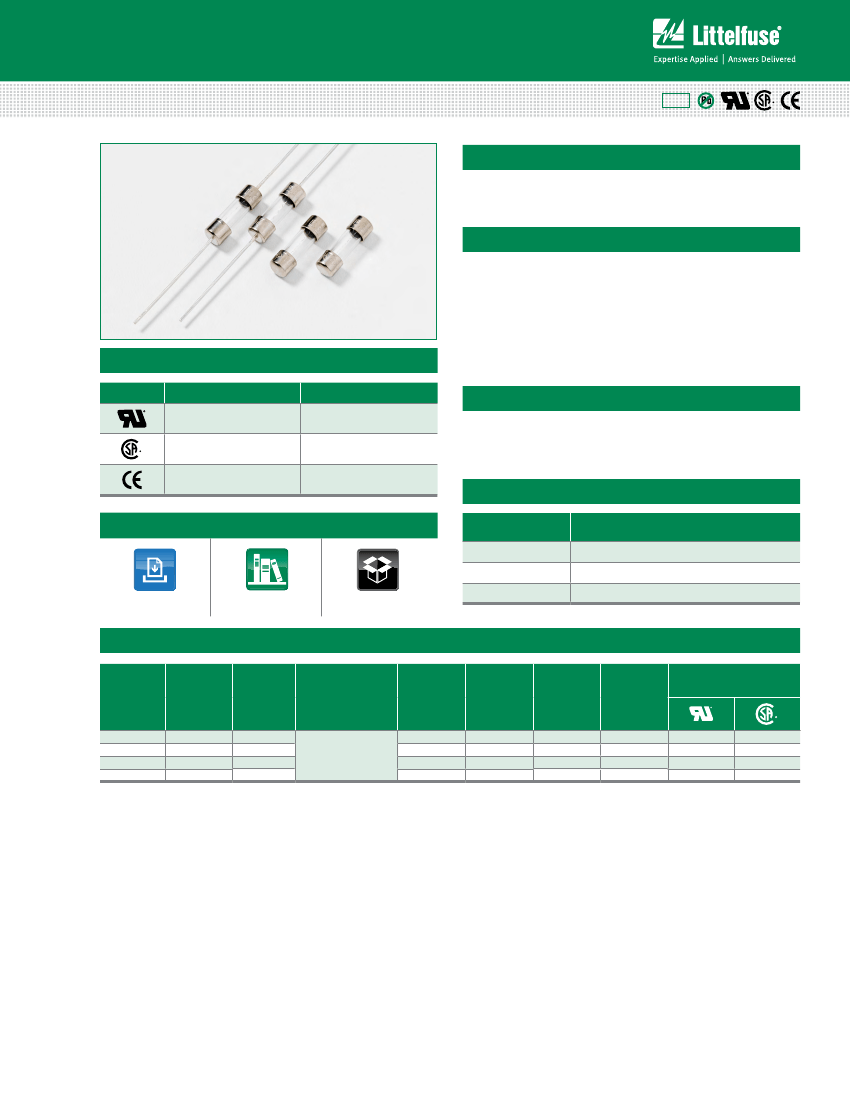

2206 Series, Lead-Free 2AG, Fast-Acting Fuse
Description
RoHS
The 2AG Fast-Acting Axial Leaded Fuses provide the same
performance characteristics as their 3AG counterpart while
occupying one-third the space.
Features
• In accordance
with Underwriter’s
Laboratories Standard
UL 248-14
• Fuses are boardwashable
in most solvents with
thermoplastic sleeve
Ampere Range
• Available in axial lead
form and with various
lead forming dimensions
• RoHS compliant and
lead–free
Agency Approvals
Agency
Agency File Number
Applications
Used as supplimentary protection in appliance or utilization
equipment to provide individual protection for components
or internal circuits.
Electrical Characteristics for Series
% of Ampere
Rating
100%
135%
200%
Opening Time
4 hours, Minimum
1 hour, Maximum
1 second, Maximum
E10480
29862
N/A
0.75A - 3A
0.75A - 3A
0.75A - 3A
Additional Information
Datasheet
Resources
Samples
Electrical Characteristic Specifications by Item
Ampere
Rating
(A)
.750
1
2
3
Max
Voltage
Rating
(V)
300
300
300
300
Nominal
Cold
Resistance
(Ohms)
0.1520
0.1027
0.0497
0.0317
Nominal
Melting
I
2
t (A
2
sec)
1.05
2.22
1.50
4.62
Nom
Voltage
Drop
(mV)
N/A
N/A
N/A
N/A
Nom
Power
Dissipation
(W)
N/A
N/A
N/A
N/A
Agency Approvals
Amp
Code
0.75
001
002
003
Interrupting
Rating
100A@300Vac
10KA@125Vac
x
x
x
x
x
x
x
x
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice. Application testing is strongly recommended.
Revised: 05/04/15
Axial Lead & Cartridge Fuses
2AG > Fast-Acting > 2206 Series

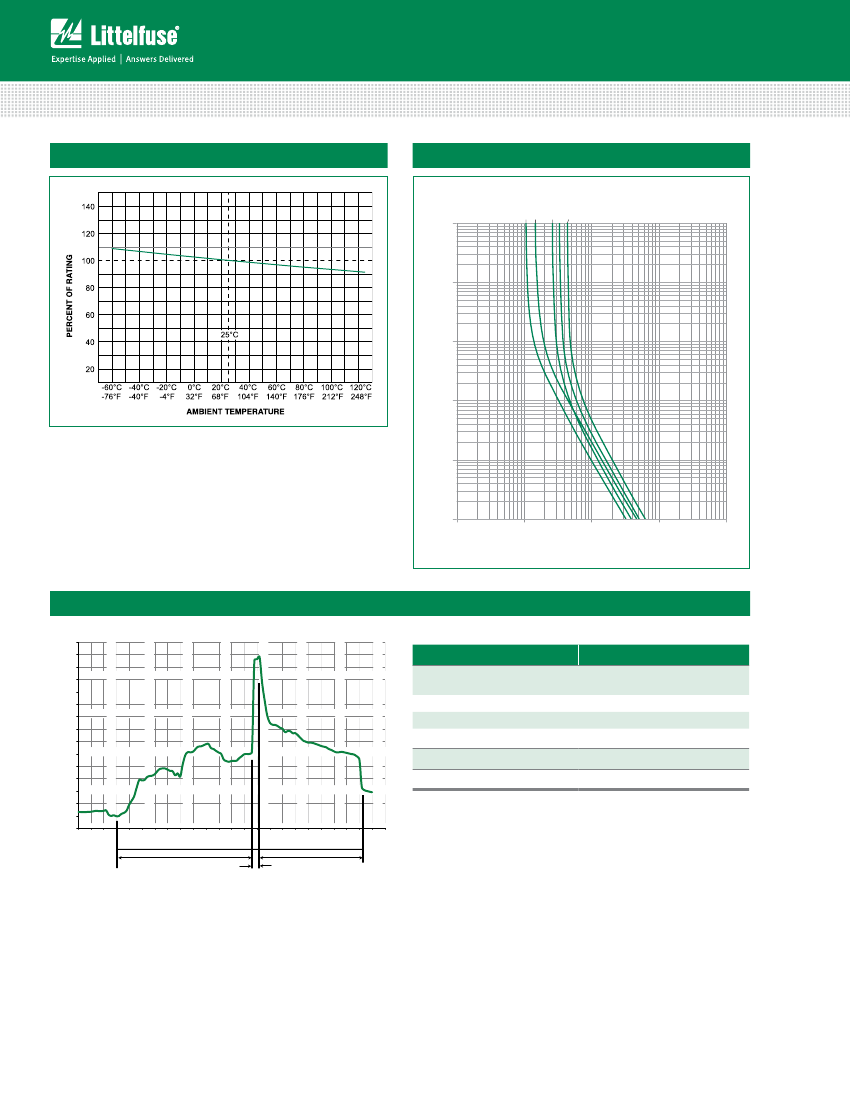

Temperature Rerating Curve
Average Time Current Curves
.750A
1.00A
0.1
1
2.00A
100
10
TIME IN SECONDS
1
0.1
Note:
1. Rerating depicted in this curve is in addition to the standard derating of 25% for
continuous operation.
0.01
0.001
10
100
CURRENT IN AMPERES
1000
Soldering Parameters - Wave Soldering
Recommended Process Parameters:
300
Temperature (°C) - Measured on bottom side of board
280
260
240
220
200
180
160
140
120
100
80
60
40
20
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
10
20
30
40
50
60
70
80
90
0
0
Wave Parameter
Preheat:
(Depends on Flux Activation Temperature)
3A
Lead-Free Recommendation
(Typical Industry Recommendation)
Temperature Minimum:
Temperature Maximum:
Preheat Time:
Solder Pot Temperature:
Solder Dwell Time:
100
°
C
150
°
C
60-180 seconds
260
°
C Max
2-5 seconds
Recommended Hand-Solder Parameters:
Solder Iron Temperature: 350° C +/- 5°C
Heating Time: 5 seconds max.
Note: These devices are not recommended for IR or
Convection Reflow process.
Time (Seconds)
Preheat Time
Dwell Time
Cooling Time
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/04/15
Axial Lead & Cartridge Fuses
2AG > Fast-Acting > 2206 Series
Product Characteristics
Materials
Terminal Strength
Solderability
Product Marking
Body: Glass
Cap : Nickel–plated brass
Leads: Tin–plated Copper
MIL-STD-202, Method 211,
Test Condition A
MIL-STD-202 Method 208
Cap1 : Brand logo, current and voltage
ratings
Cap2 : Series and agency approval marks
Operating
Temperature
Thermal Shock
Vibration
Humidity
Salt Spray
–55ºC to +125ºC
MIL
-STD-202, Method 107 Test Condition B (5
,
Cycles -65ºC to +125ºC).
MIL
-STD-202, Method 201
MIL
-STD-202, Method 103, Test Condition A:
High RH (95%) and Elevated Temp (40ºC) for
240 hours
MIL
-STD-202, Method 101, Test Condition B
Dimensions
Part Numbering System
4.2 - 4.8
(.16" - .19”)
2206 000P Series
.635 ± .06
(.025" ± .002”)
14.1 - 14.9
(.56" - .59”)
02206
38.1 ± 1
(1.50"±.04”) TYP.
Packaging
Packaging Option
Bulk
Bulk
Packaging Specification
N/A
N/A
Quantity
100
1000
Quantity & Packaging Code
HX
MX
Reel Size
N/A
N/A
© 2015 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 05/04/15
