2P18U3-66 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> 2P18U3-66

2P18U3-66: DescriptionCircuit Breaker Accessories Busbar, 2 Phase, 18sqmm, PIN Type 66Lugs, UL/cUL listed; CategoryCircuit protection; File Size141KB，1 Pages; ManufacturerAltech; Websitehttp://www.altechcorp.com/

Download Datasheet Parametric Compare View All

2P18U3-66 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2P18U3-66	-	-	View	Buy Now

2P18U3-66 Overview

Circuit Breaker Accessories Busbar, 2 Phase, 18sqmm, PIN Type 66Lugs, UL/cUL listed

2P18U3-66 Parametric

Parameter Name	Attribute value
Product Category	Circuit Breaker Accessories
Manufacturer	Altech
Product	Busbars
Factory Pack Quantity	1
Termination Style	Lug

Preview

Download Datasheet

View All

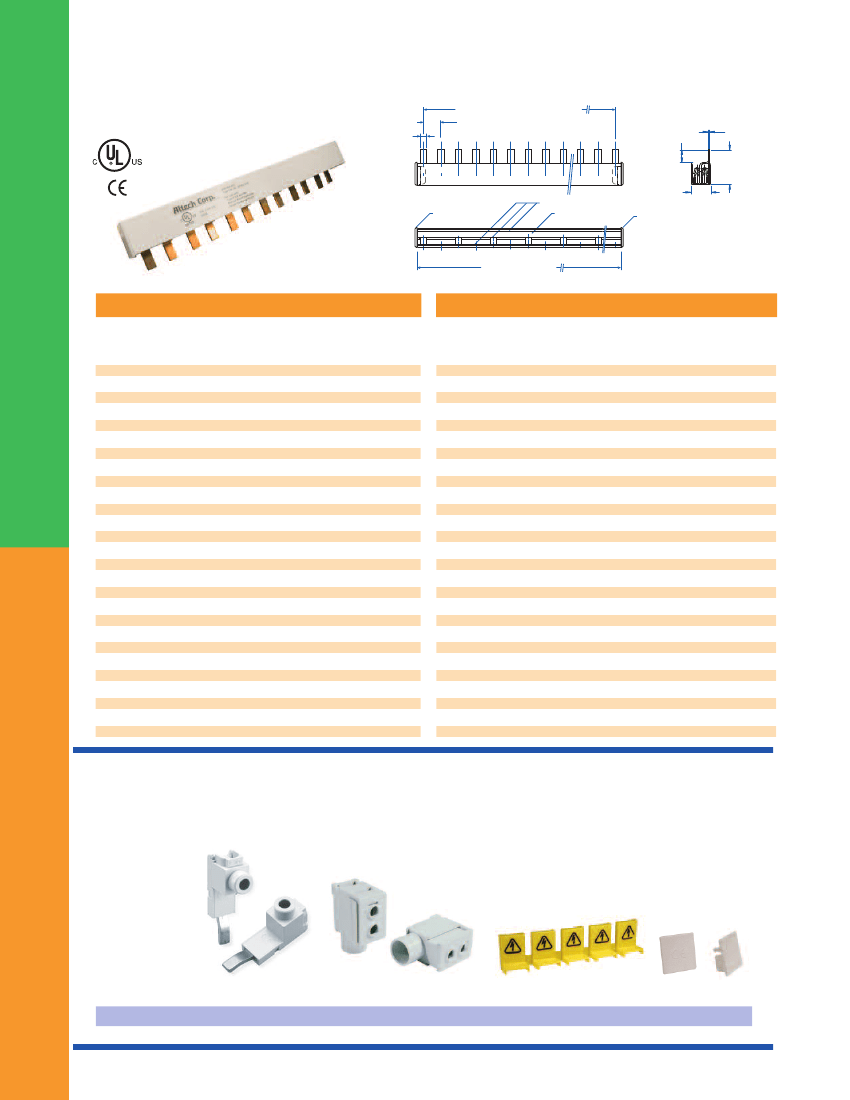

2 PHASE BUSBAR - standard spacing

Altech UL1077

L2 L1

Copper strips

Insulation Track

21 mm

(0.83 in.)

End Cap

L2 L1

991 mm (39.02 in.)

18mm

for 80A

Type/

Cat. No.

2P18U3/4

2P18U3/6

2P18U3/8

2P18U3/10

2P18U3/12

2P18U3/14

2P18U3/16

2P18U3/18

2P18U3/20

2P18U3/22

2P18U3/24

2P18U3/26

2P18U3/28

2P18U3/30

2P18U3/32

2P18U3/34

2P18U3/36

2P18U3/38

2P18U3/40

2P18U3/42

2P18U3/44

2P18U3/46

2P18U3/48

2P18U3/50

2P18U3/52

2P18U3/54

2P18U3/56

No. of

Pins

No. of MMC

to Jumper

2x2 pole

3x2 pole

4x2 pole

5x2 pole

6x2 pole

7x2 pole

8x2 pole

9x2 pole

10x2 pole

11x2 pole

12x2 pole

13x2 pole

14x2 pole

15x2 pole

16x2 pole

17x2 pole

18x2 pole

19x2 pole

20x2 pole

21x2 pole

22x2 pole

23x2 pole

24x2 pole

25x2 pole

26x2 pole

27x2 pole

28x2 pole

Length

[mm]

66.3

101.8

137.3

172.8

208.3

243.8

279.3

314.8

350.3

385.8

421.3

456.8

492.3

527.8

563.3

598.8

634.3

669.8

705.3

740.8

776.3

811.8

847.3

882.8

918.3

953.8

989.3

Type/

Cat. No.

2P25U3/4

2P25U3/6

2P25U3/8

2P25U3/10

2P25U3/12

2P25U3/14

2P25U3/16

2P25U3/18

2P25U3/20

2P25U3/22

2P25U3/24

2P25U3/26

2P25U3/28

2P25U3/30

2P25U3/32

2P25U3/34

2P25U3/36

2P25U3/38

2P25U3/40

2P25U3/42

2P25U3/44

2P25U3/46

2P25U3/48

2P25U3/50

2P25U3/52

2P25U3/54

2P25U3/56

25mm

for 100A

No. of

Pins

No. of MMC

to Jumper

2x2 pole

3x2 pole

4x2 pole

5x2 pole

6x2 pole

7x2 pole

8x2 pole

9x2 pole

10x2 pole

11x2 pole

12x2 pole

13x2 pole

14x2 pole

15x2 pole

16x2 pole

17x2 pole

18x2 pole

19x2 pole

20x2 pole

21x2 pole

22x2 pole

23x2 pole

24x2 pole

25x2 pole

26x2 pole

27x2 pole

28x2 pole

Length

[mm]

66.3

101.8

137.3

172.8

208.3

243.8

279.3

314.8

350.3

385.8

421.3

456.8

492.3

527.8

563.3

598.8

634.3

669.8

705.3

740.8

776.3

811.8

847.3

882.8

918.3

953.8

989.3

Altech UL508

ACCESSORIES

Type/Cat. No:

Description:

P50UT

Power Feed Lug

P50UB

Modular Direct Power Feed

BRS5

Insulation Cap

18/25CAP3P

End Cap

37 mm

(1.46 in.)

UL508 listed

E205412

7 mm

(0.28 in.)

55 x 17.75 = 976 mm (38.43 in.)

17.75 mm

(0.70 in.)

13 mm (.51 in.)

18mm

for 80A

25mm

for 100A

2 mm (.079 in.)

2P18U3-66 Related Products

	2P18U3-66	2P25U3S-54	2P18U3S-30	2P25U3S-14	2P18U3-34	2P18U3S-24	2P18U3S-52	2P18U3-52	2P25U3S-28
Description	Circuit Breaker Accessories Busbar, 2 Phase, 18sqmm, PIN Type 66Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 2 Phase+1pole, 25sqmm, PIN Type, 54Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 2 Phase, 18sqmm, PIN Type 30 Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 2 Phase+1pole, 25sqmm, PIN Type, 14Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 2 Phase, 18sqmm, PIN Type 34Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 2 Phase, 18sqmm, PIN Type 24 Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 2 Phase, 18sqmm, PIN Type 52 Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 2 Phase, 18sqmm, PIN Type 52Lugs, UL/cUL listed	Circuit Breaker Accessories Busbar, 2 Phase+1pole, 25sqmm, PIN Type, 28Lugs, UL/cUL listed
Product Category	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories	Circuit Breaker Accessories
Manufacturer	Altech	Altech	Altech	Altech	Altech	Altech	Altech	Altech	Altech
Product	Busbars	Busbars	Busbars	Busbars	Busbars	Busbars	Busbars	Busbars	Busbars
Factory Pack Quantity	1	1	1	1	1	1	1	1	1
Termination Style	Lug	Lug	Lug	Lug	Lug	Lug	Lug	Lug	Lug
RoHS	-	-	Details	-	Details	Details	Details	Details	-
Type	-	-	2 Phase Busbar	-	2 Phase Busbar	2 Phase Busbar	2 Phase Busbar	2 Phase Busbar	-
Current Rating	-	-	80 A	-	80 A	80 A	80 A	80 A	-
Mounting Style	-	-	Press Fit	-	Press Fit	Press Fit	Press Fit	Press Fit	-
Number of Poles	-	-	2 Poles	-	2 Poles	2 Poles	2 Poles	2 Poles	-
Voltage Rating	-	-	480 V	-	480 V	480 V	480 V	480 V	-
