503776-1610

Description
Development Boards u0026 Kits - ARM
CategoryThe connector    The connector
File Size33KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

503776-1610 Online Shopping

Suppliers Part Number Price MOQ In stock
503776-1610 - - View Buy Now

503776-1610 Overview

Development Boards u0026 Kits - ARM

503776-1610 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
package instructionLOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time11 weeks
Other featuresSLIMSTACK
Board mount optionsSOLDER HOLDING POSTS
body width0.065 inch
subject depth0.027 inch
body length0.184 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance80 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Durability30 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER (LCP)
MIL complianceNO
Plug contact pitch0.016 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)0.3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.4 mm
Termination typeSURFACE MOUNT
Total number of contacts16
Base Number Matches1

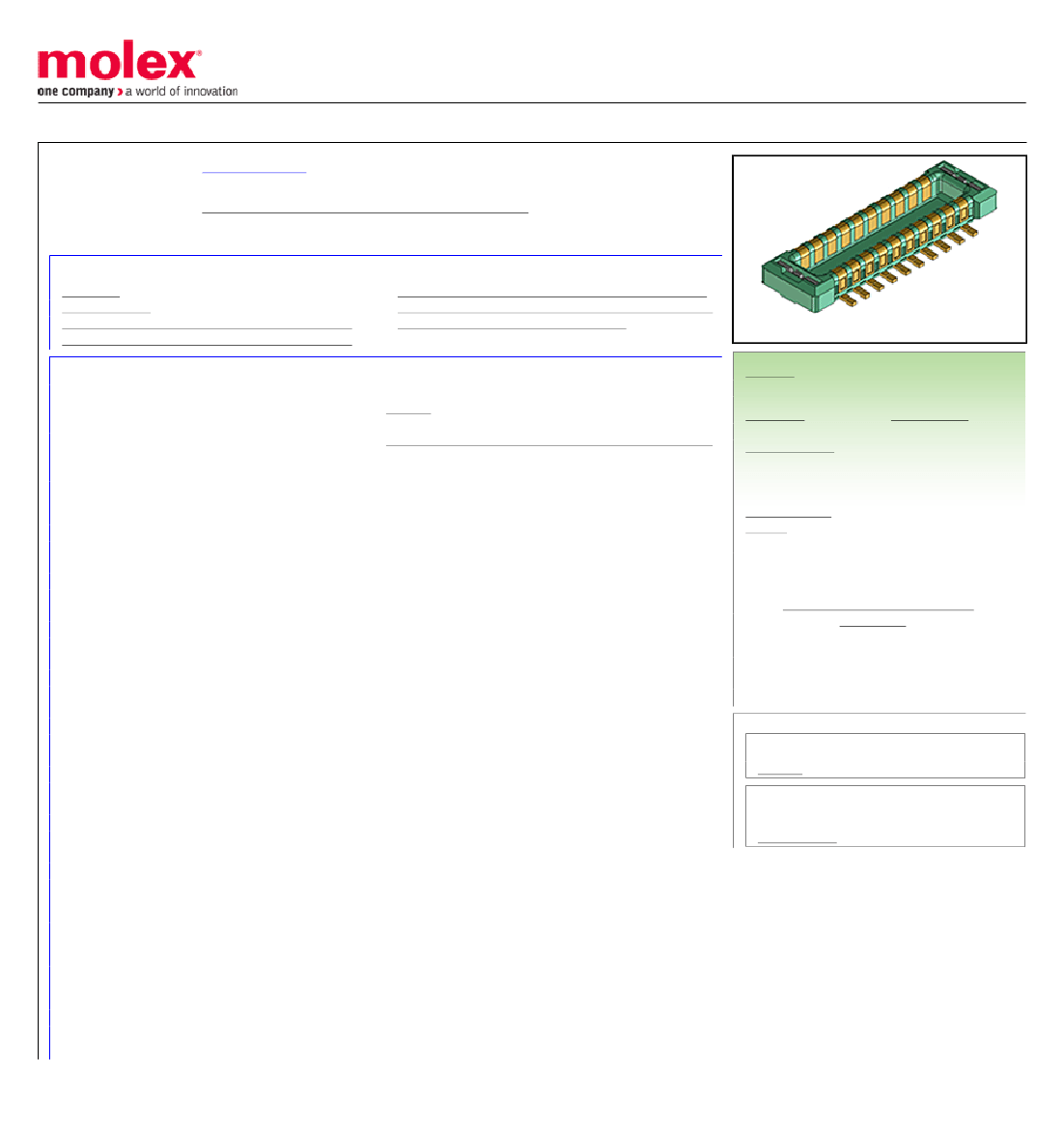

This document was generated on 10/20/2017
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
5037761610
Active
SlimStack™ 0.40mm Pitch Board-to-Board Connectors
0.40mm Pitch SlimStack™ B8 Board-to-Board Plug, Surface Mount, Dual Row,
Vertical, 0.80mm Stacking Height, 16 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-503772-001-001 (PDF)
Product Specification PS-503772-002-001 (PDF)
General
Product Family
Series
Application
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Glow-Wire Compliant
Lock to Mating Part
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
Packaging Type
Pitch - Mating Interface
Polarized to Mating Part
Polarized to PCB
Stackable
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Reference - Drawing Numbers
Application Specification
Packaging Specification
Product Specification
Sales Drawing
Application Specification AS-503772-001-001 (PDF)
Packaging Specification SPK-503776-001-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
PCB Headers
503776
Board-to-Board, Signal
SlimStack™ 0.40mm Pitch Board-to-Board Connectors
SlimStack B8
884982581494
No
16
16
Black
30
No
Yes
0.80mm
Copper Alloy
Gold
Gold
8.600/mg
2
Vertical
No
Yes
Embossed Tape on Reel
0.40mm
No
No
No
-40°C to +85°C
Surface Mount
0.3A
50V AC/DC
Search Parts in this Series
503776 Series
Mates With
SlimStack™ B8 Board-to-Board Receptacle
503772-1610
AS-503772-001-001
SPK-503776-001-001
PS-503772-001-001, PS-503772-002-001
5037760000-000, 5037761000-000
