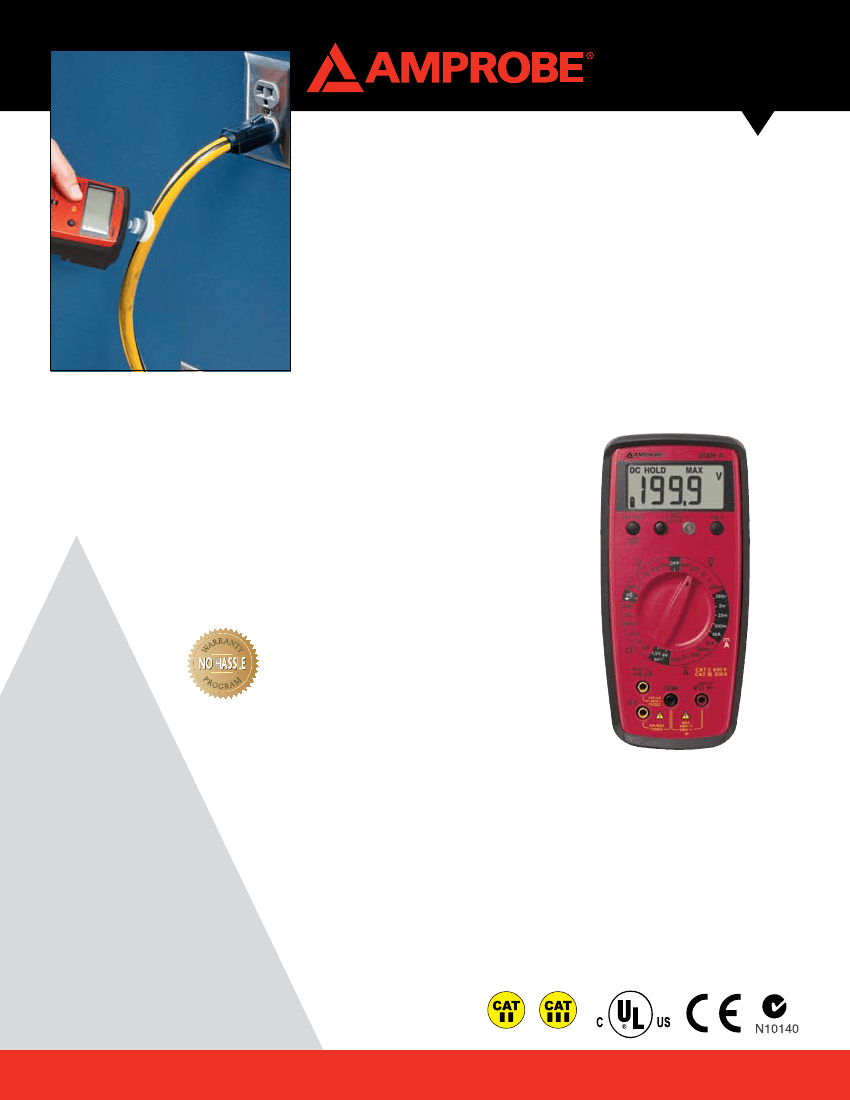

30XR-A
Data Sheet
Digital Multimeter
Manual ranging digital multimeter with non-contact
voltage tester.
No hassle
warranty
No waiting.
No shipping
charges.
Our commitment to
high-quality products
and customer service
is demonstrated by
our industry exclusive
“No Hassle” warranty.
In the unlikely event
that an Amprobe Test
Tool requires warranty
service, any of our
local dealers are
authorized to replace
it, on the spot.
(note: $500 MSLP limit)
Non-contact voltage tester to
600 V AC
■
Magne-Grip™ Holster with
magnetic hanging strap
■
600 V AC/DC
■
10 Amps AC/DC, fully safety
fused
■
Resistance to 20 M
W
■
Continuity beeper
■
1.5 V / 9 V battery test under
load
■
Min/Max and Data Hold
■
Separate door for easy battery
and fuse access
■
One-year warranty
■
30XR-A
600V
300V
Amprobe® Test Tools
www.Amprobe.com
30XR-A Digital Multimeter
General Specifications
Manual Ranging
Display:
Display Update Rate:
Power Battery:
Battery Life:
Operating Temperature:
Storage Temperature:
Dimensions:
Weight:
3-1/2 digit LCD, 1999 counts
2.5/sec, nominal
9 V NEDA 1604, JIS 006P, IEC 6F22
200 hrs typical (carbon-zinc)
0 °C to 45 °C at < 70 % R.H.
-20 °C to 60 °C, 0 to 80 % R.H. with battery removed from meter
196 x 92 x 60 mm (7.7” x 3.5” x 2.4”)
426 gr (0.94 lb) without holster, including battery
Data Sheet
Specifications (at 23 °C ± 5 °C, <75 % R.H. non-condensing)
Function
DC Voltage
Ranges
Accuracy
Resolution
Input Impedance
AC Voltage (45 Hz to 500 Hz)
Ranges
Accuracy
Resolution
Input Impedance
DC Current
Ranges
Accuracy
Resolution
Voltage Burden (Max)
Range
Accuracy
200 mV, 2 V, 20 V, 200 V, 600 V
all ranges:
100 μV
10 MW
200 mV, 2 V, 20 V, 200 V, 600 V
all ranges:
100 μV
10 MW
200 μA, 2 mA, 20 mA, 200 mA, 10 A
200 μA to 200 mA ranges:
10 A range:
0.1 μA
200 μA range: 1 mV/μA
2 mA range: 100 mV/1mA
20 mA range: 13 mV/1 mA
200 mA range: 4.6 mV/1 mA
10A range: 40 mV/1 A
200 μA, 2 mA, 20 mA, 200 mA, 10 A
200 μA to 200 mA ranges:
10A range:
0.1 μA
See DC Current
200
W,
2 kW, 20 kW, 200 kW, 2 MW, 20 MW
200
W
to 200 kW ranges: ± (1.0 % rdg + 4 dgts)
2 MW range: ± (1.5 % rdg + 4 dgts)
20 MW range: ± (2.0 % rdg + 5 dgts)
100 mW
200
W
range: 3.0 V DC
All other ranges: 0.3V DC typical
± (1 % rdg + 1 dgt)
± (1.5 % rdg + 4 dgts)
± (1.5 % rdg + 1 dgt)
± (2.0 % rdg + 3 dgts)
AC Current (45 Hz to 500 Hz)
Ranges
Accuracy
Resolution
Voltage Burden
Resistance
Ranges
Accuracy
± (2.0 % rdg + 4 dgts)
± (2.5 % rdg + 4 dgts)
Resolution
Open Circuit Voltage
Amprobe® Test Tools
www.Amprobe.com
30XR-A Digital Multimeter
Specifications (at 23 °C ± 5 °C, <75 % R.H. non-condensing), cont.
Function
Continuity
Audible Indication
Response Time
Diode Test
Test Current
Resolution
Open Circuit Volts
Battery Test
Ranges
Resolution
Load Test Current
Non-Contact Voltage Detector (NCV)
AC Volts
Red LED and Audible Indicator
Overload Protection
AC/DC Voltage 400 mV range:
All other ranges:
AC/DC Current uA/mA input:
Range
75
W
100 ms
1.0 mA (approximate)
0.001 V
3.0 V typical
1.5 V, 9 V
1 mV, 10 mV
1.5 V range: 150 mA typical
9 V range: 5 mA typical
70 to 600 V ac
Accuracy
± 25
W
Data Sheet
± (1.5 % rdg + 3 dgts)
± (3.5 % rdg + 2 dgts)
Resistance
Continuity
Diode Test
Battery Test
600 V DC or 600 V AC RMS 15 sec
600 V DC or 600 V AC RMS
F 0.25 A/ 600 V Min. I.R. 30 kA (6.3 x 32 mm)
10 A input F 10A / 600V, Min. I.R. 100 kA, (10 x 38 mm)
(10 A for 4 minutes maximum followed by a 12 minute cooling period)
600 V DC or 600 V rms
600 V DC or 600 V AC RMS
600 V DC or 600 V AC RMS
600 V DC or 600 V AC RMS
www.Amprobe.com
30XR-A Digital Multimeter
Data Sheet

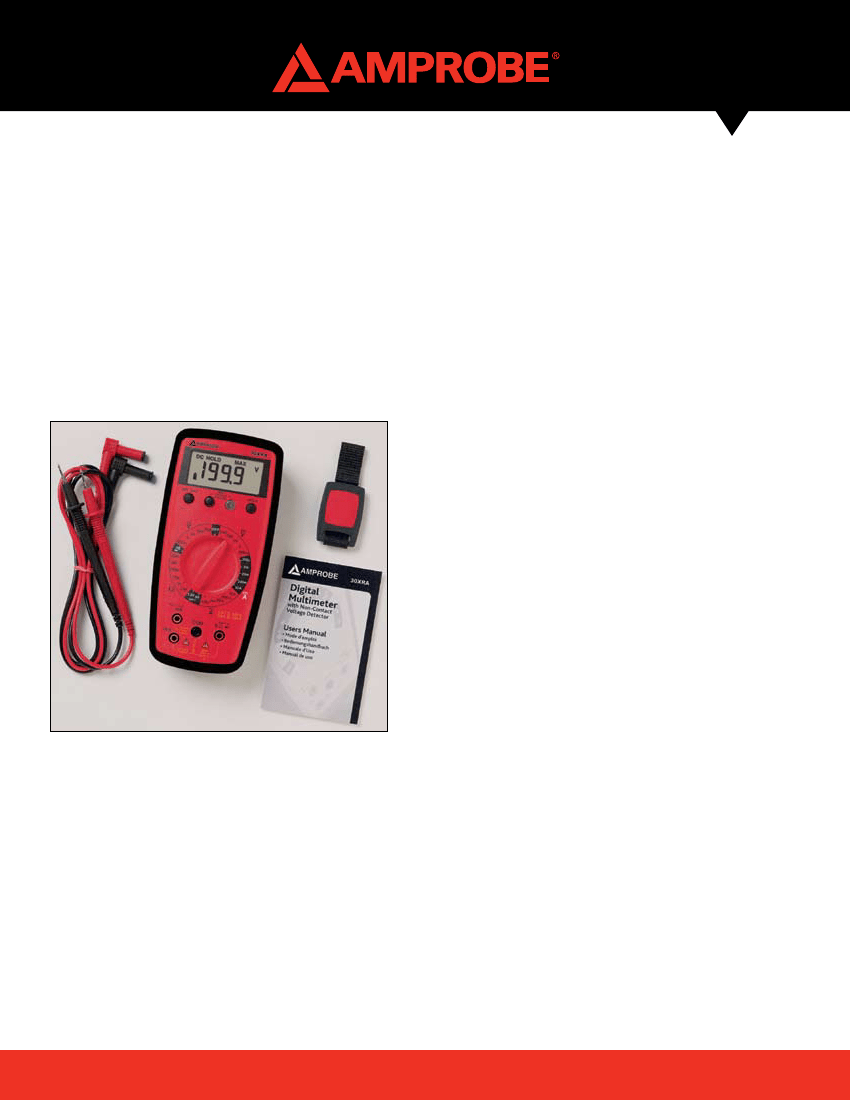

Included Accessories
Test leads (TL36A), 9 V battery (installed),
Magne-Grip™ Holster with magnetic hanging
strap, spare fuse, users manual
Optional Accessories
VC221B
Padded Vinyl Carry Case
DL248D
Deluxe Test Lead Kit
DC207C
Heavy Duty Case
HV231-10A
High Voltage Probe
TC253A
Temperature Adaptor
TP254A
High Temperature Probe
Amprobe® Test Tools
website: www.Amprobe.com
email: info@amprobe.com
Everett, WA 98203
Tel: 877-AMPROBE
Amprobe® Test Tools Europe
In den Engematten 14
79286 Glottertal, Germany
Tel.: +49 (0) 7684 8009 - 0
©2007 Amprobe Test Tools. All rights reserved.
9/2007 2062676 D-US-N Rev C
