Data Sheet
TX900
Microwave Leakage Detector
The Amprobe TX900 microwave leakage detector has been
designed to assist domestic and commercial appliance
engineers with microwave ovens. The Amprobe TX900 can be
used to verify if the oven operates in accordance with current
standards and regulations.
■
Measures for wave leakage and tests oven power
■
8 dipole sensors – allows detection of plane wave signals
of any polarization
■
Temperature compensation – accurate reading regardless
of ambient temperature changes
■
Compact, ergonomic design
■
Low battery indication
■
Analog Bar Graph
■
Auto-zero
■
Accessories supplied: Two 500 ml Plastic Beakers, Spirit
(alcohol) Glass Thermometer, 9V battery, Carrying case,
and Sample set of “RF Emission Labels”
No hassle
warranty
No waiting.
No shipping
charges.
Our commitment to
high-quality products
and customer service
is demonstrated by
our industry exclusive
“No Hassle” warranty.
In the unlikely event
that an Amprobe Test
Tool requires warranty
service, any of our
local dealers are
authorized to replace
it, on the spot.
(note: $500 MSLP limit)
Amprobe® Test Tools
www.Amprobe.com
TX900 Microwave Leakage / RF Detector
Specifications
General Specifications
Display
Power Source
Low Battery
Nominal current
Sensor - Source Spacing
Environmental
Operating Temperature
Storage Temperature
Dimensions
Weight
2-1/2 Digit LCD with 10 point bargraph display
9 Volt NEDA 1604A / IEC 6LR61 Battery
approx. 6 V
10 mA
circular - 5 cm
Indoor operation; below 6,562ft (2000m)
0°C to 50°C (32°F to 122°F), < 80% RH
-20ºC to 50ºC (-4ºF to 122ºF), < 80% R.H. (with battery removed)
23 x 4.2 x 4.4 cm (9.1 x 1.7 x 1.7 in.)
0.15 kg (0.33 lb)
Data Sheet
½
EMC
EN 61326-1:2006 This product complies with requirements of the following European Community
Directives: 2004/108/EC (Electromagnetic Compatibility) and 2006/95/EC (Low Voltage) as amended
by 93/68/EEC (CE Marking). However, electrical noise or intense electromagnetic fields in the vicinity
of the equipment may disturb the measurement circuit. Measuring instruments will also respond to
unwanted signals that may be present within the measurement circuit. Users should exercise care and
take appropriate precautions to avoid misleading results when making measurements in the presence
of electronic interference
0 to 10 mW/cm
2
2.45 GHz
± 1dB in plane wave - circular polarization
< 1 sec.
0.1 mW/cm
2
Electrical
RF Power Sensing Range
Nominal Detecting Frequency
Calibration Accuracy
Response to step input:
Resolution

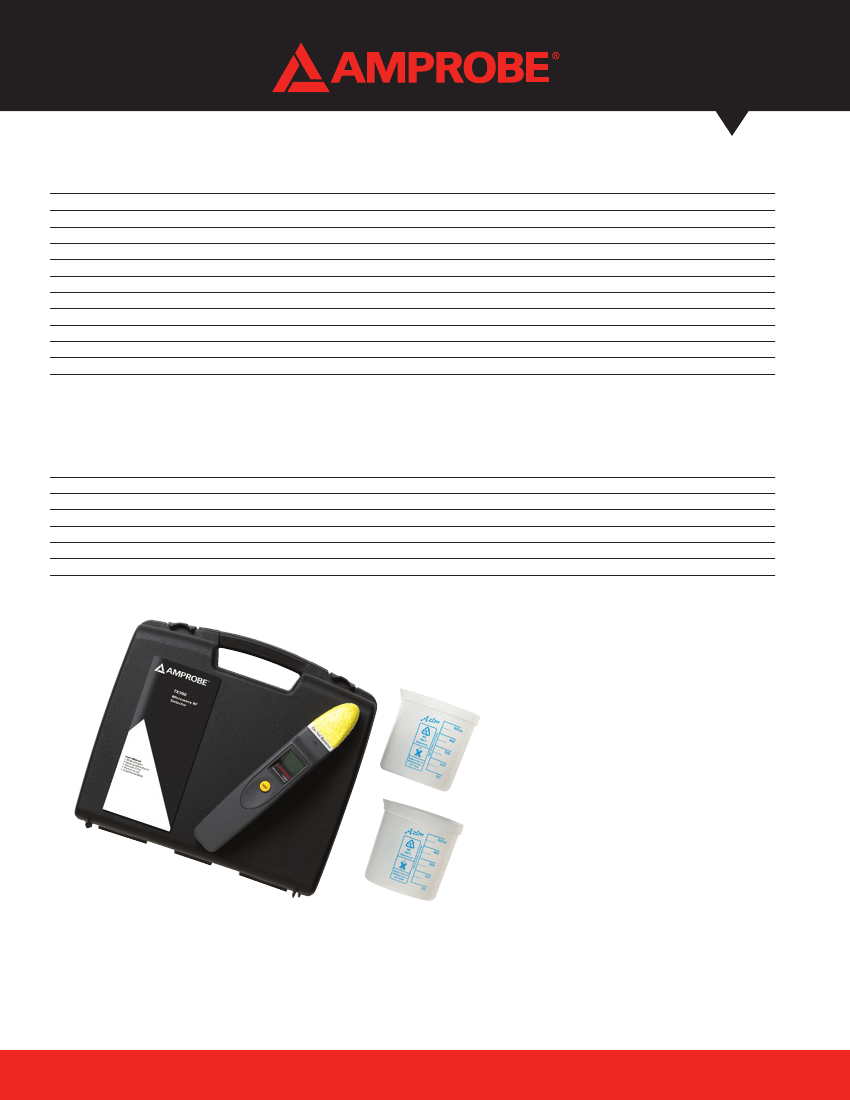

Included Parts
TX-900 Microwave RF Detector
2 x 500 ml Plastic Beakers
Spirit (alcohol) Glass Thermometer
9V PP3 type battery
Carrying case
Sample set of “RF Emission Labels”
Registration card
Certificate of Conformance
Owner’s manual
Amprobe® Test Tools
website: www.Amprobe.com
email: info@amprobe.com
Everett, WA 98203
Tel: 877-AMPROBE
Amprobe® Test Tools Europe
Amprobe Test Tools Europe
Beha-Amprobe GmbH
In den Engematten 14
79286 Glottertal, Germany
Tel.: +49 (0) 7684 8009 - 0
©2009 Amprobe Test Tools. All rights reserved.
03/2009 3465169 Rev A
