Fluke 424D, 419D and 414D
Laser Distance Meters
Technical Data
Professional-grade distance measuring tools that are fast,
easy to use, and fit in your pocket.
The Fluke laser distance meters use
the most advanced distance measuring
technology. These meters are fast, accu-
rate, durable, and easy to use—just point
and shoot. Their simple design and easy
one-button operation means you spend
less time measuring while increasing the
reliability of the answers that you need.
The compact and handy Fluke laser distance meters
were designed for indoor and limited outdoor appli-
cations. All three models are simple to operate, with
the Fluke durability and quality you expect. And,
with specific function buttons, different tasks can be
completed quickly and easily.
The extra bright laser is clearly visible so you can
always see your targeting point even if the target
object is in a hard-to-reach spot, or a long distance
away. These units have a large LCD screen and but-
tons positioned for one-handed measurements.

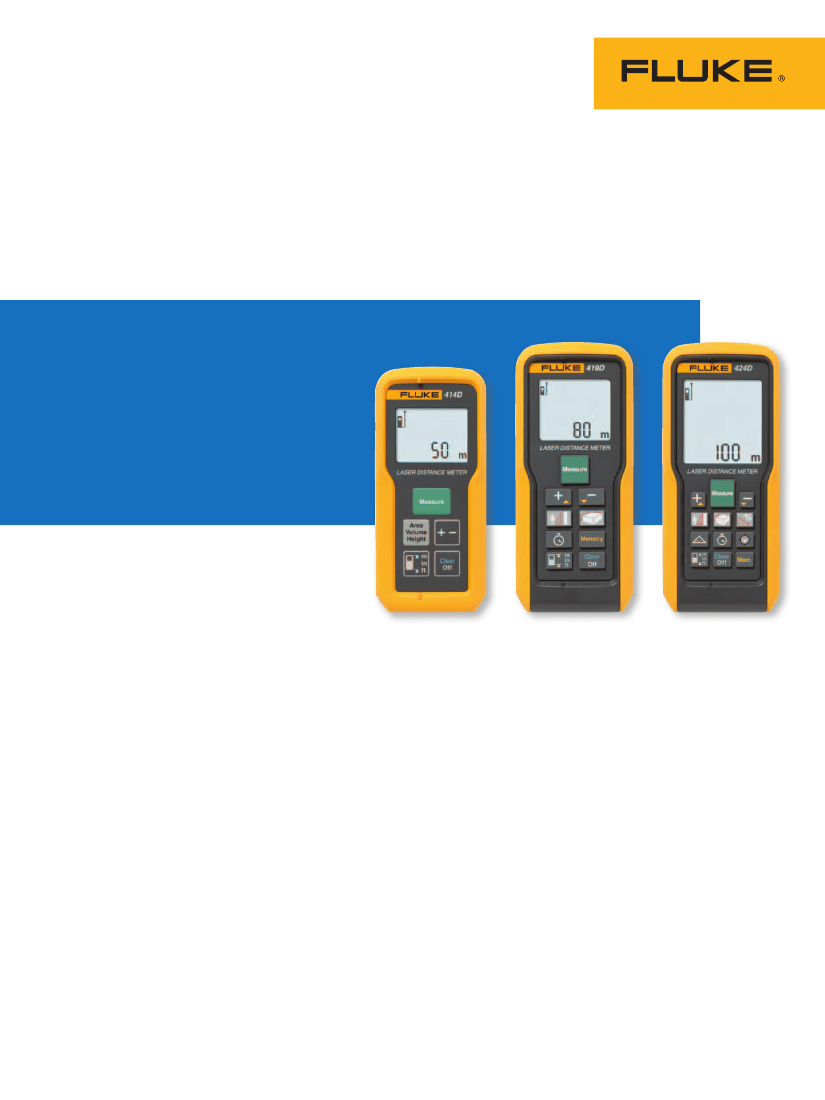

Fluke 414D, 419D and 424D Laser Distance Meters.
Features and benefits
All meters offer:
•
Reduction of estimation errors, saving both time
and money
•
The most advanced laser technology for distance
measurement
•
Instant measurement with one-button operation
•
Easy targeting with bright laser
•
Quick calculation of area (square footage) and
volume
•
Easy addition and subtraction of measurements
•
Minimum/maximum function
•
Improved battery life from automatic shut-off
feature
•
Pythagoras calculation for determining distance
indirectly from two other measurements
•
Pouch with Fluke logo
•
Three-year warranty
The 424D and 419D additionally offers:
•
Improved visibility with backlit screen
•
Ability to measure up to 80 m (260 ft) for 419D,
100 m (330 ft) for 424D
•
Tripod mode allows you to mount to a tripod for
measuring long distances
•
Stake out function
•
Enhanced Pythagoras calculation for determining
distance indirectly from three other measurements
•
Audible keypad feedback
•
Storage of the last twenty measurements for quick
recall of distance
•
Strong environmental protection with IP54 (water
spray and dust proof) sealing
The 424D additionally offers:
•
Inclination sensor for taking measurements in hard
to reach areas
•
Compass provides a “heading” for distance
measurement
•
Automated endpiece correction: when measuring
from an edge or corner, a built-in sensor detects
the position of this bracket and automatically
changes the reference point
General specifications
Distance measurement
Typical measuring tolerance
[1]
Maximum measuring tolerance
[2]
Range at Leica target plate GZM26
Typical range
[1]
Range at unfavorable condition
[4]
Smallest unit displayed
Power Range Technology
™
laser point at distances
Tilt measurement
Measuring tolerance to laser beam
[5]
Measuring tolerance to
Range
General
Laser class
Laser type
Protection class
Automatic laser off
Automatic power off
Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03
Size (HxWxD)
Weight (with batteries)
Temperature range:
Calibration cycle
Maximum altitude
Maximum relative humidity
Safety
EMC
[1] Applies for 100 % target reflectivity (white painted wall), low background illumination, 25 °C (13 °F).
[2] Applies for 10 % to 500 % target reflectivity, high background illumination, -10 °C to +50 °C (14 °F to
+122 °F).
[3] Tolerances apply from 0.05 m to 10 m (0.001 ft to 32.8 ft) with a confidence level of 95 %. The
maximum tolerance may deteriorate to 0.1 mm/m (0.003 in/ft) between 10 m to 30 m (32.8 ft to 98.4 ft)
and to 0.15 mm/m (0.005 in/ft) for distances above 30 m (98.4 ft).
[4] Applies for 100 % target reflectivity, background illumination between 10’000 lux and 30’000 lux.
[5] After user calibration. Additional angle related deviation of ± 0.01° per degree up to ± 45° in each
quadrant. Applies at room temperature. For the whole operating temperature range the maximum
deviation increases by ± 0.1°.
414D
± 2.0 mm
[3]
± 3.0 mm
[3]
50 m/165 ft
40 m/130 ft
35 m/115 ft
1 mm
/
1
/
16
in
no
6/30/60 mm (10/50/100 m)
0.23/1.18/2.36 in (32.8/164/330)
no
no
no
419D
± 1.0 mm
[3]
± 2.0 mm
[3]
80 m/260 ft
80 m/260 ft
60 m/195 ft
1 mm
yes
/
1
/
32
in
424D
100 m/330 ft
80 m/260 ft
60 m/195 ft
yes
6/30/60 mm (10/50/100 m)
0.23/1.18/2.36 in (32.8/164/330)
no
no
no
II
635 nm, <1 mW
± 0.2°
± 0.2°
360°
housing
[5]
IP40
After 90 seconds
After 180 seconds
up to 3,000 measurements
116 mm x 53 mm x 33 mm
(4.56 in x 2.08 in x 1.29 in)
113 g (3.98 oz)
Storage
Operation
-25 °C to +70°C (-13 °F to +158 °F)
0 °C to +40 °C (32 °F to +104 °F)
Not applicable
3000 m
85 % at 20 °F to 120 °F
(-7 °C to 50 °C)
IP54
up to 5,000 measurements
127 mm x 56 mm x 33 mm
(5 in x 2.20 in x 1.29 in)
153 g (5.39 oz)
127 mm x 56 mm x 33 mm
(5 in x 2.20 in x 1.29 in)
158 g (5.57 oz)
-25 °C to +70°C (-13 °F to +158 °F)
-10 °C to +50 °C (14 °F to +122 °F)
Not applicable
3000 m
85 % at 20 °F to 120 °F
(-7 °C to 50 °C)
tilt and compass
3000 m
85 % at 20 °F to 120 °F
(-7 °C to 50 °C)
CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1 (2nd Edition), ISA-82.02.01,
IEC Standard No. 61010-1:2001, EN60825-1:2007 (Class II)
61326-1:2006
Ordering information
Fluke 424D
Fluke 419D
Fluke 414D
Laser Distance Meter
Laser Distance Meter
Laser Distance Meter
All models include: Laser distance meter, two AAA
batteries, users manual on CD, quick reference guide,
vinyl carrying pouch, and three-year warranty
Why use a distance meter?
Instant measurements up to 100 meters/330 feet.
Just point, click, done.
Measure with greater accuracy.
Up to ± 1 mm. No scales to interpret or misread.
Do the work of two.
Instead of holding the tape, your helper can do other jobs.
Speed up the job.
Easily measure hard-to-access areas, like high ceilings, without
climbing a ladder.
Keep it on the level.
New inclination sensor on the Fluke 424D helps with leveling,
height tracking, and measuring around obstacles.
Reduce estimating errors—let the meters do the math.
Find area and volume. Easily
add and subtract distances. Use Pythagoras calculations for height.
Trust Fluke tools.
Rugged and reliable, dust- and splash-proof, you can work indoors
and out with confidence, because they’re Fluke tools.
For more information visit www.fluke.com/distance
2 Fluke Corporation
Fluke 424D, 419D, and 414D Distance Meters
Fluke.
Keeping your world
up and running.
®
Fluke Corporation
PO Box 9090, Everett, WA USA 98206
Fluke Europe B.V.
PO Box 1186, 5602 BD
Eindhoven, The Netherlands
For more information call:
In the U.S.A. (800) 443-5853 or
Fax (425) 446-5116
In Europe/M-East/Africa (31 40) 2 675 200 or
Fax (31 40) 2 675 222
In Canada (800)-36-FLUKE or
Fax (905) 890-6866
From other countries +1 (425) 446-5500 or
Fax +1 (425) 446-5116
Web access: http://www.fluke.com
©2007-2012 Fluke Corporation.
Specifications subject to change without notice.
Printed in U.S.A. 4/2012 3028711E D-EN-N
Modification of this document is not permitted
without written permission from Fluke Corporation.
