Pomona
®
Model 5830
Flexible Maxigrabber® Test Clip
FEATURES:
•
Mates to Model #1440, 4702 and most
standard banana plugs.
•
Use set screw to build custom cable with Pomona
“Do It Yourself” products.
•
Accepts 18 to 22 AWG wire (for custom cable).
•
This flexible clip has a rotating pincer type contact
to make access easier.
•
Standard banana jack and screw for direct wire
termination.
MATERIALS:
Wire: Steel.
Insulation: Thermoplastic (handle and knob)
Color: Black (heat shrink tube)
RATINGS:
Environmental:
Operating Temperature: +80°C. (+176°F.) Max.
Electrical:
Operating Voltage: 300 VRMS/DC
Current: 5 Amperes
Mechanical:
Grip: Up to
∅
.157 (4.0).
ORDERING INFORMATION:
Model 5830-*
*= Color, -0 Black, -2 Red
Ordering Example: 5830-2 Color is Red

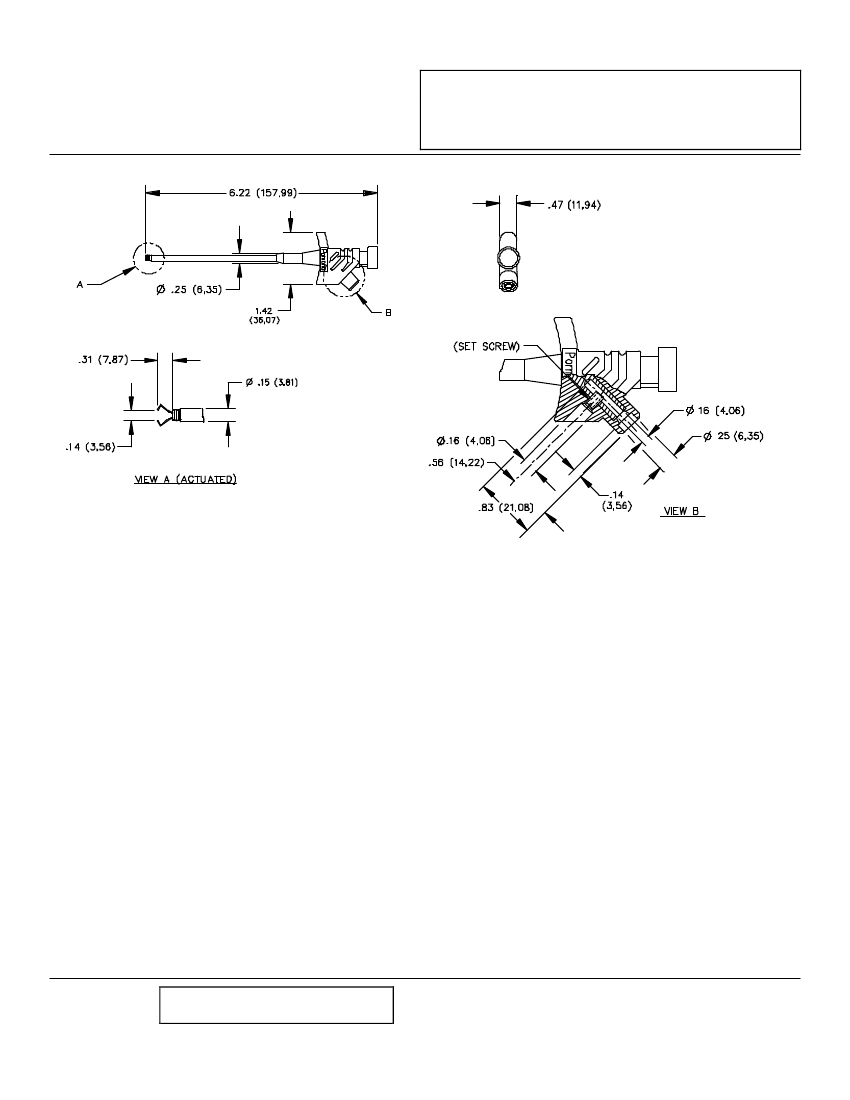

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).
All specifications are to the latest revisions. Specifications are subject to change without notice.
Registered trademarks are the property of their respective companies. Made in USA
6/9/99
SY/EH/LS
Sales: 800-490-2361 Fax: 888-403-3360
Technical Assistance: 800-241-2060
PomonaACCESS
90650
(800) 444-6785 or (425) 446-6010
More drawings available at www.pomonaelectronics.com
