Logic Probe
PSP-110029
17.50
172
16.88
17.50
172
18

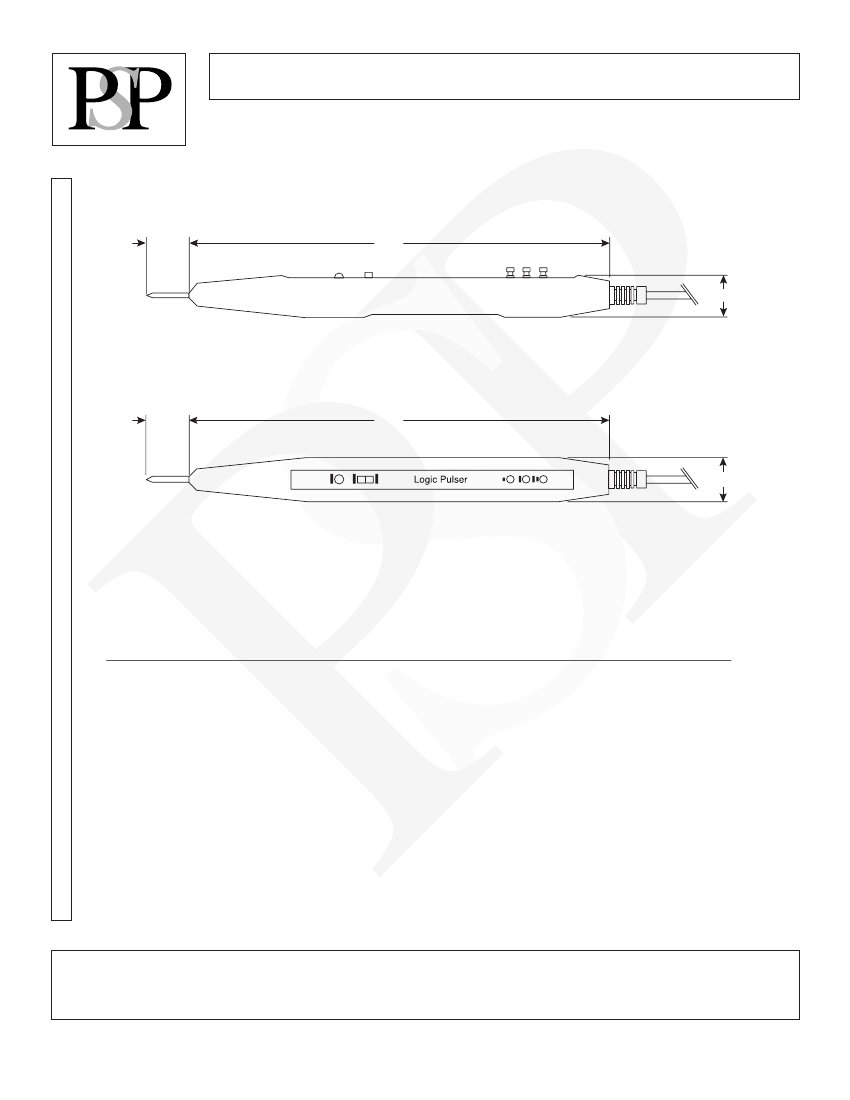

Dimensions: mm
Specifications :
•
Tests TTL, DTL, HTL, CMOS, and MOS
•
•
•
•
•
•
•
•
Displays pulse presence and logic states
Catches pulse to 10 nsec or pulse trains to 50 MHz
Guaranteed operating supply voltage range: 3 V to 18 V
Input voltage: ±50 V
Operating input voltage range: -25 V to +25 V
Input impedance: 120 kΩ typical
Minimum detectable pulse width: 10 nsec
Logic thresholds:
Logic 1 (green LED lights)
TTL 2.3 V ±0.2 V, CMOS 70% Vcc ±10%
Logic 0 (green LED off)
TTL 0.8 V ±0.1 V, CMOS 30% Vcc ±10%
Updated: 9-11-07
•
•
•
•
•
•
•
High impedance 200 kΩ typical (5 V)
Input positive voltage (red LED lights): +5 V max
Input negative voltage (yellow LED lights): -5 V max
Maximum input frequency displayable: 50 MHz typical
Input overvoltage protection: ±50 V/10 sec
Pulse LED (yellow flashing time): 1 sec
Power supply protection: ±25 V/15 sec
383-LP10150
Available from Mouser Electronics
1-800-346-6873
www.mouser.com
