Rating Conditions: EIA-364-070 Method 2, 30°C maximum temperature rise,
20% derated. Reference appropriate 3M Product Specification for detailed current
derating curves.
Insulation Resistance:
> 1 × 10
9
Ω
at 250 V
DC
Withstanding Voltage:
500 V
DC
at Sea Level
Environmental
Temperature Rating:
-55°C to +105°C
Process Rating:
Maximum 260°C, (per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

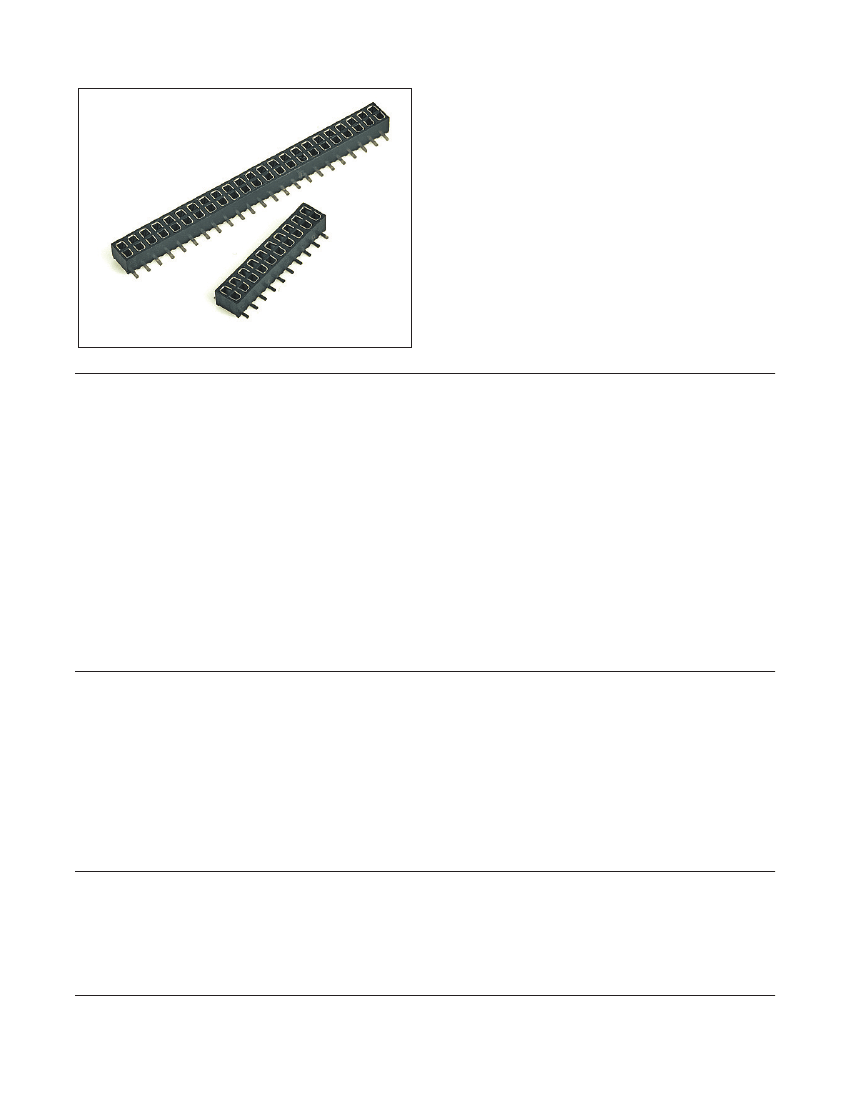

Thru-Board Socket
2 mm x 2 mm Surface Mount
Table 1
Contact
Quantity
04
06
08
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
Dimension A
3.96 [0.156]
5.87 [0.231]
7.87 [0.310]
9.88 [0.389]
11.86 [0.467]
13.87 [0.546]
15.88 [0.625]
17.88 [0.704]
19.86 [0.782]
21.87 [0.861]
23.88 [0.940]
25.88 [1.019]
27.86 [1.097]
29.87 [1.176]
31.88 [1.255]
33.88 [1.334]
35.86 [1.412]
37.87 [1.491]
39.88 [1.570]
41.88 [1.649]
43.87 [1.727]
45.87 [1.806]
47.88 [1.885]
49.89 [1.964]
51.87 [2.042]
53.87 [2.121]
55.88 [2.200]
57.86 [2.278]
59.87 [2.357]
Tape
Width
24 mm
24 mm
24 mm
24 mm
24 mm
24 mm
24 mm
44 mm
44 mm
44 mm
44 mm
44 mm
44 mm
44 mm
56 mm
56 mm
56 mm
56 mm
56 mm
56 mm
72 mm
72 mm
72 mm
72 mm
72 mm
72 mm
72 mm
88 mm
88 mm
Order
Code
WA
WA
WB
WB
WB
WB
WB
WD
WD
WD
WD
WD
WD
WD
WE
WE
WE
WE
WE
WE
WF
WF
WF
WF
WF
WF
WF
WG
WG
C
1532 Series

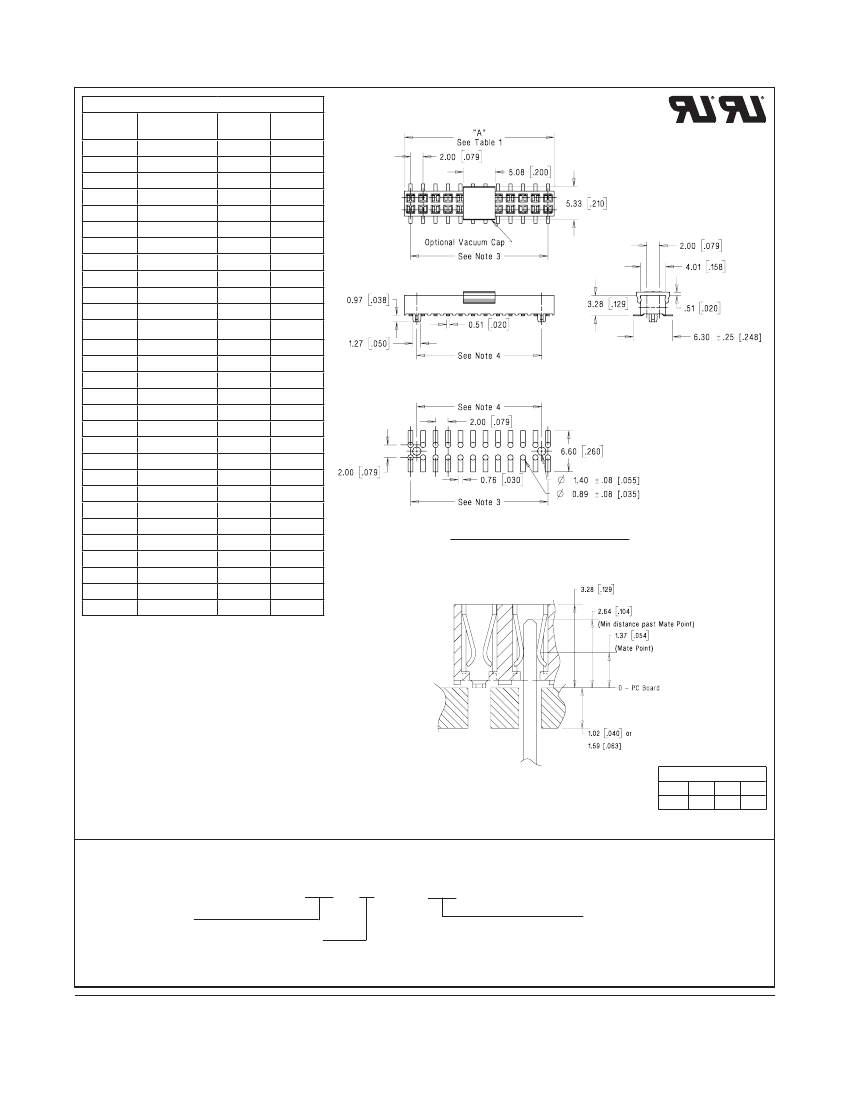

Recommended Solder Pad Layout
Notes:
1.Tape & reel include vacuum pick-up cap for pick ‘n place
handling equipment.
2. Parts in tray packaging are supplied without vacuum cap.
3. Positions per row, subtract 1, multiply by 2 mm spacing.
4. Optional locator posts: positions per row, multiply by 2 mm,
subtract 4 mm.
mm
[Inch]
Tolerance Unless Noted
.0
mm
.00
.000
±
2.54
±
.254
±
.127
[ ] Dimensions for
Reference only
**Optional Locator Posts available for positions eight and greater.
Ordering Information
1532XX-20X0-RB-XX (RIA E1 & C1 Apply)
Number of positions
(See Table 1)
Board location post
0 = None
2 = With board location post
Packaging style:
Blank = tray packaging
WX = tape & reel pkg (see table)
TS-0521-G
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M and Textool are trademarks of 3M Company.
