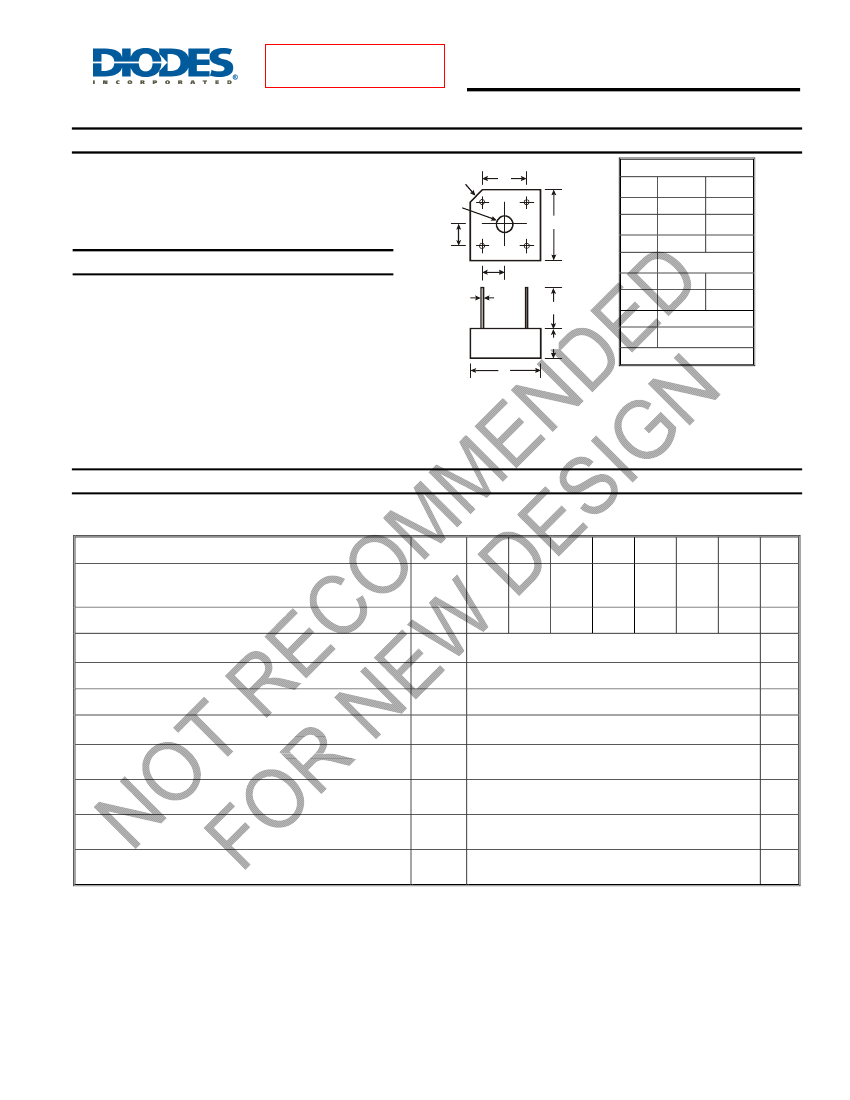

PBPC1001 - PBPC1007
10A BRIDGE RECTIFIER
PBPC-8
J
G
+
H
AC
Features
•
•
•
•
•
High Current Capability
Surge Overload Rating to 150A Peak
High Case Dielectric Strength of 1500V
Ideal for Printed Circuit Board Application
UL Listed Under Recognized Component Index, File
Number E94661
Dim
A
A
E
AC
Min
18.54
6.35
22.20
5.33
3.60
∅
Max
19.56
7.60
—
7.37
4.00
∅
B
C
D
E
-
E
Mechanical Data
•
•
•
•
•
•
•
•
•
Case: PBPC-8
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Plated Leads Solderable per MIL-STD-202,
Method 208
Polarity: Marked on Body
Mounting: Through Hole for #6 Screw
Mounting Torque: 5.0 Inch-pounds Maximum
Ordering Information: See Page 2
Marking: Type Number
Weight: 3.8 grams (approximate)
1.27
∅
Typical
D
C
B
A
G
H
J
12.70 Typical
2.38 X 45° Typical
All Dimensions in mm
•
Maximum Ratings and Electrical Characteristics
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Output Current
(Note 1) @ T
C
= 50°C
(Note 2) @ T
C
= 50°C
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Forward Voltage (per element)
Peak Reverse Current
at Rated DC Blocking Voltage (per element)
I t Rating for Fusing (t<8.3ms)
Typical Total Capacitance, per element
2
@T
A
= 25°C unless otherwise specified
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
V
FM
I
R
It
C
T
R
θ
JC
T
j,
T
STG
2
PBPC
1001
50
35
PBPC PBPC
1002
1003
100
70
200
140
PBPC
1004
400
280
10
8.0
150
1.1
10
1.0
64
110
7.5
PBPC
1005
600
420
PBPC PBPC
1006
1007
800
560
1000
700
Unit
V
V
A
A
V
µA
mA
As
pF
°C/W
°C
2
@ I
F
= 5.0A
@ T
C
= 25°C
@ T
C
= 100°C
(Note 3)
(Note 4)
Typical Thermal Resistance Junction to Case (per element)
Operating and Storage Temperature Range
Notes:
1.
2.
3.
4.
-65 to +125
Mounted on metal chassis.
Mounted on PC board FR-4 material.
Non-repetitive, for t > 1.0ms and < 8.3ms.
Per element, measured at 1.0 MHz and applied reverse voltage of 4.0V DC.
DS21312 Rev. 8 - 3
1 of 3
www.diodes.com
PBPC1001-PBPC1007
© Diodes Incorporated
NOT RECOMMENDED
FOR NEW DESIGN
10
Resistive or
Inductive load
10
8
Mounted on
PC Board
I
F
, FORWARD CURRENT (A)
Mounted on
Metal chassis
1.0
6
4
0.1
2
T
j
= 25°C
0
25
50
75
100
T
C
, CASE TEMPERATURE (°C)

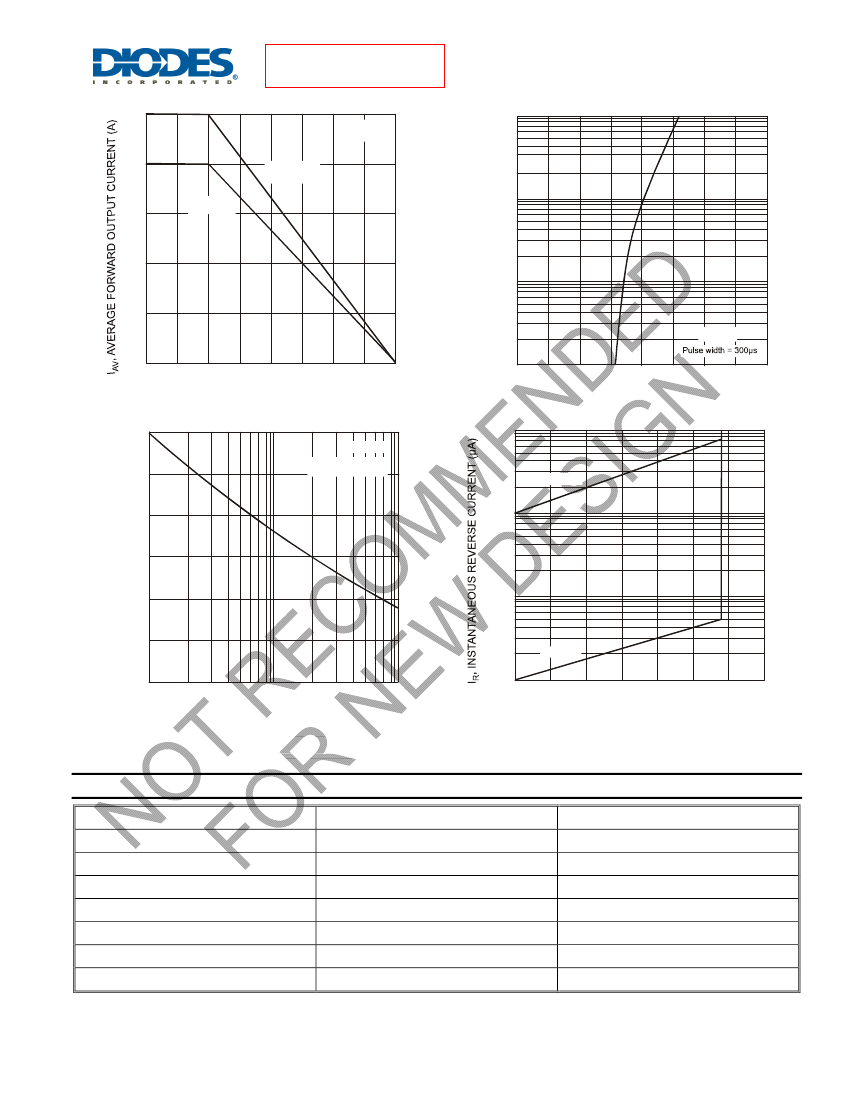

Fig. 1 Forward Current Derating Curve
125
0.01
0
0.4
0.8
1.6
1.2
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics, per element
10
T
C
= 50°C
Single half sine-wave
150
I
F
, PEAK FORWARD SURGE CURRENT (A)
125
T
j
= 100°C
100
1.0
75
50
0.1
25
T
j
= 25°C
0
1.0
10
NUMBER OF CYCLES AT 60Hz
Fig. 3 Typical Reverse Characteristics
100
0.01
0
40
80
120
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 4 Typical Reverse Characteristics, per element
Ordering Information
(Note 5)
Device
PBPC1001
PBPC1002
PBPC1003
PBPC1004
PBPC1005
PBPC1006
PBPC1007
Notes:
Packaging
PBPC-8
PBPC-8
PBPC-8
PBPC-8
PBPC-8
PBPC-8
PBPC-8
Shipping
150/Box
150/Box
150/Box
150/Box
150/Box
150/Box
150/Box
5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02008.pdf.
