02/11/2015
www.crouzet.com
30 and 40 W - 50 Nm - Planetary Ø 62 mm 801496 SNi10 Part number Contact us
With or without integrated control electronics
Output in motor shaft
Ideal for high reduction ratios
Ideal for high-torque applications
Excellent efficiency
Reversible movement
Part numbers
Type
CONTACT US
801496
SNi10
With built-in electronic
control
SNi10
Without built-in control, with Hall effect
sensors
-
Number of
stages
2
Ratios
(i)
26,86
Output speed (rpm) 24 V Available torque
DC
(Nm)
82
3,9
Specifications
General characteristics
Motor
Nominal motor power at 24 V (W)
Axial load dynamic (N)
Radial load dynamic (N)
Efficiency (%)
Gearbox case temperature rise (°C)
Weight (g)
Protection index
801400
30 W
100
50 / 70* / 120**
90 / 80* / 70**
35
1600 / 1900* / 2200**
IP54
Comments

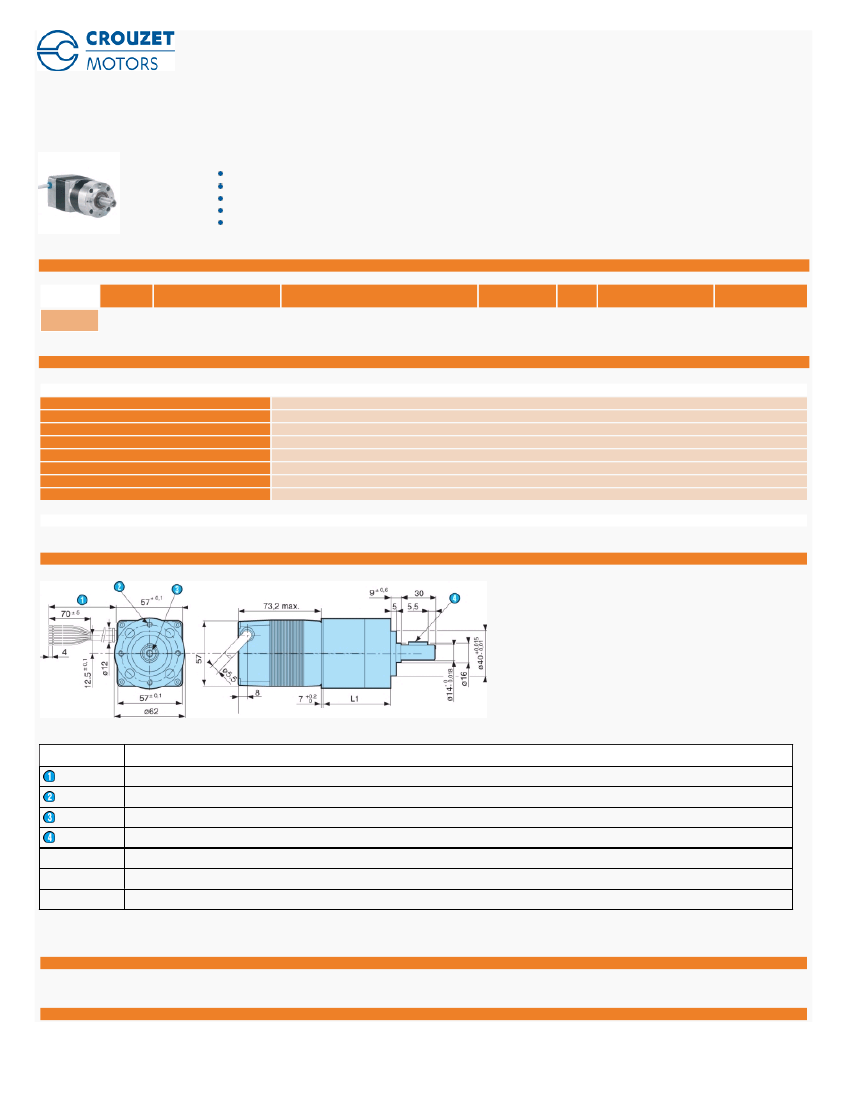

Dimensions (mm)
801496 with SNi10
N
o
Legend
Length of cable 400 ± 10 mm
4 holes M5 depth 10 at 90° over Ø 52
Fixing hole M5, depth 12.5
Key A5 x 5 x 18 DIN 6885 A
L1 1 stage : 45.7 mm max.
L1 2 stages : 61.5 mm max.
L1 3 stages : 77.4 mm max.
Precautions for use
The limits and precautions for use described in the 30 W brushless motor section must be observed.
Product adaptations
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
With integrated electronic controls SNi10 or TNi20
No lead output but connector in motor
Dimensions of gearbox shaft
Cable length, with or without connector
Open-loop control in 2 quadrants
Low-noise version
Other windings
Other reduction ratios
Mechanical holding brake
www.crouzet.com
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
