URZ1C470MCD

Description
Aluminum Electrolytic Capacitors - Leaded 47uF 16V 105c 5x9
CategoryPassive components
File Size899KB,2 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Download Datasheet Parametric Compare View All

URZ1C470MCD Online Shopping

Suppliers Part Number Price MOQ In stock
URZ1C470MCD - - View Buy Now

URZ1C470MCD Overview

Aluminum Electrolytic Capacitors - Leaded 47uF 16V 105c 5x9

URZ1C470MCD Parametric

Parameter NameAttribute value
Product CategoryAluminum Electrolytic Capacitors - Leaded
ManufacturerNichicon
RoHSDetails
Termination StyleRadial
Capacitance47 uF
Voltage Rating DC16 VDC
Tolerance20 %
Minimum Operating Temperature- 55 C
Maximum Operating Temperature+ 105 C
Diameter5 mm
Length9 mm
Lead Spacing2 mm
Lead StyleCut
PackagingBulk
ProductHigh Temp Electrolytic Capacitors
Factory Pack Quantity200

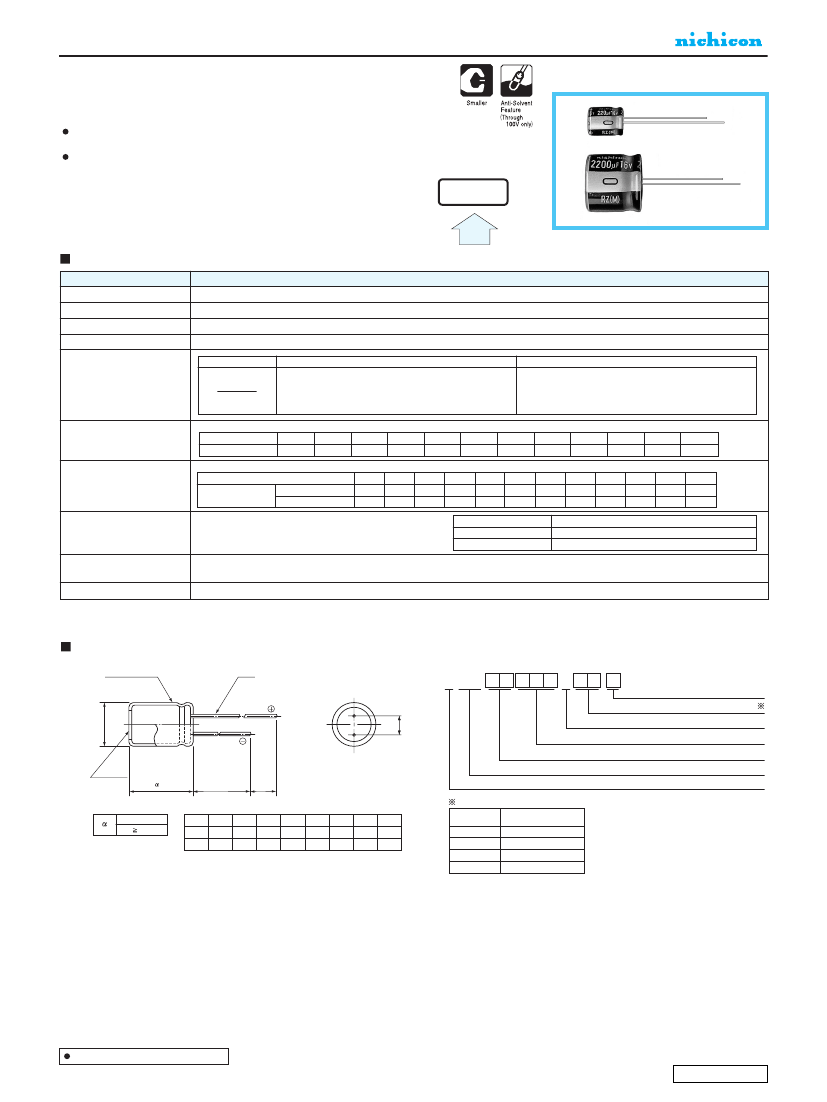

ALUMINUM ELECTROLYTIC CAPACITORS
RZ
Compact & Low-Profile Sized, Wide Temperature Range
series
Very small case sizes same as RS series, but operating over wide
temperature range of – 55 (– 40) to +105˚C.
Compliant to the RoHS directive (2011/65/EU).
(Through 100V only)
RZ
High
Temperature
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
RS
Performance Characteristics
–55 to +105˚C (6.3 to 100V) , –40 to +105˚C (160 to 400V)
6.3 to 400V
0.1 to 10000µF
± 20% at 120Hz, 20˚C
Rated voltage (V
)
6.3 to 100
After 1 minute's application of rated voltage at 20°C, leakage current
is not more than 0.03CV or 4 (µA), whichever is greater.
After 2 minutes' application of rated voltage at 20°C, leakage current
is not more than 0.01CV or 3 (µA), whichever is greater.
6.3
0.28
10
0.24
16
0.20
6.3
5
10
25
0.16
10
4
8
35
0.14
16
3
6
25
2
4
50
0.12
35
2
3
160 to 400
Leakage Current
After 1 minute's application of rated voltage at 20°C,
I
= 0.04CV+100 (µA) or less
For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF. Measurement frequency : 120Hz at 20˚C
Tangent of loss angle (tan
δ)
Rated voltage (V)
tan
δ
(
MAX.
)
63
0.10
50
2
3
100
0.08
63
2
3
160
0.20
100
2
3
200
0.20
160
3
4
200
3
4
250
0.20
250
3
6
400
0.25
400
6
10
Measurement frequency : 120Hz
Stability at Low Temperature
Rated voltage (V)
Z– 25˚C / Z+20˚C
Impedance ratio
ZT / Z20 (MAX.
)
Z– 40˚C / Z+20˚C
Endurance
The specifications listed at right shall be met when
the capacitors are restored to 20°C after the rated
voltage is applied for 1000 hours at 105°C.
Capacitance change
tan
δ
Leakage current
Within ±20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Shelf Life
Marking
After storing the capacitors under no load at 105˚C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
Printed with white color letter on black sleeve.
Radial Lead Type
Sleeve (P.E.T.)
Type numbering system (Example : 10V 330µF)
φ
d
1
2
3
4
5
6
7
8
9 10 11
12
Size code
Configuration
P ±
0.5
UR Z 1 A 3 3 1 MPD
φD
+
0.5 MAX
Capacitance tolerance (±20%)
Rated capacitance (330µF)
Rated voltage (10V)
Pressure
relief vent
(φ8up)
Series name
L
+
MAX
15
MIN
4
MIN
(mm)
Type
Configuration
φ
D
5 · 6.3
8 · 10
12.5 to 18
20
Pb-free leadwire
Pb-free PET sleeve
(φD < 20) 1.5
(φD 20) 2.0
φD
P
φd
5
2.0
0.5
6.3
2.5
0.5
8
3.5
0.6
10
5.0
0.6
12.5
5.0
0.6
16
7.5
0.8
18
7.5
0.8
20
10.0
1.0
DD
PD
HD
RD
Please refer to page 20 about the end seal configuration.
Please refer to page 20, 21, 22 about the formed or taped product spec.
Please refer to page 4 for the minimum order quantity.
Dimension table in next page.
CAT.8100D

URZ1C470MCD Related Products

URZ1C470MCD URZ1J470MND URZ1E222MHH URZ1V471MHH URZ1C332MHH URZ2G220MHH URZ1C102MHH1CM
Description Aluminum Electrolytic Capacitors - Leaded 47uF 16V 105c 5x9 Aluminum Electrolytic Capacitors - Leaded 47uF 63V 8x9 Aluminum Electrolytic Capacitors - Leaded 2200uF 25V 105c 18x15 20% 7.5LS Aluminum Electrolytic Capacitors - Leaded 470uF 35V 105c 12.5x12.5 20% 5LS Aluminum Electrolytic Capacitors - Leaded Aluminum Electrolytic Capacitors - Leaded Aluminum Electrolytic Capacitors - Leaded 1000 uF 400V SINGLE 35X30mm
Product Category Aluminum Electrolytic Capacitors - Leaded Aluminum Electrolytic Capacitors - Leaded Aluminum Electrolytic Capacitors - Leaded Aluminum Electrolytic Capacitors - Leaded Aluminum Electrolytic Capacitors - Leaded Aluminum Electrolytic Capacitors - Leaded Aluminum Electrolytic Capacitors - Leaded
Manufacturer Nichicon Nichicon Nichicon Nichicon Nichicon Nichicon Nichicon
RoHS Details Details No No No RoHS Version Available No RoHS Version Available No RoHS Version Available
Termination Style Radial Radial Radial Radial Radial Radial Radial
Capacitance 47 uF 47 uF 2200 uF 470 uF 3300 uF 22 uF 1000 uF
Voltage Rating DC 16 VDC 63 VDC 25 VDC 35 VDC 16 VDC 400 VDC 16 VDC
Tolerance 20 % 20 % 20 % 20 % 20 % 20 % 20 %
Minimum Operating Temperature - 55 C - 55 C - 55 C - 55 C - 55 C - 40 C - 55 C
Maximum Operating Temperature + 105 C + 105 C + 105 C + 105 C + 105 C + 105 C + 105 C
Diameter 5 mm 8 mm 18 mm 12.5 mm 18 mm 18 mm 12.5 mm
Length 9 mm 9 mm 15 mm 12.5 mm 15 mm 15 mm 12.5 mm
Lead Spacing 2 mm 3.5 mm 7.5 mm 5 mm 7.5 mm 7.5 mm 5 mm
Product High Temp Electrolytic Capacitors High Temp Electrolytic Capacitors High Temp Electrolytic Capacitors High Temp Electrolytic Capacitors High Temp Electrolytic Capacitors High Temp Electrolytic Capacitors High Temp Electrolytic Capacitors
Factory Pack Quantity 200 200 50 100 - 50 100
