561R and 564R Series
www.vishay.com
Vishay Cera-Mite
Lower Voltage Ceramic Singlelayer DC Disc Capacitors
1 kV
DC
to 3 kV
DC
Low Dissipation Factor
FEATURES
• Low losses
• High stability
• Low DF minimizes self heating at HF
• Ideal for high switching to 100 kHz
• Radial leads
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
APPLICATIONS
• SMPS
• HF ballast
VALUE
1
C0G, N1500, N2000,
N2200, N2500, N2800
1000
10
6800
2000
10
6800
Radial
3000
10
4700
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Voltage (V
DC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
• Snubber and HV circuits
DESIGN
The capacitors consist of a ceramic disc of which both
sides are silver-plated. Connection leads are made of
tinned copper having diameters of 0.022" (0.51 mm) or
0.025" (0.64 mm).
The capacitors may be supplied with radial kinked or
straight leads having lead spacing of 0.250" (6.35 mm) or
0.375" (9.5 mm).
The standard tolerances are ± 5 %, ± 10 %.
Coating is made of flammable retardant epoxy resin in
accordance with “UL 94 V-0”.
INSULATION RESISTANCE
Min. 50 000 M
TOLERANCE ON CAPACITANCE
± 5 %, ± 10 %
CAPACITANCE RANGE
10 pF to 6800 pF
DISSIPATION FACTOR
0.1 % max. at 1 kHz; 1 V
RATED VOLTAGE
1000 V
DC
(500 V
RMS
)
2000 V
DC
(1000 V
RMS
)
3000 V
DC
(1500 V
RMS
)
CATEGORY TEMPERATURE RANGE
-55 °C to +125 °C
CLIMATIC CATEGORY ACC. TO EN 60068-1
55/125/21
DIELECTRIC STRENGTH BETWEEN LEADS
Component test:
1000 V
DC
2000 V
DC
3000 V
DC
2500 V
DC
, 2 s
4000 V
DC
, 2 s
6000 V
DC
, 2 s
OPERATING TEMPERATURE RANGE
-55 °C to +105 °C
CERAMIC DIELECTRIC
C0G, N1500, N2000, N2200, N2500, N2800 (Class 1)
Revision: 02-Mar-15
Document Number: 23115
1
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
561R and 564R Series
www.vishay.com
Vishay Cera-Mite
DIMENSIONS
in inches (millimeters)
Fig. 1
D
max.
1.250 min.
(32)
Tinned Copper Leads
Ø
0.187 (4.8)
T
max.
LS
LO
ORDERING INFORMATION, CERAMIC 1 kV
DC
LOW DISSIPATION FACTOR
C
(pF)
C0G (NP0)
10
12
N1500
22
47
56
68
82
N2200
33
N2000
100
120
150
180
N2500
220
270
N2800
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
± 10
0.370 (9.4)
0.405 (10.3)
0.440 (11.2)
0.460 (11.7)
0.490 (12.4)
0.530 (13.5)
0.560 (14.2)
0.630 (16.0)
0.680 (17.3)
0.760 (19.3)
0.156 (4.0)
0.375 (9.5)
0.156 (4.0)
0.250 (6.4)
0.290 (7.4)
0.250 (6.4)
0.047 (1.2)
0.047 (1.2)
0.059 (1.5)
0.055 (1.4)
0.047 (1.2)
0.043 (1.1)
0.055 (1.4)
0.047 (1.2)
0.047 (1.2)
0.051 (1.3)
0.047 (1.2)
0.047 (1.2)
0.047 (1.2)
0.047 (1.2)
0.047 (1.2)
0.047 (1.2)
0.047 (1.2)
22
0.025 (0.64)
1
561R1DF0T33
561R1DF0T39
561R1DF0T47
561R1DF0T56
561R1DF0T68
561R1DF0T82
561R1DF0D10
561R1DF0D12
561R1DF0D15
561R1DF0D18
561R1DF0D22
561R1DF0D27
561R1DF0D33
561R1DF0D39
561R1DF0D47
561R1DF0D56
561R1DF0D68
± 10
0.250 (6.4)
0.156 (4.0)
0.250 (6.4)
0.059 (1.5)
0.043 (1.1)
22
0.025 (0.64)
1
561R1DF0T22
561R1DF0T27
± 10
0.250 (6.4)
0.156 (4.0)
0.250 (6.4)
0.059 (1.5)
0.055 (1.4)
0.043 (1.1)
0.043 (1.1)
22
0.025 (0.64)
1
561R1DF0T10
561R1DF0T12
561R1DF0T15
561R1DF0T18
± 10
0.250 (6.4)
0.156 (4.0)
0.250 (6.4)
0.043 (1.1)
22
0.025 (0.64)
1
561R1DF0Q33
±5
0.250 (6.4)
0.156 (4.0)
0.250 (6.4)
0.043 (1.1)
0.071 (1.8)
0.055 (1.4)
0.059 (1.5)
0.047 (1.2)
22
0.025 (0.64)
1
561R1DF0Q22
561R1DF0Q47
561R1DF0Q56
561R1DF0Q68
561R1DF0Q82
±5
0.250 (6.4)
0.156 (4.0)
0.250 (6.4)
0.043 (1.1)
0.051 (1.3)
22
0.025 (0.64)
1
561R1DF0Q10
561R1DF0Q12
TOL.
(%)
D
max.
DIAMETER
INCH (mm)
T
max.
THICKNESS
INCH (mm)
LO
LS
LEAD SPACE LEAD OFFSET
INCH (mm)
INCH (mm)
± 0.5 mm
± 1 mm
WIRE SIZE
FIG.
AWG
INCH (mm)
ORDERING
CODE
Note
• Alternate lead spacings of 5 mm, 7.5 mm or 10 mm are available on request.
Revision: 02-Mar-15
Document Number: 23115
2
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
561R and 564R Series
www.vishay.com
Vishay Cera-Mite
LO
LS
LEAD SPACE LEAD OFFSET
INCH (mm)
INCH (mm)
± 0.5 mm
± 1 mm
WIRE SIZE
AWG
INCH (mm)
FIG.
ORDERING
CODE
ORDERING INFORMATION, CERAMIC 2 kV
DC
LOW DISSIPATION FACTOR
C
(pF)
N1500
33
39
47
N2000
56
68
82
100
N2500
120
150
180
270
470
N2800
220
330
390
560
680
820
1000
1500
1800
2200
2300
2400
2700
3300
3900
4700
5600
6800
0.720 (18.3)
0.790 (20.1)
0.900 (22.9)
0.900 (22.9)
0.950 (24.1)
0.180 (4.6)
0.170 (4.3)
0.170 (4.3)
0.170 (4.3)
± 10
0.290 (7.4)
0.330 (8.4)
0.330 (8.4)
0.400 (10.2)
0.400 (10.2)
0.430 (10.9)
0.460 (11.7)
0.530 (13.5)
0.560 (14.2)
0.170 (4.3)
0.185 (4.7)
0.175 (4.5)
0.185 (4.7)
0.170 (4.3)
0.175 (4.5)
0.170 (4.3)
0.170 (4.3)
0.180 (4.6)
0.680 (17.3)
0.175 (4.5)
0.175 (4.5)
0.375 (9.5)
0.250 (6.4)
0.087 (2.2)
0.083 (2.1)
0.075 (1.9)
0.087 (2.2)
0.075 (1.9)
0.075 (1.9)
0.075 (1.9)
0.071 (1.8)
0.071 (1.8)
0.083 (2.1)
0.079 (2.0)
0.075 (1.9)
0.071 (1.8)
0.071 (1.8)
0.075 (1.9)
0.083 (2.1)
0.075 (1.9)
0.071 (1.8)
20
0.032 (0.81)
1
564R2DF0T22
564R2DF0T33
564R2DF0T39
564R2DF0T56
564R2DF0T68
564R2DF0T82
564R2DF0D10
564R2DF0D15
564R2DF0D18
564R2DF0D22
564R2DF0D23
564R2DF0D24
564R2DF0D27
564R2DF0D33
564R2DF0D39
564R2DF0D47
564R2DF0D56
564R2DF0D68
± 10
0.330 (8.4)
0.400 (10.2)
0.290 (7.4)
0.185 (4.7)
0.170 (4.3)
0.185 (4.7)
0.170 (4.3)
0.170 (4.3)
0.250 (6.4)
0.087 (2.2)
0.071 (1.8)
0.071 (1.8)
0.079 (2.0)
0.075 (1.9)
20
0.032 (0.81)
1
564R2DF0T12
564R2DF0T15
564R2DF0T18
564R2DF0T27
564R2DF0T47
±5
0.290 (7.4)
0.210 (5.3)
0.190 (4.8)
0.175 (4.5)
0.170 (4.3)
0.250 (6.4)
0.110 (2.8)
0.091 (2.3)
0.075 (1.9)
0.071 (1.8)
20
0.032 (0.81)
1
564R2DF0Q56
564R2DF0Q68
564R2DF0Q82
564R2DF0T10
±5
0.290 (7.4)
0.195 (5.0)
0.180 (4.6)
0.170 (4.3)
0.250 (6.4)
0.098 (2.5)
0.083 (2.1)
0.071 (1.8)
20
0.032 (0.81)
1
564R2DF0Q33
564R2DF0Q39
564R2DF0Q47
TOL.
(%)
D
max.
DIAMETER
INCH (mm)
T
max.
THICKNESS
INCH (mm)
Note
• Alternate lead spacings of 5 mm, 7.5 mm or 10 mm are available on request.
Revision: 02-Mar-15
Document Number: 23115
3
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
561R and 564R Series
www.vishay.com
Vishay Cera-Mite
LO
LS
LEAD SPACE LEAD OFFSET
INCH (mm)
INCH (mm)
± 0.5 mm
± 1 mm
0.087 (2.2)
0.122 (3.1)
0.250 (6.4)
0.098 (2.5)
0.094 (2.4)
0.126 (3.2)
0.110 (2.8)
0.110 (2.8)
0.110 (2.8)
0.250 (6.4)
0.098 (2.5)
0.091 (2.3)
0.106 (2.7)
0.250 (6.4)
0.091 (2.3)
0.091 (2.3)
0.091 (2.3)
0.091 (2.3)
0.110 (2.8)
0.091 (2.3)
0.250 (6.4)
0.102 (2.6)
0.087 (2.2)
0.102 (2.6)
0.087 (2.2)
0.102 (2.6)
0.091 (2.3)
0.091 (2.3)
0.190 (4.8)
0.375 (9.5)
0.190 (4.8)
0.200 (5.1)
0.185 (4.7)
0.091 (2.3)
0.098 (2.5)
0.094 (2.4)
0.087 (2.2)
0.102 (2.6)
0.087 (2.2)
20
0.032 (0.81)
1
20
0.032 (0.81)
1
20
0.032 (0.81)
1
20
0.032 (0.81)
1
WIRE SIZE
AWG
INCH (mm)
FIG.
ORDERING
CODE
ORDERING INFORMATION, CERAMIC 3 kV
DC
LOW DISSIPATION FACTOR
C
(pF)
N1500
10
27
33
39
47
N2200
12
22
N2000
56
68
82
N2500
100
120
220
N2800
150
180
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
4700
± 10
0.290 (7.4)
0.290 (7.4)
0.330 (8.4)
0.330 (8.4)
0.400 (10.2)
0.400 (10.2)
0.430 (10.9)
0.460 (11.7)
0.490 (12.5)
0.530 (13.5)
0.560 (14.2)
0.620 (15.8)
0.680 (17.3)
0.720 (18.3)
0.790 (20.1)
0.900 (22.9)
0.950 (24.1)
0.200 (5.1)
0.190 (4.8)
0.205 (5.2)
0.190 (4.8)
0.215 (5.5)
0.195 (5.0)
0.200 (5.1)
0.195 (5.0)
0.195 (5.0)
0.190 (4.8)
564R3DF0T15
564R3DF0T18
564R3DF0T27
564R3DF0T33
564R3DF0T39
564R3DF0T47
564R3DF0T56
564R3DF0T68
564R3DF0T82
564R3DF0D10
564R3DF0D12
564R3DF0D15
564R3DF0D18
564R3DF0D22
564R3DF0D27
564R3DF0D33
564R3DF0D47
± 10
0.290 (7.4)
0.290 (7.4)
0.330 (8.4)
0.205 (5.2)
0.190 (4.8)
0.190 (4.8)
564R3DF0T10
564R3DF0T12
564R3DF0T22
±5
0.290 (7.4)
0.210 (5.3)
0.190 (4.8)
0.185 (4.7)
564R3DF0Q56
564R3DF0Q68
564R3DF0Q82
±5
0.290 (7.4)
0.330 (8.4)
0.210 (5.3)
0.210 (5.3)
0.250 (6.4)
20
0.032 (0.81)
1
564R3DF0Q12
564R3DF0Q22
0.330 (8.4)
±5
0.290 (7.4)
0.185 (4.7)
0.220 (5.6)
0.195 (5.0)
0.190 (4.8)
0.225 (5.7)
564R3DF0Q10
564R3DF0Q27
564R3DF0Q33
564R3DF0Q39
564R3DF0Q47
TOL.
(%)
D
max.
DIAMETER
INCH (mm)
T
max.
THICKNESS
INCH (mm)
Note
• Alternate lead spacings of 5 mm, 7.5 mm or 10 mm are available on request.
TAPE AND REEL OPTIONS
Part number codes and specifications for tape and reel packaging are found in the general information document - find web-link
below.
Revision: 02-Mar-15
Document Number: 23115
4
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
561R and 564R Series
www.vishay.com
Vishay Cera-Mite

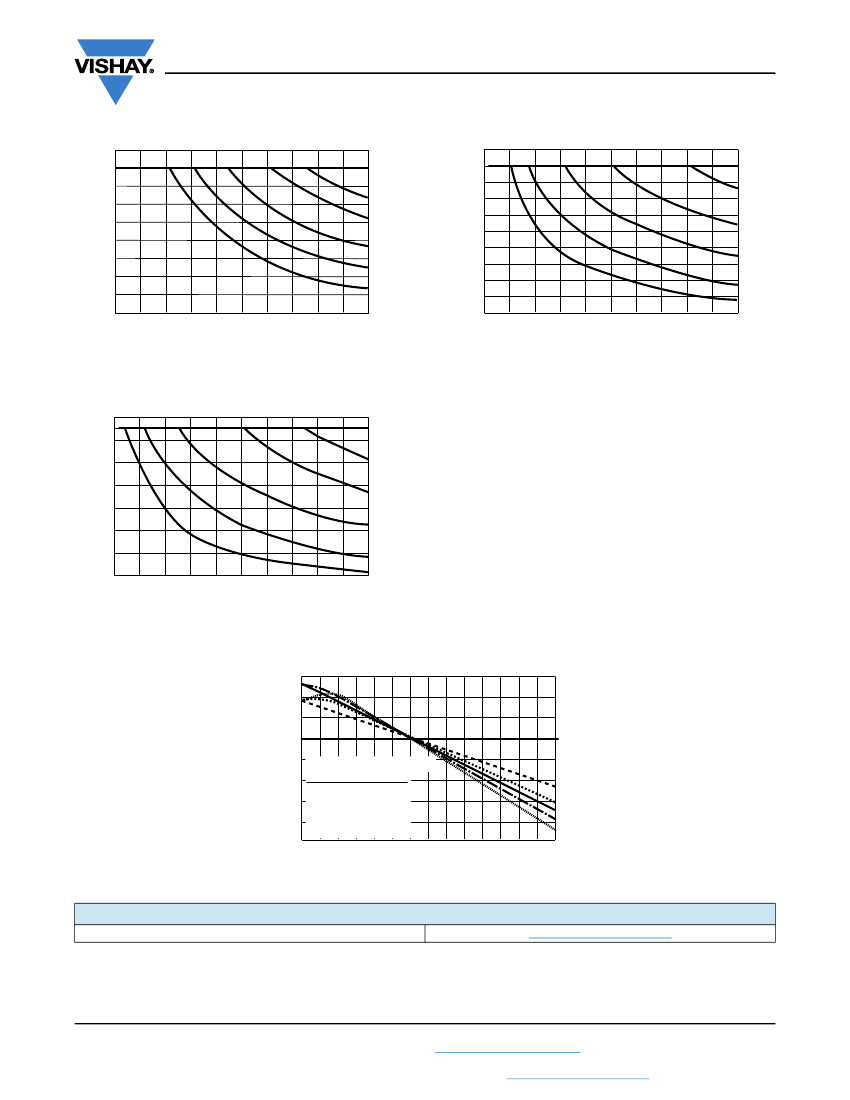

Power Rating - 2DFO Series 1000 V
RMS
Low DF - Note 1
1100
150 pF
1DFOT15
270 pF
1DFOT27
390 pF
1DFOT39
1000 pF
1DFOD10
2400 pF
1DFOD24
6800 pF
1DFOD68
Power Rating - 1DFO Series 500 V
RMS
Low DF - Note 1
550
500
450
Voltage (V
RMS
)
400
350
300
250
200
150
100
0
10
20
30
40
50
60
70
80
90
100
Frequency (kHz)
1000
900
Voltage (V
RMS
)
47 pF
2DFOQ47
82 pF
2DFOQ82
800
760
600
500
400
300
200
100
0
10
20
30
40
50
60
70
80
90
150 pF
2DFOT15
390 pF
2DFOT39
1800 pF
2DFOD18
6800 pF
2DFOD68
100
Note 2
Frequency (kHz)
Note 2
Power Rating - 3DFO Series 1500 V
RMS
Low DF - Note 1
1600
1400
Voltage (V
RMS
)
1200
1000
800
600
400
200
0
10
20
30
40
50
60
70
80
90
Frequency (kHz)
22 pF
3DFOQ22
39 pF
3DFOQ39
Note 1
Power ratings are based on still air 60 °C ambient with additional
30 °C rise due to self heating.
Thermal effects such as forced air cooling, component
encapsulation or other heat-sinking techniques will alter ratings.
Actual circuit for application recommended.
Note 2
For convenience, power rating charts are shown to 100 kHz. Higher
frequency operation is permissible with appropriate derating.
Consult us for application suggestions.
68 pF
3DFOQ68
150 pF
3DFOT15
1000 pF
3DFOD10
4700 pF
3DFOD47
100
Note 2
Temperature Characteristics for 1DFO, 2DFO & 3DFO Series
15 %
Percent Capacitance Change
10 %
5%
0%
5%
NP0
Temperature Characteristic
10 % Material ppm/°C Tol.
N1500
NP0
0
± 30
N1500 - 1500 ± 250
15 % N2000 - 2000 ± 500
N2000
N2200
N2200 - 2200 ± 500
N2500
20 % N2500 - 2500 ± 500
N2800
N2800 - 2800 ± 500
25 %
- 35 - 25 -15 - 5 5 15 25 35 45 55 65 75 85 95 105
Temperature °C
RELATED DOCUMENTS
General Information
www.vishay.com/doc?23140
Revision: 02-Mar-15
Document Number: 23115
5
For technical questions, contact:
ceramitesupport@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
