C1812C332KGRACTU datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> C1812C332KGRACTU

Preview

C1812C332KGRACTU: DescriptionSchottky Diodes u0026 Rectifiers 40V 1A; CategoryPassive components capacitor; File Size55KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

C1812C332KGRACTU Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C1812C332KGRACTU	-	-	View	Buy Now

C1812C332KGRACTU Overview

Schottky Diodes u0026 Rectifiers 40V 1A

C1812C332KGRACTU Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	, 1812
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
capacitance	0.0033 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.6 mm
JESD-609 code	e3
length	4.5 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PLASTIC, 7 INCH
positive tolerance	10%
Rated (DC) voltage (URdc)	2000 V
size code	1812
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	3.2 mm
Base Number Matches	1

Preview

Download Datasheet

View All

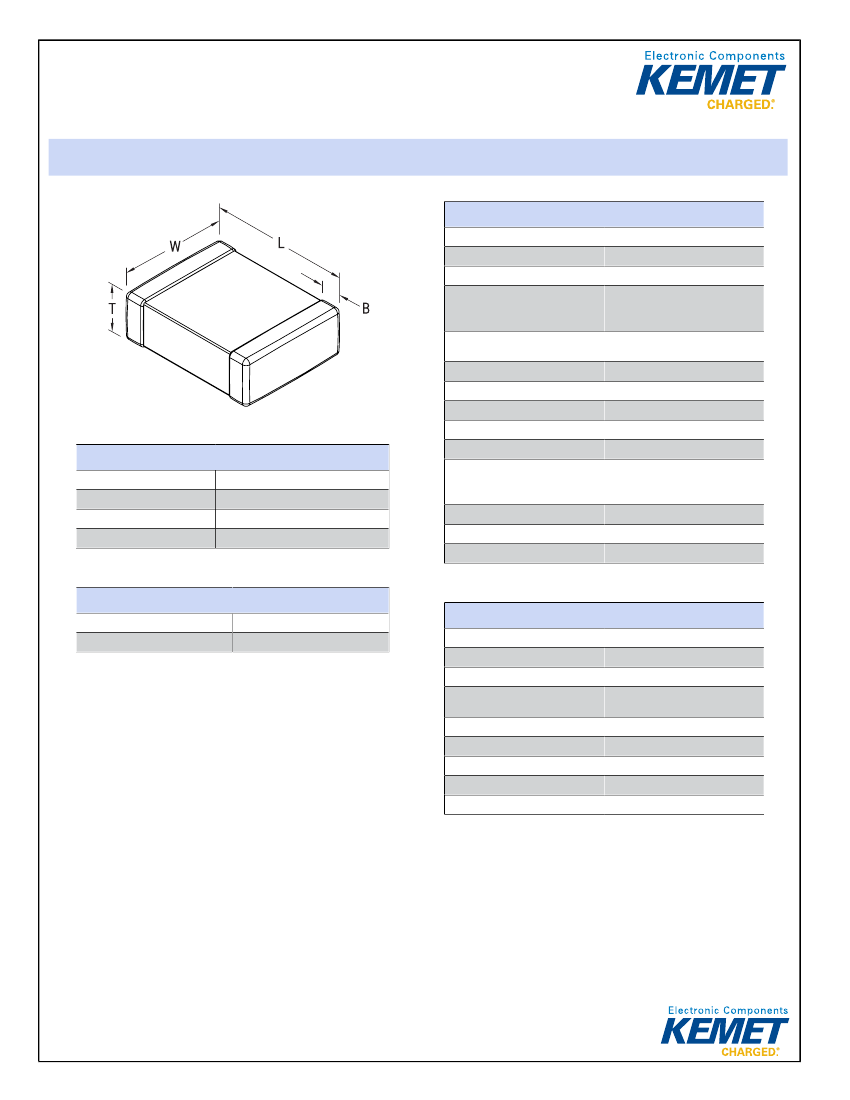

KEMET Part Number: C1206C333KCRACAUTO

SMD Auto X7R HV, Ceramic, 0.033 uF, 10%, 500 VDC, X7R, SMD, MLCC, High Voltage, Temperature Stable, Automotive Grade,

1206

General Information

Supplier:

Series:

Style:

Description:

Features:

RoHS:

Termination:

Marking:

Qualifications:

KEMET

SMD Auto X7R HV

SMD Chip

SMD, MLCC, High Voltage,

Temperature Stable, Automotive

Grade

High Voltage, Temp Stable,

Automotive Grade

Yes

Tin

No

AEC-Q200

Yes

Note: Referee time for X7R

dielectric for this part number is

1000 hours

1206

78 Weeks

1

Dimensions

L

W

T

B

3.2mm +/-0.2mm

1.6mm +/-0.2mm

1.7mm +/-0.20mm

0.5mm +/-0.25mm

AEC-Q200:

Miscellaneous:

Chip Size:

Shelf Life:

MSL:

Packaging Specifications

Packaging:

Packaging Quantity:

T&R, 180mm, Plastic Tape

2000

Specifications

Capacitance:

Capacitance Tolerance:

Voltage DC:

Dielectric Withstanding

Voltage:

Temperature Range:

Temperature Coefficient:

Dissipation Factor:

Aging Rate:

Insulation Resistance:

0.033 uF

10%

500 VDC

750 V

-55/+125C

X7R

2.50% 1kHz 25C

3% Loss/Decade Hour

3.03 GOhms

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 10/03/2018 - 60b5cd8e-7b5b-4a94-9b34-9473a8c93407
