EXN-23359-SVP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> EXN-23359-SVP

EXN-23359-SVP: DescriptionEnclosures, Boxes, u0026 Cases EXT ALUM-POLY COVER 5.77x1.64x3.5" SLVR; CategoryTopical application Mechanical and electrical/engineering/automation; File Size69KB，1 Pages; ManufacturerBud Industries

Download Datasheet Parametric Compare View All

EXN-23359-SVP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EXN-23359-SVP	-	-	View	Buy Now

EXN-23359-SVP Overview

Enclosures, Boxes, u0026 Cases EXT ALUM-POLY COVER 5.77x1.64x3.5" SLVR

EXN-23359-SVP Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	Bud Industries
RoHS	Details
Length	5.77 in
Width	1.64 in
Height	3.5 in
Factory Pack Quantity	1
Unit Weight	8.320001 oz

Preview

Download Datasheet

View All

PART

NAME

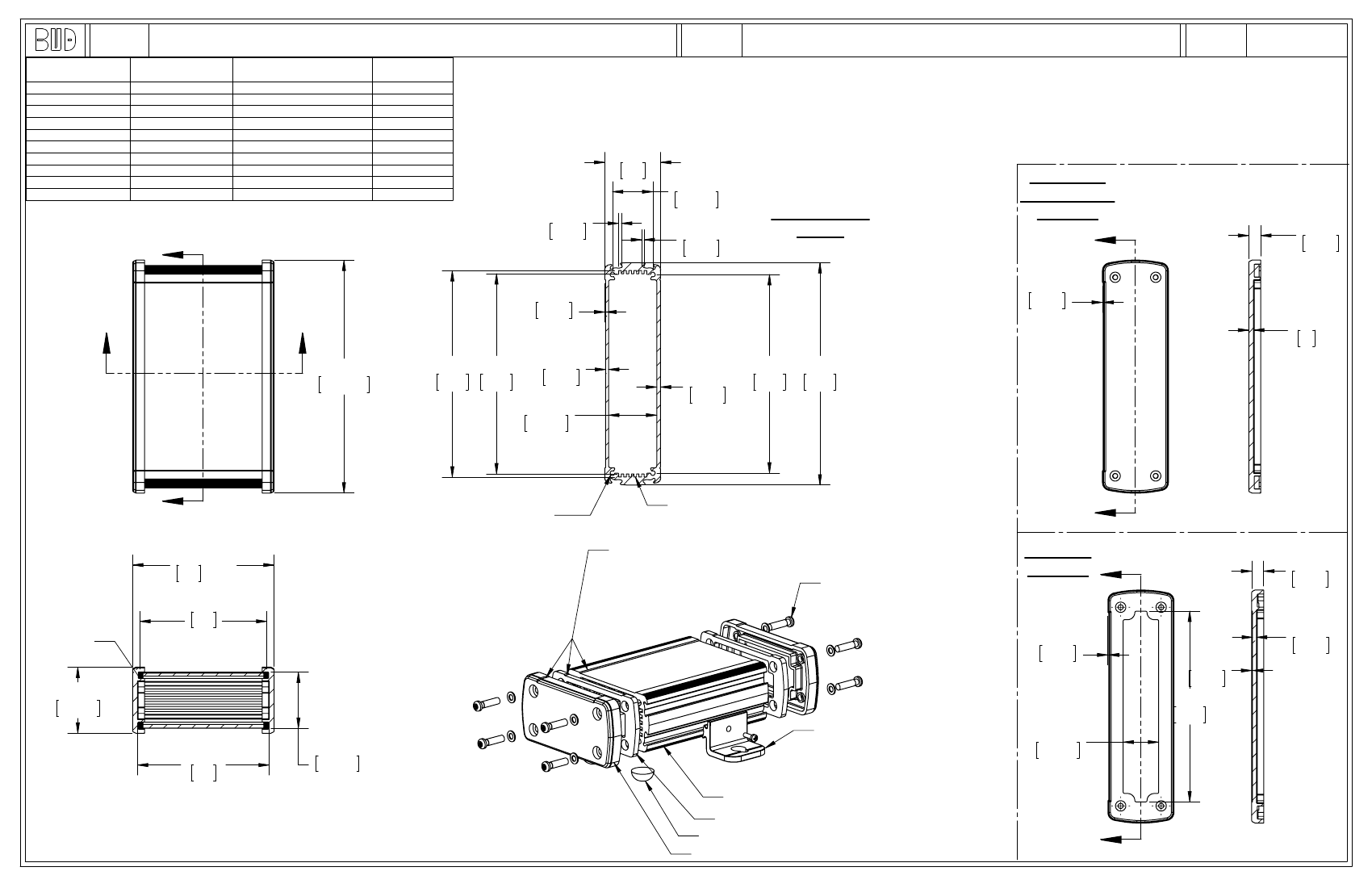

EXTRUDED ALUMINUM IP65 PCB ENCLOSURES

BODY

COLOR

BLACK

BLUE

GOLD

RED

SILVER

PART NUMBER ALUM. COVER

PLASTIC COVER

EXN-23359-BK

BLACK

EXN-23359-BKP

BLACK

EXN-23359-BL

BLACK

EXN-23359-BLP

TRANSLUCENT BLUE

EXN-23359-GD

BLACK

EXN-23359-GDP

CLEAR

EXN-23359-RD

BLACK

EXN-23359-RDP

IR RED

EXN-23359-SV

BLACK

EXN-23359-SVP

CLEAR

PART

EXN-23359 (SEE

No.

MATERIAL: ALUMINUM EXTRUSION BODY PROVIDED

WITH ALUMINUM COVER (2X) AND GASKETS OR

POLYCARBONATE COVER (2X) AND GASKETS - NOT ASSEMBLED

DIMENSIONS ARE INCH[MM]

1.378

.067

1.70

TABULATION FOR COMBINATIONS)

REVISION

DATE

10-23-15

WE RESERVE THE RIGHT TO MAKE CHANGES TO OUR

STANDARD PRODUCTS. PLEASE CONSULT WITH BUD INDUSTRIES

PRIOR TO USING THIS DRAWING FOR DESIGN PURPOSE.

DRAWING FOR REFERENCE

1.004

25.50

.059

1.50

EXTRUSION

ONLY

SECTION B-B

DIE CAST

ALUMINUM

COVER

.020

0.50

RECESS

.020

0.50

RECESS

5.772

146.60

5.118 4.961

130

126

.071

1.80

1.197

30.40

.295

7.50

.118

.091

2.30

4.921

125

5.512

140

PRE-THREADED FOR

M3.5 SCREW (4X)

3.504 REF.

SLOTS FOR PCB

#EXN-23406-PCB

* ASSEMBLY

ORIENTATION *

ALIGN RECESS IN GASKET,

COVERS, & EXTRUSION

DURING ASSEMBLY

SECTION C-C

.295

7.50

.098

2.50

RUBBER

FOAM

GASKET

1.638

41.60

3.150

EXT.

M3.5 CAPTIVE

SCREWS

(8X)

PLASTIC

COVER

.020

0.50

RECESS

3.268

SECTION A-A

SCALE 1 : 2

1.394

35.41

EXT.

OPTIONAL

MOUNTING

BRACKET KIT

#EXN-23370-MBK

ISOMETRIC VIEW

REFERENCE ONLY-

(AL. COVER SHOWN)

ACTUAL APPERANCE

MAY VARY

.882

22.40

.020

0.50

4.724

120

BODY - EXTRUSION (1X)

GASKET (2X)

RUBBER FEET (4X)

COVER (2X)

SECTION D-D

DIMENSIONS MAY VARY DEPENDING ON

THE COMPRESSION OF THE GASKETS
