1591VFLGY: DescriptionPluggable Terminal Blocks 12 Pos 3.81mm pitch Plug 28-16 AWG Screw; CategoryTopical application Mechanical and electrical/engineering/automation; File Size281KB，1 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric Compare View All

1591VFLGY Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1591VFLGY	-	-	View	Buy Now

1591VFLGY Overview

Pluggable Terminal Blocks 12 Pos 3.81mm pitch Plug 28-16 AWG Screw

1591VFLGY Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	Hammond
RoHS	Details
Product	Enclosures
Type	Flanged Cover Panel
Material	Acrylonitrile Butadiene Styrene (ABS)
Color	Gray
Length	4.7 in
Width	4.7 in
Height	3.5 in
IP Rating	IP54
Flammability Rating	UL 94 V-0
Cover Color	Gray
Dimensions	4.7 in L x 4.7 in W x 3.5 in H
Features	Lap joint construction provides protection against access of dust and splashing water
Height - in	3.5
Height - mm	88.9
Length - in	4.7
Length - mm	119.38
Factory Pack Quantity	1
Width - in	4.7
Width - mm	119.38
Unit Weight	8.000082 oz

Preview

Download Datasheet

View All

4

3

2

1

106.20

[4.181]

n

8.00

A

90.00

[3.543]

[.315]

D

115.23 106.20

[4.537] [4.181]

D

B

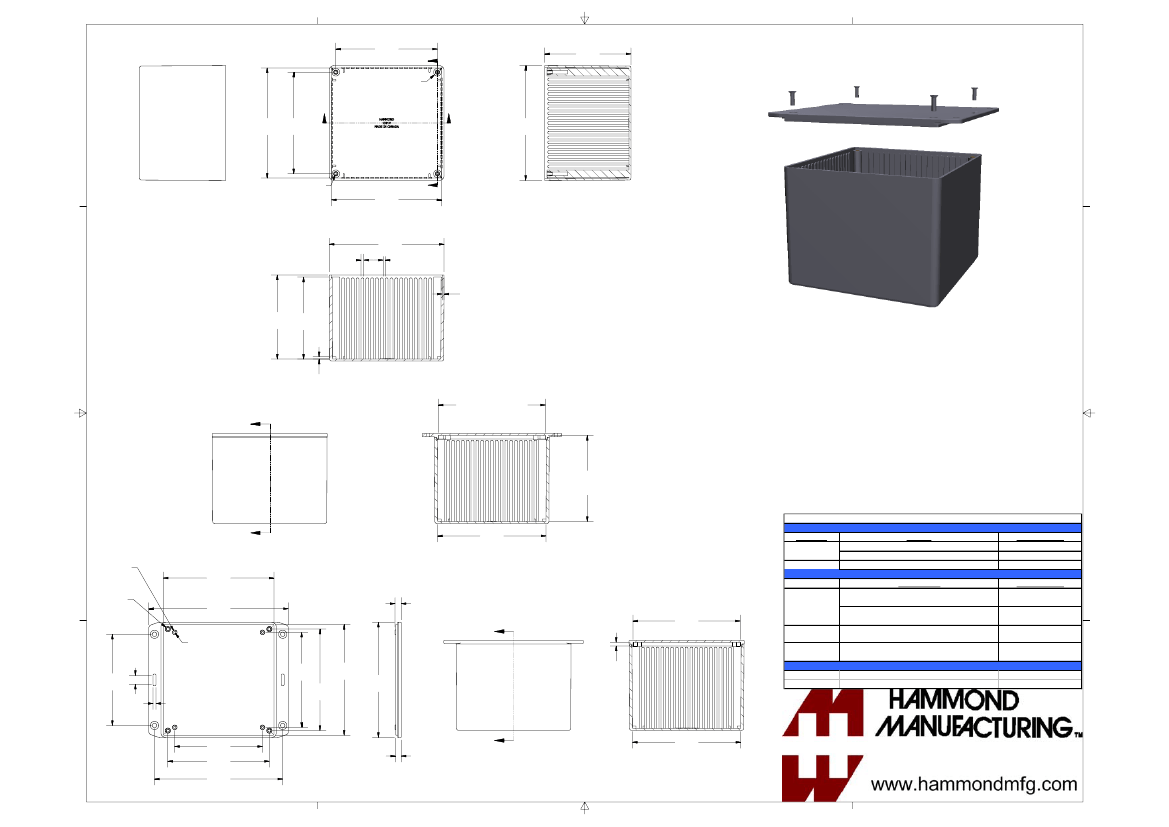

120.00

[4.724]

M3 X 0.5 - 6H x 5.75

SIDE VIEW OF ASSEMBLY

A

115.23

[4.537]

SECTION A-A

TOP VIEW OF ASSEMBLY

120.00

[4.724]

2.06

[.081]

3.00

[.118]

C

AVERAGE WALL THICKNESS

2.00

[.079]

88.00 85.70

[3.465] [3.374]

C

SECTION B-B

2.50

[.098]

NARROWEST INSIDE

DIMENSION

112.04

[4.411]

C

INNER BOX HEIGHT

89.90

[3.539]

Note:

Enclosures can be Factory Modified ( Milling, Drilling, Printing etc. )

Contact Factory

mjm@hammondmfg.com for quotes

Solid models of this enclosure available in STEP or IGES Format.

PART NUM BERS

1591VFL Flanged Lid Enclosures

B

113.23

[4.458]

C

END VIEW OF ENCLOSURE

n

4.67

SECTION C-C

Ma te ria l

FR ABS

UL94 - V0

GP ABS

Colour

Black

Grey

Black

Pa rt Num be r

1591VFLBK

1591VFLGY

1591VSFLBK

Pa rt Num be r

See Accessories

Section

1591VC

1591MS100

1591MS100BK (Black)

1591TS100

1591TS100BK ( Black)

30-40 cN*m

[.184]

n

5.33

115.60

[4.551]

145.80

[5.740]

6.40

[.252]

Accessories

De scription

PC Board Card Adapters

Universal Use

112.04

[4.411]

[.210]

D

FR ABS

GP ABS

n

2.25

Clear Lids - clear, flame retardant

polycarbonate - Lid ONLY

Replacement Screws, Flat Head Phillips

Nickel Plated Pkg of 100

Self Tapping Pkg of 100

M3 - 0.5 x 10mm Screws

#4 x 0.5 Screws

9.35

[.368]

95.30

[3.752]

3.15

[.124]

A

[.089]

99.25

[3.907]

106.10

[4.177]

115.60

[4.551]

3.90

[.154]

Recomended Torque on Fasteners (no lubrication)

120.30

[4.736]

A

91.65

[3.608]

106.10

[4.177]

134.00

[5.276]

4

113.23

[4.458]

5.80

[.228]

D

SIDE VIEW OF ASSEMBLY

SECTION D-D

1591VFL

2

1

3

1591VFLGY Related Products

	1591VFLGY	1591VFLBK
Description	Pluggable Terminal Blocks 12 Pos 3.81mm pitch Plug 28-16 AWG Screw
Product Category	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases
Manufacturer	Hammond	Hammond
RoHS	Details	Details
Product	Enclosures	Enclosures
Type	Flanged Cover Panel	Flanged Cover Panel
Material	Acrylonitrile Butadiene Styrene (ABS)	Acrylonitrile Butadiene Styrene (ABS)
Color	Gray	Black
Length	4.7 in	4.7 in
Width	4.7 in	4.7 in
Height	3.5 in	3.5 in
IP Rating	IP54	IP54
Flammability Rating	UL 94 V-0	UL 94 V-0
Cover Color	Gray	Black
Dimensions	4.7 in L x 4.7 in W x 3.5 in H	4.7 in L x 4.7 in W x 3.5 in H
Features	Lap joint construction provides protection against access of dust and splashing water	Lap joint construction provides protection against access of dust and splashing water
Height - in	3.5	3.5
Height - mm	88.9	88.9
Length - in	4.7	4.7
Length - mm	119.38	119.38
Factory Pack Quantity	1	1
Width - in	4.7	4.7
Width - mm	119.38	119.38
Unit Weight	8.000082 oz	8.000082 oz
