53291-1291 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 53291-1291

Preview

53291-1291: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size47KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

53291-1291 Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, Solder Terminal

53291-1291 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	53291
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	12
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

Friction lock provides secure retention

s

Guide feature facilitates mating

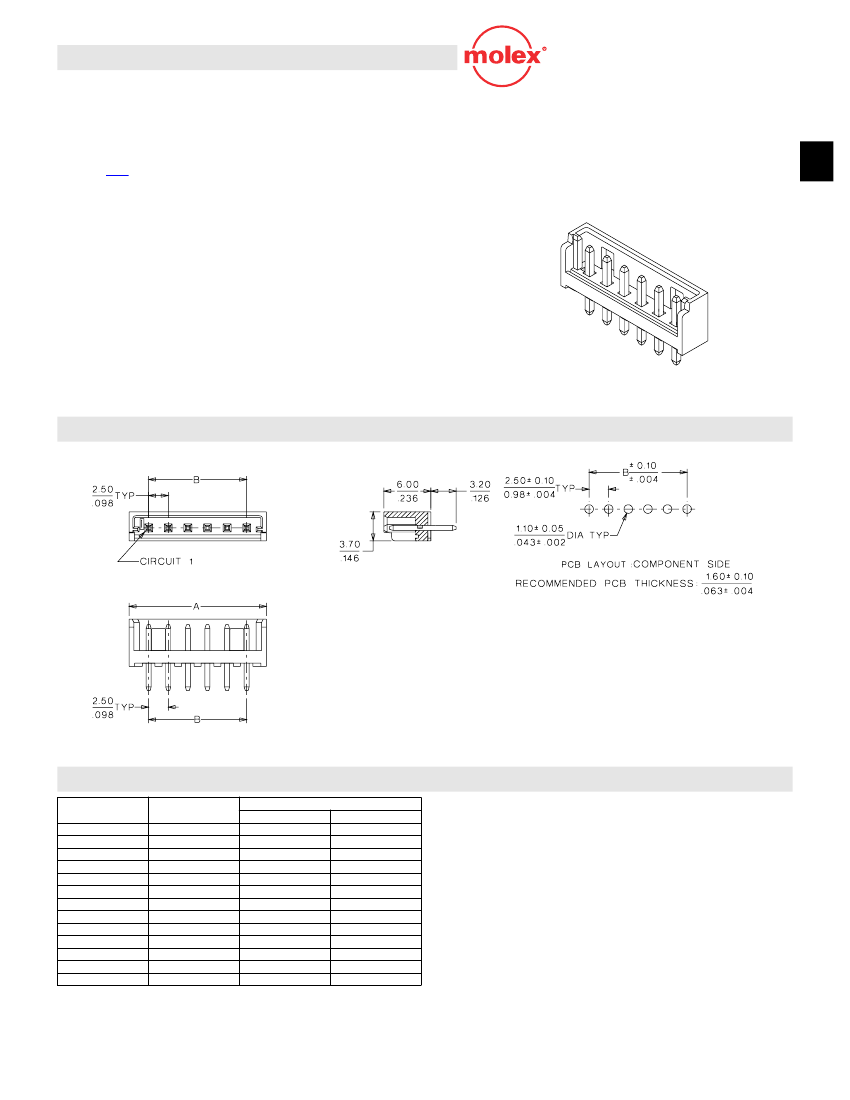

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

3

4

5

6

7

8

9

10

11

12

13

14

15

Order No.

53291-0391

53291-0491

53291-0591

53291-0691

53291-0791

53291-0891

53291-0991

53291-1091

53291-1191

53291-1291

53291-1391

53291-1491

53291-1591

10.00

12.50

15.00

17.50

20.00

22.50

25.00

27.50

30.00

32.50

35.00

37.50

40.00

Dimension

A

(.393)

(.492)

(.590)

(.688)

(.787)

(.865)

(.984)

(1.082)

(1.181)

(1.279)

(1.377)

(1.476)

(1.574)

5.00

7.50

10.00

12.50

15.00

17.50

20.00

22.50

25.00

27.50

30.00

32.50

35.00

B

(.196)

(.295)

(.393)

(.492)

(.590)

(.688)

(.787)

(.865)

(.984)

(1.070)

(1.181)

(1.279)

(1.377)

Note: Kinked version and bag packaging available, contact Inside Sales for details

MX01

B-155

2.00 to 2.50mm (.079 to .098") Pitch

Reference Information

Packaging: Tube

Mates With:

52419

Designed In: Millimeters

Electrical

Voltage: 250V

Current: 2.0A

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 500V AC/1 min.

Insulation Resistance: 1000 M

Ω

min.

Physical

Housing: PBTP, UL 94V-0

Contact: Brass

Plating: Tin

Operating Temperature: -40 to +105˚C

2.50mm (.098") Pitch

Board-to-Board

Header

53291

Vertical

B
