296-99-010-30-691800 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> 296-99-010-30-691800

Preview

296-99-010-30-691800: DescriptionIC Socket, DIP10, 10 Contact(s),; CategoryThe connector socket; File Size725KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

296-99-010-30-691800 Overview

IC Socket, DIP10, 10 Contact(s),

296-99-010-30-691800 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	DIP SOCKET
Contact to complete cooperation	TIN LEAD (200)
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact material	BERYLLIUM COPPER
Device slot type	IC SOCKET
Type of equipment used	DIP10
Shell material	NYLON46
JESD-609 code	e0
Number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

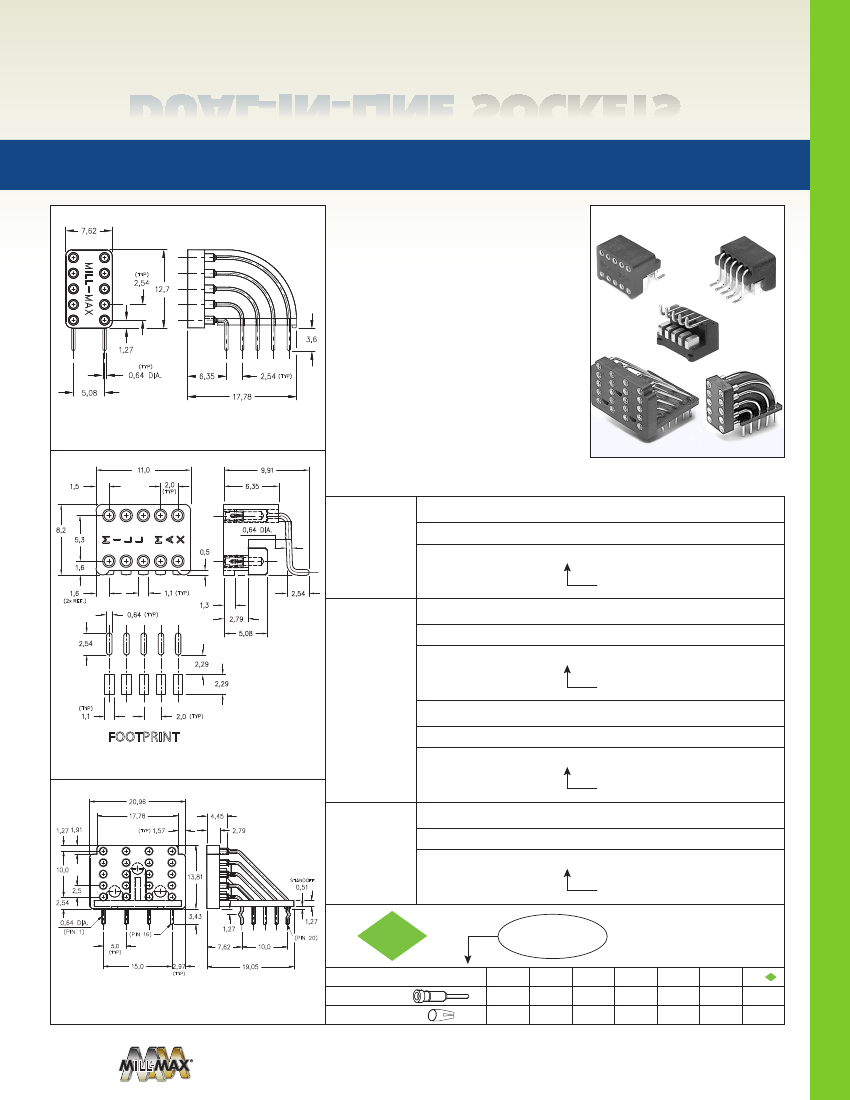

DUAL-IN-LINE

SOCKETS

SERIES 296, 299, 594 • DISPLAY SOCKETS

•

Series 296, 299 and 594 display sockets are

7,62

2,54

12,7

•

3,6

1,27

0,64 DIA.

5,08

6,35

17,78

2,54

•

9,91

2,0

6,35

FIG. 1

11,0

1,5

used to mount dot matrix and 7-segment LED

displays at the edge of and perpendicular to a

printed circuit board. This positions the display

directly behind the translucent front panel of

the equipment

Series 299 & 594 are through-hole mount and

can be wave or intrusive reflow soldered

Series 296 is surface mount and can be

supplied on carrier tape for automated “pick ‘n

place” assembly

Hi-Rel, 4-finger BeCu #30 contact is rated at

3 amps. See page 253 for details

See also page 129 for Right Angle DIP Sockets

Insulators are high temp. Nylon 46, suitable for

all soldering processes including “lead-free”

For Electrical, Mechanical and Environmental

Data, see page 264 for details

ORDERING INFORMATION

Series 299...001

10 Pin Vertical Display Socket

Discrete Sockets

8,2

5,3

0,5

1,6

0,64 DIA.

FIG. 1

2,54

299-99-210-12-001800

Plating Code

1,6

0,64

1,1

1,3

2,79

5,08

Series 296...691

10 Pin Horizontal Display Socket

Discrete Sockets

2,54

2,29

296-XX-010-30-691800

FIG. 2

1,1

2,0

Plating Code

Series 296...692

10 Pin Horizontal Display Socket

296-XX-010-30-692800

PAGE 133 | IC SOCKETS / TO SOCKETS

Plating Code

FOOTPRINT

Supplied on 24mm wide carrier tape per EIA-481: 450 per 330mm reel

FIG. 2

20,96

17,78

1,27 1,91

1,57

4,45

2,79

Series 594...007

20 Pin Vertical Display Socket

Discrete Sockets

FIG. 3

10,0

2,5

2,54

0,64 DIA.

3,43

1,27

5,0

594-XX-020-01-007032

Plating Code

13,81

0,51

1,27

7,62

15,0

2,97

10,0

19,05

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

99

5,08μm

Sn/Pb

5,08μm

Sn/Pb

FIG. 3

SPECIFY PLATING CODE XX=

Sleeve

(Pin)

Contact

(Clip)

44

5,08μm

Sn

5,08μm

Sn

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

296-99-010-30-691800 Related Products

	296-99-010-30-691800	594-99-020-01-007032	594-44-020-01-007032	296-44-010-30-692800	296-44-010-30-691800	296-99-010-30-692800
Description	IC Socket, DIP10, 10 Contact(s),	IC Socket, DIP20, 20 Contact(s),	IC Socket, DIP20, 20 Contact(s), ROHS COMPLIANT	IC Socket, DIP10, 10 Contact(s), PFOA, PFOS, ROHS AND REACH COMPLIANT	IC Socket, DIP10, 10 Contact(s), ROHS COMPLIANT	IC Socket, DIP10, 10 Contact(s),
Is it lead-free?	Contains lead	Contains lead	Lead free	Lead free	Lead free	Contains lead
Is it Rohs certified?	incompatible	incompatible	conform to	conform to	conform to	incompatible
Reach Compliance Code	compliant	compli	compli	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Contact to complete cooperation	TIN LEAD (200)	TIN LEAD (200)	TIN (200)	TIN (200)	TIN (200)	TIN LEAD (200)
Contact completed and terminated	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin/Lead (Sn/Pb)
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	DIP10	DIP20	DIP20	DIP10	DIP10	DIP10
Shell material	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46	NYLON46
JESD-609 code	e0	e0	e3	e3	e3	e0
Number of contacts	10	20	20	10	10	10
Base Number Matches	1	1	1	1	1	1
