EB71SB22SGFYA

Description
CONNECTOR, EDGE CONNECTOR,PCB MNT,RECEPT,22 CONTACTS,0.156 PITCH,PC TAIL TERMINAL,#4-40
CategoryThe connector    The connector
File Size133KB,3 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

EB71SB22SGFYA Overview

CONNECTOR, EDGE CONNECTOR,PCB MNT,RECEPT,22 CONTACTS,0.156 PITCH,PC TAIL TERMINAL,#4-40

EB71SB22SGFYA Parametric

Parameter NameAttribute value
MakerVishay
Reach Compliance Codeunknown
Other featuresTHREADED INSERT
body width0.328 inch
subject depth0.44 inch
body length4.28 inch
Body/casing typeRECEPTACLE
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationAU ON NI
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage1800VAC V
Durability500 Cycles
Insulation resistance5000000000 Ω
Insulator colorGREEN
insulator materialGLASS FILLED DIALLYL PHTHALATE
Plug contact pitch0.156 inch
Installation option 1#4-40
Installation option 2THREADED
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
Plating thickness10u inch
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.22 inch
Terminal pitch3.9624 mm
Termination typeSOLDER
Total number of contacts22
Base Number Matches1
EB7S
Vishay Dale

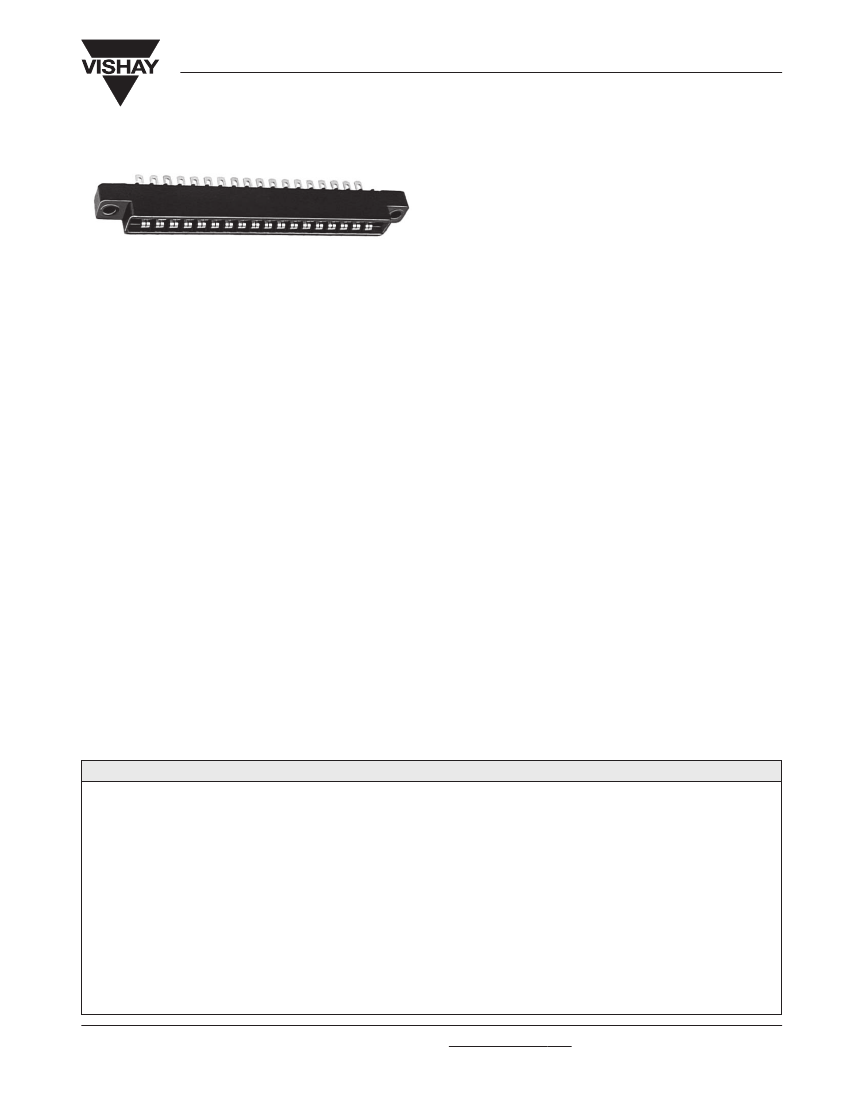

Edgeboard Connectors, Single Readout
FEATURES
• 0.156" [3.96mm] C-C.
• Bifurcated bellows contacts provide 2 flexing contact surfaces
to assure positive contact under adverse conditions such as
vibration or PC board irregularities.
• Accepts PC board thickness of 0.054" - 0.071"
[1.37mm - 1.80mm].
• Polarization between contact positions in all sizes.
Between contact polarization permits polarizing without loss
of a contact position.
• Selective gold plating.
• Polarizing key is reinforced nylon, may be inserted by hand,
requires no adhesive.
• Protected entry, provided by recessed leading edge of
contact, permits the card slot to straighten and align the board
before electrical contact is made. Prevents damage to
contact which might be caused by warped or out of tolerance
boards.
Recognized under the Component Program of
Underwriters Laboratories, Inc. Listed under File E65524,
Project 77CH3889.
ELECTRICAL SPECIFICATIONS
Current Rating:
5 amps.
Test Voltage Between Contacts:
At sea level: 1800VRMS.
At 70,000 feet [21,336 meters]: 450VRMS.
Insulation Resistance:
5000 Megohm minimum at 500VDC
potential.
Contact Resistance:
30 millivolts maximum at rated current
(with gold plating).
Operating Temperature:
- 55°C to + 125°C.
Humidity:
96 hours at 90% relative humidity at + 40°C, dried
at room temperature for 3 hours minimum, insulation
resistance 5000 Megohm.
Durability:
(With gold plating.) After 500 cycles of insertion
and withdrawal of 0.070" [1.78mm] thick steel test gauge,
contact resistance less than 0.030V at 5 amps and individual
contact retention force when measured with a 0.054" [1.37mm]
thick steel test slug greater than 1/2 ounce.
Shock:
Three 50g shocks in each of 3 mutually perpendicular
planes with no loss of continuity.
Vibration:
2 hours in each of 3 mutually perpendicular
planes, frequency sweep 10 to 55cps at 0.06 double amplitude
with no loss of continuity.
APPLICATIONS
For use with 0.062" [1.57mm] printed circuit boards requiring
an edgeboard type connector on 0.156" [3.96mm] centers.
MATERIAL SPECIFICATIONS
Body:
(Standard) Glass-filled phenolic per MIL-M-14, dark
green, flame retardant (UL 94V-0).
(Optional - See Ordering Information):
“1” glass-filled diallyl phthalate per MIL-M-14, Type SDG-F
green, flame retardant (UL 94V-0).
“3” thermoplastic polyester, glass-filled, black, flame retardant
(UL 94V-0).
Contacts:
Phosphor bronze.
Polarizing Key:
Glass reinforced nylon, flame retardant
(UL94H-B).
Contact Plating:
Gold (See Ordering Information).
NOTE:
High temperature burn-in, edgeboard connectors,
0.156" [3.96mm] center to center are on page 20 of this catalog.

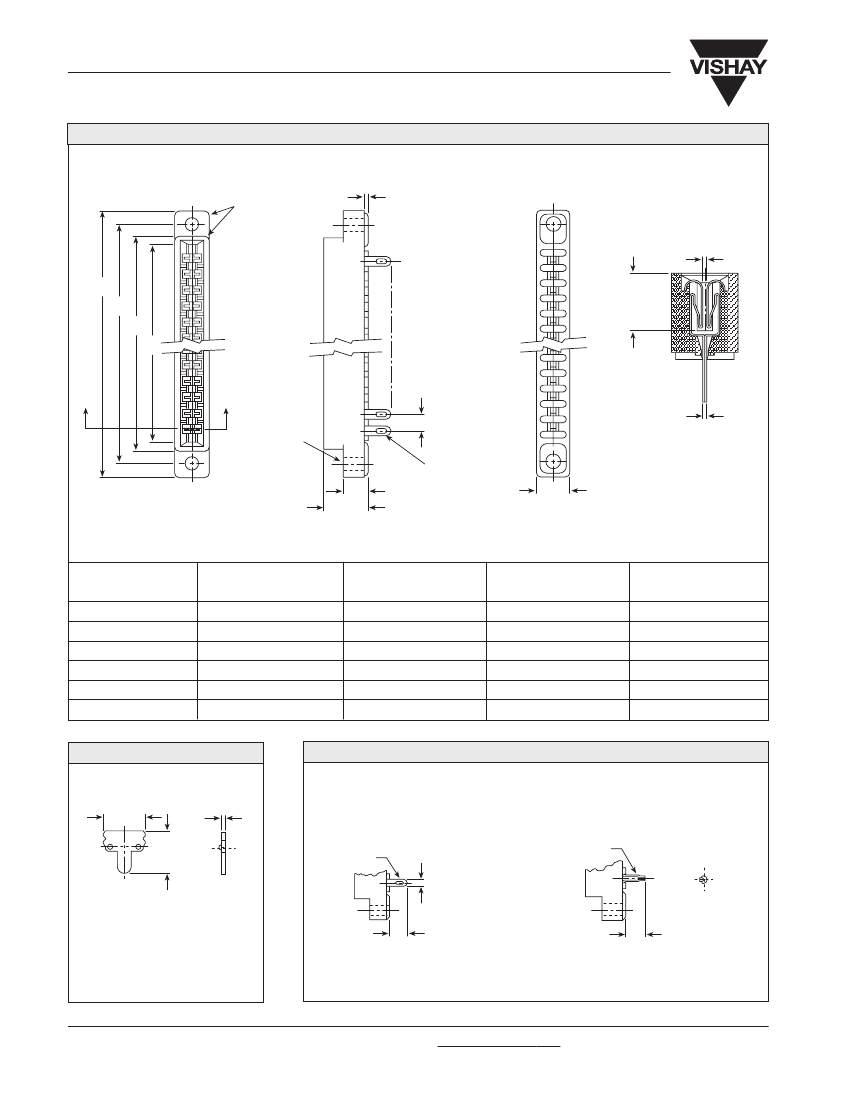

PHYSICAL SPECIFICATIONS
Contact Type:
Bifurcated bellows.
Number of Contacts:
6, 10, 12, 15, 18 and 22 per side.
Contact Spacing:
0.156" [3.96mm] center to center.
Card Thickness:
0.054" to 0.071" [1.37mm to 1.80mm].
Card Slot Depth:
Single Readout = 0.300" [7.62mm].
ORDERING INFORMATION
EB7
MODEL
1
BODY MATERIAL
Optional Body
Material
1 = Diallyl
Phthalate
3 = Glass-filled
Polyester
Omit for
standard
phenolic.
S
SINGLE
READOUT
A
22
STANDARD TERMINAL CONTACTS
VARIATIONS
A or B
6, 10,
12,
15, 18
or 22
X
A
MOUNTING POLARIZING
VARIATIONS
KEY
POSITIONS
SG = Selective Gold Plating
(0.00003"
[0.000762mm]
Key(s) are
minimum thick) on contact area
located to
with Gold Flash on terminal.
right
of
SGF = Selective Gold Plating
position(s)
(0.00001"
[0.000254mm]
designated.
minimum thick) on contact area
Required
with Gold Flash on terminal.
only when
All Gold Plating over 0.00005"
polarizing
[0.00127mm] minimum Nickel
keys are to
Underplate.
be factory
Contact factory for additional
installed.
plating options.
www.vishay.com
11
SG
CONTACT
PLATING
Document Number 36004
Revision 14-Aug-02
