M83734/6-033 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> M83734/6-033

M83734/6-033: DescriptionIC Socket, DIP22, 22 Contact(s),; CategoryThe connector socket; File Size156KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

M83734/6-033 Overview

IC Socket, DIP22, 22 Contact(s),

M83734/6-033 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: MIL-S-83734, DIP SOCKET
Contact completed and terminated	TIN LEAD (100)
Device slot type	IC SOCKET
Type of equipment used	DIP22
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e0
Number of contacts	22
Base Number Matches	1

Preview

Download Datasheet

View All

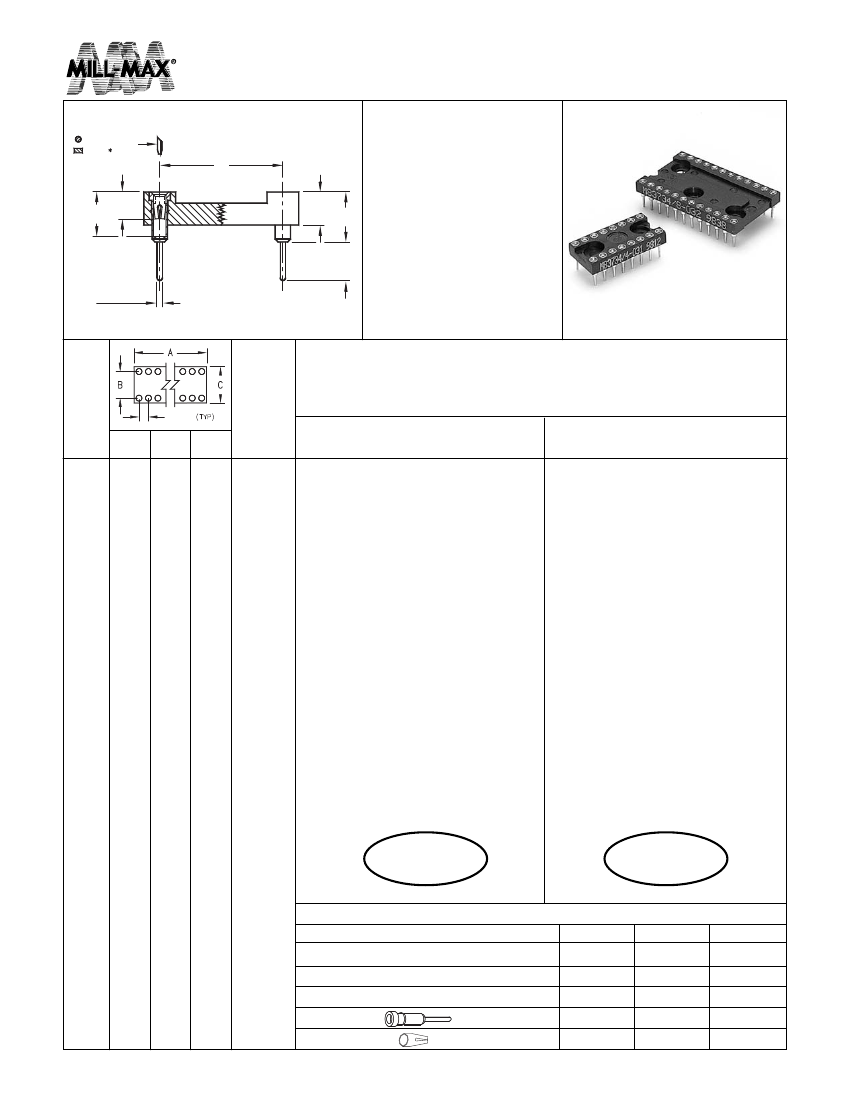

MILITARY DUAL-IN-LINE SOCKETS

MIL-S-83734 APPROVED

Solder Tail, Closed Frame

•

Sockets are XY stackable.

0,38-.064

0,25 0,46

Series 210...101

•

Machined outer sleeve with Hi-

Rel, BeCu #30 inner contact.

•

Socket pins feature closed-end

construction eliminating any

solder/flux wicking problems.

4,19

3,71

2,41

2,79

3,18

•

Packaged in tubes compatible

with automatic insertion equip-

ment.

•

Series 210 use MM #1001 pins.

See page 136 for details.

•

Insulators are high temperature

thermoplastic.

0,51 DIA.

Total number

of pins

Quantity

per tube

Ordering Information

Mill-Max Part Number

Military Part Number

M83734/1-YYY

M83734/2-YYY

M83734/3-YYY

M83734/4-YYY

M83734/5-YYY

M83734/13-YYY

M83734/6-YYY

M83734/8-YYY

M83734/7-YYY

M83734/17-YYY

M83734/10-YYY

M83734/15-YYY

2,54

7,6

10,1

17,7

20,3

22,8

25,3

7,62

10,1

210-XX-306-41-101000

210-XX-308-41-101000

210-XX-314-41-101000

210-XX-316-41-101000

210-XX-318-41-101000

210-XX-320-41-101000

210-XX-422-41-101000

210-XX-624-41-101000

210-XX-628-41-101000

210-XX-632-41-101000

210-XX-640-41-101000

210-XX-964-41-101000

27,8 10,16 12,7

30,4

35,5

40,6

50,8

15,24

17,7

81,2 22,86 25,3

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

XX=Plating Code

See Below

SEE PAGE 35 FOR COMPLETE QPL

SPECIFY MILL-MAX PLATING CODE XX=

FOR MILITARY CODE YYY=

031

025

013

032

026

014

033

027

015

(

6 PIN ONLY) YYY=

(

32 PIN ONLY) YYY=

Sleeve (Pin)

Contact (Clip)

0,76μm Au

7,62μm Sn/Pb 7,62μm Sn/Pb

0,76μm Au

2,54μm Sn/Pb

w w w. m i l l - m a x . c o m



516-922-6000
