23S102-S00L5: DescriptionRF Connector Adapter, MINI-COAX-MINI-COAX, Male-Male, Plug-plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size58KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric View All

23S102-S00L5 Overview

RF Connector Adapter, MINI-COAX-MINI-COAX, Male-Male, Plug-plug, ROHS COMPLIANT

23S102-S00L5 Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Adapter type	MINI-COAX-MINI-COAX
Body/casing type	PLUG-PLUG
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	MALE-MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.24 dB
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	23S102-S00L5
Maximum operating frequency	6 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
voltage standing wave ratio	1.22
Base Number Matches	1

Preview

Download Datasheet

View All

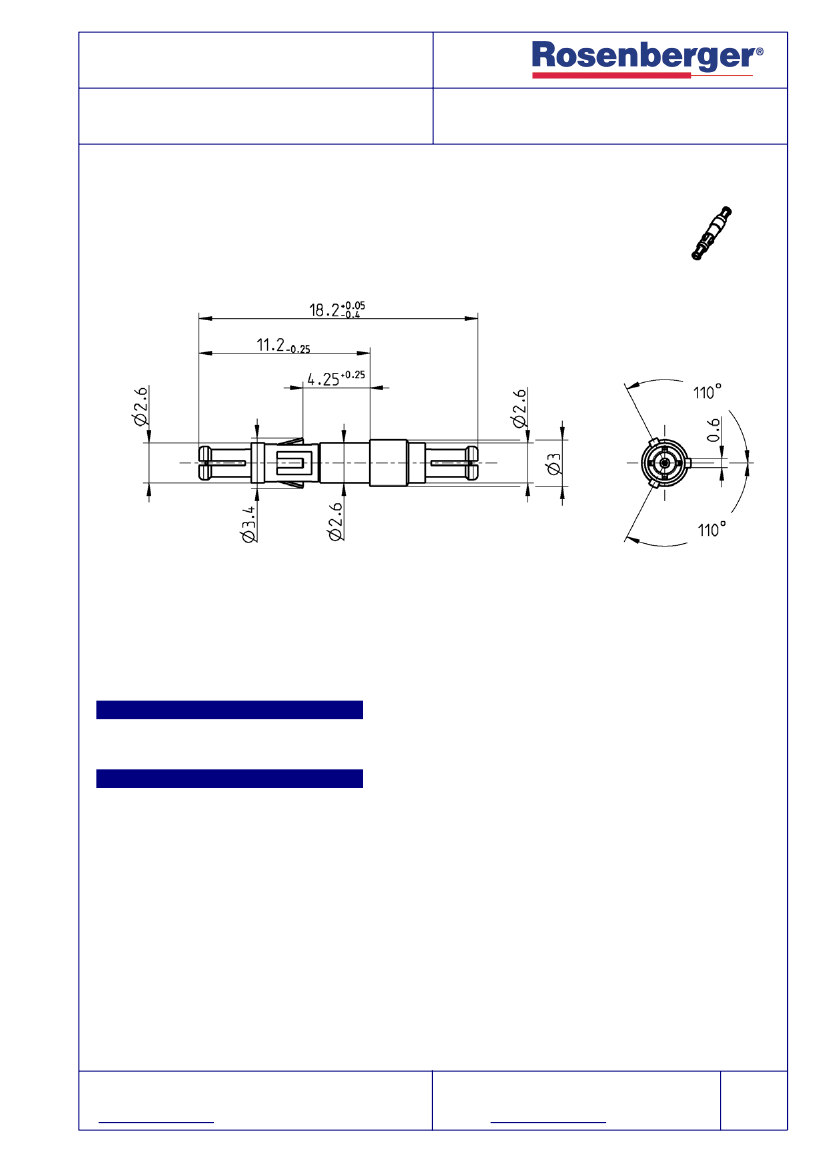

TECHNICAL DATA SHEET

ADAPTOR

Mini-Coax PLUG - PLUG

23S102-S00L5

All dimensions are in mm; tolerances according to ISO 2768 m-H

Documents

N/A

Material and plating

Connector parts

Center contact

Outer contact

Body

Clip

Dielectric

Material

CuBe or equiv.

CuBe

Brass

CuBe

PTFE

Plating

AuroDur®, gold plated

Gold, 0.1 µm

Nickel, 2.5-5 µm

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2
