FEPB6AT-HE3/81 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FEPB6AT-HE3/81

FEPB6AT-HE3/81: DescriptionDIODE 3 A, 50 V, SILICON, RECTIFIER DIODE, TO-263AB, ROHS COMPLIANT, PLASTIC PACKAGE-3, Rectifier Diode; CategoryDiscrete semiconductor diode; File Size141KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

FEPB6AT-HE3/81 Overview

DIODE 3 A, 50 V, SILICON, RECTIFIER DIODE, TO-263AB, ROHS COMPLIANT, PLASTIC PACKAGE-3, Rectifier Diode

FEPB6AT-HE3/81 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	D2PAK
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	unknown
Base Number Matches	1

Preview

Download Datasheet

View All

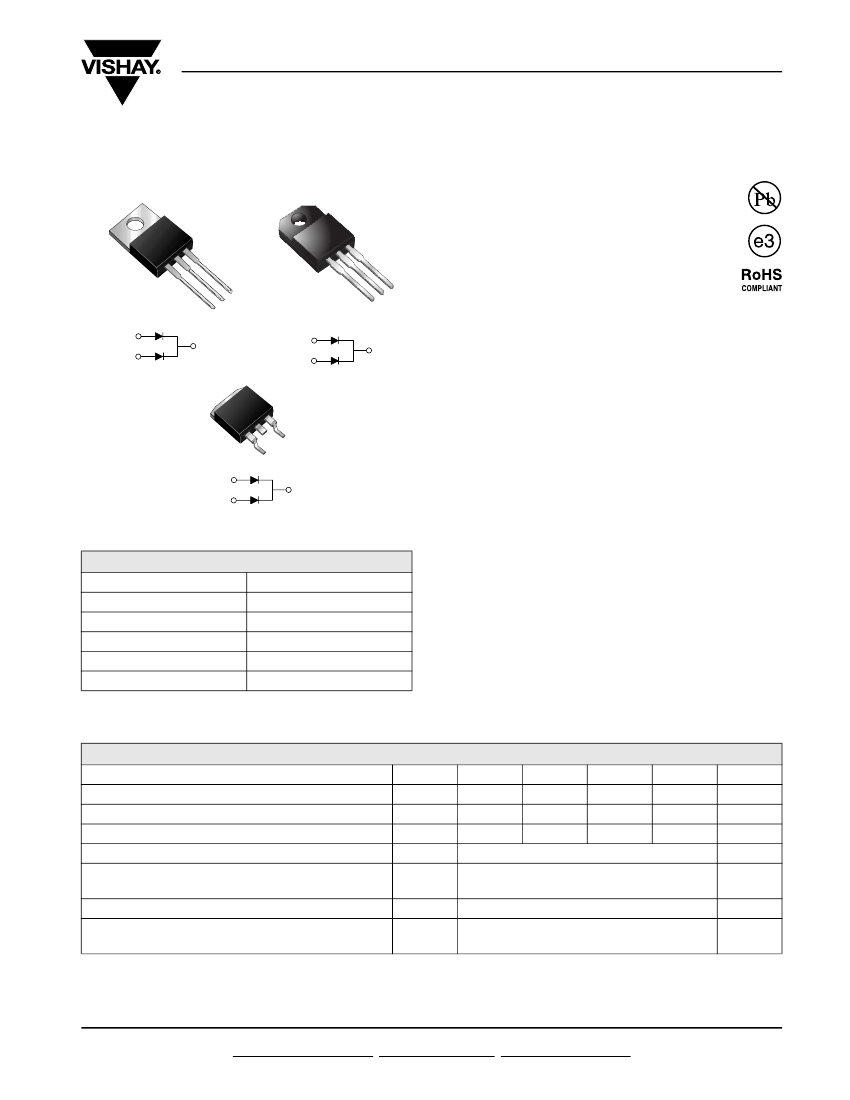

FEP(F,B)6AT thru FEP(F,B)6DT

Vishay General Semiconductor

Dual Common-Cathode Ultrafast Rectifier

TO-220AB

ITO-220AB

FEATURES

• Glass passivated chip junction

• Ultrafast recovery time

• Low switching losses, high efficiency

• Low leakage current

• High forward surge capability

• Meets MSL level 1, per J-STD-020, LF maximum

peak of 245 °C (for TO-263AB package)

• Solder dip 260 °C, 40 s (for TO-220AB and

ITO-220AB package)

• Component in accordance to RoHS 2002/95/EC

and WEEE 2002/96/EC

FEP6xT Series

PIN 1

PIN 3

PIN 2

CASE

FEPF6xT Series

PIN 1

PIN 3

PIN 2

TO-263AB

FEPB6xT Series

PIN 1

PIN 2

HEATSINK

TYPICAL APPLICATIONS

For use in high frequency rectifier of switching mode

power supplies, inverters, freewheeling diodes,

dc-to-dc converters, and other power switching

application.

MECHANICAL DATA

Case:

TO-220AB, ITO-220AB, TO-263AB

Epoxy meets UL 94V-0 flammability rating

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD22-B102

E3 suffix for consumer grade, meets JESD 201 class

1A whisker test, HE3 suffix for high reliability grade

(AEC Q101 qualified), meets JESD 201 class 2

whisker test

Polarity:

As marked

Mounting Torque:

10 in-lbs maximum

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

6.0 A

50 V to 200 V

75 A

35 ns

0.975 V

150 °C

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current at T

= 105 °C

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load per diode

Operating storage and temperature range

Isolation voltage (ITO-220AB only)

from terminal to heatsink t = 1 min

SYMBOL

RRM

RMS

F(AV)

FSM

, T

STG

FEP6AT

FEP6BT

100

6.0

- 55 to + 150

1500

FEP6CT

150

105

150

FEP6DT

200

140

200

UNIT

°C

Document Number: 88598

Revision: 07-Nov-07
