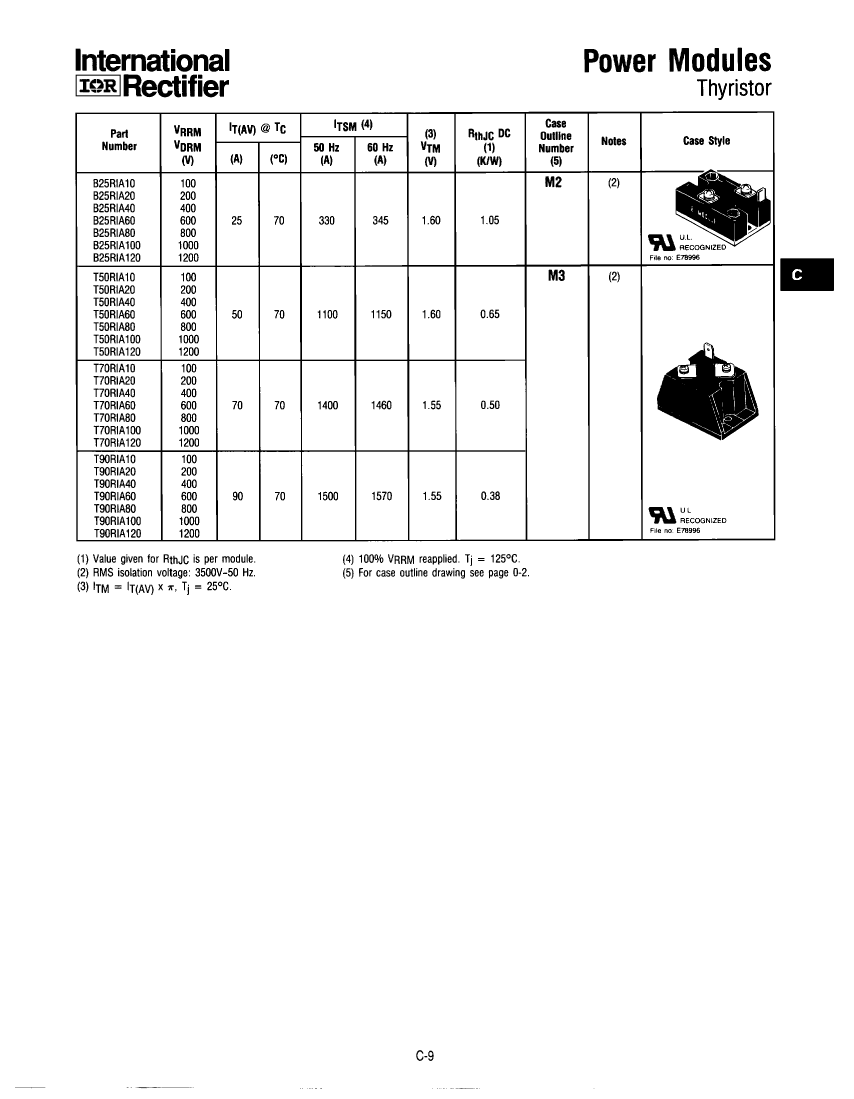

B25RIA20LPBF Overview

Silicon Controlled Rectifier, 39.25A I(T)RMS, 200V V(DRM), 200V V(RRM), 1 Element

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
package instruction	FLANGE MOUNT, R-PUFM-X3
Reach Compliance Code	compliant
ECCN code	EAR99
Shell connection	ISOLATED
Nominal circuit commutation break time	110 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	100 V/us
Maximum DC gate trigger current	60 mA
Maximum DC gate trigger voltage	2 V
Maximum holding current	100 mA
JESD-30 code	R-PUFM-X3
Number of components	1
Number of terminals	3
Maximum operating temperature	125 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum rms on-state current	39.25 A
Maximum repetitive peak off-state leakage current	10000 µA
Off-state repetitive peak voltage	200 V
Repeated peak reverse voltage	200 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	40
Trigger device type	SCR
Base Number Matches	1
