MT28F200B3SG-10ETB datasheet, PDF

Datasheet> All Categories > storage> storage> MT28F200B3SG-10ETB

MT28F200B3SG-10ETB: DescriptionFlash, 256KX8, 100ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44; Categorystorage storage; File Size1MB，28 Pages; ManufacturerMicron Technology; Websitehttp://www.mdtic.com.tw/

Download Datasheet Parametric Compare View All

MT28F200B3SG-10ETB Overview

Flash, 256KX8, 100ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44

MT28F200B3SG-10ETB Parametric

Parameter Name	Attribute value
Maker	Micron Technology
Parts packaging code	SOIC
package instruction	0.600 INCH, PLASTIC, SOP-44
Contacts	44
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	100 ns
Other features	ALSO CONFG AS 128KX16; BOTTOM BOOT BLOCK
startup block	BOTTOM
JESD-30 code	R-PDSO-G44
length	28.195 mm
memory density	2097152 bit
Memory IC Type	FLASH
memory width	8
Number of functions	1
Number of terminals	44
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	256KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Programming voltage	3 V
Certification status	Not Qualified
Maximum seat height	2.7 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
type	NOR TYPE
width	12.6 mm
Base Number Matches	1

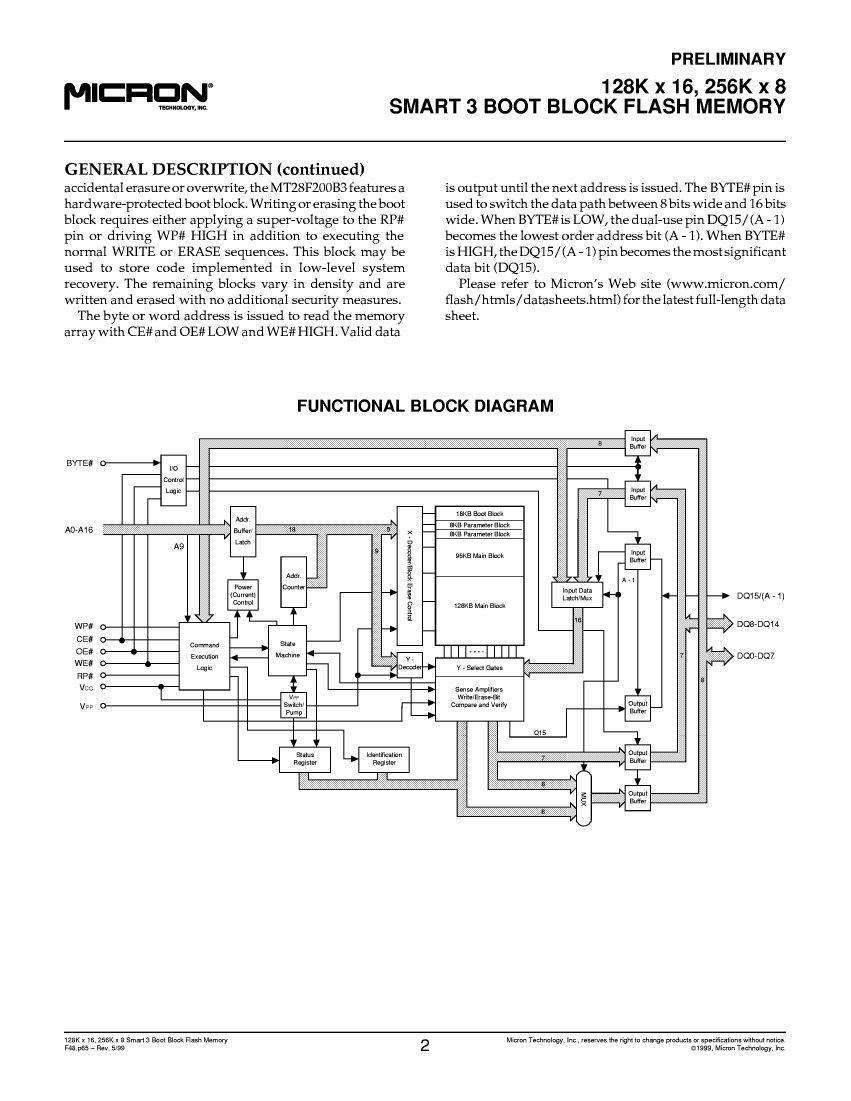

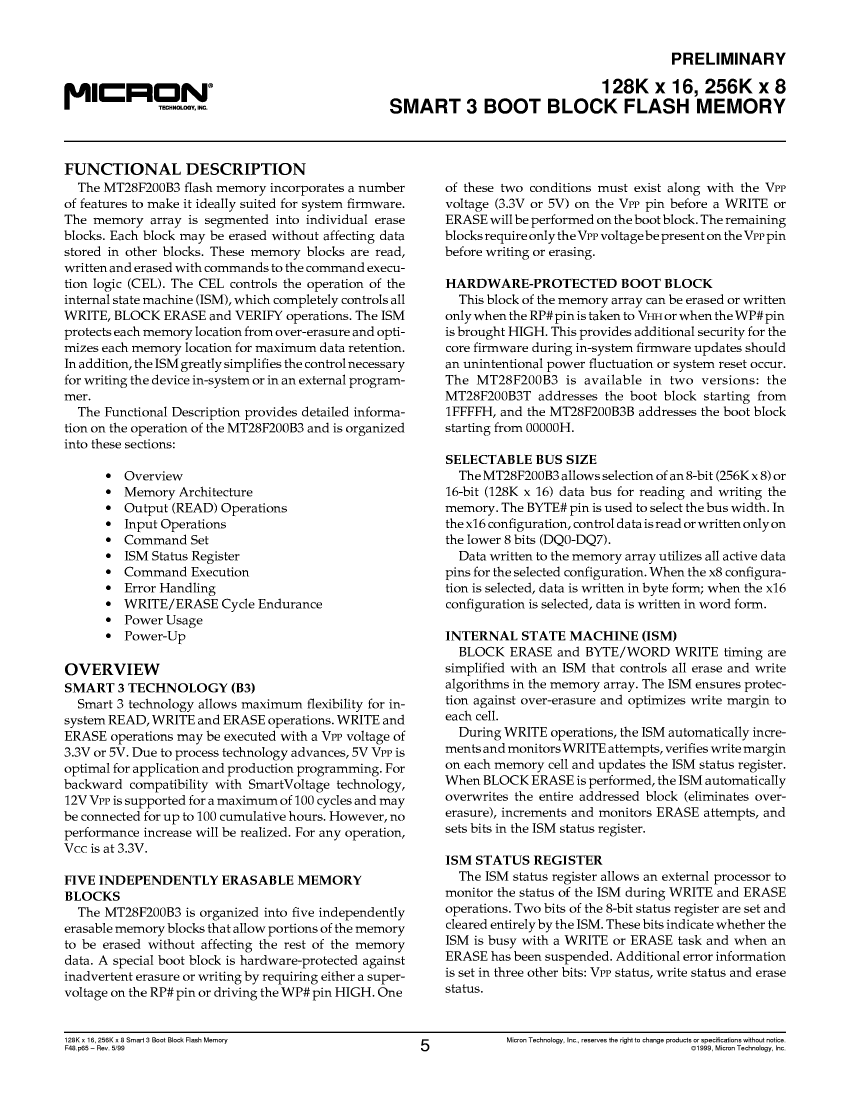

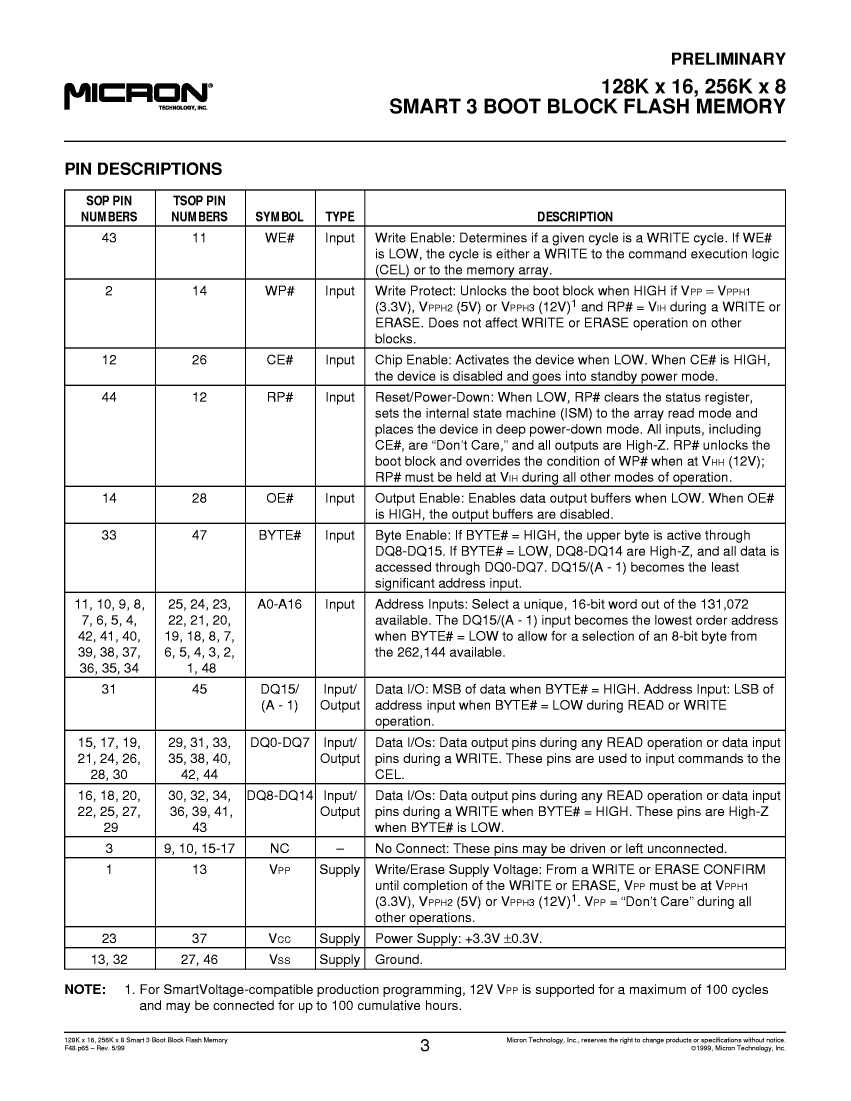

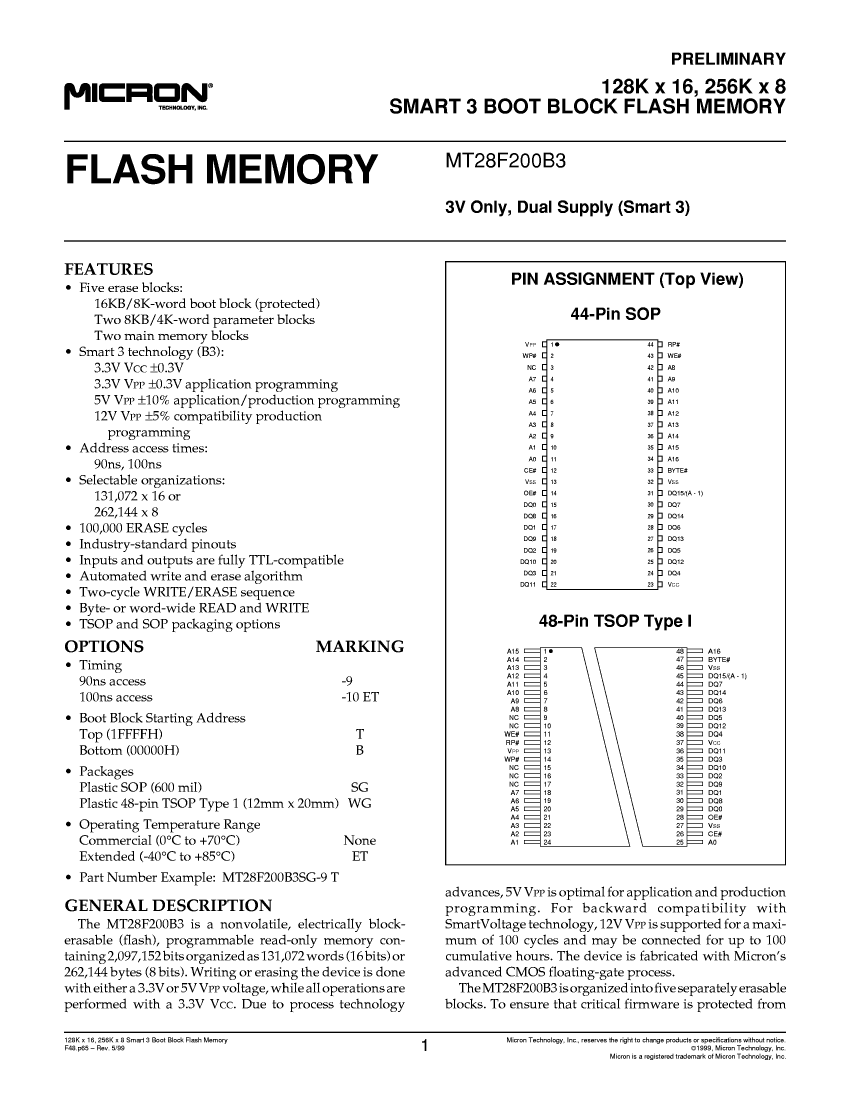

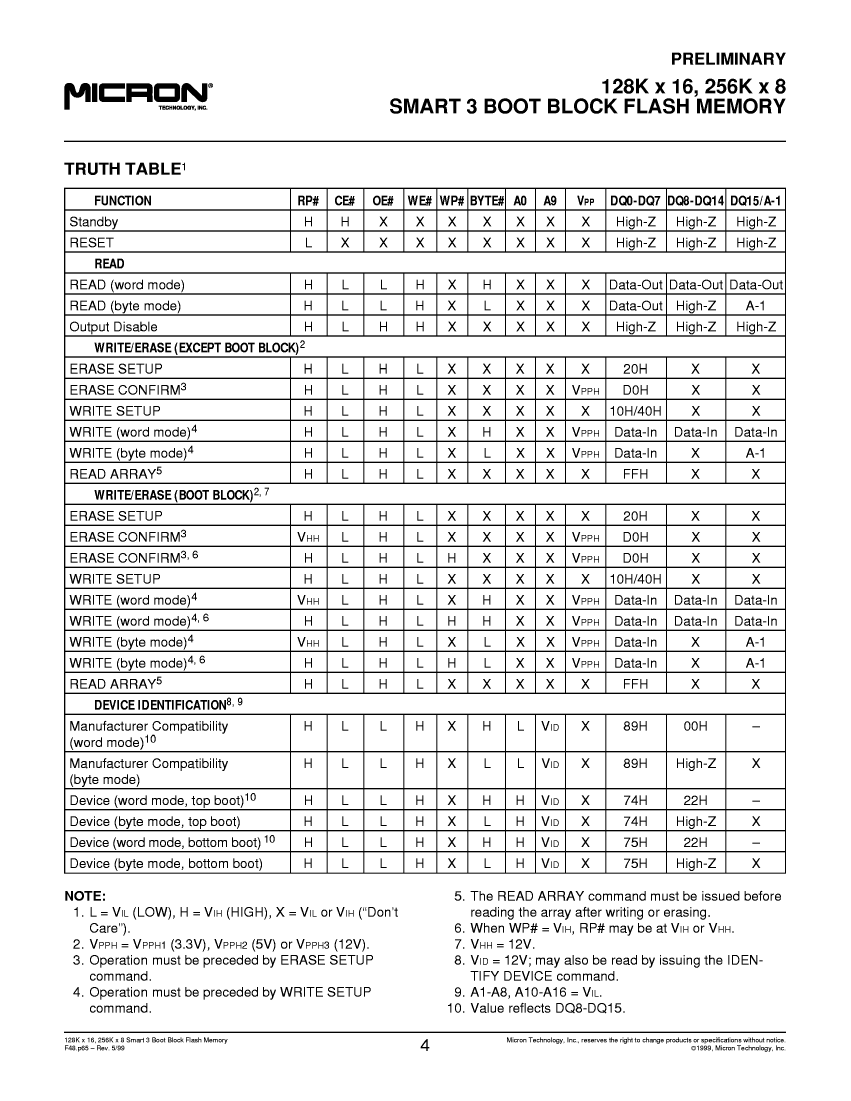

Preview

Download Datasheet

View All

MT28F200B3SG-10ETB Related Products

	MT28F200B3SG-10ETB	MT28F200B3WG-10ETT	MT28F200B3WG-10ETB	MT28F200B3SG-10ETT
Description	Flash, 256KX8, 100ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44	Flash, 256KX8, 100ns, PDSO48, 12 X 20 MM, PLASTIC, TSOP1-48	Flash, 256KX8, 100ns, PDSO48, 12 X 20 MM, PLASTIC, TSOP1-48	Flash, 256KX8, 100ns, PDSO44, 0.600 INCH, PLASTIC, SOP-44
Maker	Micron Technology	Micron Technology	Micron Technology	Micron Technology
Parts packaging code	SOIC	TSOP1	TSOP1	SOIC
package instruction	0.600 INCH, PLASTIC, SOP-44	12 X 20 MM, PLASTIC, TSOP1-48	12 X 20 MM, PLASTIC, TSOP1-48	0.600 INCH, PLASTIC, SOP-44
Contacts	44	48	48	44
Reach Compliance Code	unknown	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	100 ns	100 ns	100 ns	100 ns
Other features	ALSO CONFG AS 128KX16; BOTTOM BOOT BLOCK	ALSO CONFG AS 128KX16; TOP BOOT BLOCK	ALSO CONFG AS 128KX16; BOTTOM BOOT BLOCK	ALSO CONFG AS 128KX16; TOP BOOT BLOCK
startup block	BOTTOM	TOP	BOTTOM	TOP
JESD-30 code	R-PDSO-G44	R-PDSO-G48	R-PDSO-G48	R-PDSO-G44
length	28.195 mm	18.4 mm	18.4 mm	28.195 mm
memory density	2097152 bit	2097152 bit	2097152 bit	2097152 bit
Memory IC Type	FLASH	FLASH	FLASH	FLASH
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	44	48	48	44
word count	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
organize	256KX8	256KX8	256KX8	256KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSOP1	TSOP1	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Programming voltage	3 V	3 V	3 V	3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.7 mm	1.2 mm	1.2 mm	2.7 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.5 mm	0.5 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
type	NOR TYPE	NOR TYPE	NOR TYPE	NOR TYPE
width	12.6 mm	12 mm	12 mm	12.6 mm
Base Number Matches	1	1	1	-
Is it lead-free?	-	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	-	incompatible	incompatible	incompatible
JESD-609 code	-	e0	e0	e0
Peak Reflow Temperature (Celsius)	-	235	235	235
Terminal surface	-	TIN LEAD	TIN LEAD	TIN LEAD
Maximum time at peak reflow temperature	-	30	30	30
