5962-9204101MEX

Description
SPST, 4 Func, 1 Channel, CMOS, CDIP16, CERAMIC, DIP-16
CategoryAnalog mixed-signal IC    The signal circuit
File Size276KB,12 Pages
ManufacturerHarris
Websitehttp://www.harris.com/
Download Datasheet Parametric Compare View All

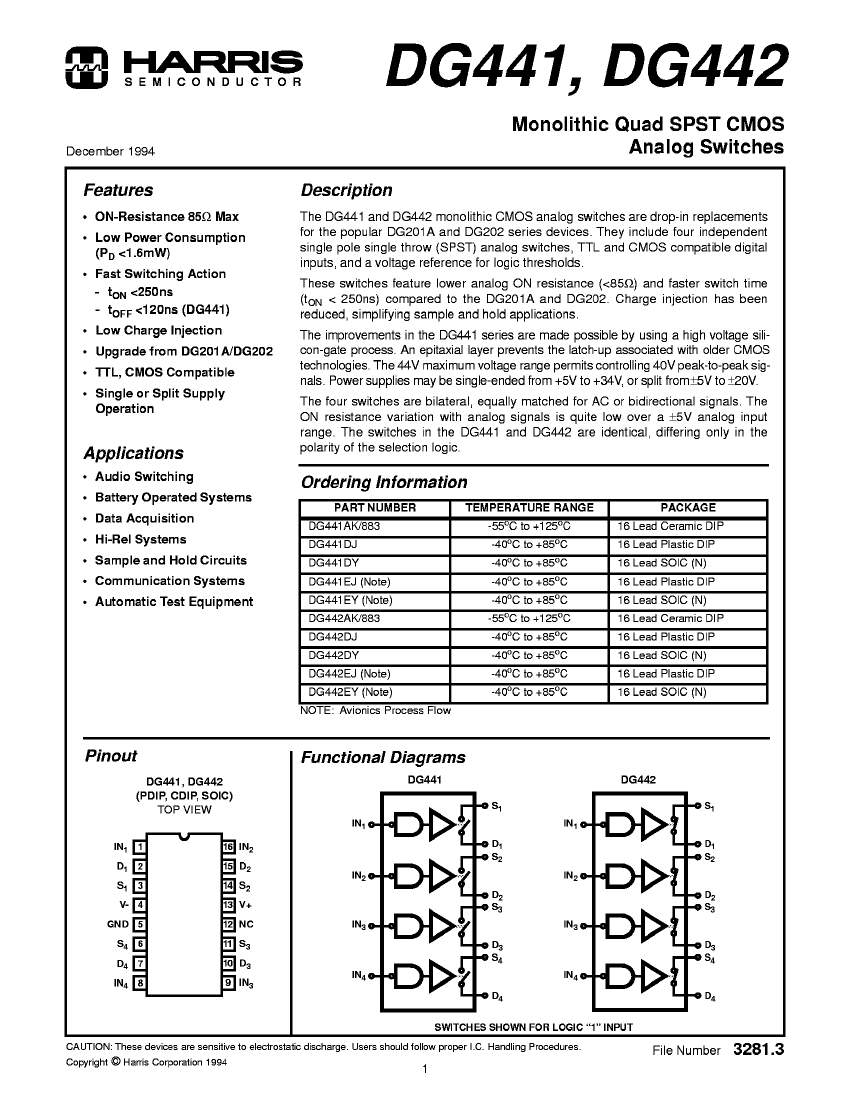

5962-9204101MEX Overview

SPST, 4 Func, 1 Channel, CMOS, CDIP16, CERAMIC, DIP-16

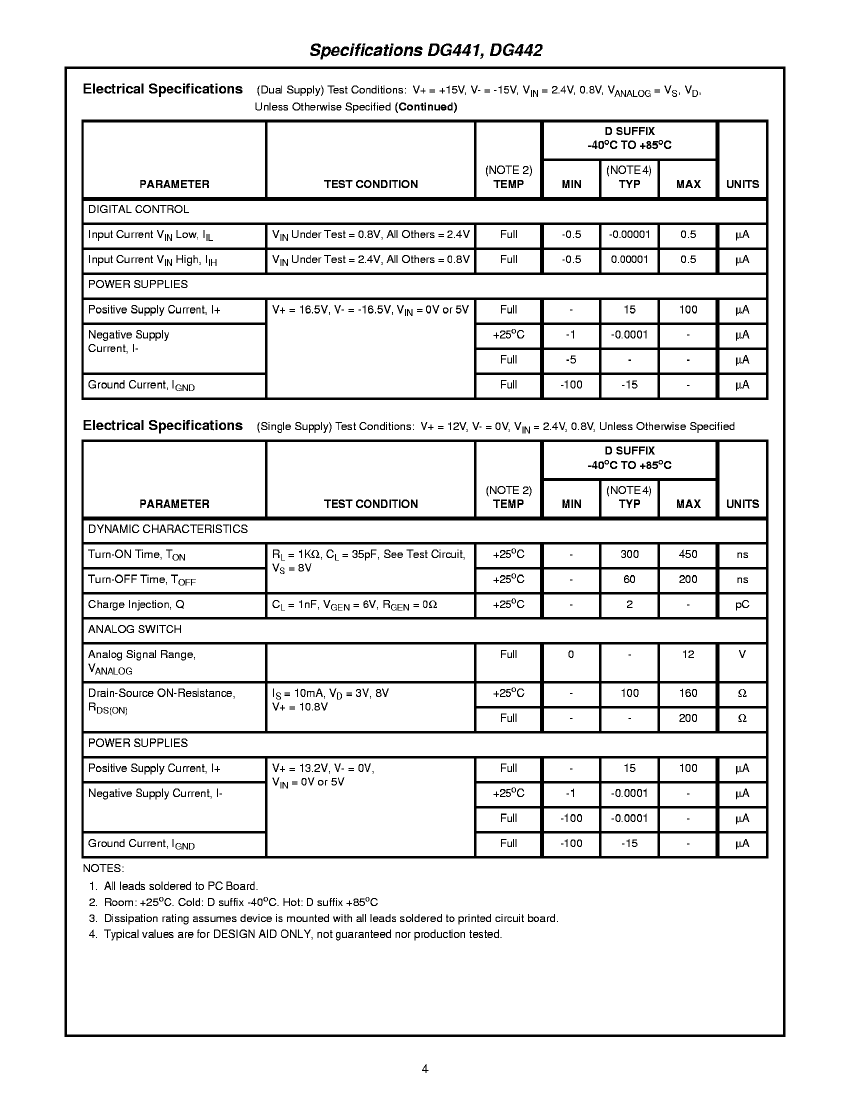

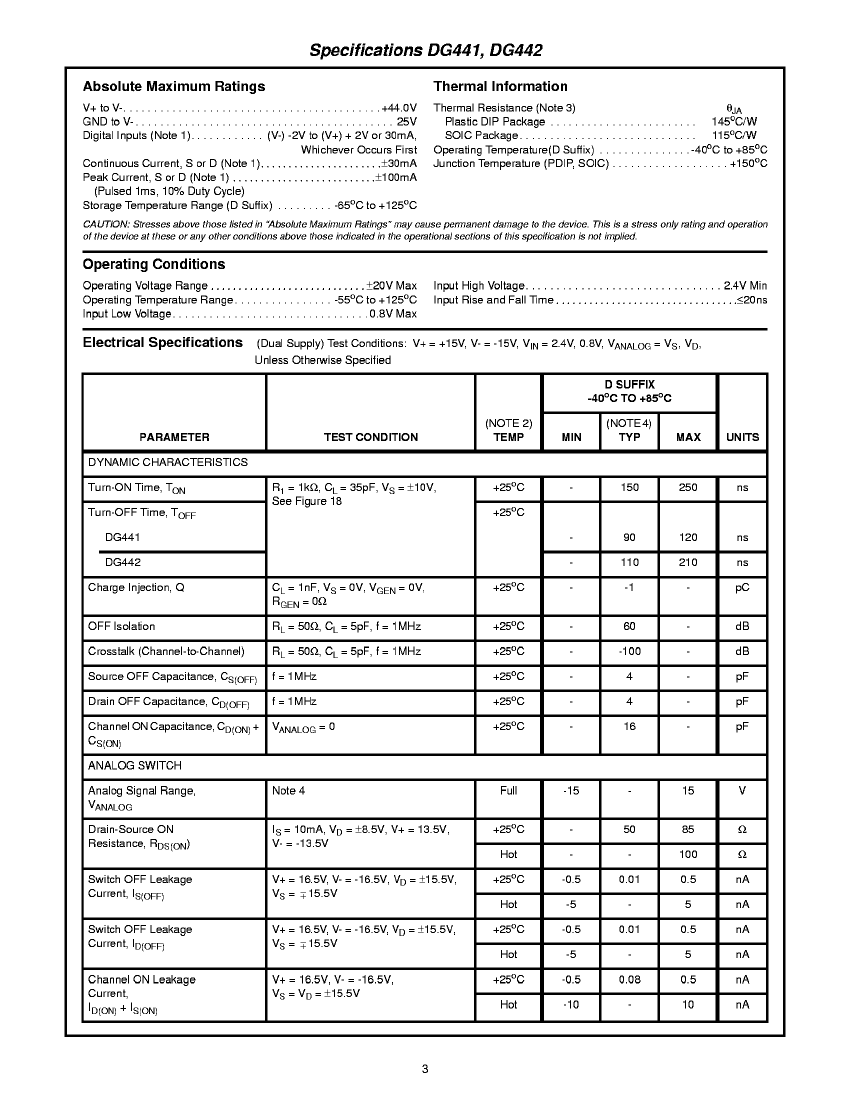

5962-9204101MEX Parametric

Parameter NameAttribute value
package instructionDIP,
Reach Compliance Codeunknown
Analog Integrated Circuits - Other TypesSPST
JESD-30 codeR-GDIP-T16
JESD-609 codee0
Nominal Negative Supply Voltage (Vsup)-15 V
Number of channels1
Number of functions4
Number of terminals16

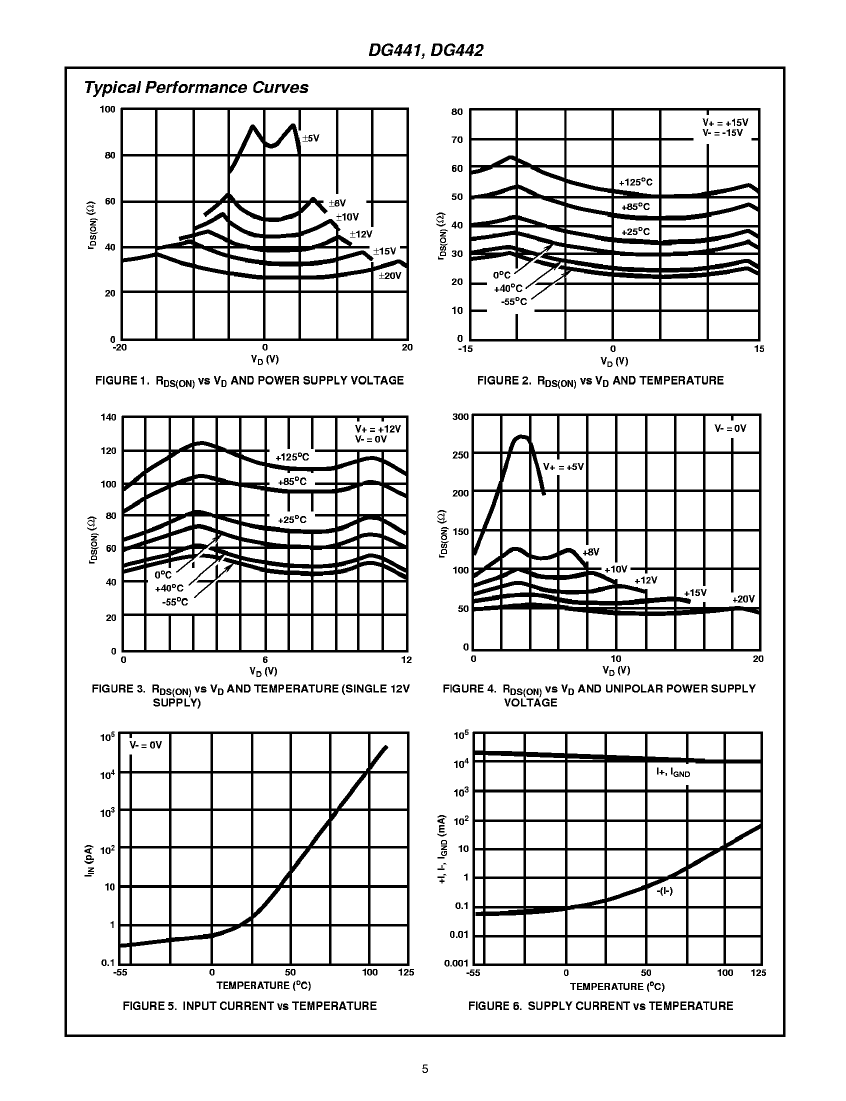

Maximum on-state resistance (Ron)85 Ω
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
Certification statusNot Qualified
Filter levelMIL-STD-883
Nominal supply voltage (Vsup)15 V
surface mountNO
Maximum disconnect time120 ns
Maximum connection time400 ns
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal locationDUAL
Base Number Matches1

5962-9204101MEX Related Products

5962-9204101MEX 5962-9204102MEX
Description SPST, 4 Func, 1 Channel, CMOS, CDIP16, CERAMIC, DIP-16 SPST, 4 Func, 1 Channel, CMOS, CDIP16, CERAMIC, DIP-16
package instruction DIP, DIP,
Reach Compliance Code unknown unknown
Analog Integrated Circuits - Other Types SPST SPST
JESD-30 code R-GDIP-T16 R-GDIP-T16
JESD-609 code e0 e0
Nominal Negative Supply Voltage (Vsup) -15 V -15 V
Number of channels 1 1
Number of functions 4 4
Number of terminals 16 16
Maximum on-state resistance (Ron) 85 Ω 85 Ω
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Package body material CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED
encapsulated code DIP DIP
Package shape RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE
Certification status Not Qualified Not Qualified
Filter level MIL-STD-883 MIL-STD-883
Nominal supply voltage (Vsup) 15 V 15 V
surface mount NO NO
Maximum disconnect time 120 ns 210 ns
Maximum connection time 400 ns 450 ns
technology CMOS CMOS
Temperature level MILITARY MILITARY
Terminal surface TIN LEAD TIN LEAD
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal location DUAL DUAL
Base Number Matches 1 1
