RMCG2512GT220K: DescriptionFixed Resistor, Metal Glaze/thick Film, 1W, 220000ohm, 200V, 2% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size122KB，3 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

RMCG2512GT220K Overview

Fixed Resistor, Metal Glaze/thick Film, 1W, 220000ohm, 200V, 2% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CHIP, ROHS COMPLIANT

RMCG2512GT220K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEI(Stackpole Electronics Inc.)
package instruction	SMT, 2512
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ANTI-SULFUR
structure	Rectangular
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.55 mm
Package length	6.3 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	3.2 mm
method of packing	TR, PLASTIC, 7 INCH
Rated power dissipation(P)	1 W
Rated temperature	70 °C
resistance	220000 Ω
Resistor type	FIXED RESISTOR
size code	2512
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	2%
Operating Voltage	200 V
Base Number Matches	1

Preview

Download Datasheet

View All

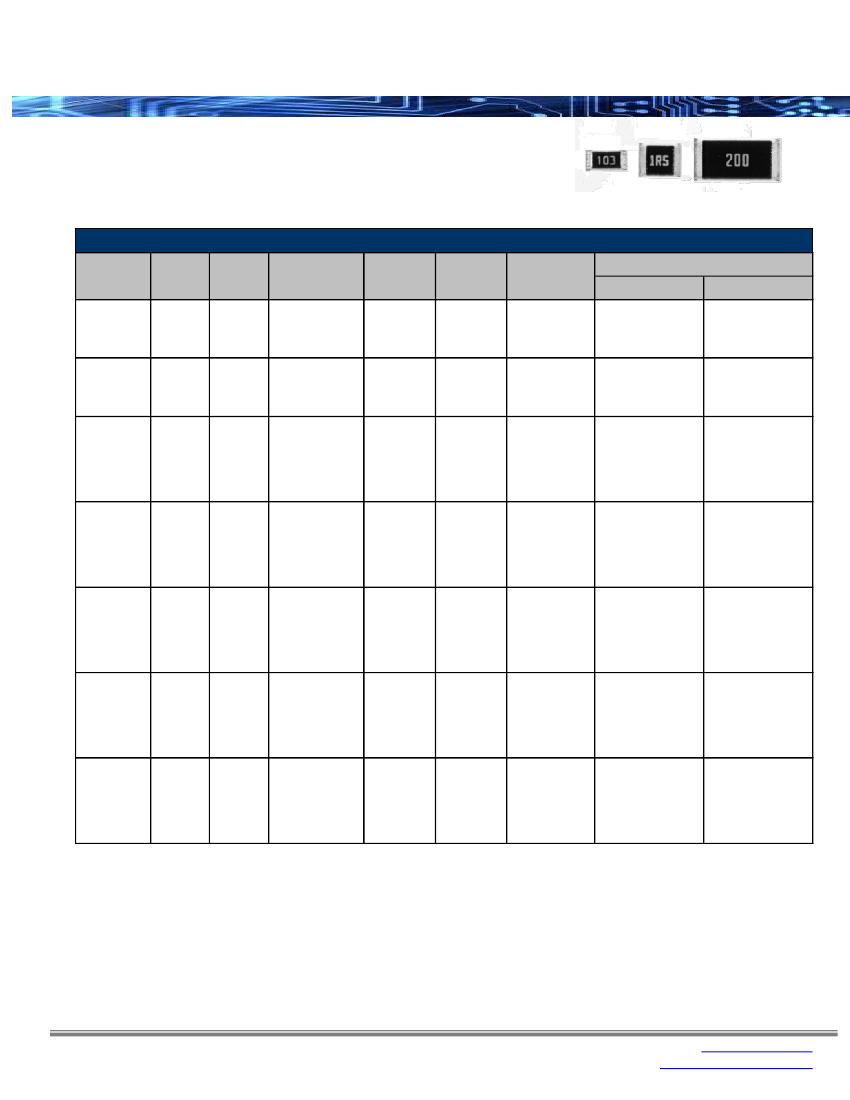

RMCG Series

Gold Barrier Thick Film Chip Resistors

Features:

•

Gold terminations are completely impervious to sulfur

Zero ohm available (max resistance 0.05Ω)

RoHS compliant / lead-free

Stackpole Electronics, Inc.

Resistive Product Solutions

Electrical Specifications

Type / Code

Package

Size

Old

Packaging

Power Rating

(Watts) @ 70ºC

Maximum

Working

Voltage (1)

Maximum

Overload

Voltage

Resistance

Temperature

Coefficient

-0/+600 ppm/ºC

± 350 ppm/ºC

± 200 ppm/ºC

± 350 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 350 ppm/ºC

± 250 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 250 ppm/ºC

± 350 ppm/ºC

± 250 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 250 ppm/ºC

± 350 ppm/ºC

± 250 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 250 ppm/ºC

± 350 ppm/ºC

± 250 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 250 ppm/ºC

± 350 ppm/ºC

± 250 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 250 ppm/ºC

± 350 ppm/ºC

Ohmic Range (Ω) and Tolerance

3.9

1.1M

3.6

9.1

10M

2%, 5%

3.9

1.1M

3.6

9.1

10M

RMCG0402

0402

1/16S

0.063W

50V

100V

RMCG0603

0603

1/16

0.100W

50V

100V

1 - 9.1

10 - 1M

1.1M - 10M

1 - 3.6

3.9 - 9.1

10 - 1M

1.1M - 5.1M

5.6M - 10M

1 - 3.6

3.9 - 9.1

10 - 1M

1.1M - 5.1M

5.6M - 10M

1 - 3.6

3.9 - 9.1

10 - 1M

1.1M - 5.1M

5.6M - 10M

1 - 2

2.2 - 9.1

10 - 1M

1.1M - 5.1M

5.6M - 10M

1 - 3.6

3.9 - 9.1

10 - 1M

1.1M - 5.1M

5.6M - 10M

1 - 9.1

10 - 1M

1.1M - 10M

1 - 3.6

3.9 - 9.1

10 - 1M

1.1M - 5.1M

5.6M - 10M

1 - 3.6

3.9 - 9.1

10 - 1M

1.1M - 5.1M

5.6M - 10M

1 - 3.6

3.9 - 9.1

10 - 1M

1.1M - 5.1M

5.6M - 10M

1 - 3.6

3.9 - 9.1

10 - 1M

1.1M - 5.1M

5.6M - 10M

1 - 3.6

3.9 - 9.1

10 - 1M

1.1M - 5.1M

5.6M - 10M

RMCG0805

0805

1/10

0.125W

150V

300V

RMCG1206

1206

1/8

0.250W

200V

400V

RMCG1210

1210

1/4

0.333W

200V

400V

RMCG2010

2010

1/2

0.750W

200V

400V

RMCG2512

2512

1.000W

200V

400V

(1) Lesser of

√PR

or maximum working voltage.

Rev Date: 02/21/2012

This specification may be changed at any time without prior notice

Please confirm technical specifications before you order and/or use.

www.seielect.com
