4300F5LC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 4300F5LC

4300F5LC: DescriptionSingle Color LED, Green, Diffused, T-1, 3mm,; CategoryLED optoelectronic/LED photoelectric; File Size60KB，1 Pages; ManufacturerCML Innovative Technologies; Environmental Compliance

Download Datasheet Parametric View All

4300F5LC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4300F5LC	-	-	View	Buy Now

4300F5LC Overview

Single Color LED, Green, Diffused, T-1, 3mm,

4300F5LC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
color	GREEN
Configuration	SINGLE
Maximum forward current	0.007 A
Lens type	DIFFUSED
Nominal luminous intensity	1.6 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4.445 mm
method of packing	BULK
peak wavelength	565 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	50 deg
Base Number Matches	1

Preview

Download Datasheet

View All

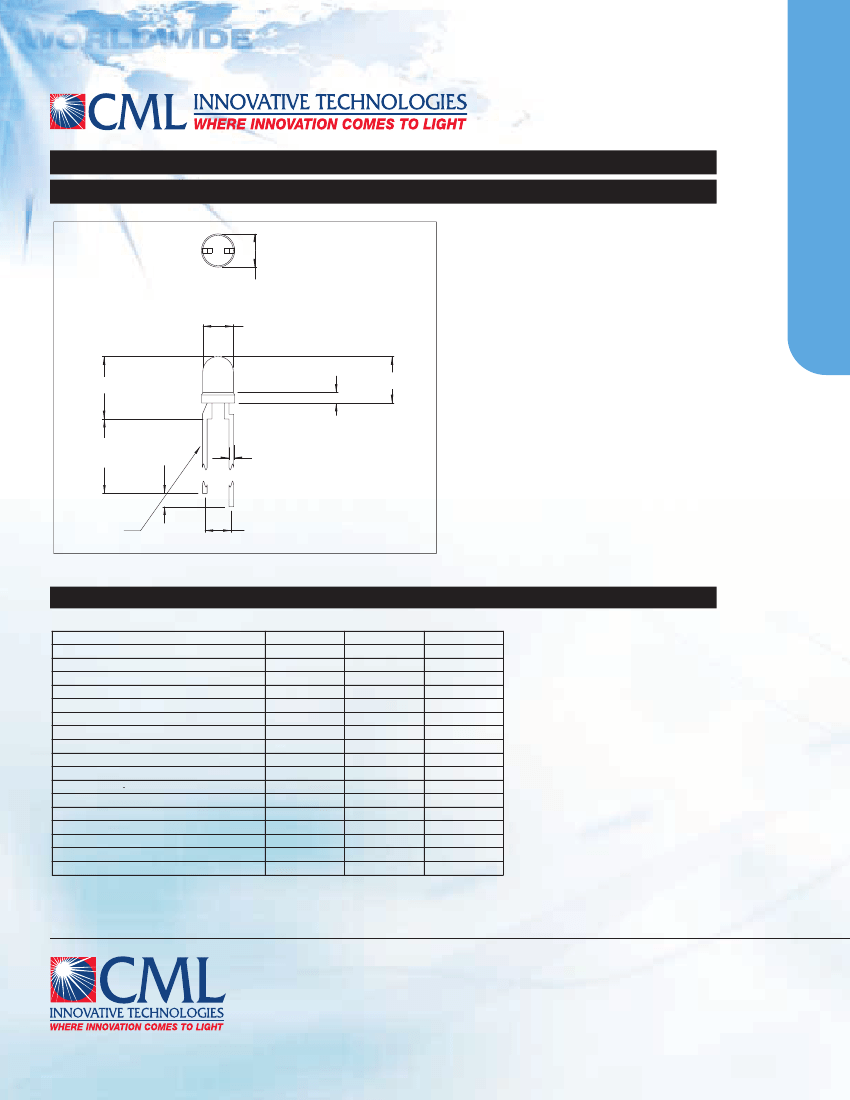

4300FLC Series T-1 Solid State LED Lamps

D E S C R I P T I O N AN D F EAT U R E S

Features:

T-1 Brite LEDs

• Requires only 2 mA.

• Ideal for limited-current power supplies.

.125±.010

.115±.010

.235±.015

.175±.010

.040

.950

MIN.

.050

NOM.

.018

S Q. NOM.

C AT HODE

.100

NOM.

All dimens ions in inches .

E L E C T R O - O P T I C A L C H A R A CT E R I S T I C S AN D R A T I N G S

P AR T NUMB E R

Output C olor

Diffusion

P ackage C olor

T est C urrent (mA)

F orward Voltage Typ. (V)

F orward V oltage Max. (V )

Luminous Intensity Min. (mcd)

Luminous Intensity T yp. (mcd)

Luminous Intensity Max. (mcd)

P eak Wavelength (nm)

Viewing Angle (degrees)

P ower Dissipation (mW)

Operating Temperature (°C )

S torage T emperature (°C )

P eak Forward C urrent Max. (1µs @ 10% duty cycle) (mA)

R everse V oltage (IR =100µA) (V )

Lead S older T ime @ 260°C

4300F 1LC

R ed

Diffused

R ed

1.8

2.0

1.0

1.8

635

-55 to +100

4300F 5LC

G reen

Diffused

G reen

1.8

2.2

1.0

1.6

565

-20 to +100

-55 to +100

4300F 7LC

Y ellow

Diffused

Y ellow

1.9

2.5

1.0

1.8

583

-55 to +100

America:

CML Innovative Technologies,Inc.

147 Central Avenue

Hackensack -NJ 07601 -USA

Tel:1-201-489 -8989

Fax:1-201-489 -6911

e-mail:americas@cml-it.com

Europe:

CML Technologies GmbH &Co.KG

Robert-Bunsen-Str.1

67098 Bad Dürkheim -GERMANY

Tel:+49 (0)6322 9567-0

Fax:+49 (0)6322 9567-88

e-mail:europe@cml-it.com

Asia:

CML Innovative Technologies,Inc.

61 Aida Street

Singapore 459975

Tel:(65)9630 -5003

e-mail:asia@cml-it.com

CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product

4300FLC Series T-1 Solid State LED Lamps
