Underplating: Nickel - Overall (See Ordering Information)
Wiping Area: 30 µ” [ 0.76 µm ] Gold
Solder Tails: Tin Lead or Matte Tin (See Ordering Information)
Marking:
3M Logo, Part Identification Number and Orientation Triangle
Electrical
Current Rating:
2 A (EIA 364-70)
Insulation Resistance:
>1 × 10
9
Ω
at 500 V
DC
Withstanding Voltage:
1000 V
RMS
at Sea Level
Environmental
Temperature Rating:
-55°C to +105°C
Process Rating:
260°C - (High Temp PCT insulator verson), single pass, (profile per J-STD-020C)
(PBT insulator version), maximum insulator temperature 191°C (solder wave
processonly)
Moisture Sensitivity Level:
1 (per J-STD-020C) High Temp. (PCT) versions only
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

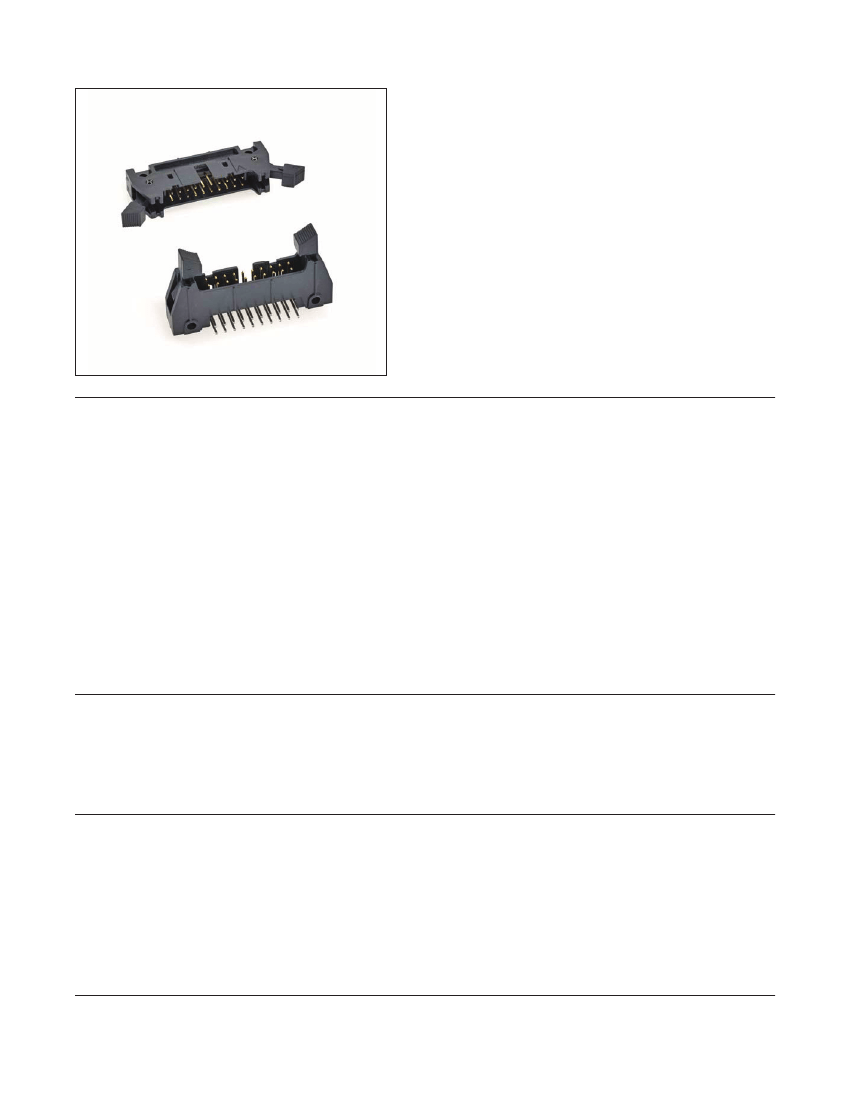

Four-Wall Header
.100” × .100” Latch/Ejector, Straight and Right Angle
-X0XX
Header without Latch Ejector
-X2XX
Header with
Short Ejector/Latch
for 3M Sockets without
Strain Relief
3000 Series
-X3XX
Header with
Long Ejector/Latch
for 3M Sockets with
Strain Relief
.68
[17.3]
.08
[2.0]
.424
±
.010
[ 10.77 ]
.97 Ref
[24.6]
.08
[2.0]
.573
±
.010
[ 14.55 ]
1.07 Ref
[27.2]
A
.025
±
.002 Sq Typ
[ 0.64 ]
.37 Ref
[9.4]
D
.24
[6.1]
.46 Ref
[11.7]
.020
0.51
.100
2.54
REF.
.28
7.1
.30
[7.6]
.25
6.4
.13
3.3
2X
O
.100 [2.54]
SEE NOTE #2
.100
2.54
POSITION #1
B
REF.
.34
8.6
C
L
“Y”
Dim. E
F Typ
Section A-A
(Straight)
Position 1
Orientation
Triangle
Notch A
(See Table 1 & Note1)
Notch B
(See Table 1)
.16
[4.1]
Notch C
(See Table 1 & Note 1)
.025
±
.002 Sq Typ
[ 0.64 ]
.21
[5.3]
A
B
F Typ
.24
[6.1]
.68
[17.3]
.35
[8.9]
.12
[3.0]
C
L
“Y”
.30
[7.6]
Dim. E
.049 Ref
[1.24]
.100 Ref
[2.54]
.020
[0.51]
2X ø .100
[2.54]
(See Note 2)
A
C
A
B
.197
[5.00]
.20
[5.1]

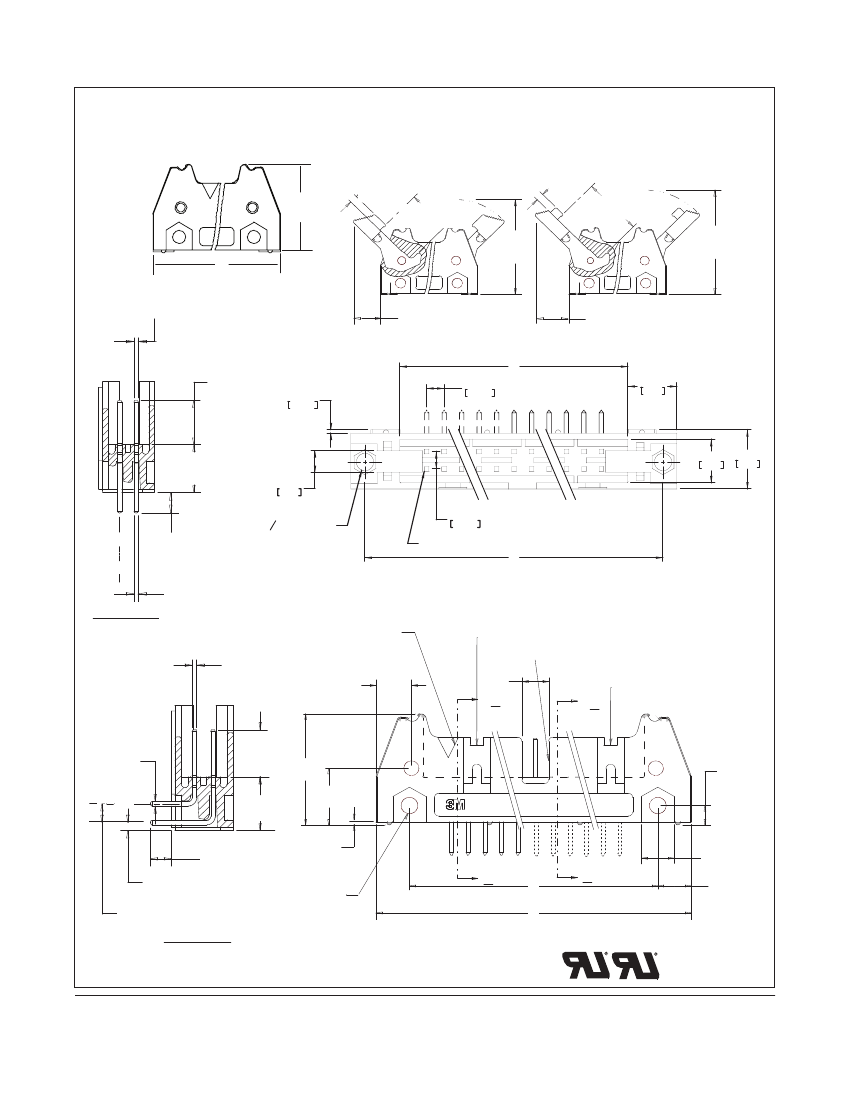

Section B-B
(Right Angle)
C
TS-0772-H
Sheet 2 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Four-Wall Header
.100” × .100” Latch/Ejector, Straight and Right Angle
Table 1
Pin Qty
10
14
16
20
24
26
30
34
40
50
60
64
3000 Series
Polarizing
Notches
BC
BC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
3M Part
Number
3793
3314
3408
3428
3627
3429
3440
3431
3432
3433
3372
3764
Dimensions
A
1.265 (32.13)
1.465 (37.21)
1.565 (39.75)
1.765 (44.83)
1.965 (49.91)
2.065 (52.45)
2.265 (57.53)
2.465 (62.61)
2.765 (70.23)
3.265 (82.93)
3.765 (95.63)
3.965 (100.71)
B
1.104 (28.04)
1.304 (33.12)
1.404 (35.66)
1.604 (40.74)
1.804 (45.82)
1.904 (48.36)
2.104 (53.44)
2.304 (58.52)
2.604 (66.14)
3.104 (78.84)
3.604 (91.54)
3.804 (96.62)
C
0.865 (21.97)
1.065 (27.05)
1.165 (29.59)
1.365 (34.67)
1.565 (39.75)
1.665 (42.29)
1.865 (47.37)
2.065 (52.45)
2.365 (60.07)
2.865 (72.77)
3.365 (85.47)
3.565 (90.55)
D
0.705 (17.91)
0.905 (22.99)
1.005 (25.53)
1.205 (30.61)
1.405 (35.69)
1.505 (38.23)
1.705 (43.31)
1.905 (48.39)
2.205 (56.01)
2.705 (68.71)
3.205 (81.41)
3.405 (86.49)
Tolerance Unless Noted
.0
.00
Inch
±
.1
Inch
(mm)
.000
[ ] Dimensions for
Reference only
±
.01
±
.005
Table 2
3M Part
Number Suffix
-5XX2
-6XX2
-5XO3
-6XO3
Contact Tail
Solder Tail for
.062 (1.57)
Thick PC Board
Solder Tail for 0.94
(2.39) to .125 (3.18)
Thick PC Board
Dim E
.112 ± .010
(2.84)
.155 ± .010
(3.94)
Pin Cross Section
Dim F
.0245 ± .0005
(0.622)
.0245 ± .0005
(0.622)
Diagonals
.028 ± .001
(0.71)
.028 ± .001
(0.71)
Corner Radii
.0075 Ref
(0.191)
.0075 Ref
(0.191)
Dim G
0.035 ± .003
(0.89) (See Note 3)
0.035 ± .003 (0.89)
.300
[7.62]
Side to Side Stackability
or ø.116
ø.106
[2.69]
[2.95]
(See Note 2)
Dim G
ø.106 or ø.116
[2.95]
[2.69]
.41
(See Note 2)
[10.4]
Max to Edge of PCB
Dim G
for Daisy Chain
“Y”
C
L
"Y"
C
L
Position 1
.100
±
.003
[2.54]
.232
[5.89]
C
.060
[1.52]
Position 1
.100
±
.003
[2.54]
.352
[8.94]
B
.029
[0.74]
.100
±
.003
[2.54]
.100
±
.003
[2.54]
Recommended Mounting Hole Pattern
(Straight)
Recommended Mounting Hole Pattern
(Right Angle)
Notes: 1. Notches A & C will accomodate 3M Polarizing Keys (3M Part #3518 or #N3518).
2. Mounting hardware: From solder side of pc board use #4-24 thread cutting screw (3M Part # 3341-5) and .116 [2.95] dia mounting hole. For right angle version
only, #2-56 bolt and nut (3M Part # 3341-6) with .106 [2.69] dia mounting hole may be used.
3. The recommended PCB hole size for the kinked tail positions on the .112 solder tail connector is .035 ± .002. See page 4 for kink position details (K2 version).
4. Contact your 3M sales representative for custom requirements.
