Part Number

Search

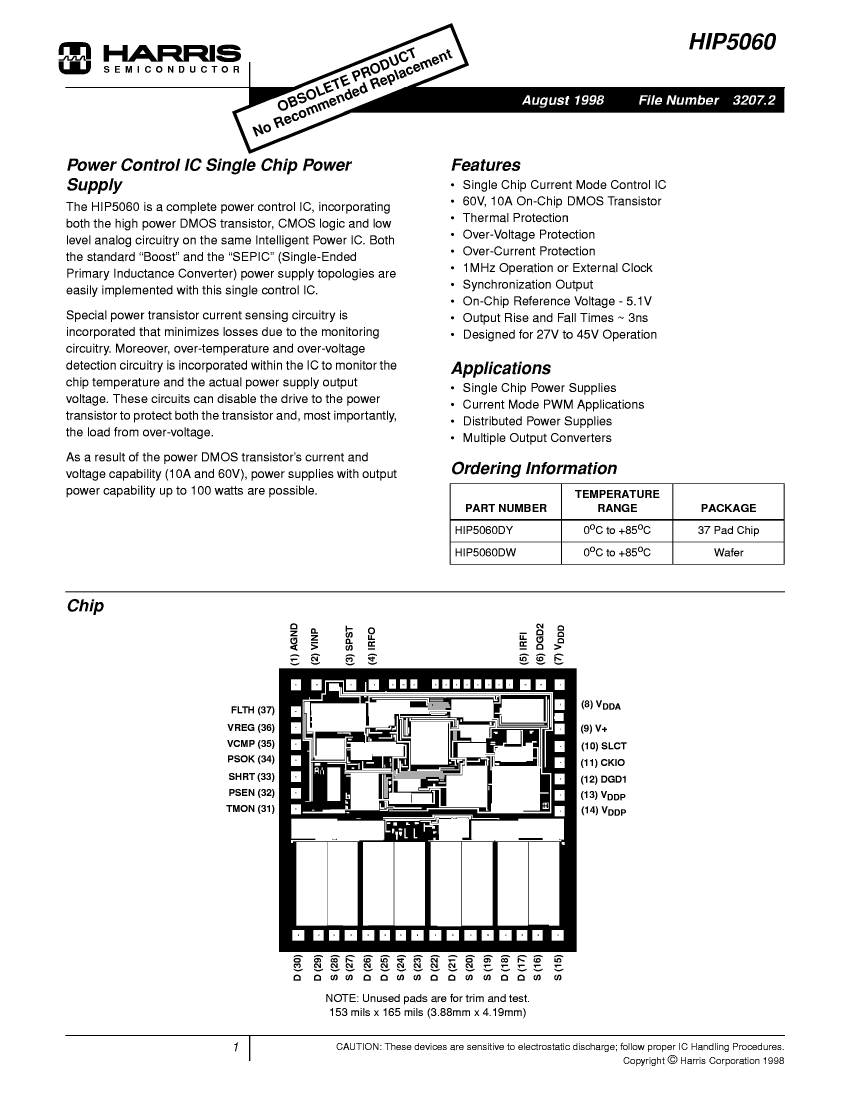

HIP5060DY

Description
Switching Regulator, Current-mode, 20A, 1000kHz Switching Freq-Max, CMOS
CategoryPower/power management    The power supply circuit
File Size189KB,6 Pages
ManufacturerHarris
Websitehttp://www.harris.com/
Download Datasheet Parametric Compare View All

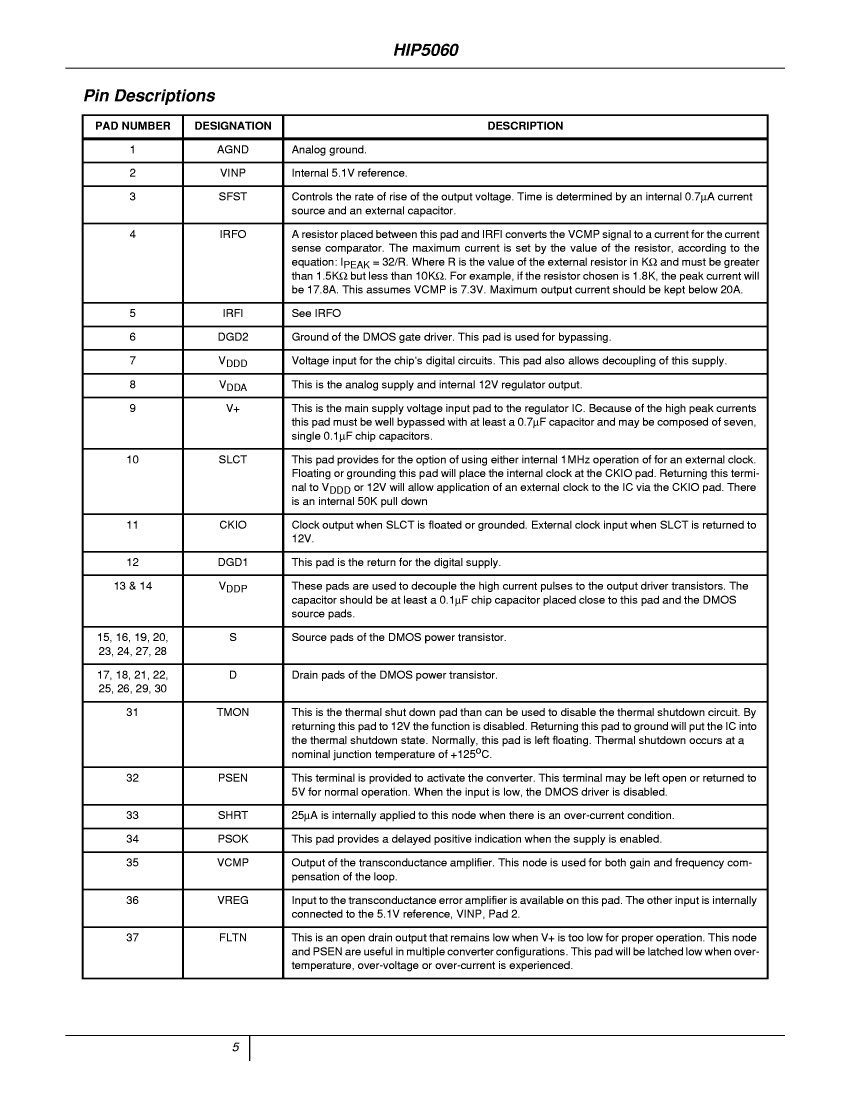

HIP5060DY Overview

Switching Regulator, Current-mode, 20A, 1000kHz Switching Freq-Max, CMOS

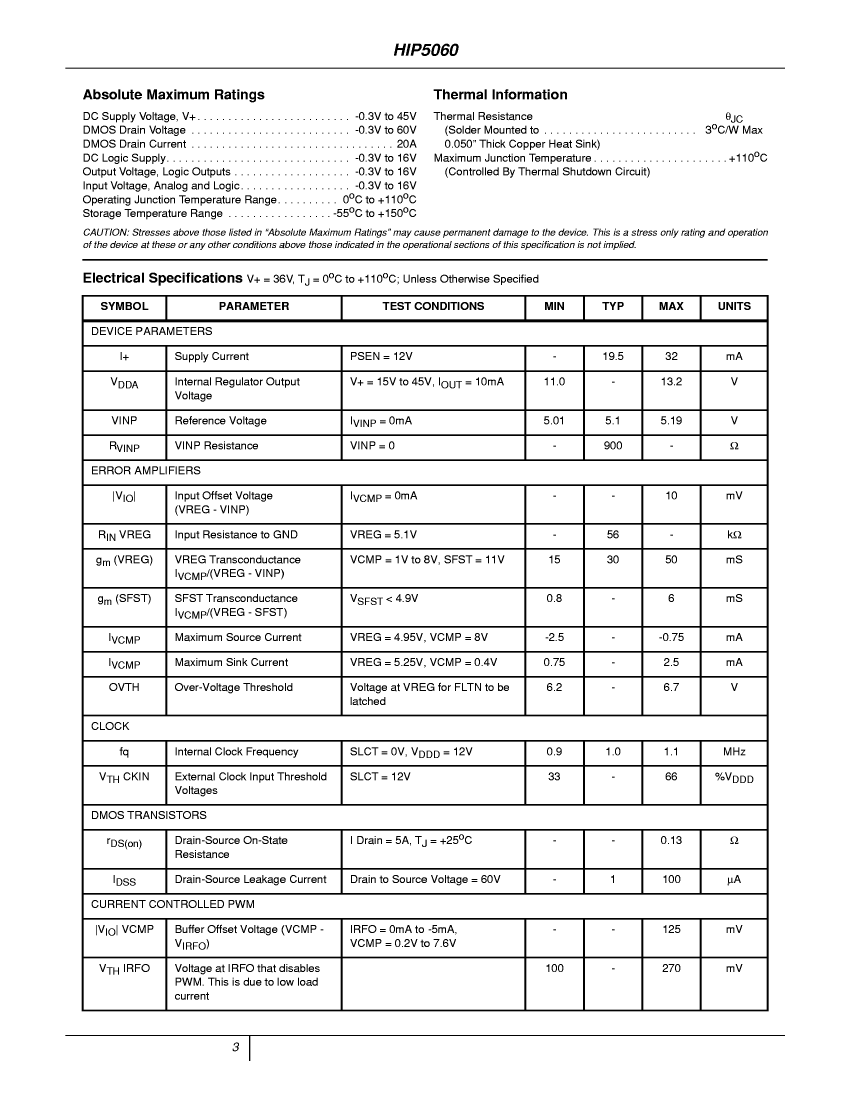

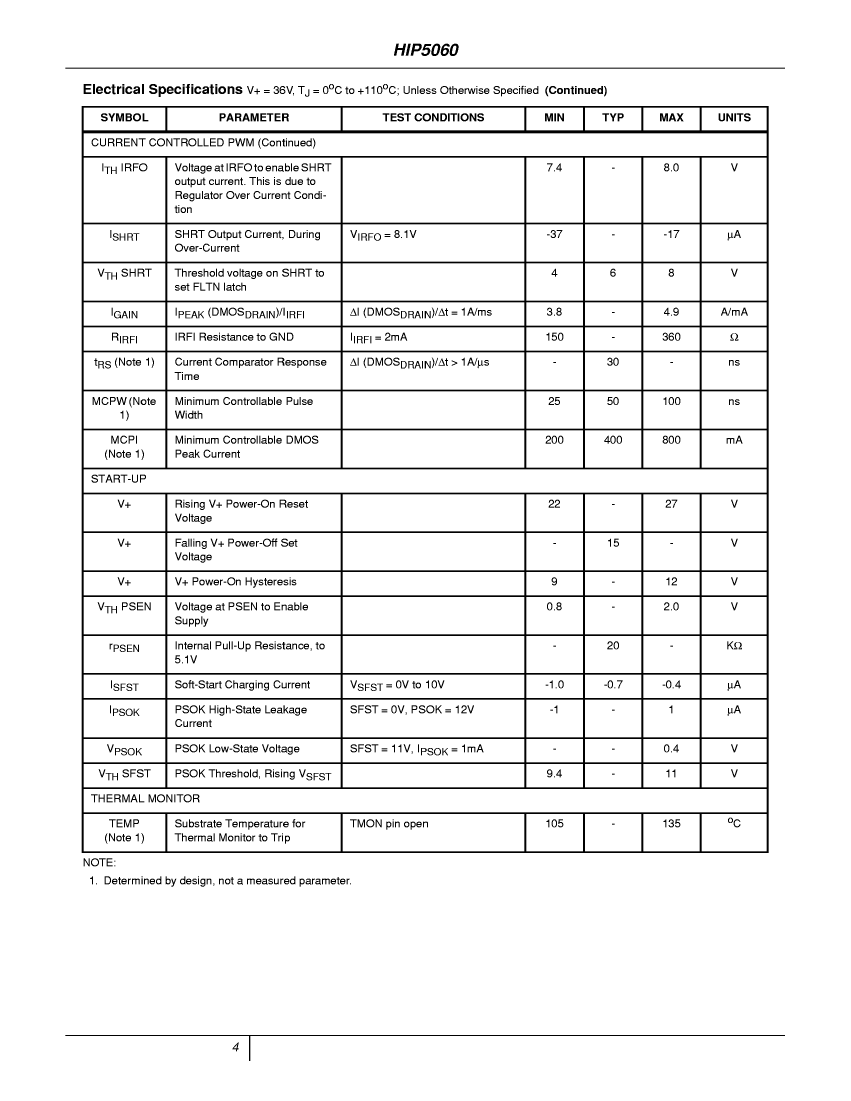

HIP5060DY Parametric

Parameter NameAttribute value
MakerHarris
package instruction, DIE OR CHIP
Reach Compliance Codeunknown
ECCN codeEAR99
Analog Integrated Circuits - Other TypesSWITCHING REGULATOR
control modeCURRENT-MODE
Control TechnologyPULSE WIDTH MODULATION
Maximum input voltage45 V
Minimum input voltage15 V
JESD-30 codeX-XUUC-N37
Number of functions1
Number of terminals37
Maximum operating temperature85 °C
Minimum operating temperature
Maximum output current20 A
Nominal output voltage5.1 V
Package body materialUNSPECIFIED
Encapsulate equivalent codeDIE OR CHIP
Package shapeUNSPECIFIED
Package formUNCASED CHIP
Certification statusNot Qualified
Maximum supply current (Isup)32 mA
surface mountYES
Switch configurationBOOST
Maximum switching frequency1000 kHz
technologyCMOS
Temperature levelOTHER
Terminal formNO LEAD
Terminal locationUPPER
Base Number Matches1

HIP5060DY Related Products

HIP5060DY HIP5060DW
Description Switching Regulator, Current-mode, 20A, 1000kHz Switching Freq-Max, CMOS Switching Regulator, Current-mode, 20A, 1000kHz Switching Freq-Max, CMOS
Maker Harris Harris
package instruction , DIE OR CHIP , WAFER
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Analog Integrated Circuits - Other Types SWITCHING REGULATOR SWITCHING REGULATOR
control mode CURRENT-MODE CURRENT-MODE
Control Technology PULSE WIDTH MODULATION PULSE WIDTH MODULATION
Maximum input voltage 45 V 45 V
Minimum input voltage 15 V 15 V
JESD-30 code X-XUUC-N37 X-XUUC-N37
Number of functions 1 1
Number of terminals 37 37
Maximum operating temperature 85 °C 85 °C
Maximum output current 20 A 20 A
Nominal output voltage 5.1 V 5.1 V
Package body material UNSPECIFIED UNSPECIFIED
Encapsulate equivalent code DIE OR CHIP WAFER
Package shape UNSPECIFIED UNSPECIFIED
Package form UNCASED CHIP UNCASED CHIP
Certification status Not Qualified Not Qualified
Maximum supply current (Isup) 32 mA 32 mA
surface mount YES YES
Switch configuration BOOST BOOST
Maximum switching frequency 1000 kHz 1000 kHz
technology CMOS CMOS
Temperature level OTHER OTHER
Terminal form NO LEAD NO LEAD
Terminal location UPPER UPPER
Base Number Matches 1 1
