533420-9 datasheet, PDF - EEWORLD Datasheet

533420-9: Description180 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; File Size240KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

533420-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	533420-9	-	-	View	Buy Now

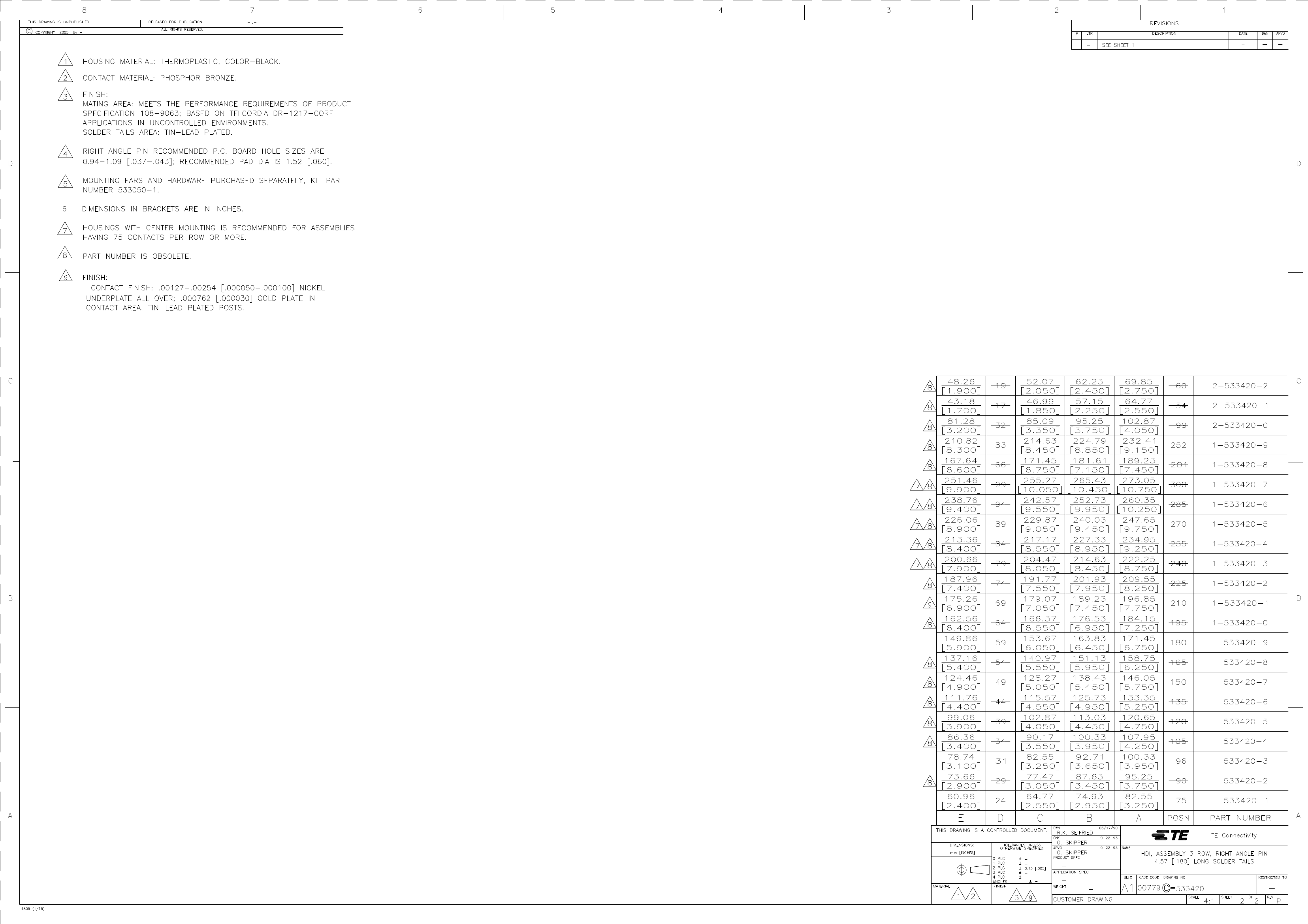

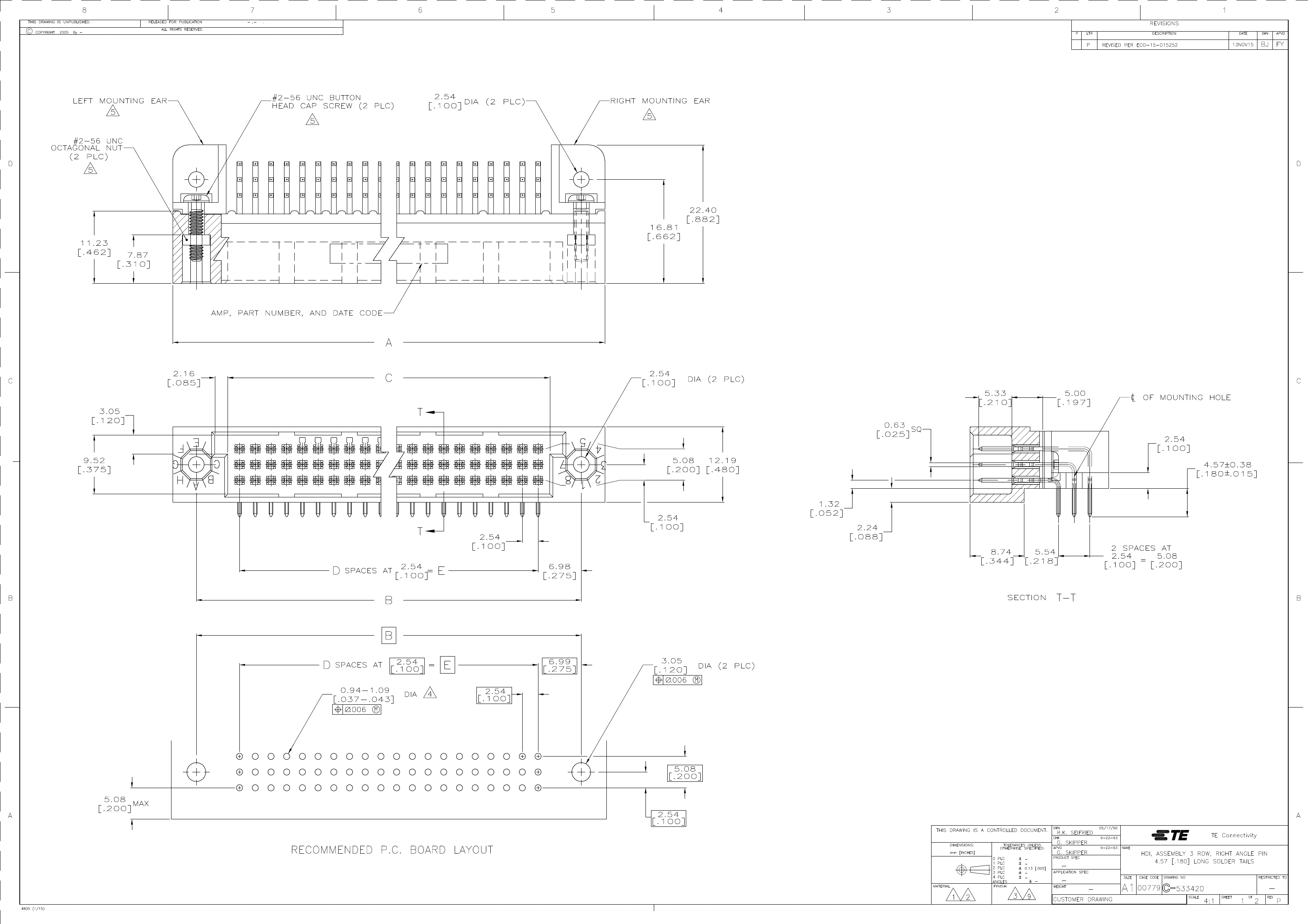

180 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1420288907
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks
YTEOL	9.1
Other features	AMP-HDI
Board mount options	#2-56 THD HOLE
body width	0.48 inch
subject depth	0.882 inch
body length	6.75 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
Insulator color	NATURAL
insulator material	GLASS FILLED POLYPHENYLENE SULFIDE
MIL compliance	NO
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#2-56
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED KEY
Guideline	UL, CSA
Terminal length	0.18 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	180
