Part Number

Search

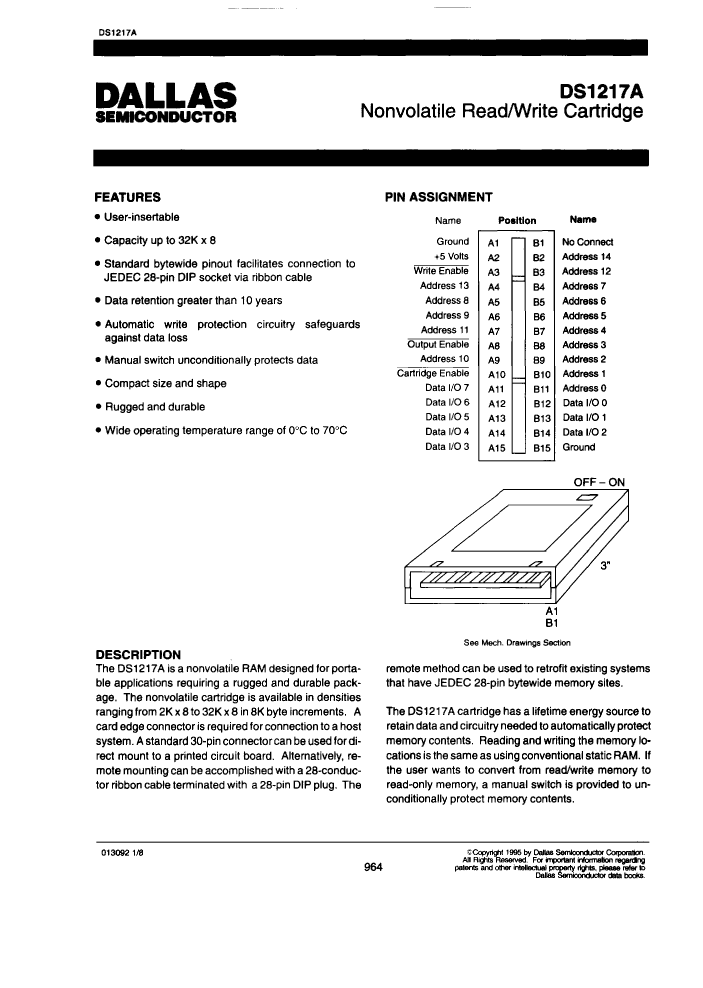

DS1217A/128K-25

Description
Memory Circuit, 16KX8, CMOS
Categorystorage    storage
File Size205KB,8 Pages
ManufacturerMaxim
Websitehttps://www.maximintegrated.com/en.html
Download Datasheet Parametric Compare View All

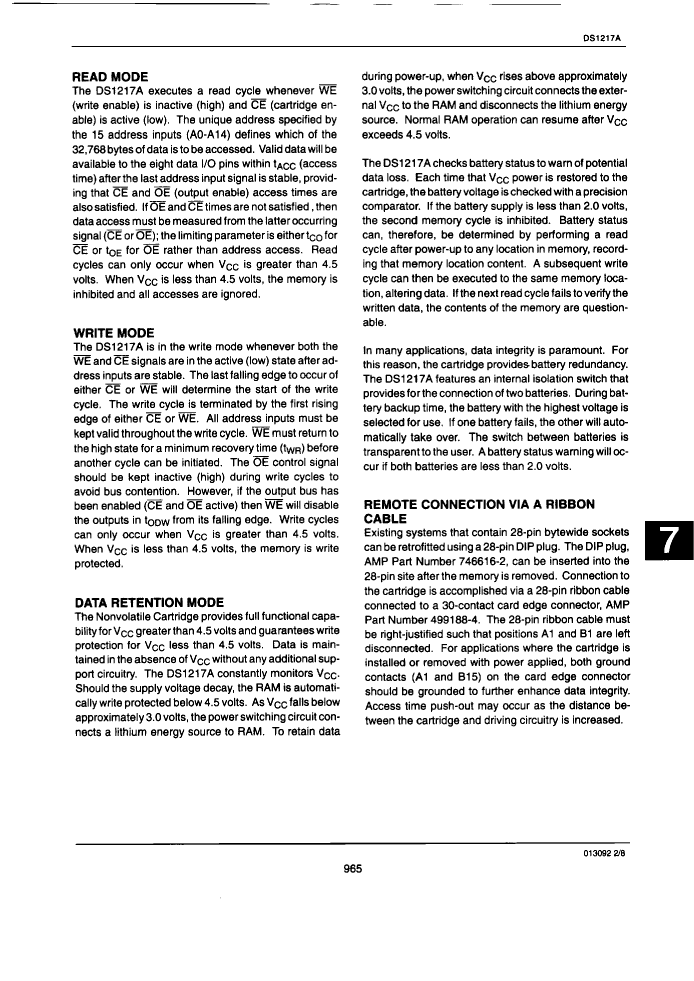

DS1217A/128K-25 Overview

Memory Circuit, 16KX8, CMOS

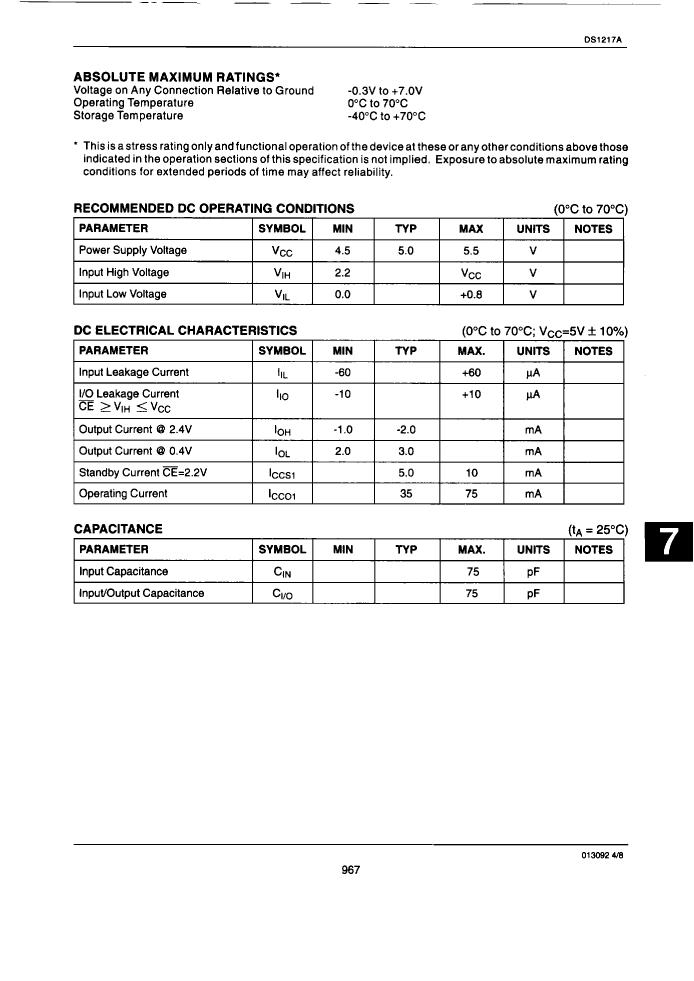

DS1217A/128K-25 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMaxim
Parts packaging codeMODULE
Contacts30
Reach Compliance Codenot_compliant

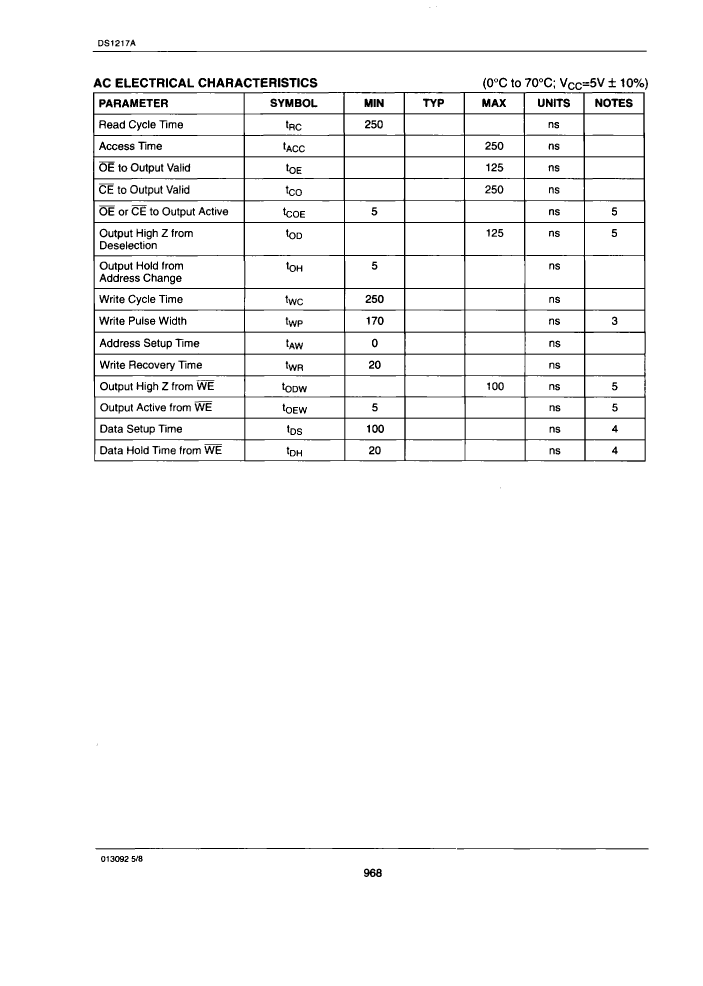

Maximum access time250 ns
JESD-30 codeR-XSMA-N30
JESD-609 codee0
memory density131072 bit
Memory IC TypeMEMORY CIRCUIT
memory width8
Number of functions1
Number of terminals30
word count16384 words
character code16000
Operating modeASYNCHRONOUS
Maximum operating temperature70 °C
Minimum operating temperature
organize16KX8
Package body materialUNSPECIFIED
Encapsulate equivalent codeCARD30
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
Certification statusNot Qualified
Maximum standby current0.01 A
Maximum slew rate0.075 mA
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTIN LEAD
Terminal formNO LEAD
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

DS1217A/128K-25 Related Products

DS1217A/128K-25 DS1217A/64K-25 DS1217A/192K-25
Description Memory Circuit, 16KX8, CMOS Memory Circuit, 8KX8, CMOS Memory Circuit, 24KX8, CMOS,
Is it Rohs certified? incompatible incompatible incompatible
Maker Maxim Maxim Maxim
Parts packaging code MODULE MODULE MODULE
Contacts 30 30 30
Reach Compliance Code not_compliant not_compliant not_compliant
Maximum access time 250 ns 250 ns 250 ns
JESD-30 code R-XSMA-N30 R-XSMA-N30 R-XSMA-N30
JESD-609 code e0 e0 e0
memory density 131072 bit 65536 bit 196608 bit
Memory IC Type MEMORY CIRCUIT MEMORY CIRCUIT MEMORY CIRCUIT
memory width 8 8 8
Number of functions 1 1 1
Number of terminals 30 30 30
word count 16384 words 8192 words 24576 words
character code 16000 8000 24000
Operating mode ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS
Maximum operating temperature 70 °C 70 °C 70 °C
organize 16KX8 8KX8 24KX8
Package body material UNSPECIFIED UNSPECIFIED UNSPECIFIED
Encapsulate equivalent code CARD30 CARD30 CARD30
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
power supply 5 V 5 V 5 V
Certification status Not Qualified Not Qualified Not Qualified
Maximum standby current 0.01 A 0.01 A 0.01 A
Maximum slew rate 0.075 mA 0.075 mA 0.075 mA
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V
surface mount NO NO NO
technology CMOS CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL
Terminal surface TIN LEAD TIN LEAD TIN LEAD
Terminal form NO LEAD NO LEAD NO LEAD
Terminal location SINGLE SINGLE SINGLE
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Base Number Matches 1 - 1
