147-0701-611 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 147-0701-611

147-0701-611: DescriptionRF Connector,; CategoryThe connector The connector; File Size181KB，1 Pages; ManufacturerBel Fuse

Download Datasheet Parametric Compare View All

147-0701-611 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	147-0701-611	-	-	View	Buy Now

147-0701-611 Overview

RF Connector,

147-0701-611 Parametric

Parameter Name	Attribute value
Maker	Bel Fuse
Reach Compliance Code	compliant
Connector type	RF CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

MODEL NO.

147-0701-611

PACKAGING

ONE PCS PER BAG

数字签名人

lin.ma@cn.cinch.com

DN：cn=lin.ma@cn.cinch.com

日期：2017.12.05

13:56:39 +08'00'

REV

001

ECO

ECO-17-0032

DATE

11/28/2017

LASER MARK: "1470701611"

M7 X P0.75-6g

.102 +.004 X4

.0120 PIN

.340

.065

.451

.004

.340

.500 SQ

NOTES: UNLESS OTHERWISE SPECIFIED

1. MATERIAL & FINISH:

1.1 BODY: PASSIVATED STAINLESS STEEL

1.2 CONTACT PIN : GOLD PLATED BERYLLIUM COPPER

1.3 INSULATOR: ULTEM 1000 AMBER

1.4 LOCK RING: GOLD PLATED BRASS

2. ELECTRICAL:

2.1 IMPEDANCE: 50 OHMS

2.2 FREQUENCY RANGE: 0-50 GHz

2.3 VOLTAGE STANDING WAVE RATIO: 1.2 MAX

2.4 CONTACT RESISTANCE:

2.4.1 CENER CONTACT: 4 MILLIOHM MAX

2.4.2 OUTER CONTACT: 2.5 MILLIOHM MAX

2.5 DIELECTRIC WITHSTANDING VOLTAGE: 500 VRMS MIN

2.6 INSULATION RESISTANCE: 5000 MOHM MIN

3. MECHANICAL:

3.1 ENGAGEMENT/ DISENGAGEMENT FORCE: 0.23NM MAX

3.2 CONTACT RETENTION: 20 N MIN

3.3 DURABILITY: 500 CYCLES MIN

4. ENVIRONMENT:

4.1 THERMAL SHOCK: MIL-STD-202, METHOD 107, CONDITION B.

4.2 OPERATING TEMPERATURE: -55 TO 125°C

4.3 SALT SPRAY: MIL-STD-202, METHOD 101, CONDITION B

4.4 SHOCK: MIL-STD-202, METHOD 213, CONDITION I

4.5 VIBRATION: MIL-STD-202, METHOD 204, CONDITION D

4.6 MOISTURE RESISTANCE: MIL-STD-202, METHOD 106

Model No.

147-0701-611

Cage Code

3RD ANGLE PROJECTION

Johnson

Title:

RoHS2

This PROPRIETARY Document

is property of Cinch Connectivity

Solutions. It is confidential in

nature, non-transferable, and

issued with the clear

understanding that it is not

traced or copied without

permission and is returnable

upon demand.

2011/65/EU

UNLESS OTHERWISE SPECIFIED

UNITS: INCH

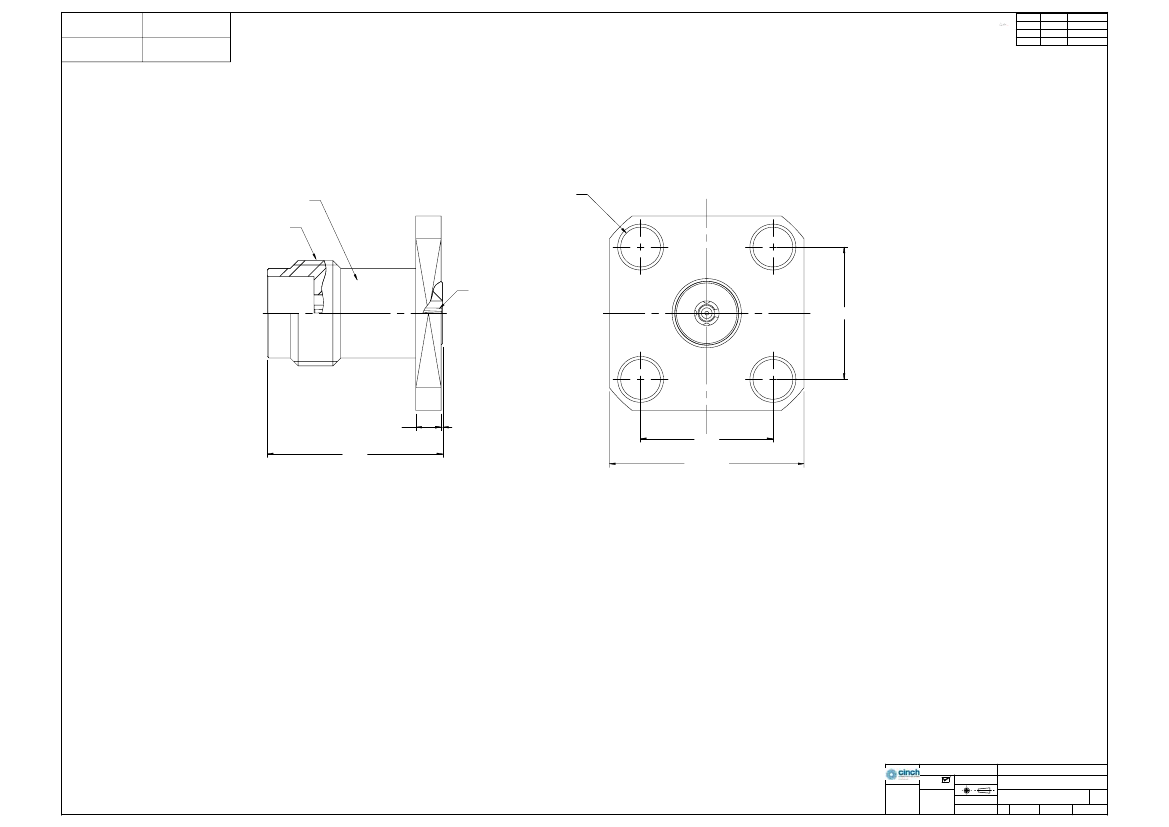

PANEL RECEPTACLE JACK,4 HOLE FLANGE,

ACCEPTS 0.305mm PIN, 2.4mm

Rev.

Drawing No.

Drawn by:

INTERPRET DRAWING IN

ACCORDANCE WITH ASME

Y14.5-2009.

.XXX

.02

.XXXX

.01

ANGLES

Betty.Yu

Date:

147-0701-611

Size

001

Sheet 1 of 1

10/19/2017

DO NOT SCALE

DRAWING

Workmanship Std:

NONE
