SERIES

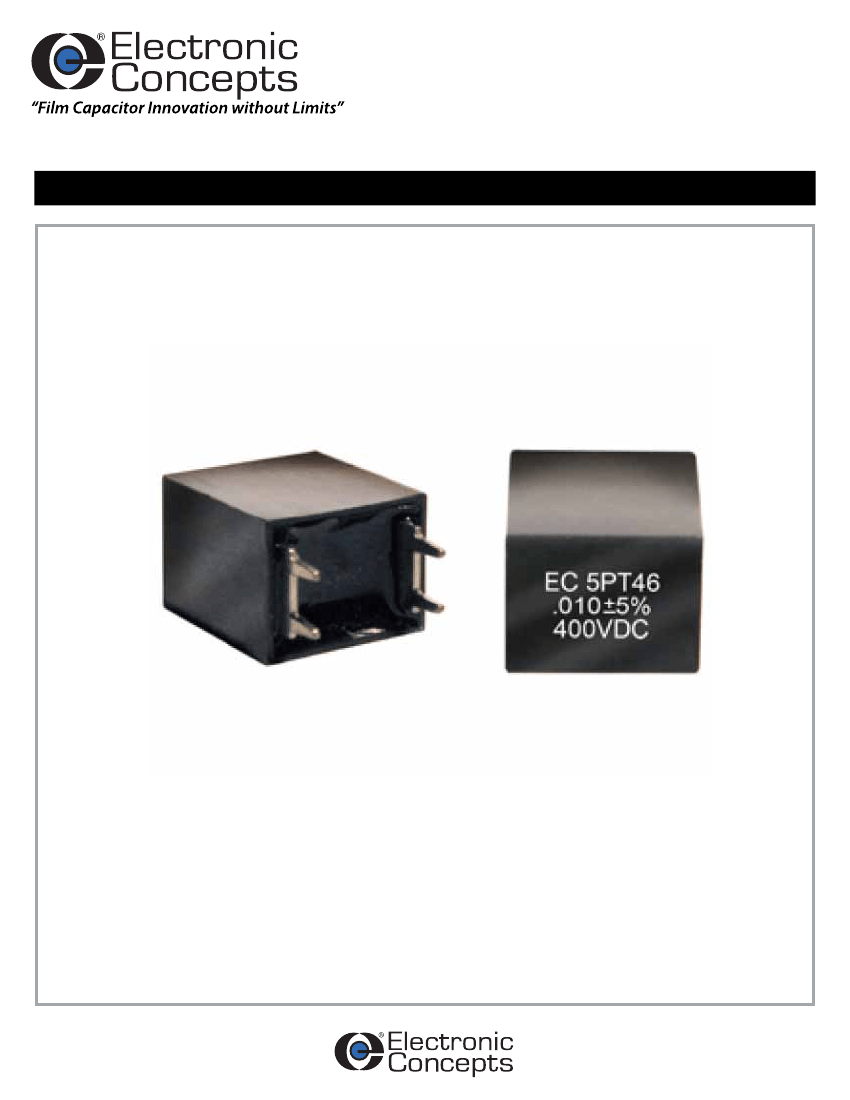

Polypropylene & Foil
Polypropylene & Foil Resonant Power Supply Capacitors
Specifically designed to meet higher current carrying requirements of resonant
power circuits.
5PT
FEATURES
- Higher Current Carrying Capability
- Minimum Inductance Lower Impedance and ESR
- Five Case Sizes
- Compact configuration
- Direct Plug-in Spade Lugs
Rev. 3
Specification Summary
Capacitance Range
0.010μF to 0.100μF
Quality Control
Capacitance Tolerance
Standard capacitance tolerance is ±10%. Tolerances of ±5%, ±2%
and ±1% are also available.
Capacitors are tested 100% for:
• Capacitance
• Tolerance
• Dissipation Factor
• Dielectric withstanding voltage
• Insulation Resistance
Process and inspection data are maintained on file and available
upon special request.
Operating Temperature Range
-55°C to +105°C
Environmental
Parameter
Vibration
Immersion
Shock
Humidity
Thermal Shock
Life
Method
204
104
213
106
107
108
Reference MIL-STD-202
Condition
D
B
I
-
A
F
Enclosure/Construction
Extended Foil
Voltage Rating
400 VDC to 1500 VDC
230 VAC to 460 VAC
Characteristics
100,000
Insulation Resistance vs. Temperature
Capacitance Change at 1kHz vs. Temperature
3.0%
2.0%
1.0%
0.0%
-1.0%
-2.0%
-3.0%
-4.0%
-60
-45
-30
-15
0
15
30
45
60
75
90
105 120 135 150
Insulation Resistanc (MΩ
x μF)
10,000
1,000
100
10
1
25
50
75
100
125
150
Temperature (C)
Capacitance Change (%)
Temperature (C)
Dielectric Strength
Capacitors withstand a DC potential of 1.5 x rated
voltage for one (1) minute without damage or
breakdown. Test voltage is applied and discharged
through a minimum resistance of 100 OHMS per
volt minimum.
Dissipation Factor
When mearsured at the frequency specified for
capacitance measurement, the dissipation factor will
not exceed 0.05%.
Dissipation Factor at 1kHz vs. Temperature
0.03%
Dissipation Factor (%)
0.02%
0.02%
0.01%
0.01%
0.00%
-60 -45 -30 -15
0
15
30
45
60
75
90 105 120 135 150
Temperature (C)
Rev. 3
Additional Information
Its uniquely shaped lugs are mechanically sturdy and able to accommodate higher current with minimum inductance. The
termination lugs are also a direct "plug-in" type which adds to overall performance efficiency.
With the advent of the 5PT, the designer can maximize frequency characteristics -- and at the same time simplify system
design with miniaturization, reduce assembly work -- plus realize significant overall system cost savings.
How to Order
TYPE
Polypropylene & Foil
STYLE/VOLTAGE
46; / J = 400VDC; N = 800VDC; etc.
CAPACITANCE IN PICOFARADS
The first two digits are significant, the third represents the number
of zeros
TOLERANCE
K = ±10%. Tolerances of ±5%, ±2%, and ±1% are also available.
5PT
46J
103
K
Marking And Date Code
All capacitors are marked with company initials "EC", corporate logo or EC trademark—in addition to type 5PT, capacitance, tolerance, rated
DC working voltage and date code. The first two digits of the date code represent the year, the second two digits the week, i.e., 1252 is the
52nd week of 2012, 1202 is the second week of 2012.
Quality Assurance
Major emphasis is placed on quality assurance. EC is an ISO 9001-2008 and AS9100:2009 Certified Company. Raw material inspection and
the use of SPC manufacturing procedures assure the highest quality standards. Procedures are fully described in the EC Quality Control
Manual. Electronic Concepts will continue to advance the state-of-the-art by utilizing leading edge technology, compact capacitor designs and
establishing reliability procedures.
