BTS555PE3146 datasheet, PDF - EEWORLD Datasheet

BTS555PE3146: DescriptionBuffer/Inverter Based Peripheral Driver, 108A, MOS, PSFM5; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size301KB，12 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

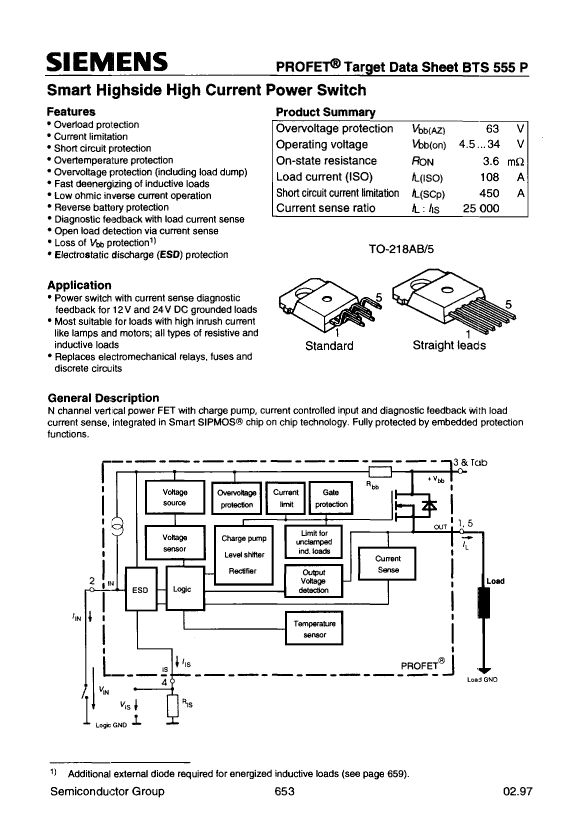

BTS555PE3146 Overview

Buffer/Inverter Based Peripheral Driver, 108A, MOS, PSFM5

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99

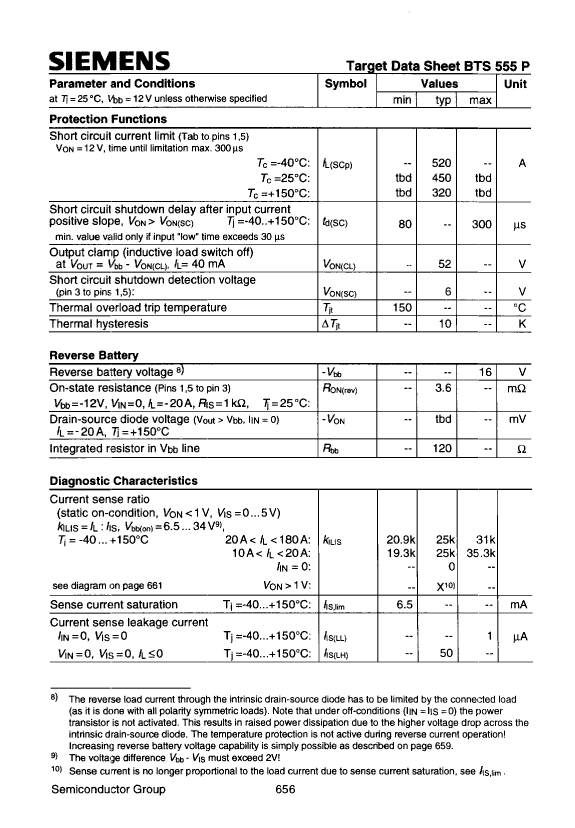

Built-in protection	OVER CURRENT; OVER VOLTAGE; THERMAL
Input properties	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PSFM-T5
Number of functions	1
Number of terminals	5
Output characteristics	OPEN-SOURCE
Output current flow direction	SINK

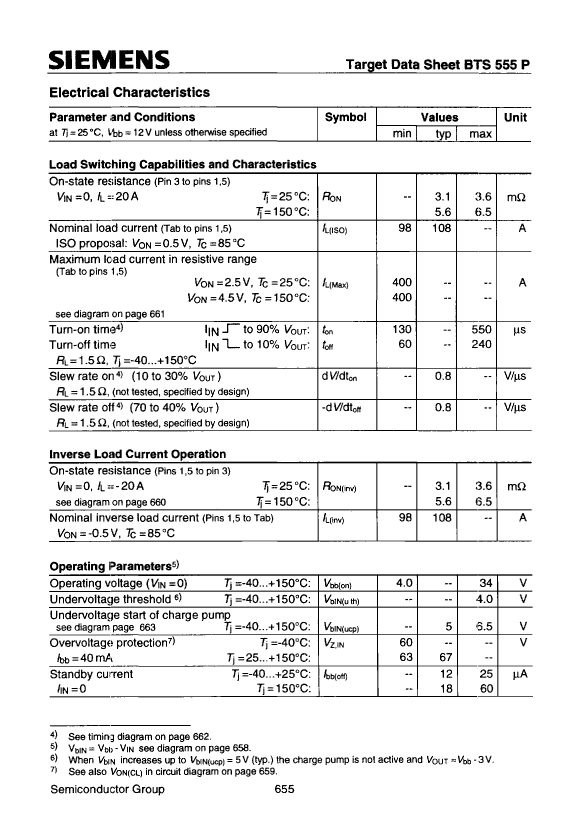

Nominal output peak current	108 A
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified

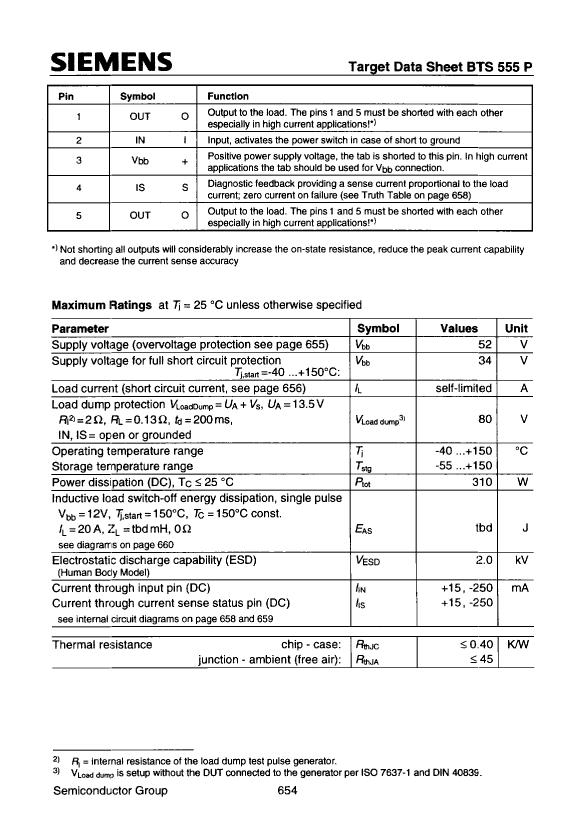

Maximum supply voltage	34 V
Minimum supply voltage	4 V
Nominal supply voltage	12 V
surface mount	NO
technology	MOS
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

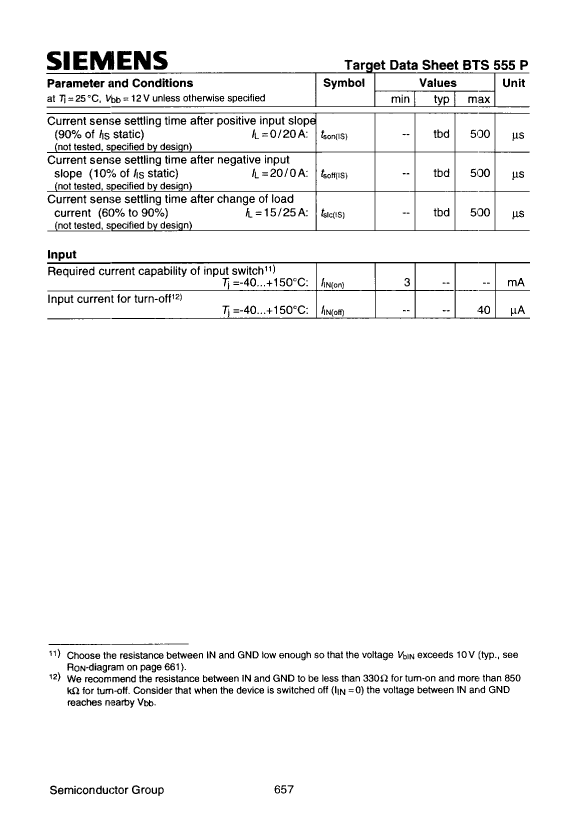

Disconnect time	240 µs
connection time	550 µs
Base Number Matches	1

	BTS555PE3146
Description	Buffer/Inverter Based Peripheral Driver, 108A, MOS, PSFM5
Reach Compliance Code	unknown
ECCN code	EAR99
Built-in protection	OVER CURRENT; OVER VOLTAGE; THERMAL
Input properties	STANDARD
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PSFM-T5
Number of functions	1
Number of terminals	5
Output characteristics	OPEN-SOURCE
Output current flow direction	SINK
Nominal output peak current	108 A
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum supply voltage	34 V
Minimum supply voltage	4 V
Nominal supply voltage	12 V
surface mount	NO
technology	MOS
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Disconnect time	240 µs
connection time	550 µs
Base Number Matches	1
