RT081-105TG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> RT081-105TG

RT081-105TG: DescriptionRelay Socket, 5 Contact(s); CategoryThe connector socket; File Size115KB，1 Pages; ManufacturerAdvanced Interconnections Corp.

Download Datasheet Parametric View All

RT081-105TG Overview

Relay Socket, 5 Contact(s)

RT081-105TG Parametric

Parameter Name	Attribute value
Maker	Advanced Interconnections Corp.
Reach Compliance Code	compliant
ECCN code	EAR99
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN LEAD OVER NICKEL
Device slot type	RELAY SOCKET
Shell material	POLYIMIDE
JESD-609 code	e0
Manufacturer's serial number	RT081
Number of contacts	5
Base Number Matches	1

Preview

Download Datasheet

View All

Relay Sockets

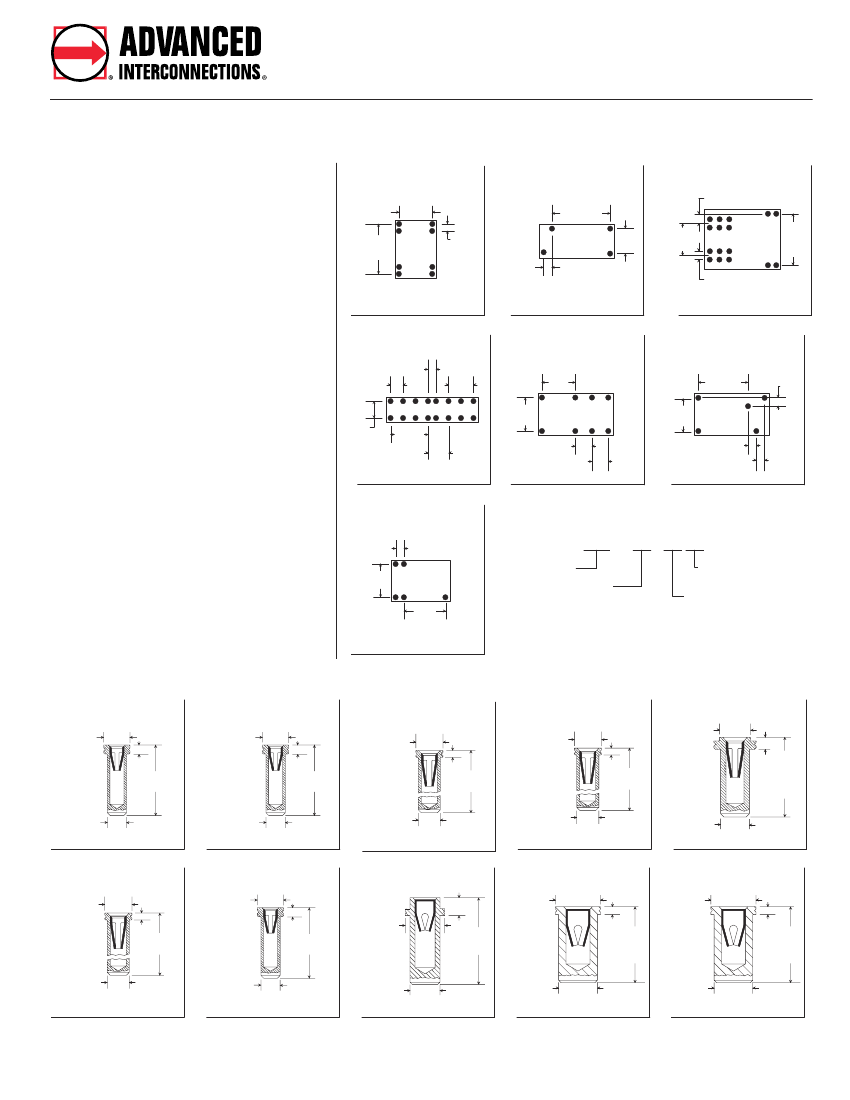

5 Energy Way, P.O. Box 1019, West Warwick, RI 02893 USA Tel. 800-424-9850/401-823-5200 • Fax 401-823-8723 • Email info@advintcorp.com • Internet http://www.advintcorp.com

Relay Sockets

Features:

• Peel-A-Way

delivery system.

• Complete soldering visibility on both sides

of PCB.

• Maximum air flow. Better flux rinse.

• Multiple terminal types available on a

single sheet.

• No special assembly equipment required.

• Thru hole design available for board to

board applications.

• RTV sealant, tape seal and solder preform

options available.

Relay Footprint #RFXXX

.350

(8.89)

.100

(2.54)

.126

(3.20)

Relay Footprint #T75

Relay Footprint #T92

.185

(4.70)

.748

(19.00)

.300

(7.62)

.630

(16.00)

1.000

(25.40)

.600

(15.24)

.203

(5.16) Typ.

Series 107, 171, 172, 173 & 174

DIP Reed Relays

Relay Footprint #T84

.100

(2.54)

.200

(5.08)

.400

(10.16)

Relay Footprint #

T85 & T82N

.300

(7.62)

Relay Footprint #T74

.500

(12.70)

.100

(2.54)

Terminals and Contacts:

Terminal: Brass - Copper Alloy (C36000)

ASTM-B-16

Contact: Beryllium Copper - Copper Alloy

(C17200), ASTM-B-194

.300

(7.62)

.600

(15.24)

.300

(7.62)

.300

(7.62)

.300

(7.62)

.200

(5.08)

.200

(5.08)

.100

(2.54)

.100

(2.54)

Plating:

Terminal: Gold over Nickel or

Tin-Lead over Nickel

Contact: Gold over Nickel or

Tin-Lead over Nickel

Relay Footprint #T81

How To Order

R T075 -XXX T G

Footprint #

Terminal Type

See Below

Contact Plating

G - Gold T - Tin-Lead

Terminal Plating

G - Gold T - Tin-Lead

.100

(2.54)

.300

(7.62)

Body Material:

Polyimide Film - Temp. range -269˚C to

400˚C (-452˚F to 752˚F)

.400

(10.16)

Terminal Information

Type -301

Accepts .022" - .032" Dia. Leads

Type -102

Accepts .022" - .032" Dia. Leads

Type -106

Accepts .032" - .047" Dia. Leads

Type -144

Accepts .032" - .047" Dia. Leads

Type -107

Accepts .032" - .047" Dia. Leads

.070 Dia.

(1.79)

.015

(.38)

.178

(4.52)

.093 Dia.

(2.36)

.031

(.79)

.250

(6.35)

.090 Dia.

(2.29)

.023

(.58) .206

(5.23)

.090 Dia.

(2.29)

.031

(.79) .280

(7.11)

.092 Dia.

(2.37)

.036

(.91)

.236

(5.99)

.055 Dia.

(1.40)

Part #3818 Contact Group D

Standard Pitch .100" (2.54)

.068 Dia.

(1.73)

Part #1721 Contact Group D

Standard Pitch .150" (3.91)

.073 Dia.

(1.85)

Part #1718 Contact Group E

Standard Pitch .150" (3.91)

.073 Dia.

(1.85)

Part #1806 Contact Group E

Standard Pitch .150" (3.91)

.085 Dia.

(2.16)

Part #1726 Contact Group E

Standard Pitch .150" (3.91)

Type -327

Accepts .035" - .045" Dia. Leads

Type -302

Accepts .040" - .060" Dia. Leads

Type -104

Accepts .065" - .082" Dia. Leads

.100

(2.54)

.182 Dia.

(4.62)

Type -105

Accepts .065" - .082" Dia. Leads

Type -323

Accepts .065" - .082" Leads

.125 Dia.

(3.18)

.031

(.79) .345

(8.76)

.118 Dia.

(3.00)

.015

(.38)

.288

(7.31)

.188 Dia.

(4.78)

.188 Dia.

(4.78)

.032

(.81)

.307

(7.80)

.031

(.79)

.345

(8.75)

.412

(10.46)

.085 Dia.

(2.16)

Part #3971 Contact Group E1

Standard Pitch .150" (3.91)

.088 Dia.

(2.24)

Part #3819 Contact Group E2

Standard Pitch .150" (3.91)

.142 Dia.

(3.61)

Part #1723 Contact Group F

Standard Pitch .250" (6.45)

.156 Dia.

(3.96)

Part #1724 Contact Group F

Standard Pitch .250" (6.45)

.142 Dia.

(3.61)

Part #3967 Contact Group F

Standard Pitch .250" (6.45)

Peel-A-Way

covered by patent rights issued and/or pending.

inch/(mm)

Products shown covered by patents issued and/or pending. Specifications subject to change without notice.

Page 76
