BX5325PM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BX5325PM

BX5325PM: Description5 MHz - 125 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, H1; CategoryWireless rf/communication Radio frequency and microwave; File Size112KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BX5325PM Overview

5 MHz - 125 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, H1

BX5325PM Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	19.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	125 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

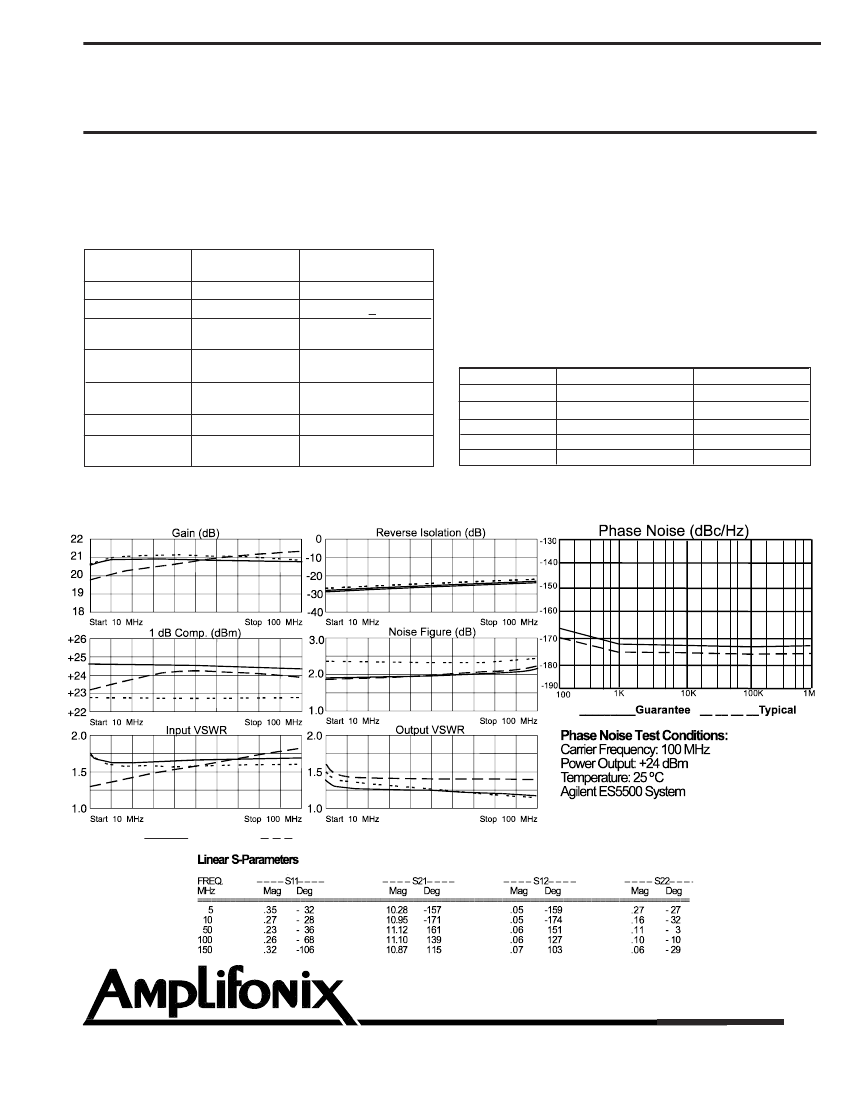

RF AMPLIFIER

MODEL

TM5325PM

Features

Superior Phase Noise Performance

Low Noise Figure: 2.0 dB Typical

High Output Power: +24 dBm Typical

Operating Temp. - 55 ºC

to +85

ºC

TYPICAL

Ta= 25 ºC

5-125 MHz

20.5

+24

-24

1.70:1

1.35:1

2.0

+12

MIN/MAX

Ta = -55 ºC to +85 ºC

5-125 MHz

20.5 + 1.0

+22.5 Min.

-23 Max.

2.2:1 Max.

2.0:1 Max.

3.0 Max.

+12

95 Max.

Available as:

TM5325PM, 4 Pin TO-8 (T4)

TN5325PM, 4 Pin Surface Mount (SM3)

FP5325PM, 4 Pin Flatpack (FP4)

BX5325PM, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ....... +58 dBm (Typ.)

Second Order Two Tone Intercept Point ........ +52 dBm (Typ.)

Third Order Two Tone Intercept Point ............ +40 dBm (Typ.)

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power ...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt (3

µsec

Max.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise figure (dB)

Power

Vdc

VSWR

Guaranteed Phase Noise Performance

(dBc/Hz)

Frequency

100 Hz

1 kHz

10 kHz

100 kHz

1 MHz

Typical

-170

-175

-176

-175

Guarantee (Min.)

-166

-171

-172

-171

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

2707 Black Lake Place, Philadelphia, PA 19154

TEL 215-464-4000

· · · ·

FAX 215-464-4001

12/18/03

BX5325PM Related Products

	BX5325PM	TN5325PM	TM5325PM	FP5325PM
Description	5 MHz - 125 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, H1	5 MHz - 125 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, SM3, 4 PIN	5 MHz - 125 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, T4, TO-8, 4 PIN	5 MHz - 125 MHz RF/MICROWAVE WIDE BAND MEDIUM POWER AMPLIFIER, FP-4
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COMPONENT	COMPONENT	COMPONENT
Gain	19.5 dB	19.5 dB	19.5 dB	19.5 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm
Maximum operating frequency	125 MHz	125 MHz	125 MHz	125 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER	WIDE BAND MEDIUM POWER
Maximum voltage standing wave ratio	2	2	2	2
Maker	Spectrum Microwave	-	Spectrum Microwave	Spectrum Microwave
